NDA-24298 CHAPTER 4
Page 957
Issue 1
ALGSN : Assignment of Telephone Station Data for NDM

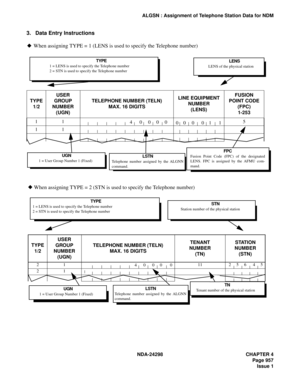

3. Data Entry Instructions
 When assigning TYPE = 1 (LENS is used to specify the Telephone number)
When assigning TYPE = 2 (STN is used to specify the Telephone number)
TYPE
1/2USER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER (TELN)
MAX. 16 DIGITSLINE EQUIPMENT
NUMBER
(LENS)FUSION
POINT CODE
(FPC)
1-253
115
11
           4      0     0     0     0 0    0     0      0    1      1


TYPE
1 = LENS is used to...

CHAPTER 4 NDA-24298
Page 958
Issue 1
ALGSN : Assignment of Telephone Station Data for NDM
4. Data Sheet
(a) LENS is used to specify the Telephone number (TYPE = 1)
TYPEUSER GROUP
NUMBER (UGN)TELEPHONE NUMBER
(TELN)
MAX. 16 DIGITSLINE EQUIPMENT
NUMBER
(LENS)FUSION POINT
CODE
(FPC)
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11

NDA-24298 CHAPTER 4
Page 959
Issue 1
ALGSN : Assignment of Telephone Station Data for NDM
(b) STN is used to specify the Telephone number (TYPE = 2)
TYPEUSER GROUP
NUMBER (UGN)TELEPHONE NUMBER (TELN)
MAX. 16 DIGITSTENANT
NUMBER
(TN)STATION
NUMBER
(STN)REMARKS
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21

CHAPTER 4 NDA-24298
Page 960
Issue 1
ATSTN : Assignment of Telephone Number and Station Number for NDM
ATSTN: Assignment of Telephone Number and Station Number for NDM
1. General
This command assigns both Telephone Number (TELN) and Physical Station Number. As the function of
ALGSN and ASDT commands are combined to this command, Physical Station Number can be assigned at the
same time when assigning the Telephone Number. If the Telephone Number is deleted, the allocated Station
Number can also be...

NDA-24298 CHAPTER 4
Page 961
Issue 1
ATSTN : Assignment of Telephone Number and Station Number for NDM

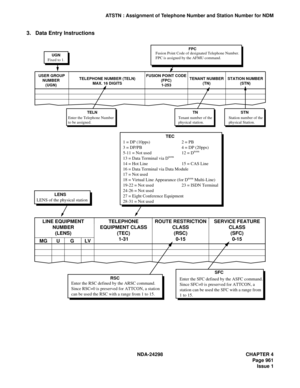

3. Data Entry Instructions
1 = DP (10pps)
3 = DP/PB
5-11 = Not used
13 = Data Terminal via D
term
14 = Hot Line
16 = Data Terminal via Data Module
17 = Not used
18 = Virtual Line Appearance (for D
term Multi-Line)
19-22 = Not used
24-26 = Not used
27 = Eight Conference Equipment
28-31 = Not used2 = PB
4 = DP (20pps)
12 = D
term
15 = CAS Line
23 = ISDN Terminal TEC
LINE EQUIPMENT
NUMBER
(LENS)
MG U G...

CHAPTER 4 NDA-24298
Page 962
Issue 1
ATSTN : Assignment of Telephone Number and Station Number for NDM
4. Data Sheet
USER GROUP
NUMBER
(UGN)TELEPHONE NUMBER (TELN)
MAX. 16 DIGITSFUSION
POINT CODE
(FPC)
1-253TENANT
NUMBER
(TN)STATION
NUMBER
(STN)

NDA-24298 CHAPTER 4
Page 963
Issue 1
ATSTN : Assignment of Telephone Number and Station Number for NDM
LINE EQUIPMENT
NUMBER
(LENS)TELEPHONE
EQUIPMENT CLASS
(TEC)
1-31ROUTE
RESTRICTION CLASS
(RSC)
0-15SERVICE
FEATURE CLASS
(SFC)
0-15
MG U G LV

CHAPTER 4 NDA-24298
Page 964
Issue 1
APLNN : Assignment of Physical LENS Number for NDM
APLNN: Assignment of Physical LENS Number for NDM
1. General
This command changes the existing station data allocated to each TELN (Telephone number) such as FPC,
LENS, Tenant Number, and Station.
2. Precautions
1. This command can be used only when logging in to the NCN (Network Control Node).
2. This command is used for business service only. (Not available for Hotel system and PCS stations.)
3. The new physical...

NDA-24298 CHAPTER 4
Page 965
Issue 1
APLNN : Assignment of Physical LENS Number for NDM

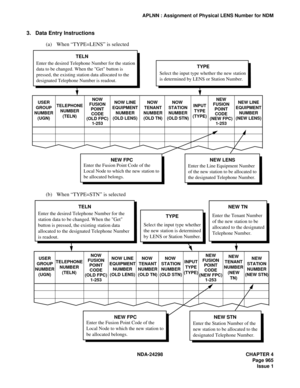

3. Data Entry Instructions
(a) When “TYPE=LENS” is selected
(b) When “TYPE=STN” is selected
USER
GROUP
NUMBER
(UGN)NOW LINE
EQUIPMENT
NUMBER
(OLD LENS)NEW LINE
EQUIPMENT
NUMBER
(NEW LENS) NOW
TENANT
NUMBER
(OLD TN)NOW
STATION
NUMBER
(OLD STN) NOW
FUSION
POINT
CODE
(OLD FPC)
1-253NEW
FUSION
POINT
CODE
(NEW FPC)
1-253 TELEPHONE
NUMBER
(TELN)INPUT
TYPE
(TYPE)
TELN
Enter the desired Telephone Number for the station...

CHAPTER 4 NDA-24298
Page 966
Issue 1
APLNN : Assignment of Physical LENS Number for NDM
4.  Data Sheet
(a) When “TYPE=LENS” is selected
USER
GROUP
NUMBER
(UGN)TELEPHONE
NUMBER
(TELN)NOW
FUSION
POINT
CODE
(OLD FPC)
1-253NOW LINE
EQUIPMENT
NUMBER
(OLD LENS)NOW
TENANT
NUMBER
(OLD TN)NOW
STATION
NUMBER
(OLD STN)
