NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 927
Issue 1
ASPAN : Assignment of Special Access Code for NDM
ASPAN: Assignment of Special Access Code for NDM
1. General
This command assigns the numbering plan data of the Network Control Node (NCN). The data assigned by this
command is written in the Network Data Memory (NDM) of the Network Control Node (NCN), updating the
NDM at each Local Node (LN).
2. Precautions
1. This command is used for the Business/Hotel (for Admin. station only) Application.
2. The applicable Tenant...

CHAPTER 4 NDA-24298
Page 928
Issue 1
ASPAN : Assignment of Special Access Code for NDM

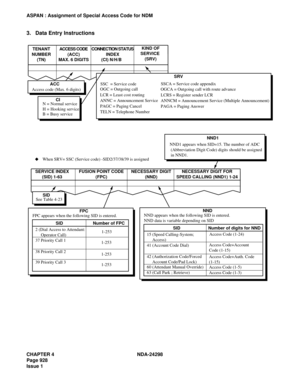

3. Data Entry Instructions
Access code (Max. 6 digits)TENANT
NUMBER
(TN)ACCESS CODE
(ACC)
MAX. 6 DIGITSCONNECTION STATUS
INDEX
(CI) N/H/B  KIND OF
SERVICE
(SRV)
ACC
CISRV
OGCA = Outgoing call with route advanceSSCA = Service code appendix
LCR = Least cost routing
ANNC = Announcement Service
PAGC = Paging Cancel
TELN = Telephone Number N = Normal service
H = Hooking serviceSSC  = Service code
OGC = Outgoing call
LCRS...

NDA-24298 CHAPTER 4
Page 929
Issue 1
ASPAN : Assignment of Special Access Code for NDM
Note 1:
When Split Call Forwarding is in service (the command ASYDN, SYS1, INDEX79, bit2 = 1), this access
code is used for Split Call Forwarding service.  The access codes for Call Forwarding service are specified
by SRV = 3 (SSCA), SIDA 86-89.
Note 2:The access code for the services marked * on Table 4-23 must be assigned with the same number of digit,
if the access code begins using the same number. It is not...

CHAPTER 4 NDA-24298
Page 930
Issue 1
ASPAN : Assignment of Special Access Code for NDM

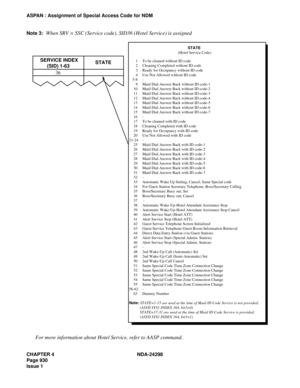

Note 3:
When SRV = SSC (Service code), SID36 (Hotel Service) is assigned
For more information about Hotel Service, refer to AASP command.
         STATE
(Hotel Service Code)
1 To be cleaned without ID code
2 Cleaning Completed without ID code
3 Ready for Occupancy without ID code
4 Use Not Allowed without ID code
 5-8 -
9 Maid Dial Answer Back without ID code-1
10 Maid Dial Answer Back without ID code-2
11 Maid Dial...

NDA-24298 CHAPTER 4
Page 931
Issue 1
ASPAN : Assignment of Special Access Code for NDM

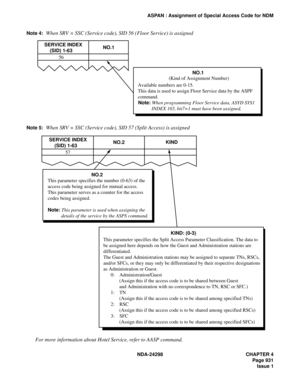

Note 4:
When SRV = SSC (Service code), SID 56 (Floor Service) is assigned
Note 5:When SRV = SSC (Service code), SID 57 (Split Access) is assigned
For more information about Hotel Service, refer to AASP command.
SERVICE INDEX
    (SID) 1-63     NO.1
56
NO.1
(Kind of Assignment Number)
  Available numbers are 0-15.
  This data is used to assign Floor Service data by the ASPF
  command.
  Note: When programming Floor...

CHAPTER 4 NDA-24298
Page 932
Issue 1
ASPAN : Assignment of Special Access Code for NDM
Note 1:
This data is valid for Call Forwarding service when Split Call Forwarding is in service. (The command
ASYDN, SYS 1, INDEX 79, bit2=1.)
Note 2:This data can be set when CI=N (Normal).
Note 3:The access code for the services marked * on Table 4-24 must be assigned with the same number of digit,
if the access code begins using the same number. It is not available to assign different number of digit for
the access...

NDA-24298 CHAPTER 4
Page 933
Issue 1
ASPAN : Assignment of Special Access Code for NDM

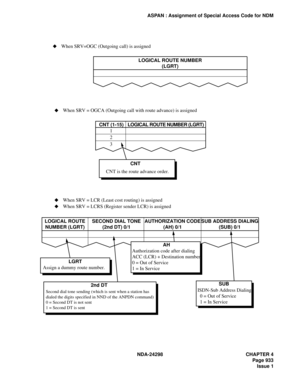

LOGICAL ROUTE NUMBER
(LGRT)
When SRV=OGC (Outgoing call) is assigned
Assign a dummy route number.LGRT
Second dial tone sending (which is sent when a station has
dialed the digits specified in NND of the ANPDN command)
0 = Second DT is not sent
1 = Second DT is sent
2nd DTAuthorization code after dialing
ACC (LCR) + Destination number
0 = Out of Service
1 = In ServiceAH
ISDN-Sub Address Dialing
  0 = Out of Service
  1...

CHAPTER 4 NDA-24298
Page 934
Issue 1
ASPAN : Assignment of Special Access Code for NDM

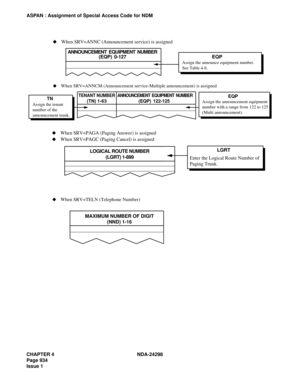

LOGICAL ROUTE NUMBER
(LGRT) 1-899
When SRV=PAGA (Paging Answer) is assigned
When SRV=PAGC (Paging Cancel) is assigned
LGRT
Enter the Logical Route Number of
Paging Trunk.
Assign the announce equipment number.
See Table 4-6.
When SRV=ANNC (Announcement service) is assigned
ANNOUNCEMENT EQUIPMENT NUMBER
(EQP) 0-127 EQP
Assign the tenant
number of the
announcement trunk.
When SRV=ANNCM (Announcement service-Multiple...

NDA-24298 CHAPTER 4
Page 935
Issue 1
ASPAN : Assignment of Special Access Code for NDM
4. Data Sheet
(a) Service code (SRV = SSC)
Note 1:The parameter may vary depending on the service.
Note 2:When Split Call Forwarding is in service (the command ASYD, SYS1, INDEX79, bit2=1), this access code
is used for Split Call Forwarding.
Note 3:When Speed Calling-System; Access is assigned, NND1 parameter assignment is also required in addition
to NND parameter.
Note 4:Fill in the FPC in place of the parameter...

CHAPTER 4 NDA-24298
Page 936
Issue 1
ASPAN : Assignment of Special Access Code for NDM
(a) Service code (SRV = SSC) (Continued)
Note 1:The parameter may vary depending on the service.
Note 2:The available numbers of necessary digits vary depending on the parameter SID.
Note 3:For detailed information of Hotel Service assignment, refer to the AASP command.
Note 4:Fill in the FPC in place of NND.
TENANT
NUMBER
(TN)ACCESS CODE
(ACC)
MAXIMUM
6 DIGITSCONNECTION
STATUS INDEX
(CI) N/H/BKIND OF
SERVICE...
