NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 967
Issue 1
APLNN : Assignment of Physical LENS Number for NDM





INPUT
TYPE
(TYPE)NEW
FUSION POINT
CODE
 (NEW FPC)
1-253NEW LINE EQUIPMENT
NUMBER
(NEW LENS)REMARKS

CHAPTER 4 NDA-24298
Page 968
Issue 1
APLNN : Assignment of Physical LENS Number for NDM
(b) When “TYPE=STN” is selected
USER
GROUP
NUMBER
(UGN)TELEPHONE
NUMBER
(TELN)NOW
FUSION
POINT
CODE
(OLD FPC)
1-253NOW LINE
EQUIPMENT
NUMBER
(OLD LENS)NOW
TENANT
NUMBER
(OLD TN)NOW
STATION
NUMBER
(OLD STN)


























NDA-24298 CHAPTER 4
Page 969
Issue 1
APLNN : Assignment of Physical LENS Number for NDM
INPUT
TYPE
(TYPE)NEW
FUSION POINT
CODE
 (NEW FPC)
1-253NEW TENANT
NUMBER
(NEW TN)NEW STATION
NUMBER
(NEW STN)REMARKS

CHAPTER 4 NDA-24298
Page 970
Issue 1
ATDF : Assignment of Time Difference Data
ATDF: Assignment of Time Difference Data
1. General
This command is required when there is time difference within the Fusion link. The difference of time between
nodes and the UCT (Universal Coordinated Time) are written in Network Data Memory (NDM) of the Network
Control Node (NCN) by using this command.
2. Precautions
1. When SIGN = “0,” HOUR and MINUTE are not available. Therefore, if SIGN = “0,” the data is deleted.
2. For...

NDA-24298 CHAPTER 4
Page 971
Issue 1
ATDF : Assignment of Time Difference Data
4. Data Sheet
FUSION POINT CODE
(FPC)
1-253(SIGN)
1/2HOUR
(HOUR)
 0-12MINUTE
(MINUTE)
0-59REMARKS

CHAPTER 4 NDA-24298
Page 972
Issue 1

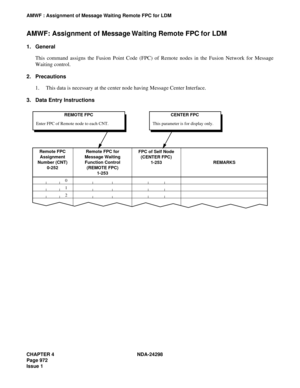

AMWF : Assignment of Message Waiting Remote FPC for LDM
AMWF: Assignment of Message Waiting Remote FPC for LDM
1. General
This command assigns the Fusion Point Code (FPC) of Remote nodes in the Fusion Network for Message
Waiting control.
2. Precautions
1. This data is necessary at the center node having Message Center Interface.
3. Data Entry Instructions
Remote FPC
Assignment
Number (CNT)
0-252Remote FPC for
Message Waiting
Function Control
(REMOTE FPC)
1-253FPC of...

NDA-24298 CHAPTER 4
Page 973
Issue 1
AMWF : Assignment of Message Waiting Remote FPC for LDM
4. Data Sheet
REMOTE FPC
ASSIGNMENT NUMBER
(CNT)
0-252REMOTE FPC FOR MESSAGE
WAITING FUNCTION CONTROL
(REMOTE FPC)
1-253REMARKS

CHAPTER 4 NDA-24298
Page 974
Issue 1

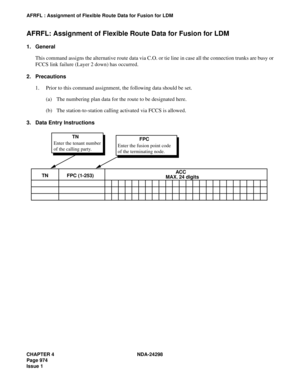

AFRFL : Assignment of Flexible Route Data for Fusion for LDM
AFRFL: Assignment of Flexible Route Data for Fusion for LDM
1. General
This command assigns the alternative route data via C.O. or tie line in case all the connection trunks are busy or
FCCS link failure (Layer 2 down) has occurred.
2. Precautions
1. Prior to this command assignment, the following data should be set.
(a) The numbering plan data for the route to be designated here.
(b) The station-to-station...

NDA-24298 CHAPTER 4
Page 975
Issue 1
AFRFL : Assignment of Flexible Route Data for Fusion for LDM
4. Data Sheet

TN FPC (1-253)ACC
MAX. 24 digits

CHAPTER 4 NDA-24298
Page 976
Issue 1

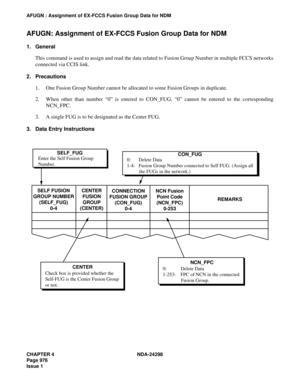

AFUGN : Assignment of EX-FCCS Fusion Group Data for NDM
AFUGN: Assignment of EX-FCCS Fusion Group Data for NDM
1. General
This command is used to assign and read the data related to Fusion Group Number in multiple FCCS networks
connected via CCIS link.
2. Precautions
1. One Fusion Group Number cannot be allocated to some Fusion Groups in duplicate.
2. When other than number “0” is entered to CON_FUG, “0” cannot be entered to the corresponding
NCN_FPC.
3. A single FUG...
