31
Getting Started
will also change. [Boot Menu] is displayed only when [Boot First Menu] in the
[Security] menu is set to [Enable]
*1This item is not displayed when starting up the Setup Utility with the User Password.
‹Parameters

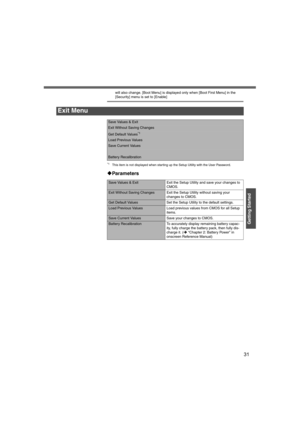

Exit Menu
Save Values & Exit
Exit Without Saving Changes
Get Default Values*1
Load Previous Values
Save Current Values
Battery Recalibration
Save Values & Exit Exit the Setup Utility and save your changes to
CMOS.
Exit Without Saving Changes Exit the Setup Utility without...

32
Operation
Useful Information

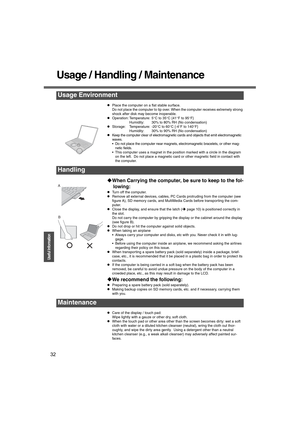

Usage / Handling / Maintenance
zPlace the computer on a flat stable surface.
Do not place the computer to tip over. When the computer receives extremely strong
shock after disk may become inoperable.
zOperation: Temperature: 5°C to 35°C {41°F to 95°F}
Humidity: 30% to 80% RH (No condensation)
zStorage: Temperature: -20°C to 60°C {-4°F to 140°F}
Humidity: 30% to 90% RH (No condensation)
zKeep the computer clear of electromagnetic cards and objects that emit electromagnetic...

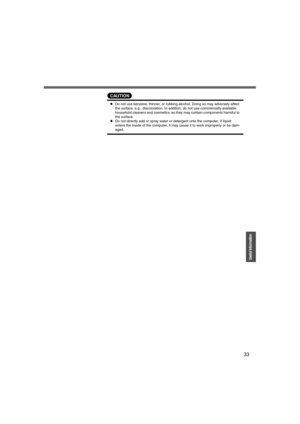

33
Operation
Useful Information
CAUTION
zDo not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect
the surface, e.g., discoloration. In addition, do not use commercially-available
household cleaners and cosmetics, as they may contain components harmful to
the surface.
zDo not directly add or spray water or detergent onto the computer. If liquid
enters the inside of the computer, it may cause it to work improperly or be dam-
aged.
W2mk4.book  33 ページ  ２００４年１２月１日　水曜日　午後９時２２分

34
Operation
Useful Information

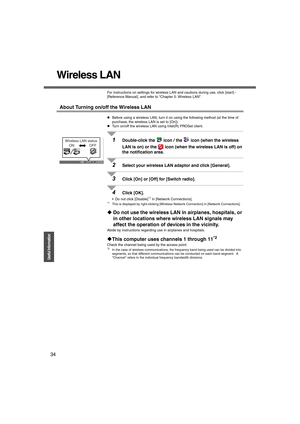

Wireless LAN
For instructions on settings for wireless LAN and cautions during use, click [start] -
[Reference Manual], and refer to “Chapter 5: Wireless LAN”.
About Turning on/off the Wireless LAN
zBefore using a wireless LAN, turn it on using the following method (at the time of
purchase, the wireless LAN is set to [On]).
zTurn on/off the wireless LAN using Intel(R) PROSet client.
1Double-click the   icon / the   icon (when the wireless
LAN is on) or the  icon (when...

35
Operation
Useful Information

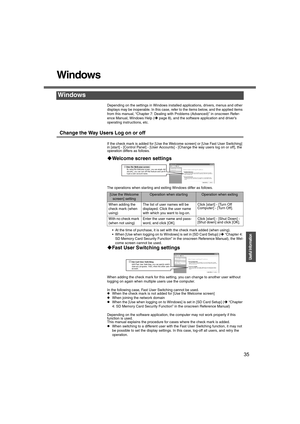

Windows
Depending on the settings in Windows installed applications, drivers, menus and other
displays may be inoperable. In this case, refer to the items below, and the applied items
from this manual, “Chapter 7: Dealing with Problems (Advanced)” in onscreen Refer-
ence Manual, Windows Help (Îpage 8), and the software application and driver’s
operating instructions, etc.
Change the Way Users Log on or off
If the check mark is added for [Use the Welcome screen] or [Use...

36
Operation
Useful Information
Antivirus Measures/When Disposing of This Device
To improve the security of the computer, use the following measures.
zUse antivirus software (commercially available).
zUse Windows XP Internet Connection Firewall.
zUpdate Windows
If you can connect to the Internet, perform Windows Update. This can help protect
the computer against virus attacks.
Windows Update enables you to update Windows on your computer by applying the
latest patches and service packs for Windows....

37
Operation
Useful Information

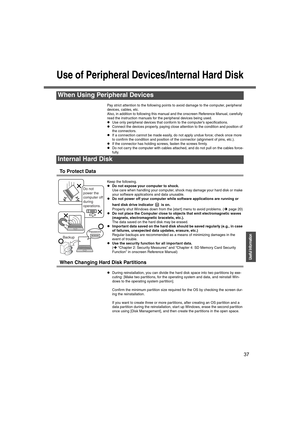

Use of Peripheral Devices/Internal Hard Disk
Pay strict attention to the following points to avoid damage to the computer, peripheral
devices, cables, etc.
Also, in addition to following this manual and the onscreen Reference Manual, carefully
read the instruction manuals for the peripheral devices being used.
zUse only peripheral devices that conform to the computer’s specifications.
zConnect the devices properly, paying close attention to the condition and position of...

38
Operation
Useful Information

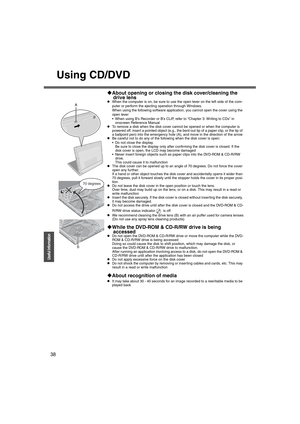

Using CD/DVD
‹About opening or closing the disk cover/cleaning the
drive lens
zWhen the computer is on, be sure to use the open lever on the left side of the com-
puter or perform the ejecting operation through Windows.
When using the following software application, you cannot open the cover using the
open lever
 When using B’s Recorder or B’s CLiP, refer to “Chapter 3: Writing to CDs” in
onscreen Reference Manual
zTo remove a disk when the disk cover cannot be opened...

39
Troubleshooting

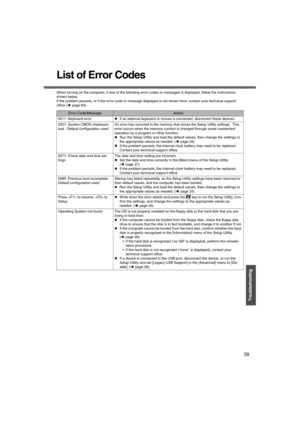

List of Error Codes
When turning on the computer, if one of the following error codes or messages is displayed, follow the instructions
shown below.
If the problem persists, or if the error code or message displayed is not shown here, contact your technical support
office (Îpage 60).
Error Code/MessageAction
0211: Keyboard errorzIf an external keyboard or mouse is connected, disconnect these devices.
0251: System CMOS checksum
bad - Default configuration usedAn error has occurred in...

40
Troubleshooting

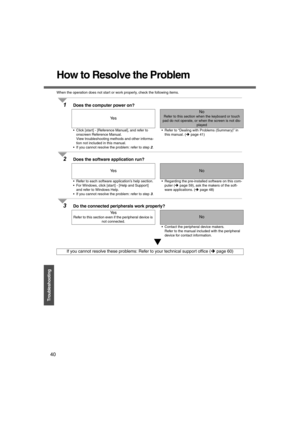

How to Resolve the Problem
When the operation does not start or work properly, check the following items.
1Does the computer power on?
Ye s
No
Refer to this section when the keyboard or touch
pad do not operate, or when the screen is not dis-
played
 Click [start] - [Reference Manual], and refer to
onscreen Reference Manual.
View troubleshooting methods and other informa-
tion not included in this manual.
 If you cannot resolve the problem: refer to step 2. Refer to “Dealing with...
