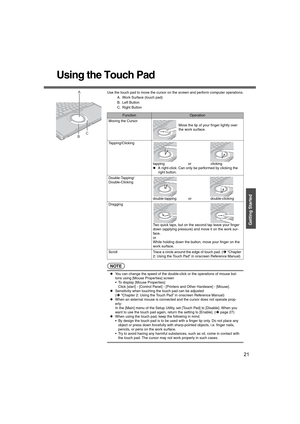

21
Getting Started
Using the Touch Pad
Use the touch pad to move the cursor on the screen and perform computer operations.
A. Work Surface (touch pad)
B. Left Button
C. Right Button
NOTE
zYou can change the speed of the double-click or the operations of mouse but-
tons using [Mouse Properties] screen
 To display [Mouse Properties]:
Click [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].
zSensitivity when touching the touch pad can be adjusted
(Î “Chapter 2: Using the Touch Pad” in...

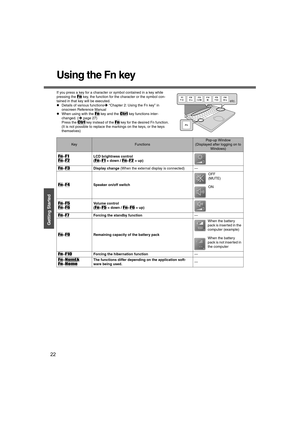

22
Getting Started
Using the Fn key
If you press a key for a character or symbol contained in a key while
pressing the
Fn key, the function for the character or the symbol con-
tained in that key will be executed.
zDetails of various functionsÎ “Chapter 2: Using the Fn key” in
onscreen Reference Manual
zWhen using with the
Fn key and the Ctrl key functions inter-
changed. (Îpage 27)
Press the
Ctrl key instead of the Fn key for the desired Fn function.
(It is not possible to replace the markings on...

23
Getting Started
Expanding Memory
Depending on the computer, you can expand the RAM module (sold separately). The
increase in memory will improve the processing speed of Windows and other applica-
tion software. (Effects may differ depending on your usage conditions.)
zUse recommended RAM module products. Do not use non-recommended RAM
modules.  Non-recommended RAM modules may not operate properly, and may
cause damage to your computer.  Refer to Specifications (Îpage 57) for recom-
mended RAM...

Expanding Memory

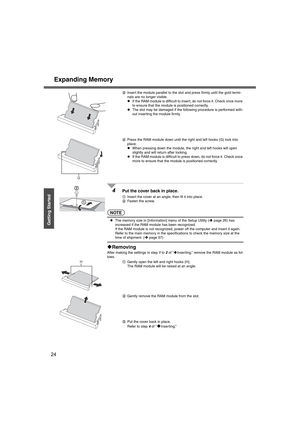

24
Getting Started
CInsert the module parallel to the slot and press firmly until the gold termi-
nals are no longer visible.
z If the RAM module is difficult to inse rt, do not force it. Check once more
to ensure that the module is positioned correctly.
z The slot may be damaged if the following procedure is performed with-
out inserting the module firmly.
D Press the RAM module down until the right and left hooks (G) lock into
place.
z When pressing down the module, the right and...

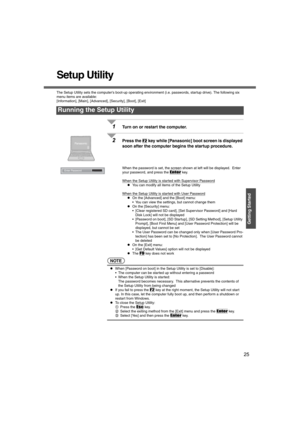

25
Getting Started
Setup Utility
The Setup Utility sets the computers boot-up operating environment (i.e. passwords, startup drive). The following six
menu items are available:
[Information], [Main], [Advanced], [Security], [Boot], [Exit]
1Turn on or restart the computer.
2Press the F2 key while [Panasonic] boot screen is displayed
soon after the computer begins the startup procedure.
When the password is set, the screen shown at left will be displayed.  Enter
your password, and press the
Enter key....

Setup Utility

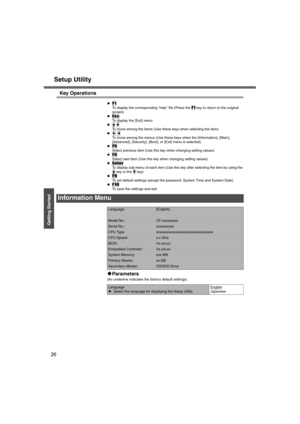

26
Getting Started
Key Operations
zF1
To display the corresponding help file (Press the F1 key to return to the original
screen)
z
Esc
To display the [Exit] menu
zÏ
 Ð
To move among the items (Use these keys when selecting the item)
zÍ
 Î
To move among the menus (Use these keys when the [Information], [Main],
[Advanced], [Security], [Boot], or [Exit] menu is selected)
z
F5
Select previous item (Use this key when changing setting values)
z
F6
Select next item (Use this key when changing...

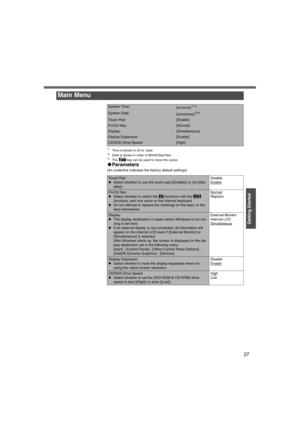

27
Getting Started
*1Time is shown in 24-hr. style. *2Date is shown in order of Month/Day/Year.*3The Tab key can be used to move the cursor.
‹Parameters
(An underline indicates the factory default settings)
Main Menu
System Time:[xx:xx:xx]*1*3
System Date:[xx/xx/xxxx]*2*3
Touch Pad:[Enable]
Fn/Ctrl Key:[Normal]
Display:[Simultaneous]
Display Expansion:[Enable]
CD/DVD Drive Speed:[High]
Touch Pad
zSelect whether to use the touch pad ([Enable]) or not ([Dis-
able])Disable
Enable
Fn/Ctrl Key
zSelect whether...

Setup Utility

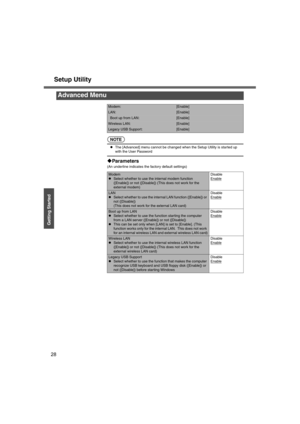

28
Getting Started
NOTE
zThe [Advanced] menu cannot be changed when the Setup Utility is started up
with the User Password
‹Parameters
(An underline indicates the factory default settings)
Advanced Menu
Modem:[Enable]
LAN:[Enable]
  Boot up from LAN:[Enable]
Wireless LAN:[Enable]
Legacy USB Support:[Enable]
Modem
zSelect whether to use the internal modem function
([Enable]) or not ([Disable]) (This does not work for the
external modem)Disable
Enable
LAN
zSelect whether to use the...

29
Getting Started
*1This is displayed only when an SD memory card has been registered. (Î “Chapter 4: SD
Memory Card Security Function” in onscreen Reference Manual)
NOTE
zWhen the Setup Utility is started up with the User Password:
 [Clear registered SD card], [Set Supervisor Password] and [Hard Disk Lock]
will not be displayed
 [Password on boot], [SD Startup], [SD Setting Method], [Setup Utility Prompt],
[Boot First Menu] and [User Password Protection] will be displayed, but cannot
be set
 The...

Setup Utility

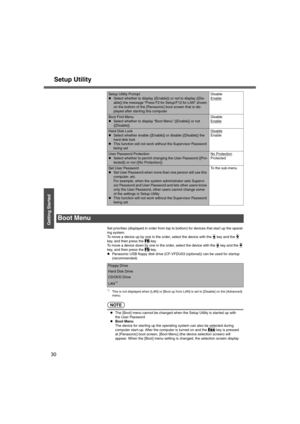

30
Getting Started
Set priorities (displayed in order from top to bottom) for devices that start up the operat-
ing system.
To move a device up by one in the order, select the device with the Ï
 key and the Ð
key, and then press the
F6 key.
To move a device down by one in the order, select the device with the Ï
 key and the Ð
key, and then press the
F5 key.
zPanasonic USB floppy disk drive (CF-VFDU03 (optional)) can be used for startup
(recommended)
*1This is not displayed when [LAN]...
