Panasonic Cf W2dwadzbm Owners Manual

51

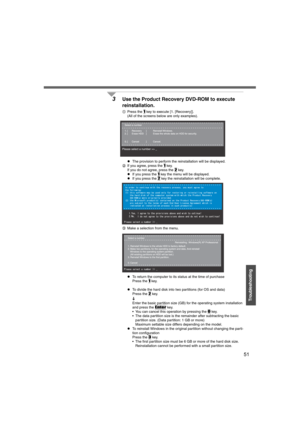

Troubleshooting
3Use the Product Recovery DVD-ROM to execute
reinstallation.
APress the 1 key to execute [1. [Recovery]].
(All of the screens below are only examples).
zThe provision to perform the reinstallation will be displayed.
BIf you agree, press the
1 key.
If you do not agree, press the
2 key.
zIf you press the
1 key the menu will be displayed.
zIf you press the
2 key the reinstallation will be complete.
CMake a selection from the menu.
zTo return the computer to its status at the time of...

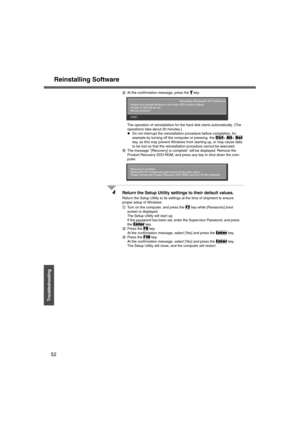

Reinstalling Software
52
Troubleshooting
DAt the confirmation message, press the Y key.
The operation of reinstallation for the hard disk starts automatically. (The
operations take about 20 minutes.)
zDo not interrupt the reinstallation procedure before completion, for
example by turning off the computer or pressing  the
Ctrl+ Alt+ Del
key, as this may prevent Windows from starting up, or may cause data
to be lost so that the reinstallation procedure cannot be executed.
EThe message [Recovery] is...

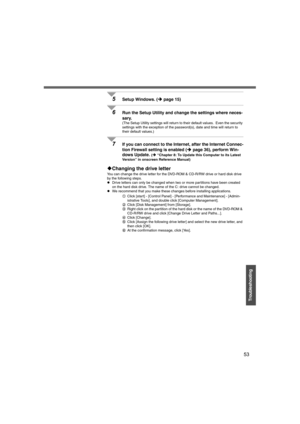

53
Troubleshooting
5Setup Windows. (Îpage 15)
6Run the Setup Utility and change the settings where neces-
sary.
(The Setup Utility settings will return to their default values.  Even the security
settings with the exception of the password(s), date and time will return to
their default values.)
7If you can connect to the Internet, after the Internet Connec-
tion Firewall setting is enabled (Îpage 36), perform Win-
dows Update.
(Î “Chapter 8: To Update this Computer to its Latest
Version” in onscreen...

54
Important Information

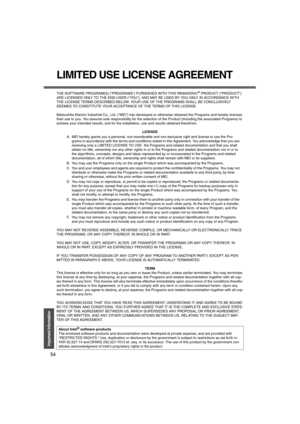

LIMITED USE LICENSE AGREEMENT
THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY
DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses
their...

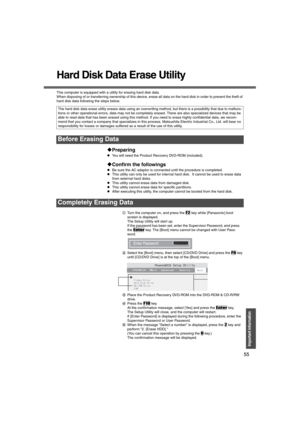

55
Important Information
Hard Disk Data Erase Utility
This computer is equipped with a utility for erasing hard disk data.
When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the theft of
hard disk data following the steps below.
‹Preparing
zYou will need the Product Recovery DVD-ROM (included).
‹Confirm the followings
zBe sure the AC adaptor is connected until the procedure is completed.
zThis utility can only be used for internal hard disk....

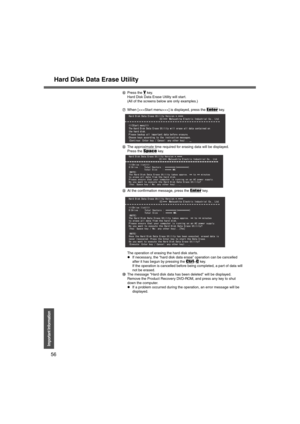

Hard Disk Data Erase Utility
56
Important Information
FPress the Y key.
Hard Disk Data Erase Utility will start.
(All of the screens below are only examples.)
GWhen [] is displayed, press the
Enter key.
HThe approximate time required for erasing data will be displayed.
Press the
Space key.
IAt the confirmation message, press the
Enter key.
The operation of erasing the hard disk starts.
zIf necessary, the “hard disk data erase” operation can be cancelled
after it has begun by pressing the
Ctrl+C key....

57
Important Information

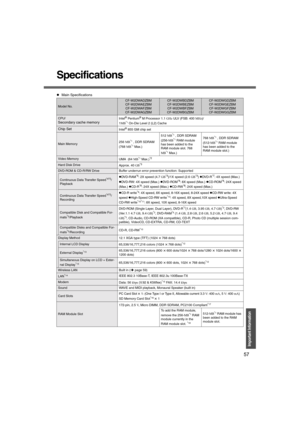

Specifications
zMain Specifications
Model No.
CF-W2DWADZBM
CF-W2DWAEZBM CF-W2DWAFZBM
CF-W2DWAGZBMCF-W2DWBDZBM
CF-W2DWBEZBMCF-W2DWBFZBM
CF-W2DWBGZBMCF-W2DWGDZBM
CF-W2DWGEZBM CF-W2DWGFZBM
CF-W2DWGGZBM
CPU/
Secondary cache memory
Intel® Pentium® M Processor 1.1  GHz ULV (FSB: 400  MHz)/
1 MB*1 On-Die Level 2 (L2) Cache
Chip SetIntel® 855 GM chip set
Main Memory 256
MB*1 , DDR SDRAM
(768  MB*1 Max.) 512
MB
*1 , DDR SDRAM
(256- MB*1 RAM module
has been added to the
RAM module...

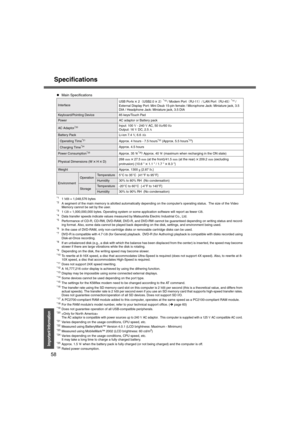

Specifications
58
Important Information
*11 MB  = 1,048,576 bytes*2A segment of the main memory is allotted automatically depending on the computer’s operating status.  The size of the Video
Memory cannot be set by the user.
*31 GB  = 1,000,000,000 bytes. Operating system or some application software will report as fewer  GB.*4Data transfer speeds indicate values measured by Matsushita Electric Industrial Co., Ltd.*5Performance of CD-R, CD-RW, DVD-RAM, DVD-R, and DVD-RW c annot be guaranteed depending...

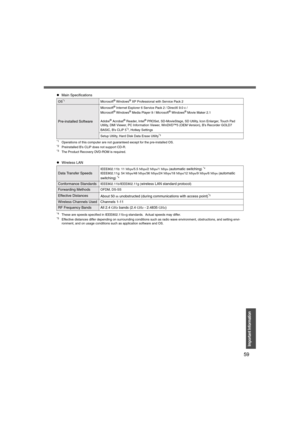

59
Important Information
*1Operations of this computer are not guaranteed except for the pre-installed OS.*2Preinstalled B’s CLiP does not support CD-R.*3The Product Recovery DVD-ROM is required.
*4These are speeds specified in IEEE802.11b+g standards.  Actual speeds may differ.*5Effective distances differ depending on su rrounding conditions such as radio wave environment, obstructions, and setting envi-
ronment, and on usage conditions such as application software and OS.
z Main Specifications...

60
Important Information

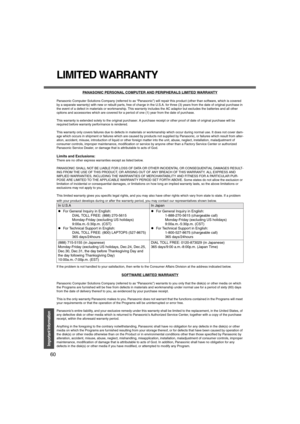

LIMITED WARRANTY
PANASONIC PERSONAL COMPUTER AND PERIPHERALS LIMITED WARRANTY
Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair this product (other than software, which is covered
by a separate warranty) with new or rebuilt parts, free of charge in the U.S.A. for three (3) years from the date of original purchase in
the event of a defect in materials or workmanship. This warranty includes the AC adaptor but excludes the batteries and all other...
