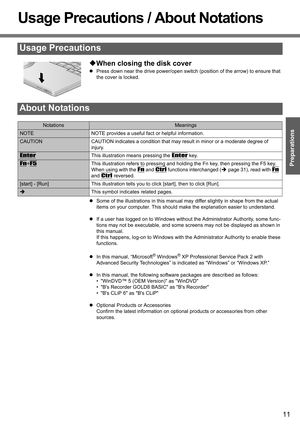

11
Preparations
Getting Started
Usage Precautions / About Notations
‹
When closing the disk cover
z Press down near the drive power/open switch  (position of the arrow) to ensure that
the cover is locked.
z Some of the illustrations in th is manual may differ slightly in shape from the actual
items on your computer. This should ma ke the explanation easier to understand.
z If a user has logged on to Windows without the Administrator Authority, some func-
tions may not be executable, and some screens...

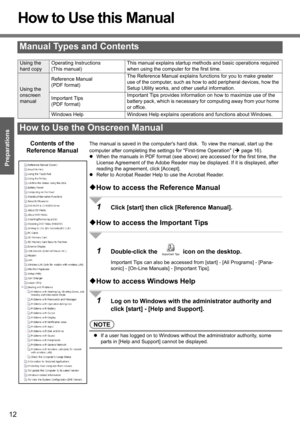

12
Preparations
Getting Started
How to Use this Manual
The manual is saved in the computers hard disk.  To view the manual, start up the
computer after completing the settings for First-time Operation ( Îpage 16).
z When the manuals in PDF format (see abov e) are accessed for the first time, the
License Agreement of the Adobe Reader may be displayed. If it is displayed, after
reading the agreement, click [Accept].
z Refer to Acrobat Reader Help to use the Acrobat Reader.
‹How to access the Reference...

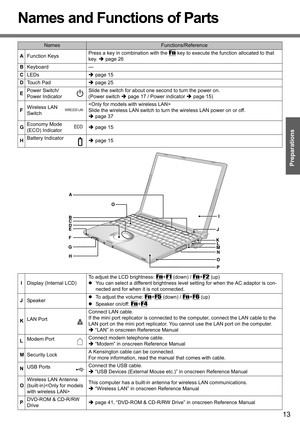

13
Preparations
Getting Started
Names and Functions of Parts
NamesFunctions/Reference
A Function Keys Press a key in combination with the
Fn key to execute the function allocated to that
key.  Îpage 26
B Keyboard —
C LEDs Îpage 15
D Touch Pad Îpage 25
E Power Switch/
Power Indicator Slide the switch for about one second to turn the power on.
(Power switch
Îpage 17 / Power indicator  Îpage 15)
F Wireless LAN
Switch
Slide the wireless LAN switch to turn the wireless LAN power on or off.
Î
page 37
G...

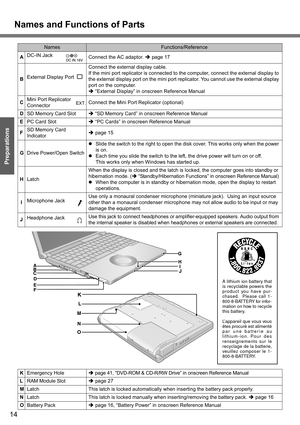

Names and Functions of Parts
14
Getting Started
Preparations
NamesFunctions/Reference
A DC-IN Jack
Connect the AC adaptor. Îpage 17
B External Display Port  Connect the external display cable.
If the mini port replicator is connected to
the computer, connect the external display to
the external display port on the mini port  replicator. You cannot use the external display
port on the computer.
Î  “External Display” in onscreen Reference Manual
C Mini Port Replicator
Connector Connect the Mini Port...

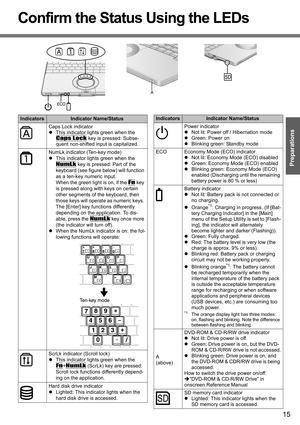

15
Preparations
Getting Started
Confirm the Status Using the LEDs
IndicatorsIndicator Name/Status
Caps Lock indicator
z This indicator lights green when the
Caps Lock key is pressed: Subse-
quent non-shifted input is capitalized.
NumLk indicator (Ten-key mode)
z This indicator lights green when the
NumLk key is pressed: Part of the
keyboard (see figure  below) will function
as a ten-key numeric input.
When the green light is on, if the
Fn key
is pressed along with keys on certain
other segments...

16
Preparations

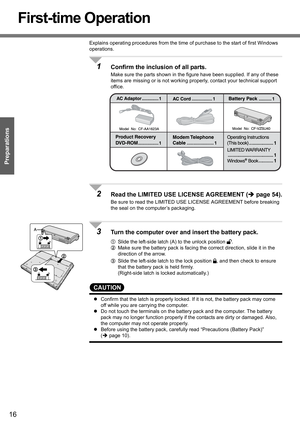

First-time Operation
Explains operating procedures from the time of purchase to the start of first Windows
operations.
1Confirm the inclusion of all parts.
Make sure the parts shown in the figure have been supplied. If any of these
items are missing or is not working properly, contact your technical support
office.
2Read the LIMITED USE  LICENSE AGREEMENT ( Îpage 54).
Be sure to read the LIMITED USE  LICENSE AGREEMENT before breaking
the seal on the computer’s packaging.
3Turn the...

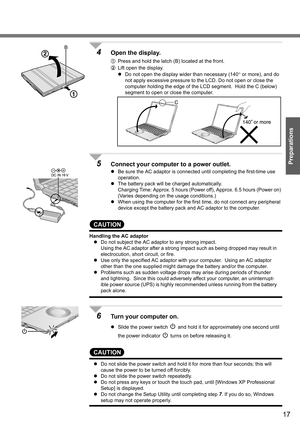

17
Preparations
4Open the display.
APress and hold the latch (B) located at the front.
B Lift open the display.
z Do not open the display wider than necessary (140 ° or more), and do
not apply excessive pressure to the LCD. Do not open or close the
computer holding the edge of the LCD segment.  Hold the C (below)
segment to open or close the computer.
5Connect your computer  to a power outlet.
zBe sure the AC adaptor is connected until completing the first-time use
operation.
z The battery pack...

First-time Operation

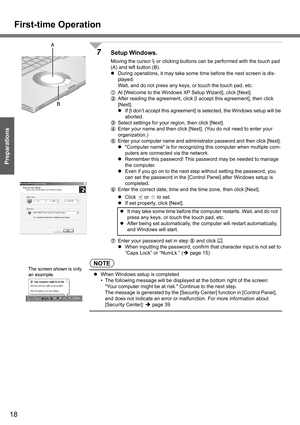

18
Getting Started
Preparations
7Setup Windows.
Moving the cursor   or clicking buttons can be performed with the touch pad
(A) and left button (B).
z During operations, it may take some time before the next screen is dis-
played.
Wait, and do not press any keys, or touch the touch pad, etc.
A At [Welcome to the Windows XP Setup Wizard], click [Next].
B After reading the agreement, click [I  accept this agreement], then click
[Next].
z If [I don’t accept this agreement] is...

19
Preparations

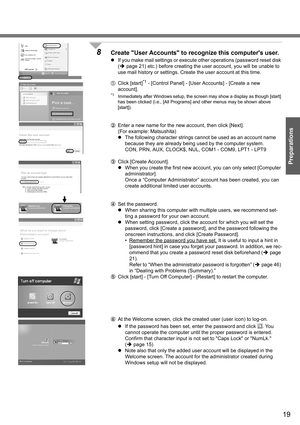

8Create User Accounts to recognize this computers user.
zIf you make mail settings or execute other operations (password reset disk
(Î page 21) etc.) before creating the us er account, you will be unable to
use mail history or settings. Create  the user account at this time.
A Click [start]
*1 - [Control Panel] - [User Accounts] - [Create a new
account].
*1Immediately after Windows setup, the scre en may show a display as though [start]
has been clicked (i.e., [All Programs] and...

First-time Operation

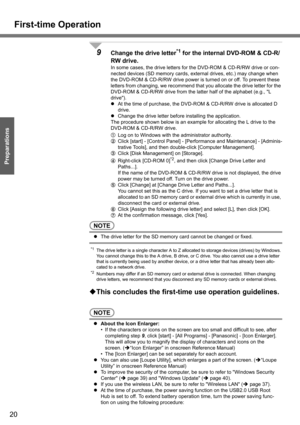

20
Getting Started
Preparations
9Change the drive letter*1 for the internal DVD-ROM & CD-R/
RW drive.
In some cases, the driv e letters for the DVD-ROM  & CD-R/RW drive or con-
nected devices (SD memory cards, external drives, etc.) may change when
the DVD-ROM & CD-R/RW drive power is  turned on or off. To prevent these
letters from changing, we recommend that you allocate the drive letter for the
DVD-ROM & CD-R/RW drive from the latter half of the alphabet (e.g., L
drive).
z At...
