31
Getting Started

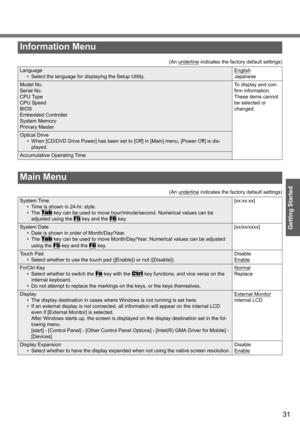

Information Menu
(An underline indicates the factory default settings)
Language• Select the language for di splaying the Setup Utility. English
Japanese
Model No.
Serial No.
CPU Type
CPU Speed
BIOS
Embedded Controller
System Memory
Primary Master To display and con-
firm information.
These items cannot
be selected or
changed.
Optical Drive
• When [CD/DVD Drive Power] has been set to [Off] in [Main] menu, [Power Off] is dis-played.
Accumulative Operating Time
Main Menu
(An...

Setup Utility

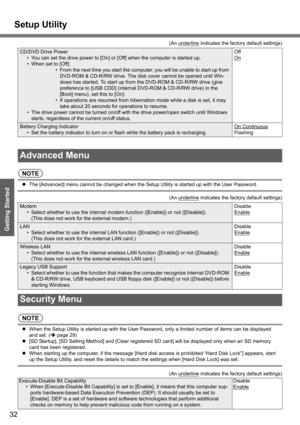

32
Getting Started
NOTE
zThe [Advanced] menu cannot be  changed when the Setup Utility is started up with the User Password.
NOTE
zWhen the Setup Utility is started up with the User Passwo rd, only a limited number of items can be displayed
and set. ( Îpage 29)
z [SD Startup], [SD Setting Meth od] and [Clear registered SD card] will be displa yed only when an SD memory
card has been registered.
z When starting up the computer, if the message [Hard disk access is prohibited “Hard Disk...

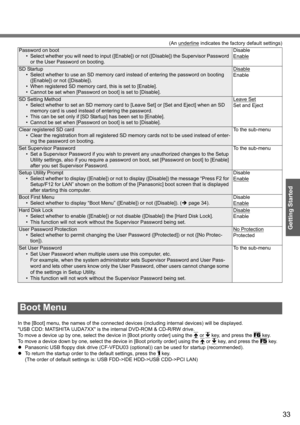

33
Getting Started
In the [Boot] menu, the names of the connected devic es (including internal devices) will be displayed.
USB CDD: MATSHITA UJDA7XX is the internal DVD-ROM & CD-R/RW drive.
To move a device up by one, select th e device in [Boot priority order] using the  Ï
 or Ð key, and press the F6 key.
To move a device down by one, select the device in [Boot priority order] using the  Ï
 or Ð key, and press the F5 key.
z Panasonic USB floppy disk drive (CF-VFDU03 (opt ional)) can be used for...

Setup Utility

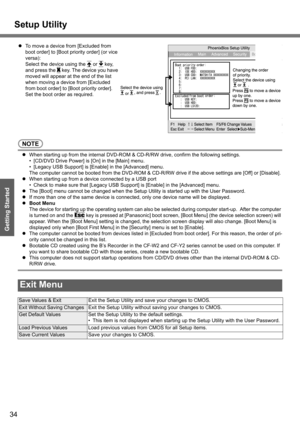

34
Getting Started
NOTE
zWhen starting up from the internal DVD-ROM &  CD-R/RW drive, confirm the following settings.
• [CD/DVD Drive Power] is  [On] in the [Main] menu.
• [Legacy USB Support] is [Enable] in the [Advanced] menu.
The computer cannot be booted from the DVD-ROM & CD-R/RW  drive if the above settings are [Off] or [Disable].
z When starting up from a device connected by a USB port
• Check to make sure that [Legacy USB Support] is [Enable] in the [Advanced] menu.
z The [Boot]...

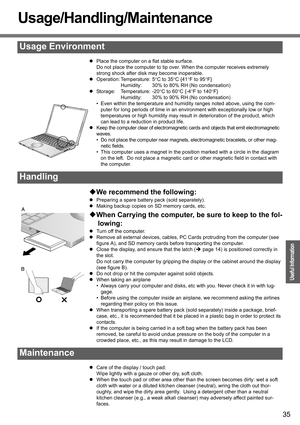

35
Operation
Useful Information
Usage/Handling/Maintenance
zPlace the computer on a flat stable surface.
Do not place the computer to tip over.  When the computer receives extremely
strong shock after disk may become inoperable.
z Operation: Temperature: 5 °C to 35 °C {41 °F to 95 °F}
Humidity: 30% to 80% RH (No condensation)
z Storage: Temperature: -20 °C to 60 °C {-4 °F to 140 °F}
Humidity: 30% to 90% RH (No condensation)
• Even within the temperature and humidity  ranges noted above, using the com-...

Usage/Handling/Maintenance

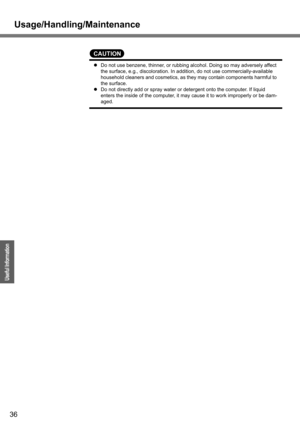

36
Operation
Useful Information
CAUTION
zDo not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect
the surface, e.g., discoloration. In a ddition, do not use commercially-available
household cleaners and cosmetics, as th ey may contain components harmful to
the surface.
z Do not directly add or spray water or detergent onto the computer. If liquid
enters the inside of the computer, it may cause it to work improperly or be dam-
aged.

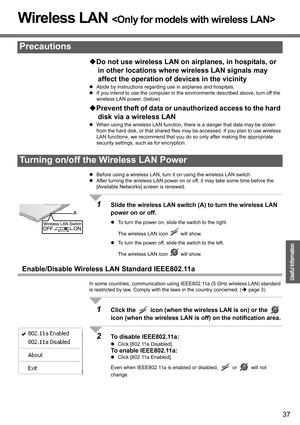

37
Operation
Useful Information
Wireless LAN
‹Do not use wireless LAN on ai rplanes, in hospitals, or
in other locations where  wireless LAN signals may
affect the operation of devices in the vicinity
z Abide by instructions regarding use in airplanes and hospitals.
z If you intend to use the computer in the environments described above, turn off the
wireless LAN power. (below)
‹Prevent theft of data or unau thorized access to the hard
disk via a wireless LAN
z When using the wireless LAN function,...

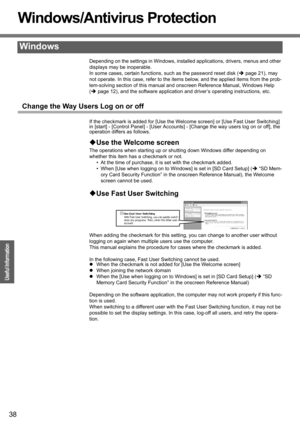

38
Operation
Useful Information
Windows/Antivirus Protection
Depending on the settings in Windows, installed applications, drivers, menus and other
displays may be inoperable.
In some cases, certain functions, such as the password reset disk (Îpage 21), may
not operate. In this case, refer to the items below, and the applied items from the prob-
lem-solving section of this manual and onscreen Reference Manual, Windows Help
( Î page 12), and the software application and driver’s operating...

39
Operation
Useful Information
Use the Windows Security Center function to protect Windows from damage by com-
puter viruses, etc.
Windows Security Center
z What is Windows Security Center?
The Windows Security Center allows cent ralized management of Windows security
information, and monitors antivirus measur es and other Windows security settings
to ensure optimum safety.
Use the Windows Security C enter function to protect your computer from damage
by viruses, etc.
Click [start] - [Control Panel]...

Windows/Antivirus Protection

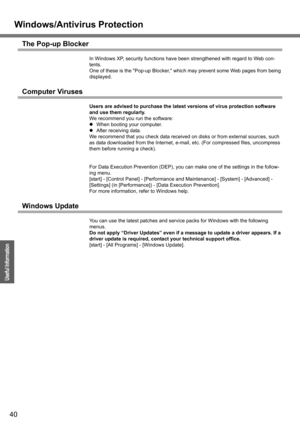

40
Operation
Useful Information
The Pop-up Blocker
In Windows XP, security functions have been strengthened with regard to Web con-
tents.
One of these is the Pop-up Blocker, whic h may prevent some Web pages from being
displayed.
Computer Viruses
Users are advised to purchase the latest versions of virus protection software
and use them regularly.
We recommend you run the software:
z When booting your computer.
z After receiving data.
We recommend that you check data...
