Panasonic Cf W4gwczzbm Owners Manual

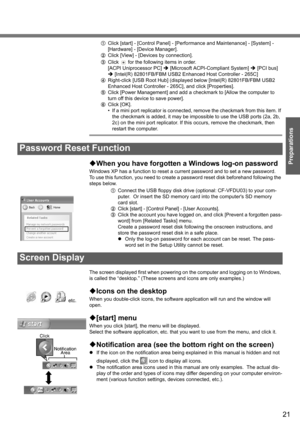

21
Preparations
AClick [start] - [Control Panel] - [Perfo rmance and Maintenance] - [System] -
[Hardware] - [Device Manager].
B Click [View] - [Devices by connection].
C Click   for the following items in order.
[ACPI Uniprocessor PC]  Î [Microsoft ACPI-C ompliant System] Î [PCI bus]
Î  [Intel(R) 82801FB/FBM USB2 Enhanced Host Controller - 265C]
D Right-click [USB Root Hub] (displayed  below [Intel(R) 82801FB/FBM USB2
Enhanced Host Controller - 265C], and click [Properties].
E Click [Power...

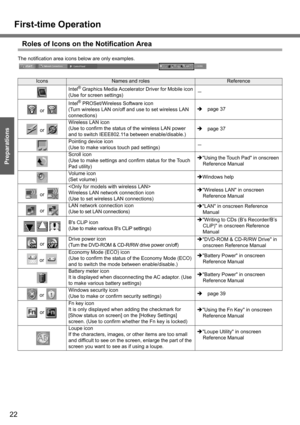

22
Getting Started
Preparations
Roles of Icons on the Notification Area
The notification area icons below are only examples.
IconsNames and rolesReference
Intel
® Graphics Media Accelerato r Driver for Mobile icon
(Use for screen settings) －
 or  Intel
® PROSet/Wireless Software icon
(Turn wireless LAN on/off and use to set wireless LAN
connections) Î
page 37
 or  Wireless LAN icon
(Use to confirm the status
of the wireless LAN power
and to switch IEEE802.11a  between enable/disable.) Î
page 37...

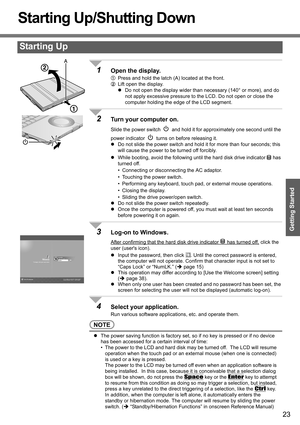

23
Getting Started
Starting Up/Shutting Down
1Open the display.
APress and hold the latch (A) located at the front.
B Lift open the display.
z Do not open the display wider than necessary (140° or more), and do
not apply excessive pressure to the LCD. Do not open or close the
computer holding the edge of the LCD segment.
2Turn your computer on.
Slide the power switch   and hold it  for approximately one second until the
power indicator   turns on before releasing it.
z Do not slide the power switch...

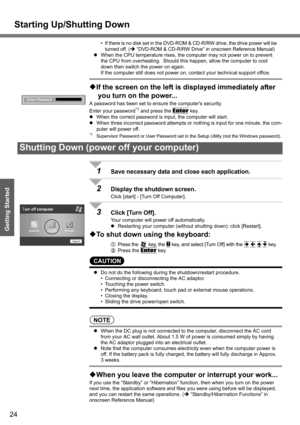

Starting Up/Shutting Down
24
Getting Started
• If there is no disk set in the DVD-ROM & CD-R/RW drive, the drive power will be
turned off. ( Î “DVD-ROM & CD-R/RW Drive” in onscreen Reference Manual)
z When the CPU temperature rises, the computer may not power on to prevent
the CPU from overheating.  Should this happen, allow the computer to cool
down then switch the power on again.
If the computer still does not power on,  contact your technical support office.
‹If the screen on the left is...

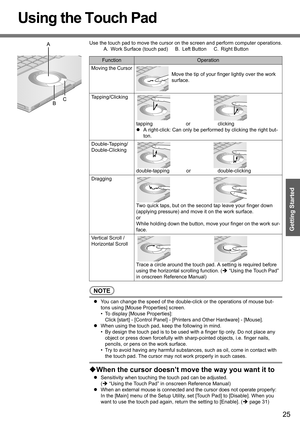

25
Getting Started
Using the Touch Pad
Use the touch pad to move the cursor on the screen and perform computer operations.A. Work Surface (touch pad) B. Left Button C. Right Button
NOTE
zYou can change the speed of the double-click or the operations of mouse but-
tons using [Mouse Properties] screen.
• To display [Mouse Properties]:
Click [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].
z When using the touch pad, keep the following in mind.
• By design the touch pad is to be used...

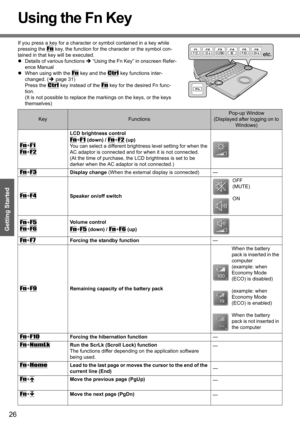

26
Getting Started
Using the Fn Key
If you press a key for a character or symbol contained in a key while
pressing the
Fn key, the function for the  character or the symbol con-
tained in that key will be executed.
z Details of various functions  Î “Using the Fn Key”  in onscreen Refer-
ence Manual
z When using with the
Fn key and the Ctrl key functions inter-
changed. ( Îpage 31)
Press the
Ctrl key instead of the Fn key for the desired Fn func-
tion.
(It is not possible to replace the markings on...

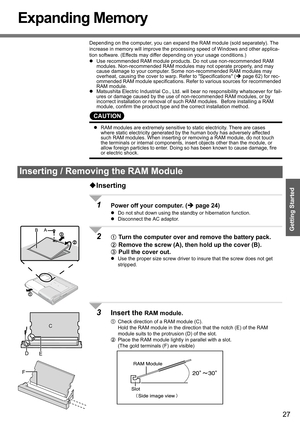

27
Getting Started
Expanding Memory
Depending on the computer, you can expand the RAM module (sold separately). The
increase in memory will improve the processing speed of Windows and other applica-
tion software. (Effects may differ depending on your usage conditions.)
z Use recommended RAM module products. Do not use non-recommended RAM
modules. Non-recommended RAM modules may not operate properly, and may
cause damage to your computer. Some non-recommended RAM modules may
overheat, causing the...

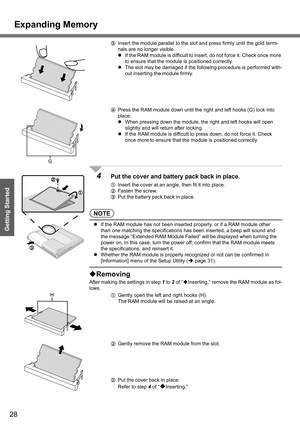

Expanding Memory
28
Getting Started
CInsert the module parallel to the slot and press firmly until the gold termi-
nals are no longer visible.
z If the RAM module is difficult to insert, do not force it. Check once more
to ensure that the module is positioned correctly.
z The slot may be damaged if the following procedure is performed with-
out inserting the module firmly.
D Press the RAM module down until the right and left hooks (G) lock into
place.
z When pressing down the module, t he right and...

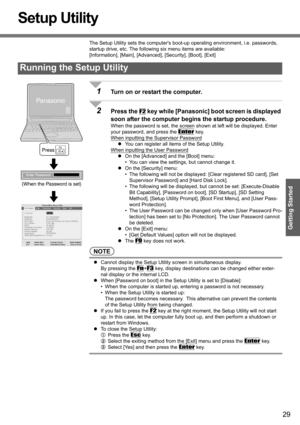

29
Getting Started
Setup Utility
The Setup Utility sets the computers boot-up operating environment, i.e. passwords,
startup drive, etc. The followi ng six menu items are available:
[Information], [Main] , [Advanced], [Security], [Boot], [Exit]
1Turn on or restart the computer.
2Press the F2 key while [Panasonic] b oot screen is displayed
soon after the computer begi ns the startup procedure.
When the password is set, the screen sh own at left will be displayed. Enter
your password, and press the...

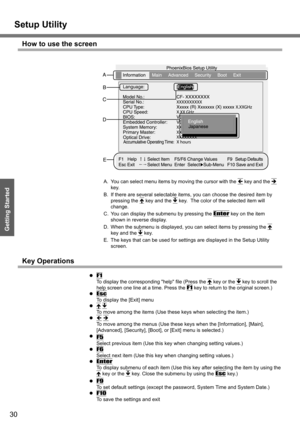

Setup Utility
30
Getting Started
How to use the screen
A. You can select menu items by moving the cursor with the Í key and the Î
key.
B. If there are several selectable items, you can choose the desired item by  pressing the  Ï
 key and the Ð key.  The color of  the selected item will
change.
C. You can display the submenu by pressing the
Enter key on the item
shown in reverse display.
D. When the submenu is displayed, you can select items by pressing the  Ï

key and the  Ð
 key.
E. The keys that...
