Panasonic Cf W4gwczzbm Owners Manual

41
Operation
Useful Information

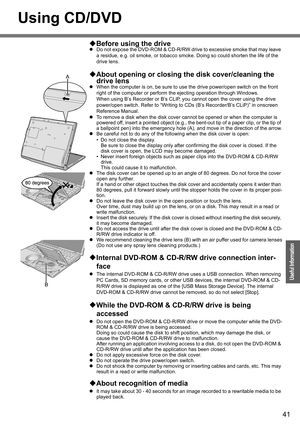

Using CD/DVD
‹Before using the drive
z Do not expose the DVD-ROM & CD-R/RW dr ive to excessive smoke that may leave
a residue, e.g. oil smoke, or tobacco smok e. Doing so could shorten the life of the
drive lens.
‹ About opening or closing th e disk cover/cleaning the
drive lens
z When the computer is on, be sure to us e the drive power/open switch on the front
right of the computer or perform th e ejecting operation through Windows.
When using B’s Recorder or B’s...

42
Operation
Useful Information

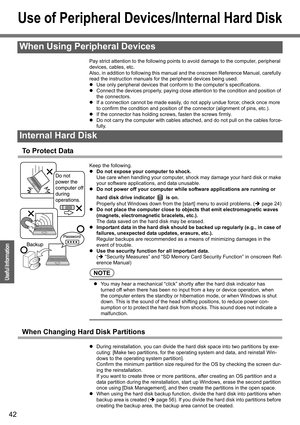

Use of Peripheral Devices/Internal Hard Disk
Pay strict attention to the following points to avoid damage to the computer, peripheral
devices, cables, etc.
Also, in addition to following this manual and the onscreen Reference Manual, carefully
read the instruction manuals for the peripheral devices being used.
z Use only peripheral devices that confor m to the computer’s specifications.
z Connect the devices properly, paying close a ttention to the condition and...

43
Troubleshooting

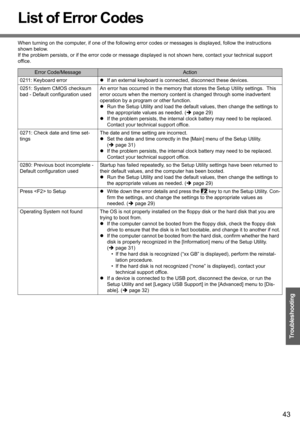

List of Error Codes
When turning on the computer, if one of the following error codes or messages is displayed, follow the instructions
shown below.
If the problem persists, or if the erro r code or message displayed is not show n here, contact your technical support
office.
Error Code/MessageAction
0211: Keyboard error zIf an external keyboard is co nnected, disconnect these devices.
0251: System CMOS checksum
bad - Default configuration used An error has occurred in the memory...

44
Troubleshooting

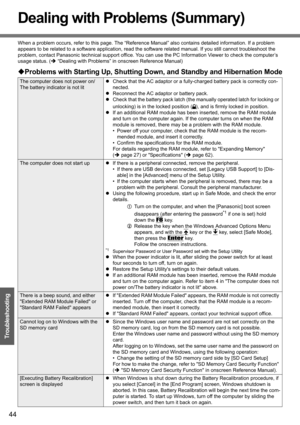

Dealing with Problems (Summary)
When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem
appears to be related to a  software application, read the  software related manual. If you still cannot troubleshoot the
problem, contact Panasonic technical support office. You can  use the PC Information Viewer to check the computer’s
usage status. ( Î “Dealing with Problems” in onscreen Reference Manual)
‹Problems with Starting Up,...

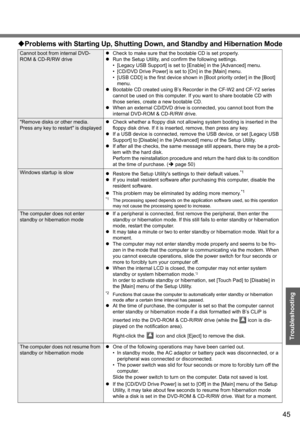

45
Troubleshooting
Cannot boot from internal DVD-
ROM & CD-R/RW drivez
Check to make sure that the bootable CD is set properly.
z Run the Setup Utility, and co nfirm the following settings.
• [Legacy USB Support] is set to [Enable] in the [Advanced] menu.
• [CD/DVD Drive Power] is set  to [On] in the [Main] menu.
• [USB CDD] is the first device shown in [Boot priority order] in the [Boot]  menu.
z Bootable CD created using B’s Recorder in the CF-W2 and CF-Y2 series
cannot be used on this computer. If...

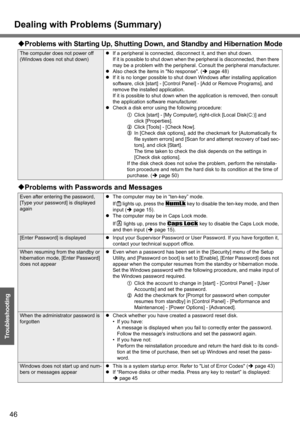

Dealing with Problems (Summary)
46
Troubleshooting
The computer does not power off
(Windows does not shut down)z
If a peripheral is connected, disconnect it, and then shut down.
If it is possible to shut down when th e peripheral is disconnected, then there
may be a problem with the peripheral.  Consult the peripheral manufacturer.
z Also check the items in No response. ( Îpage 48)
z If it is no longer poss ible to shut down Windows  after installing application
software, click [start] - [Control...

47
Troubleshooting

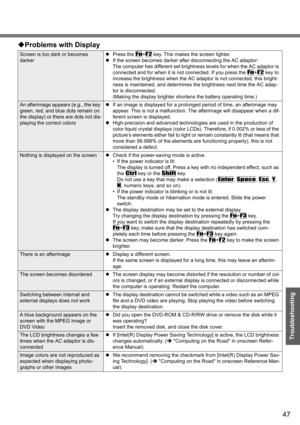

‹Problems with Display
Screen is too dark or becomes
darker z
Press the Fn+F2 key. This makes the screen lighter.
z If the screen becomes darker after disconnecting the AC adaptor:
The computer has different set brightne ss levels for when the AC adaptor is
connected and for when it is not  connected. If you press the
Fn+F2 key to
increase the brightness when the AC adapt or is not connected, this bright-
ness is maintained, and determines the brightness next time the AC adap-
tor...

Dealing with Problems (Summary)
48
Troubleshooting

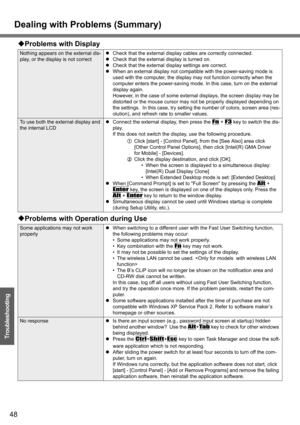

Nothing appears on the external dis-
play, or the display is not correctz
Check that the external display cables are correctly connected.
z Check that the external display is turned on.
z Check that the external display settings are correct.
z When an external display not compatible with the power-saving mode is
used with the computer, the display may not function correctly when the
computer enters the power-saving mode . In this case, turn on the...

49
Troubleshooting

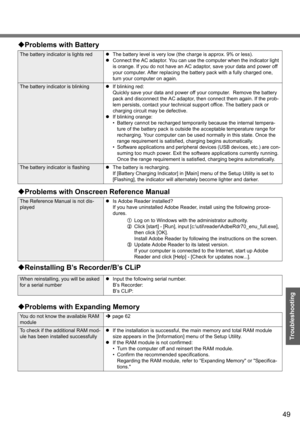

‹Problems with Battery
The battery indicator is lights red zThe battery level is very low (the  charge is approx. 9% or less).
z Connect the AC adaptor. You can use the computer when the indicator light
is orange. If you do not have an AC adaptor, save your data and power off
your computer. After replacing the battery pack with a fully charged one,
turn your computer on again.
The battery indicator is blinking zIf blinking red:
Quickly save your data and power off your computer....

50
Troubleshooting

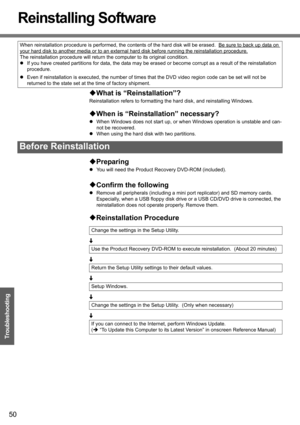

Reinstalling Software
‹What is “Reinstallation”?
Reinstallation refers to formatting the hard disk, and reinstalling Windows.
‹When is “Reinstallation” necessary?
zWhen Windows does not start up, or when Windows operation is unstable and can-
not be recovered.
zWhen using the hard disk with two partitions.
‹Preparing
zYou will need the Product Recovery DVD-ROM (included).
‹Confirm the following
zRemove all peripherals (including a mini port replicator) and SD memory cards....
