Panasonic Color Televison Ct 24sx12 Operating Instructions

®
®
Color Television
Operating Instructions
CT-24SX12 CT-27SX12
TQB2AA0417 12112
PRINTEDINUSA
Télé-couleur
Manuel d’utilisation
TQB2AA0417 12112
IMPRIMÉ AUX ÉTATS-UNIS
For assistance, please call: 1-800-211-PANA (7262) or
send e-mail to: [email protected] (USA only)
CT-24SX12 CT-27SX12

WARNING:To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance. The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN...

TABLE OFCONTENTS
1

Table of Contents
Congratulations ......................................................... 2
Customer Record ...................................................................... 2
Care and Cleaning..................................................................... 2
Specifications ............................................................................ 2
Installation.................................................................. 3
Television Location...

2

CONGRATULATIONS
Congratulations
Your new Panasonic Tau television is designed to provide state-of-the-art picture quality and features an innovative pure
flat picture tube. The new dolphin gray cabinet with compact, elegant styling is designed to give you many years of
enjoyment. It was thoroughly tested and tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the television. You should note the model and serial
number in the...

INSTALLATION
3

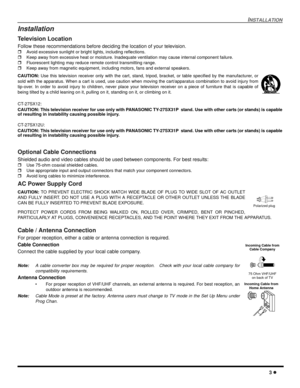

Installation
Television Location
Follow these recommendations before deciding the location of your television.

Avoid excessive sunlight or bright lights, including reflections.

Keep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.

Fluorescent lighting may reduce remote control transmitting range.

Keep away from magnetic equipment, including motors, fans and external speakers.
CAUTION:Use this television receiver only with the cart,...

4

FEATURECHART

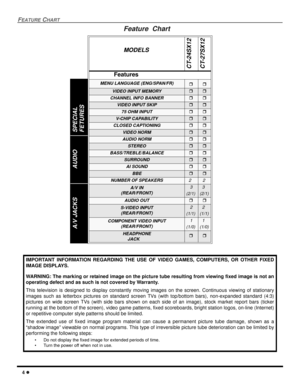

Feature Chart
MODELS
CT-24SX12
CT-27SX12
Features
MENU LANGUAGE (ENG/SPAN/FR)


VIDEO INPUT MEMORY


CHANNEL INFO BANNER


VIDEO INPUT SKIP


75 OHM INPUT


V-CHIP CAPABILITY


CLOSED CAPTIONING


VIDEO NORM


AUDIO NORM


STEREO


BASS/TREBLE/BALANCE


SURROUND


AI SOUND


BBE


NUMBER OF SPEAKERS22
A/V IN
(REAR/FRONT)3
(2/1)3
(2/1)
AUDIO OUT


S-VIDEO INPUT
(REAR/FRONT)2
(1/1)2
(1/1)
COMPONENT VIDEO INPUT
(REAR/FRONT)1
(1/0)1
(1/0)
HEADPHONE
JACK


IMPORTANT INFORMATION REGARDING THE...

AUTOSETUPMENU
5

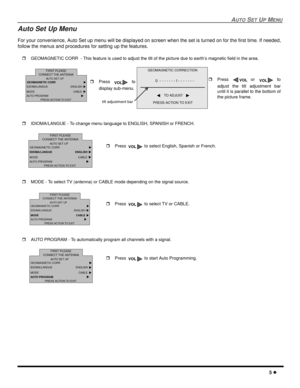

Auto Set Up Menu
For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed,
follow the menus and procedures for setting up the features.

GEOMAGNETIC CORR - This feature is used to adjust the tilt of the picture due to earth’s magnetic field in the area.

IDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.

MODE - To select TV (antenna) or CABLE mode depending on the signal source.

AUTO PROGRAM - To...

6

OPTIONALEQUIPMENTCONNECTIONS

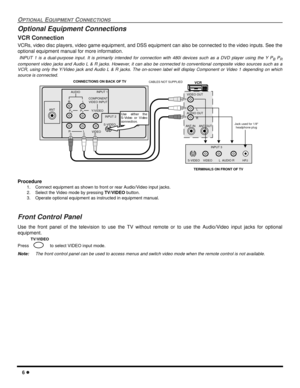

Optional Equipment Connections
VCR Connection
VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the video inputs. See the
optional equipment manual for more information.
INPUT 1 is a dual-purpose input. It is primarily intended for connection with 480i devices such as a DVD player using the Y PBPR
component video jacks and Audio L & R jacks. However, it can also be connected to conventional composite video sources such as a
VCR,...

FRONTCONTROLPANEL
7

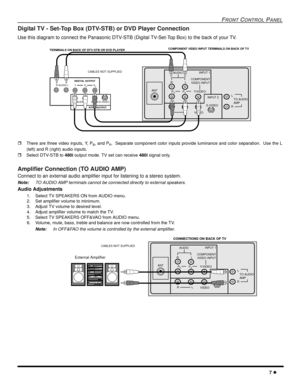

Digital TV - Set-Top Box (DTV-STB) or DVD Player Connection
Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the back of your TV.

There are three video inputs, Y, PB, and PR. Separate component color inputs provide luminance and color separation. Use the L
(left) and R (right) audio inputs.

Select DTV-STB to480ioutput mode. TV set can receive480isignal only.
Amplifier Connection (TO AUDIO AMP)
Connect to an external audio amplifier input for listening...

8

REMOTECONTROLOPERATION

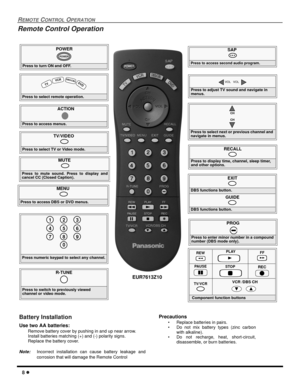

Remote Control Operation
POWER
Press to turn ON and OFF.
POWER
MUTE
Press to mute sound. Press to display and
cancel CC (Closed Caption).
SAP
Press to access second audio program.
TV/VIDEO
Press to select TV or Video mode.
Press to select remote operation.
T
VVC
RDBS
/C
BLDV
D
ACTION
Press to access menus.
Press to select next or previous channel and
navigate in menus.
CH
CH
Press to adjust TV sound and navigate in
menus.
VOL VOL
EXIT
DBS functions button.
GUIDE
DBS functions...
