Panasonic Color Televison Ct 24sx12 Operating Instructions

REMOTECONTROLOPERATION
9

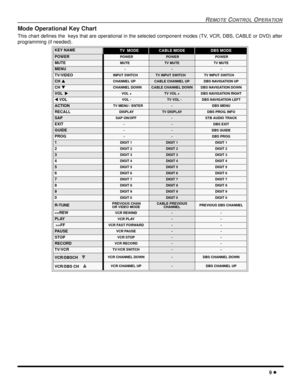

Mode Operational Key Chart
This chart defines the keys that are operational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after
programming (if needed).
KEY NAMETV MODECABLE MODEDBS MODE
POWERPOWERPOWERPOWER
MUTEMUTETV MUTETV MUTE
MENU---
TV/VIDEOINPUT SWITCHTV INPUT SWITCHTV INPUT SWITCH
CH
CHANNEL UPCABLE CHANNEL UPDBS NAVIGATION UP
CHCHANNEL DOWNCABLE CHANNEL DOWNDBS NAVIGATION DOWN
VOLVOL +TV VOL +DBS NAVIGATION RIGHT
VOLVOL -TV VOL -DBS NAVIGATION LEFT...

10

REMOTECONTROLOPERATION

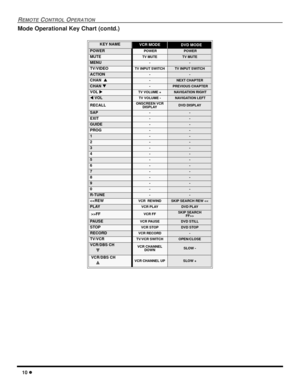

Mode Operational Key Chart (contd.)
KEY NAMEVCR MODEDVD MODE
POWERPOWERPOWER
MUTETV MUTETV MUTE
MENU--
TV/VIDEOTV INPUT SWITCHTV INPUT SWITCH
ACTION--
CHAN
-NEXT CHAPTER
CHAN-PREVIOUS CHAPTER
VOLTV VOLUME +NAVIGATION RIGHT
VOLTV VOLUME -NAVIGATION LEFT
RECALLONSCREEN VCR
DISPLAYDVD DISPLAY
SAP--
EXIT--
GUIDE--
PROG--
1--
2--
3--
4--
5--
6--
7--
8--
9--
0--
R-TUNE--
>
PAUSEVCR PAUSEDVD STILL
STOPVCR STOPDVD STOP
RECORDVCR RECORD-
TV/VCRTV/VCR SWITCHOPEN/CLOSE
VCR/DBS CHVCR...

REMOTECONTROLOPERATION
11

Programming The Remote
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or
without a code for the component.
Determine the manufacturer of the component and look in the table for the code.
Programming With a Code
Procedure
• Confirm that the external component is plugged in and operating.
• Turn the component...

12

REMOTECONTROLOPERATION

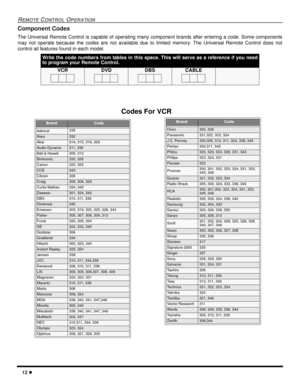

Component Codes
The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.
VCRDVDDBSCABLE
BrandCode
Admiral335
Aiwa332
Akai314, 315, 316, 329
Audio...

REMOTECONTROLOPERATION
13

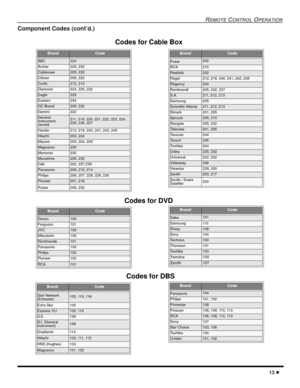

Component Codes (cont’d.)
BrandCode
ABC224
Archer225, 232
Cableview205, 232
Citizen205, 222
Curtis212, 213
Diamond224, 225, 232
Eagle229
Eastern234
GC Brand205, 232
Gemini222
General
Instrument/
Jerrold211, 219, 220, 221, 222, 223, 224,
225, 226, 227
Hamlin212, 218, 240, 241, 242, 245
Hitachi203, 224
Macom203, 204, 205
Magnavox233
Memorex230
Movietime205, 232
Oak202, 237,239
Panasonic209, 210, 214
Philips206, 207, 228, 229, 230
Pioneer201, 216
Pulsar205, 232
BrandCode
Denon100...

14

ICONMENUNAVIGATION
Icon Menu Navigation
Press to display the Icons.
Press to select desired icon.
Press to display selected
Icon features.
Press to select feature.
Press
VIDEO ADJ.PICTURE
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL
NO
u-- -- -- I -- -- --
 -- -- -- -- ---- -- -- -- -- -- I -- --
 -- I -- -- -- -- -- -- I -- -- --
-- -- -- I -- -- --
OTHER ADJ.
VIDEO ADJ.PICTURE
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL
NO
u-- -- -- I -- -- --
 -- -- -- -- ---- -- -- -- -- -- I -- --
 -- I...

MAINMENUICONS
15

Icon Menus
These charts list all menus under each Icon and which pages to refer to for menus description.
REFER
TO
PA G E
IDIOMA/LANGUE
MODE - (ENGLISH, FRANÇAIS, ESPAÑOL)16
PROG CHAN
MODE - (TV or CABLE)
AUTO PROGRAM
MANUAL PROGRAM
16
CC (CLOSED CAPTIONED)

CC ON MUTE
CC MODE17
OTHER ADJ.
AUTO POWER ON
CHANNEL BANNER
GEOMAGNETIC CORR
17
REFER
TO
PA G E
CLOCK SET
TIME
DAY18
SLEEP
HOW LONG?18
TIMER

DAY
ON TIME
OFF TIME
ENTER CHANNEL
SET
19
REFER
TO
PA G E
CAPTION
MANUAL CAPTION

INPUT...

16

ICONMENUOPERATION
Icon Menu Operation
SET UP
Note:Refer to page 14 for Icon Menu Navigation procedures.
IDIOMA/LANGUE(Menu Languages)
In SET UP Menu, select IDIOMA/LANGUE to change menu language to ENGLISH, ESPAÑOL (Spanish) or FRANÇAIS
(French).
Prog Chan (Program Channels)
In SET UP menu under PROG CHAN select:

MODE - To select TV (antenna) or CABLE mode depending on the signal source.

AUTO PROGRAM - To automatically program all channels with a signal.

MANUAL PROGRAM - To manually add or delete...

ICONMENUOPERATION
17

(Closed Captioning)
This television contains a built-in decoder that displays (Closed Captioned) text across the screen (white or colored
letters on black background). It allows the viewer to read the dialogue of a television program or other information. The
program viewed must include Closed Captioning for the feature to work.
On Mute
Activates the Closed Caption feature when the MUTE button on the remote control is pressed
Mode
Activates the onscreen Closed Caption feature by...

18

ICONMENUOPERATION
Note:Refer to page 14 for Icon Menu Navigation procedures.
Video Adj.
In Picture menu under VIDEO ADJ. select:

COLOR - Adjusts desired color intensity.

TINT - Adjusts natural flesh tones.

BRIGHTNESS - Adjusts dark areas of picture.

PICTURE - Adjusts white areas of picture.

SHARPNESS - Adjusts clarity of outline detail.

NORMAL - Reset all picture adjustments to factory default settings.
Other Adj.
In Picture menu under OTHER ADJ. select:

COLOR TEMP - To increase and...
