Panasonic Color Televison Ct 24sx12 Operating Instructions

ICONMENUOPERATION
19

TIMER (Contd.)
Timer

In TIMER menu, select timer to turn the television on and off at selected times, on selected channels, and on selected days.TIME
must be entered in CLOCK SET to operate the TIMER features.
AUDIO
Note:Refer to page 14 for Icon Menu Navigation procedures.
Audio ADJ.

MODE - Select STEREO, SAP (Second Audio Program) or MONO. (Use MONO when stereo signal is weak).

BASS - Increase or decrease the low frequency response.

TREBLE - Increase or decrease the high...

20

ICONMENUOPERATION
AUDIO (Contd.)
Other ADJ.

AI SOUND - Equalize overall volume levels across all channels. (AI sound is not available in VIDEO mode).


BBE - BBE High Definition Sound improves the clarity of spoken words and widens the dynamic range of musical
passages
.
Surround

MODE - Enhances audio response when listening to stereo.
Speakers
In AUDIO menu under SPEAKERS:

Press to select ON or OFF.VOL
OTHER ADJ.AUDIO
AUDIO ADJ.
SURROUND
SPEAKERSAI SOUND          ON
BBE                   OFF u...

ICONMENUOPERATION
21

CHANNELS
Note:Refer to page 14 for Icon Menu Navigation procedures.
Caption

MANUAL CAPTION - Provide labels for up to 30 stations using up to four characters for each station.

INPUT LABEL - Lets you label the video input connections for onscreen display.
Video Input Skip Feature
This receiver has a Video Input Skip Feature, which will allow the user to skip desired input modes when pressing TV/
VIDEO button.

Press
to display next
menu.VOL

Use remote numeric keypad to select...

22

ICONMENUOPERATION
LOCK
Note:Refer to page 14 for Icon Menu Navigation procedures.
Mode
Lock Set
Select LOCK SET to prevent video games and VCR tapes from being viewed.

Use the remote numeric keypad to enter a four-digit secret code (Use a code that is easy to remember and record it in a safe
place).
Notes:
• If you do not remember your code, LOCK will unlock in 12, 24, or 48 hours, depending on the current setup. Be cautious when
selecting ALWAYS. If ALWAYS is selected, and you forget your secret...

V-CHIP MENUOPERATION
23

V-CHIP Menu Operation
Note:Refer to page 14 for Icon Menu Navigation procedures.
BLOCKING MESSAGE
If V-Chip is enabled and the program exceeds the rating limit set by you, the blocking message will appear and the audio
will be muted. Enter your four-digit secret code if you wish to continue viewing the program. After entering your code, all
locks and rating blocks are disabled until the TV is turned off or until all settings are off.
U.S. TV PROGRAMS
This TV model features the...

24

V-CHIP MENUOPERATION
U.S. TV Programs Menu Chart (contd.)
U.S. MOVIES
This TV model features the “V-Chip technology” which allows you to use Motion Picture Ratings when viewing movies or
video tapes. This innovation allows parents to block various types of movies and video tapes at their discretion.
Customer Caution
The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) per
FCC Rules Section 15.120(e)(2). If the option of blocking “NR”...

V-CHIP MENUOPERATION
25

U.S. Movies Menu
U.S. MOVIES RATINGS CHART
NRCONTAINS NO RATING (NOT RATED) AND NA
(NOT APPLICABLE) PROGRAMS. Movie has
not been rated or rating does not apply.
G GENERAL AUDIENCES.All ages admitted.
PGPARENTAL GUIDANCE SUGGESTED.Some
material may not be suitable for children.
PG-13PARENTS STRONGLY CAUTIONED.Some
material may be inappropriate for children under
13.
RRESTRICTED.Under 17 requires accompanying
parent or adult guardian.
NC-17 NO ONE 17 AND UNDER ADMITTED.
X ADULTS...

26

V-CHIP MENUOPERATION
Rating Systems for Canada
Canadian English
The V-CHIP used in this TV model allows you to block various types of movies and television programs based on the two
rating systems used in Canada.
.CANADIAN ENGLISH RATINGS CHART
EExempt - Exempt programming includes: news, sports, documentaries and other information
programming, talk shows, music videos, and variety programming.
C Programming intended for children under age 8. No offensive language, nudity or sexual content....

V-CHIP MENUOPERATION
27

Canadian French
The V-CHIP used in this TV model also lets you block or unblock Canadian French programs according to various ratings
categories.
.
CANADIAN FRENCH RATINGS CHART
E Exempt - Exempt programming.
GGeneral - Programming intended for audience of all ages. Contains no violence, or the
violence content is minimal or is depicted appropriately.
8ans+8+ General - Not recommended for young children. Programming intended for a broad
audience but contains light or occasional...

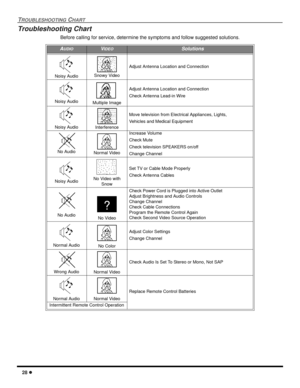

28

TROUBLESHOOTINGCHART
Troubleshooting Chart
Before calling for service, determine the symptoms and follow suggested solutions.
AUDIOVIDEOSolutions
Noisy AudioSnowy Video
Adjust Antenna Location and Connection
Noisy AudioMultiple Image
Adjust Antenna Location and Connection
Check Antenna Lead-in Wire
Noisy AudioInterference
Move television from Electrical Appliances, Lights,
Vehicles and Medical Equipment
No AudioNormal Video
Increase Volume
Check Mute
Check television SPEAKERS on/off
Change Channel...
