Panasonic Conference Recording Speakerphone System Kx Ts730 Operating Instructions

This unit is compatible with Caller ID. To use this feature, you must
subscribe to the appropriate service offered by your service provider.
Please read these Operating Instructions before using the unit and save
for future reference.
For assistance, visit our website: http://www.panasonic.com for
customers in the U.S.A. or Puerto Rico.
Conference Recording Speakerphone System
Model No.
KX-TS730
Operating Instructions
TS730S.book  1 ページ  ２００５年７月１９日　火曜日　午後１時５９分

Table of Contents
2For assistance, please visit http://www.panasonic.com/consumersupport.
Introduction
Accessory information  . . . . . . . . . . . . . . 3
Important safety instructions  . . . . . . . . . 4
For best performance . . . . . . . . . . . . . . . 5
Preparation
Connections . . . . . . . . . . . . . . . . . . . . . . 6
Controls and displays . . . . . . . . . . . . . . . 7
Controls   . . . . . . . . . . . . . . . . . . . . . . 7
Setting the unit before use . . . . . . . . . . . 8
Setting the...

Introduction
For assistance, please visit http://www.panasonic.com/consumersupport3
Thank you for purchasing a Panasonic Conference Recording
Speakerphone System.
We recommend keeping a record of the following information for future reference.
Attach your purchase receipt here.
Accessory information
Included accessories
LTo order replacement accessories, call 1-800-332-5368.
TTY users (hearing or speech impaired users) can call 1-866-605-1277. Serial No. Date of purchase
(found on the bottom of the...

Introduction
4For assistance, please visit http://www.panasonic.com/consumersupport
Important safety
instructions
When using this unit, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, or
personal injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions
marked on this unit.
3. Unplug this unit from power outlets
before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for
cleaning.
4. Do not use this...

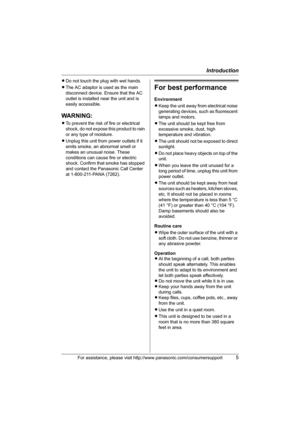

Introduction
For assistance, please visit http://www.panasonic.com/consumersupport5
LDo not touch the plug with wet hands.
LThe AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is installed near the unit and is
easily accessible.
WARNING:
LTo prevent the risk of fire or electrical
shock, do not expose this product to rain
or any type of moisture.
LUnplug this unit from power outlets if it
emits smoke, an abnormal smell or
makes an unusual noise. These
conditions can...

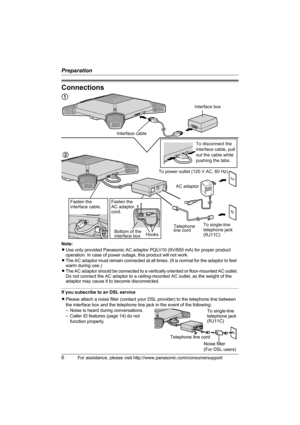

Preparation
6For assistance, please visit http://www.panasonic.com/consumersupport
Connections
Note:
LUse only provided Panasonic AC adaptor PQLV10 (9V/850 mA) for proper product
operation. In case of power outage, this product will not work.
LThe AC adaptor must remain connected at all times. (It is normal for the adaptor to feel
warm during use.)
LThe AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet.
Do not connect the AC adaptor to a ceiling-mounted AC outlet, as...

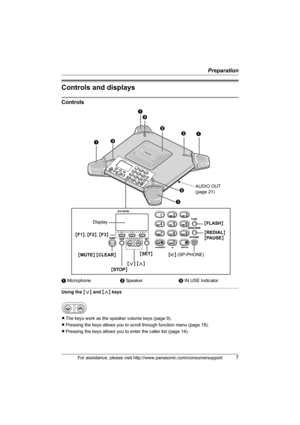

Preparation
For assistance, please visit http://www.panasonic.com/consumersupport7
Controls and displays
Controls
Using the {} keys
LThe keys work as the speaker volume keys (page 9).
LPressing the keys allows you to scroll through function menu (page 18).
LPressing the keys allows you to enter the caller list (page 14). A MicrophoneB SpeakerC IN USE Indicator
SETFLASH
REDIAL/PAUSE
SP-PHONE
STOP
SKIPREPEAT
SKIPREPEAT
KX-
TS730
A
C
{FLASH}
{REDIAL}
{PAUSE}
{s} (SP-PHONE) Display
{F1}, {F2}, {F3}
{MUTE}...

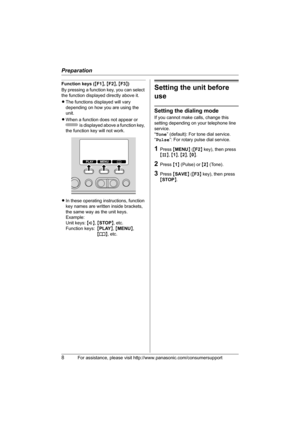

Preparation
8For assistance, please visit http://www.panasonic.com/consumersupport
Function keys ({F1}, {F2}, {F3})
By pressing a function key, you can select
the function displayed directly above it.
LThe functions displayed will vary
depending on how you are using the
unit.
LWhen a function does not appear or
 is displayed above a function key,
the function key will not work.
LIn these operating instructions, function
key names are written inside brackets,
the same way as the unit keys....

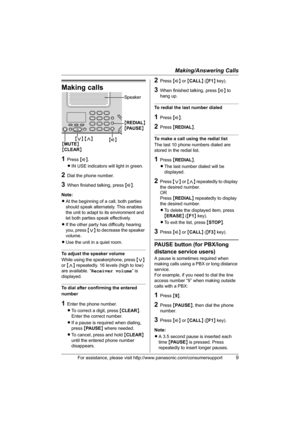

Making/Answering Calls
For assistance, please visit http://www.panasonic.com/consumersupport9
Making calls
1Press {s}.
LIN USE indicators will light in green.
2Dial the phone number.
3When finished talking, press {s}.
Note:
LAt the beginning of a call, both parties
should speak alternately. This enables
the unit to adapt to its environment and
let both parties speak effectively.
LIf the other party has difficulty hearing
you, press {

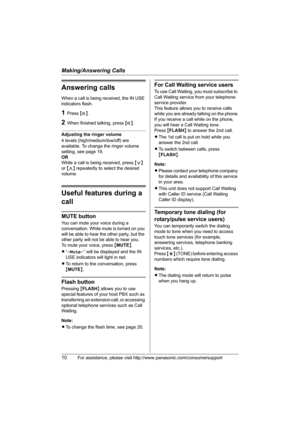

Making/Answering Calls
10For assistance, please visit http://www.panasonic.com/consumersupport
Answering calls
When a call is being received, the IN USE
indicators flash.
1Press {s}.
2When finished talking, press {s}.
Adjusting the ringer volume
4 levels (high/medium/low/off) are
available. To change the ringer volume
setting, see page 19.
OR
While a call is being received, press {} repeatedly to select the desired
volume.
Useful features during a
call
MUTE button
You can mute your voice during a...
