Panasonic Conference Recording Speakerphone System Kx Ts730 Operating Instructions

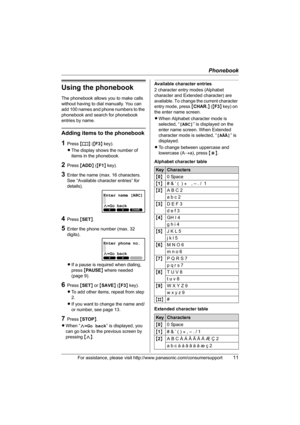

Phonebook
For assistance, please visit http://www.panasonic.com/consumersupport11
Using the phonebook
The phonebook allows you to make calls
without having to dial manually. You can
add 100 names and phone numbers to the
phonebook and search for phonebook
entries by name.
Adding items to the phonebook
1Press {k} ({F3} key).
LThe display shows the number of
items in the phonebook.
2Press {ADD} ({F1} key).
3Enter the name (max. 16 characters.
See “Available character entries” for
details).
4Press...

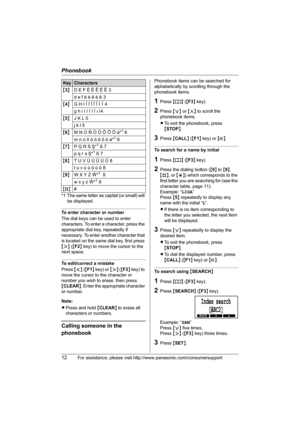

Phonebook
12For assistance, please visit http://www.panasonic.com/consumersupport
*1 The same letter as capital (or small) will
be displayed.
To enter character or number
The dial keys can be used to enter
characters. To enter a character, press the
appropriate dial key, repeatedly if
necessary. To enter another character that
is located on the same dial key, first press
{} ({F2} key) to move the cursor to the
next space.
To edit/correct a mistake
Press {} ({F1} key) or {} ({F2} key) to
move the...

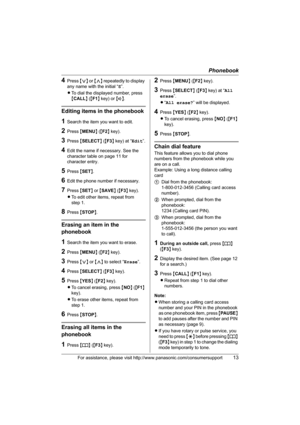

Phonebook
For assistance, please visit http://www.panasonic.com/consumersupport13
4Press {} repeatedly to display
any name with the initial “S”.
LTo dial the displayed number, press
{CALL} ({F1} key) or {s}.
Editing items in the phonebook
1Search the item you want to edit.
2Press {MENU} ({F2} key).
3Press {SELECT} ({F3} key) at “Edit”.
4Edit the name if necessary. See the
character table on page 11 for
character entry.
5Press {SET}.
6Edit the phone number if necessary.
7Press {SET} or {SAVE} ({F3}...

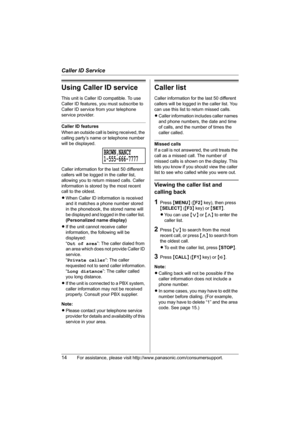

Caller ID Service
14For assistance, please visit http://www.panasonic.com/consumersupport.
Using Caller ID service
This unit is Caller ID compatible. To use
Caller ID features, you must subscribe to
Caller ID service from your telephone
service provider.
Caller ID features
When an outside call is being received, the
calling party’s name or telephone number
will be displayed.
Caller information for the last 50 different
callers will be logged in the caller list,
allowing you to return missed calls....

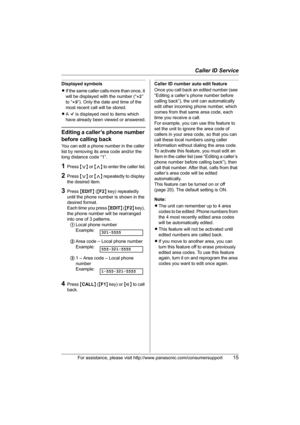

Caller ID Service
For assistance, please visit http://www.panasonic.com/consumersupport15
Displayed symbols
LIf the same caller calls more than once, it
will be displayed with the number (“×2”
to “×9”). Only the date and time of the
most recent call will be stored.
LA Q is displayed next to items which
have already been viewed or answered.
Editing a caller’s phone number
before calling back
You can edit a phone number in the caller
list by removing its area code and/or the
long distance code “1”....

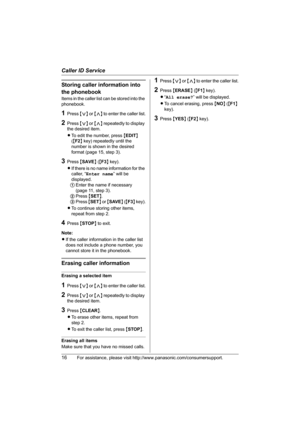

Caller ID Service
16For assistance, please visit http://www.panasonic.com/consumersupport.
Storing caller information into
the phonebook
Items in the caller list can be stored into the
phonebook.
1Press {} to enter the caller list.
2Press {} repeatedly to display
the desired item.
LTo edit the number, press {EDIT}
({F2} key) repeatedly until the
number is shown in the desired
format (page 15, step 3).
3Press {SAVE} ({F3} key).
LIf there is no name information for the
caller, “Enter name” will be...

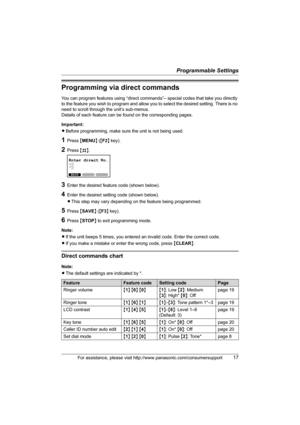

Programmable Settings
For assistance, please visit http://www.panasonic.com/consumersupport17
Programming via direct commands
You can program features using “direct commands”– special codes that take you directly
to the feature you wish to program and allow you to select the desired setting. There is no
need to scroll through the unit’s sub-menus.
Details of each feature can be found on the corresponding pages.
Important:
LBefore programming, make sure the unit is not being used.
1Press {MENU} ({F2}...

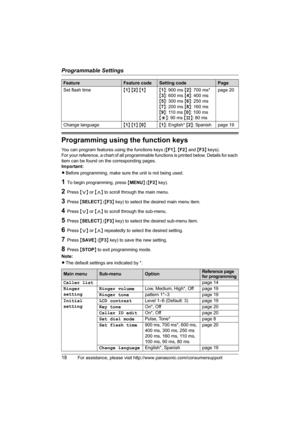

Programmable Settings
18For assistance, please visit http://www.panasonic.com/consumersupport
Programming using the function keys
You can program features using the functions keys ({F1}, {F2} and {F3} keys).
For your reference, a chart of all programmable functions is printed below. Details for each
item can be found on the corresponding pages.
Important:
LBefore programming, make sure the unit is not being used.
1To begin programming, press {MENU} ({F2} key).
2Press {} to scroll through the main...

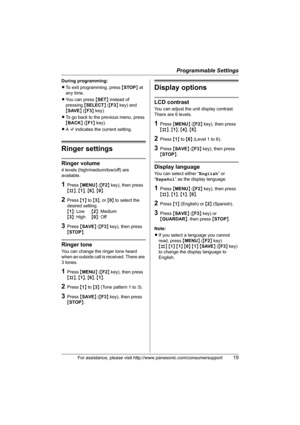

Programmable Settings
For assistance, please visit http://www.panasonic.com/consumersupport19
During programming:
LTo exit programming, press {STOP} at
any time.
LYou can press {SET} instead of
pressing {SELECT} ({F3} key) and
{SAVE} ({F3} key).
LTo go back to the previous menu, press
{BACK} ({F1} key).
LA Q indicates the current setting.
Ringer settings
Ringer volume
4 levels (high/medium/low/off) are
available.
1Press {MENU} ({F2} key), then press
{#}, {1}, {6}, {0}.
2Press {1} to {3}, or {0} to...

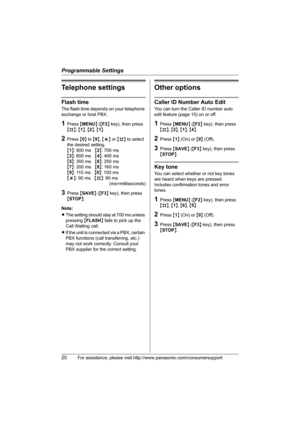

Programmable Settings
20For assistance, please visit http://www.panasonic.com/consumersupport
Telephone settings
Flash time
The flash time depends on your telephone
exchange or host PBX.
1Press {MENU} ({F2} key), then press
{#}, {1}, {2}, {1}.
2Press {0} to {9}, {*} or {#} to select
the desired setting.
{1}: 900 ms{2}: 700 ms
{3}: 600 ms{4}: 400 ms
{5}: 300 ms{6}: 250 ms
{7}: 200 ms{8}: 160 ms
{9}: 110 ms{0}: 100 ms
{*}: 90 ms{#}: 80 ms
(ms=milliseconds)
3Press {SAVE} ({F3} key), then press
{STOP}....
