Recording a conversation
For assistance, please visit http://www.panasonic.com/consumersupport21

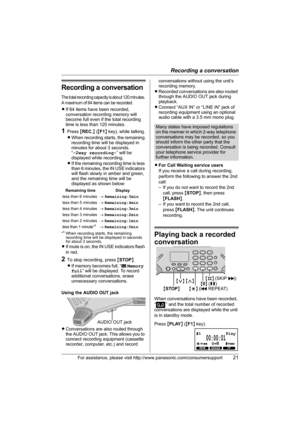

Recording a conversation
The total recording capacity is about 120 minutes.
A maximum of 64 items can be recorded.
LIf 64 items have been recorded,
conversation recording memory will
become full even if the total recording
time is less than 120 minutes.
1Press {REC.} ({F1} key), while talking.
LWhen recording starts, the remaining
recording time will be displayed in
minutes for about 3 seconds.
“-2way...

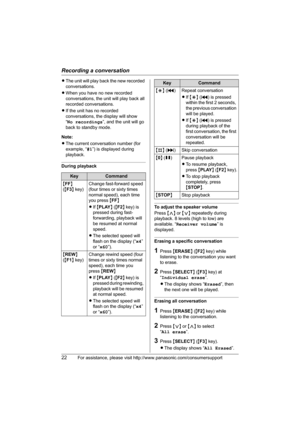

Recording a conversation
22For assistance, please visit http://www.panasonic.com/consumersupport
LThe unit will play back the new recorded
conversations.
LWhen you have no new recorded
conversations, the unit will play back all
recorded conversations.
LIf the unit has no recorded
conversations, the display will show
“No recordings”, and the unit will go
back to standby mode.
Note:
LThe current conversation number (for
example, “#1”) is displayed during
playback.
During playback
To adjust the...

Useful Information
For assistance, please visit http://www.panasonic.com/consumersupport23

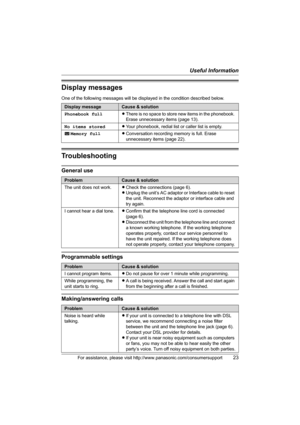

Display messages
One of the following messages will be displayed in the condition described below.
Troubleshooting
General use
Programmable settings
Making/answering calls
Display messageCause & solution
Phonebook fullLThere is no space to store new items in the phonebook.
Erase unnecessary items (page 13).
No items storedLYour phonebook, redial list or caller list is empty.
Memory fullLConversation recording...

Useful Information
24For assistance, please visit http://www.panasonic.com/consumersupport

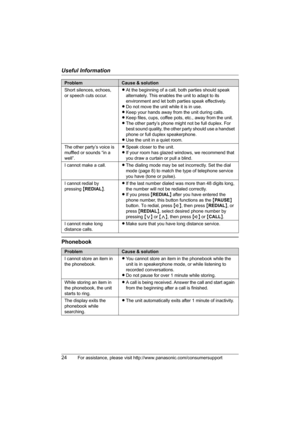

Phonebook
Short silences, echoes,
or speech cuts occur.LAt the beginning of a call, both parties should speak
alternately. This enables the unit to adapt to its
environment and let both parties speak effectively.
LDo not move the unit while it is in use.
LKeep your hands away from the unit during calls.
LKeep files, cups, coffee pots, etc., away from the unit.
LThe other party’s phone might not be full duplex....

Useful Information
For assistance, please visit http://www.panasonic.com/consumersupport25

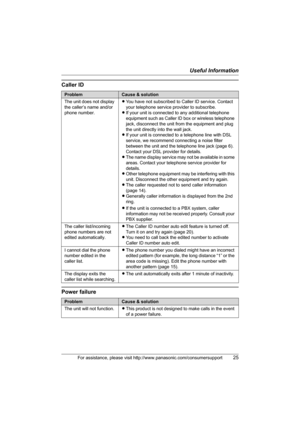

Caller ID
Power failure
ProblemCause & solution
The unit does not display
the caller’s name and/or
phone number.LYou have not subscribed to Caller ID service. Contact
your telephone service provider to subscribe.
LIf your unit is connected to any additional telephone
equipment such as Caller ID box or wireless telephone
jack, disconnect the unit from the equipment and plug
the unit directly into the wall...

Useful Information
26For assistance, please visit http://www.panasonic.com/consumersupport

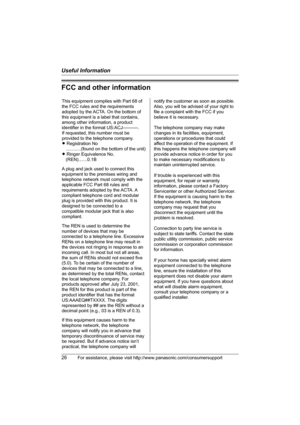

FCC and other information
This equipment complies with Part 68 of
the FCC rules and the requirements
adopted by the ACTA. On the bottom of
this equipment is a label that contains,
among other information, a product
identifier in the format US:ACJ----------.
If requested, this number must be
provided to the telephone company.
L Registration No
    ............(found on the bottom of the unit)
L Ringer...

Useful Information
For assistance, please visit http://www.panasonic.com/consumersupport27

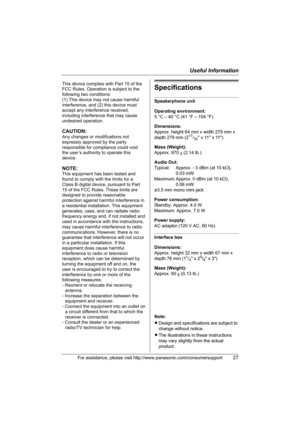

Specifications
Speakerphone unit
Operating environment:
5 °C – 40 °C (41 °F – 104 °F)
Dimensions:
Approx. height 64 mm x width 279 mm x
depth 279 mm (2
17/32 x 11 x 11)
Mass (Weight):
Approx. 970 g (2.14 lb.)
Audio Out:
Typical: Approx.
−3 dBm (at 10 kΩ),
0.03 mW
Maximum: Approx.
0 dBm (at 10 kΩ),
0.06 mW
ø3.5 mm mono mini jack
Power consumption:
Standby: Approx. 4.0 W
Maximum: Approx. 7.0 W
Power supply:
AC...

Index
28For assistance, please visit http://www.panasonic.com/consumersupport

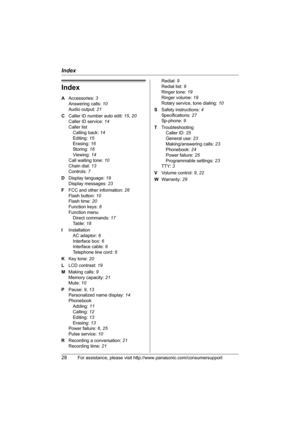

Index
A Accessories: 3
Answering calls: 10
Audio output: 21
C Caller ID number auto edit: 15, 20
Caller ID service: 14
Caller list
Calling back: 14
Editing: 15
Erasing: 16
Storing: 16
Viewing: 14
Call waiting tone: 10
Chain dial: 13
Controls: 7
D Display language: 19
Display messages: 23
F FCC and other information: 26
Flash button: 10
Flash time: 20
Function keys: 8
Function menu
Direct commands: 17
Table: 18
I Installation
AC...

✄
For assistance, please visit http://www.panasonic.com/consumersupport29

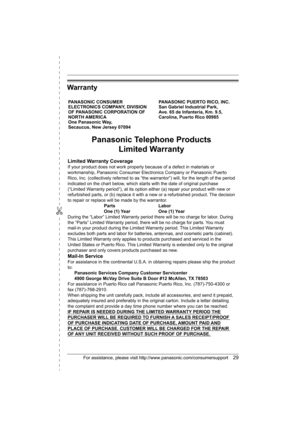

Warranty
PANASONIC CONSUMER
ELECTRONICS COMPANY, DIVISION
OF PANASONIC CORPORATION OF
NORTH AMERICA
One Panasonic Way,
Secaucus, New Jersey 07094PANASONIC PUERTO RICO, INC.
San Gabriel Industrial Park,
Ave. 65 de Infantería, Km. 9.5,
Carolina, Puerto Rico 00985
Panasonic Telephone Products
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or
workmanship,...

30For assistance, please visit http://www.panasonic.com/consumersupport

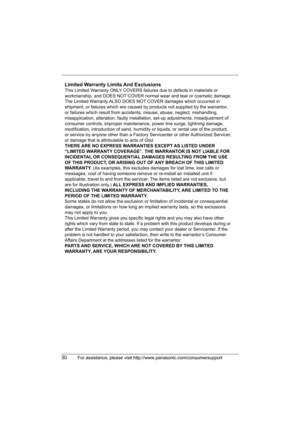

Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
The Limited Warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by the warrantor,
or failures which result from accidents, misuse, abuse, neglect, mishandling,
misapplication,...
