- 31 -
Basic

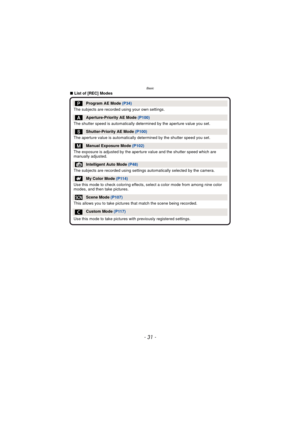

∫List of [REC] Modes
Program AE Mode  (P34)
The subjects are recorded  using your own settings.
Aperture-Priority AE Mode  (P100)
The shutter speed is automatically determined by the aperture value you set.
Shutter-Priority AE Mode  (P100)
The aperture value is automatically determined by the shutter speed you set.
Manual Exposure Mode  (P102)
The exposure is adjusted by the aperture  value and the shutter speed which are
manually adjusted.
Intelligent Auto Mode  (P48)
The subjects are...

Basic

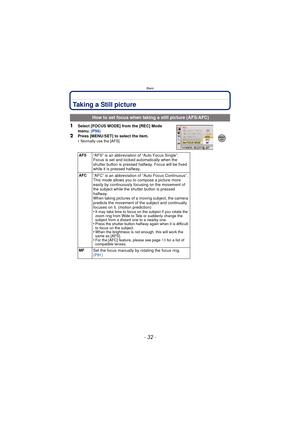

- 32 -
Taking a Still picture
1Select [FOCUS MODE] from the [REC] Mode
menu. (P56)
2Press [MENU/SET] to select the item.
•Normally use the [AFS].
 How to set focus when taking a still picture (AFS/AFC)
AFS“AFS” is an abbreviation of “Auto Focus Single”.
Focus is set and locked automatically when the
shutter button is pressed halfway. Focus will be fixed
while it is pressed halfway.
AFC“AFC” is an abbreviation of “Auto Focus Continuous”.
This mode allows you to compose a picture more
easily by...

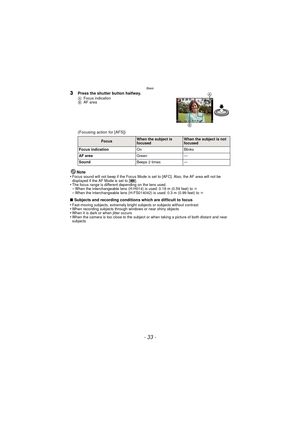

- 33 -
Basic
3Press the shutter button halfway.AFocus indication
B AF area
(Focusing action for [AFS])
Note
•
Focus sound will not beep if the Focus Mode is set to [AFC]. Also, the AF area will not be
displayed if the AF Mode is set to [ ].
•The focus range is different depending on the lens used.–When the interchangeable lens (H-H014) is used: 0.18 m (0.59 feet) to ¶
–When the interchangeable lens (H-FS014042) is used: 0.3 m (0.99 feet) to ¶
∫ Subjects and recording conditions which are difficult to...

Basic

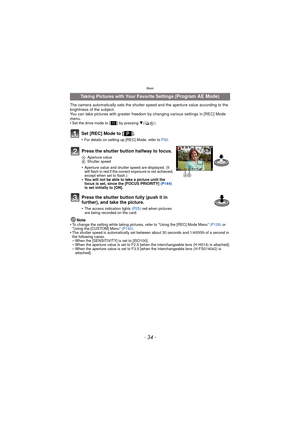

- 34 -
The camera automatically sets the shutter speed and the aperture value according to the
brightness of the subject.
You can take pictures with greater freedom by changing various settings in [REC] Mode
menu.
•
Set the drive mode to [ ] by pressing  4().
Set [REC] Mode to [ ].
•For details on setting up [REC] Mode, refer to  P30.
Note
•To change the setting while taking pictures, refer to “Using the [REC] Mode Menu”  (P129)  or “Using the [CUSTOM] Menu” (P142) .•The shutter speed is...

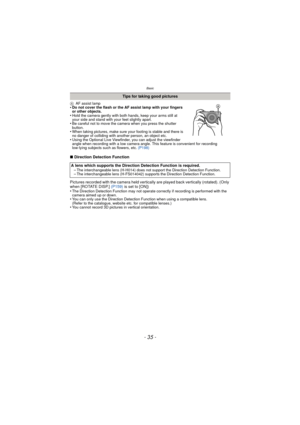

- 35 -
Basic
AAF assist lamp•Do not cover the flash or the AF assist lamp with your fingers
or other objects.
•Hold the camera gently with both hands, keep your arms still at
your side and stand with your feet slightly apart.
•Be careful not to move the camera when you press the shutter
button.
•When taking pictures, make sure your footing is stable and there is
no danger of colliding with another person, an object etc.
•Using the Optional Live Viewfinder, you can adjust the viewfinder
angle when...

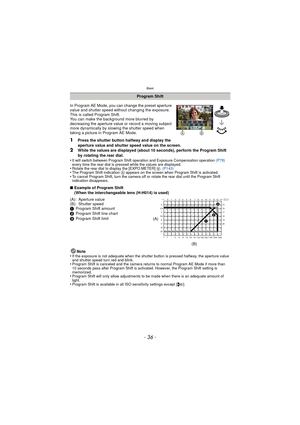

Basic
- 36 -
In Program AE Mode, you can change the preset aperture
value and shutter speed without changing the exposure.
This is called Program Shift.
You can make the background more blurred by
decreasing the aperture value or record a moving subject
more dynamically by slowing the shutter speed when
taking a picture in Program AE Mode.
1Press the shutter button halfway and display the
aperture value and shutter speed value on the screen.
2While the values are displayed (about 10 seconds),...

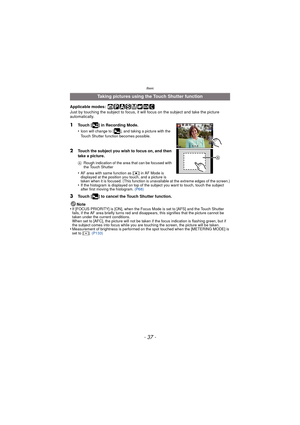

- 37 -
Basic
Applicable modes:
Just by touching the subject to focus, it will focus on the subject and take the picture
automatically.
1Touch [ ] in Recording Mode.
•
Icon will change to [ ], and taking a picture with the
Touch Shutter function becomes possible.
2Touch the subject you wish to focus on, and then
take a picture.
ARough indication of the area that can be focused with
the Touch Shutter
•AF area with same function as [ Ø] in AF Mode is
displayed at the position you touch, and a picture...

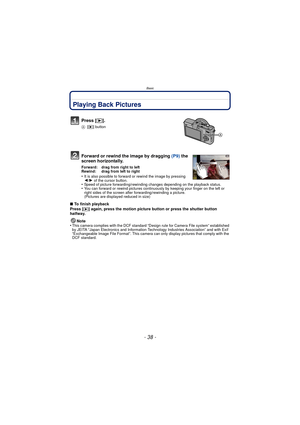

Basic
- 38 -
Playing Back Pictures
Forward or rewind the image by dragging (P9) the
screen horizontally.
Forward: drag from right to left
Rewind: drag from left to right
•It is also possible to forward or rewind the image by pressing
2 /1  of the cursor button.
•Speed of picture forwarding /rewinding changes depending on the playback status.•You can forward or rewind pictures continuous ly by keeping your finger on the left or
right sides of the screen after forwarding/rewinding a picture.
(Pictures...

- 39 -
Basic
Touch [ ] to switch the monitor screen.
•During Playback Zoom (P42), while playing back motion
pictures  (P46) and during a slide show  (P149), you can only
select “Normal display  A” or “No display E”.
•Histogram C is displayed in R (red), G (green), B (blue), and
Y (luminance) during the playback.
A Normal display
B Detailed information display
C Histogram display
D Highlight display
¢1,2
E No display¢2
¢1 This is displayed if [HIGHLIGHT]  (P142) in the [CUSTOM] menu is set to [ON].
¢ 2...

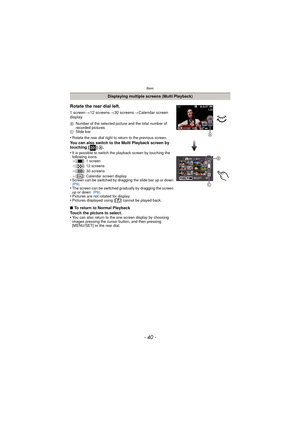

Basic
- 40 -
Displaying multiple screens (Multi Playback)
Rotate the rear dial left.
1 screen>12 screens >30 screens >Calendar screen
display
B Number of the selected picture and the total number of
recorded pictures
C Slide bar
•Rotate the rear dial right to return to the previous screen.
You can also switch to the Multi Playback screen by
touching [ ] A .
•
It is possible to switch the playback screen by touching the
following icons.
–[]:1screen–[ ]: 12 screens–[ ]: 30 screens
–[ ]: Calendar screen...
