Panasonic Digital Camera Dmc Gf2 Operating Instructions

- 81 -
Recording
[REC] Mode:

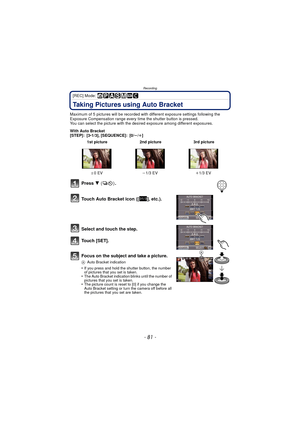

Taking Pictures using Auto Bracket
Maximum of 5 pictures will be recorded with different exposure settings following the
Exposure Compensation range every time the shutter button is pressed.
You can select the picture with the des ired exposure among different exposures.
With Auto Bracket
[STEP]: [3 •1/3], [SEQUENCE]: [0/ s/r ]
Press  4  () .
Touch Auto Bracket icon ([ ], etc.).
Select and touch the step.
Touch [SET].
Focus on the subject and take a picture.
A Auto Bracket...

Recording

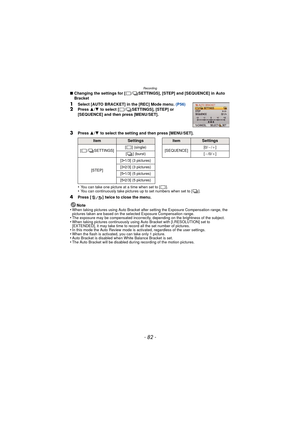

- 82 -
∫Changing the settings for [ / SETTINGS], [STEP] and [SEQUENCE] in Auto
Bracket
1Select [AUTO BRACKET] in the [REC] Mode menu.  (P56)2Press 3/4  to select [ / SETTINGS], [STEP] or
[SEQUENCE] and then press [MENU/SET].
3Press  3/4  to select the setting and then press [MENU/SET].
•
You can take one picture at a time when set to [ ].•You can continuously take pictures up to set numbers when set to [ ].
4Press [ ] twice to close the menu.
Note
•
When taking pictures using Auto Bracket...

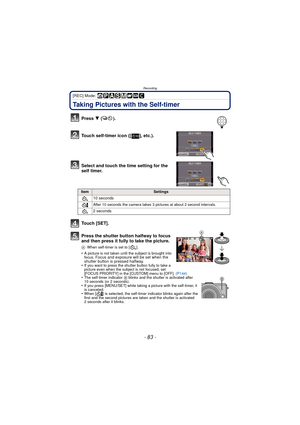

- 83 -
Recording
[REC] Mode:
Taking Pictures with the Self-timer
Press 4 ().
Touch self-timer icon ([ ], etc.).
Select and touch the time setting for the
self timer.
Touch [SET].
Press the shutter button halfway to focus
and then press it fully to take the picture.
A When self-timer is set to [ ].
•A picture is not taken until the subject is brought into
focus. Focus and exposure will be set when the
shutter button is pressed halfway.
•
If you want to press the shutter button fully to take a...

Recording

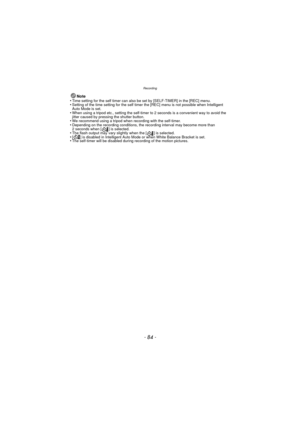

- 84 -
Note
•Time setting for the self timer can also be set by [SELF-TIMER] in the [REC] menu.•Setting of the time setting for the self timer  the [REC] menu is not possible when Intelligent
Auto Mode is set.
•When using a tripod etc., setting the self-timer to 2 seconds is a convenient way to avoid the
jitter caused by pressing the shutter button.
•We recommend using a tripod when recording with the self-timer.•Depending on the recording conditions, the recording interval may become more...

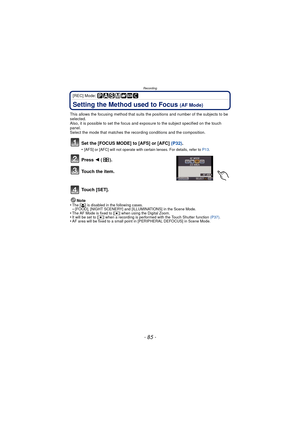

- 85 -
Recording
[REC] Mode:
Setting the Method used to Focus (AF Mode)
This allows the focusing method that suits the positions and number of the subjects to be
selected.
Also, it is possible to set the focus and exposure to the subject specified on the touch
panel.
Select the mode that matches the recording conditions and the composition.
Set the [FOCUS MODE] to [AFS] or [AFC]  (P32).
•[AFS] or [AFC] will not operate with certain lenses. For details, refer to  P13.
Press  2 ().
To u c h  t h e  i t...

Recording

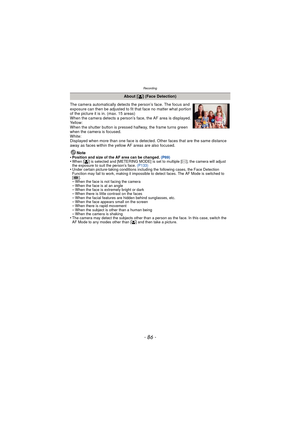

- 86 -
The camera automatically detects the person’s face. The focus and
exposure can then be adjusted to fit that face no matter what portion
of the picture it is in. (max. 15 areas)
When the camera detects a person’s face, the AF area is displayed.
Yellow:
When the shutter button is pressed halfway, the frame turns green
when the camera is focused.
White:
Displayed when more than one face is detected. Other faces that are the same distance
away as faces within the yellow AF areas are also...

- 87 -
Recording

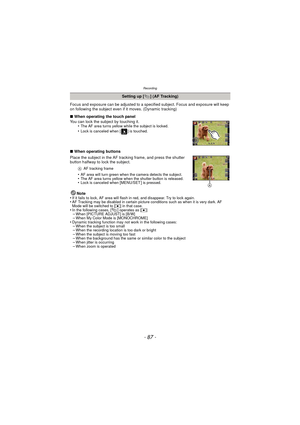

Focus and exposure can be adjusted to a specified subject. Focus and exposure will keep
on following the subject even if it moves. (Dynamic tracking)
∫ When operating the touch panel
You can lock the subject by touching it. •
The AF area turns yellow while the subject is locked.•Lock is canceled when [ ] is touched.
∫When operating buttons
Place the subject in the AF tracking frame, and press the shutter
button halfway to lock the subject.
A AF tracking frame
•AF area will turn green...

Recording

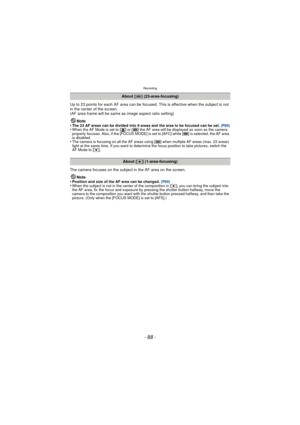

- 88 -
Up to 23 points for each AF area can be focused. This is effective when the subject is not
in the center of the screen.
(AF area frame will be same as image aspect ratio setting)
Note
•
The 23 AF areas can be divided into 9 areas and the area to be focused can be set.  (P89)•When the AF Mode is set to [š] or [ ] the AF area will be disp layed as soon as the camera
properly focuses. Also, if the [FOCUS MODE] is set to [AFC] while [ ] is selected, the AF area
is disabled.
•The camera is...

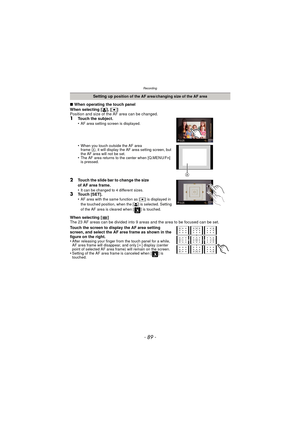

- 89 -
Recording
∫When operating the touch panel
When selecting [ š], [Ø ]
Position and size of the AF area can be changed.
1Touch the subject.
•AF area setting screen is displayed.
•When you touch outside the AF area
frame A, it will display the AF area setting screen, but
the AF area will not be set.
•The AF area returns to the center when [Q.MENU/Fn]
is pressed.
2Touch the slide bar to change the size
of AF area frame.
•
It can be changed to 4 different sizes.3Touch [SET].
•AF area with the same...

Recording

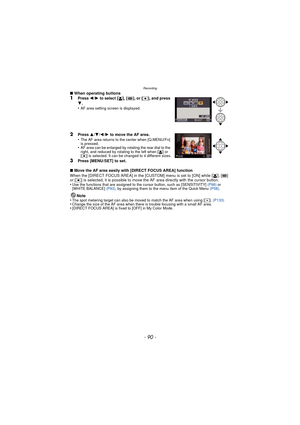

- 90 -
∫When operating buttons1Press 2/1 to select [š], [ ], or [Ø], and press 4.
•AF area setting screen is displayed.
2Press 3/4/2/1 to move the AF area.
•The AF area returns to the center when [Q.MENU/Fn]
is pressed.
•AF area can be enlarged by rotating the rear dial to the
right, and reduced by rotating to the left when [š] or
[Ø] is selected. It can be changed to 4 different sizes.
3Press [MENU/SET] to set.
∫ Move the AF area easily with [DIRECT FOCUS AREA] function
When the [DIRECT...
