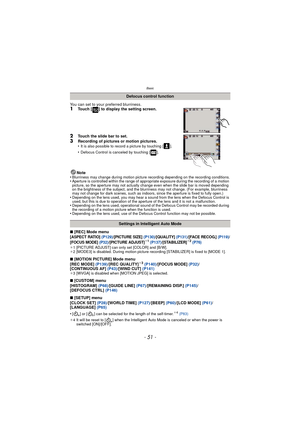

- 51 -
Basic
You can set to your preferred blurriness.1Touch [ ] to display the setting screen.
2Touch the slide bar to set.3Recording of pictures or motion pictures.
•It is also possible to record a picture by touching [ ].
•Defocus Control is canceled by touching [ ].
Note
•Blurriness may change during motion picture re cording depending on the recording conditions.•Aperture is controlled within the range of appropriate exposure during the recording of a motion
picture, so the aperture may not...

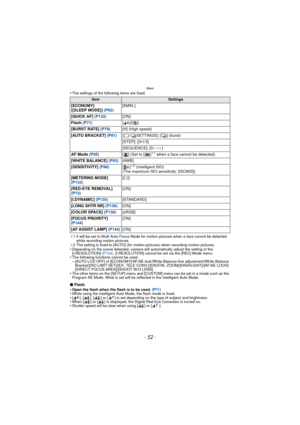

Basic
- 52 -
•The settings of the following items are fixed.
¢ 1 It will be set to Multi Auto Focus Mode for motion pictures when a face cannot be detected
while recording motion pictures.
¢ 2 The setting is fixed to [AUTO] (for motion pictures) when recording motion pictures.
•Depending on the scene detected, camera will  automatically adjust the setting of the
[I.RESOLUTION]  (P134). [I.RESOLUTION] cannot be set via the [REC] Mode menu.
•The following functions cannot be used.–[AUTO LCD OFF] of...

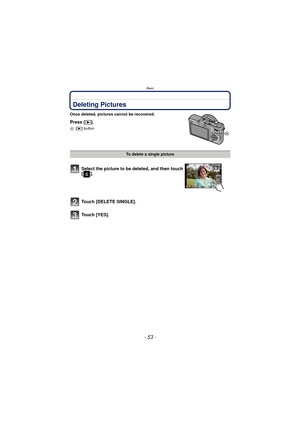

- 53 -
Basic
Deleting Pictures
Once deleted, pictures cannot be recovered.
Press [(].
A[( ] button
To delete a single picture
Select the picture to be deleted, and then touch
[].
Touch [DELETE SINGLE].
Touch [YES].

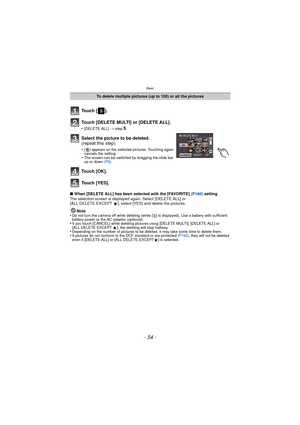

Basic
- 54 -
∫When [DELETE ALL] has been selected with the [FAVORITE] (P160)  setting
The selection screen is displayed again. Select [DELETE ALL] or
[ALL DELETE EXCEPT
Ü], select [YES] and delete the pictures.
Note
•
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a ba ttery with sufficient
battery power or the AC adaptor (optional).
•If you touch [CANCEL] while deleting pictures using [DELETE MULTI], [DELETE ALL] or
[ALL DELETE EXCEPT  Ü], the deleting will stop halfway....

- 55 -
Basic

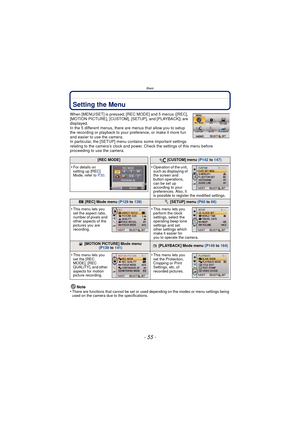

Setting the Menu
When [MENU/SET] is pressed, [REC MODE] and 5 menus ([REC],
[MOTION PICTURE], [CUSTOM], [SETUP], and [PLAYBACK]) are
displayed.
In the 5 different menus, there are menus that allow you to setup
the recording or playback to your preference, or make it more fun
and easier to use the camera.
In particular, the [SETUP] menu contains some important settings
relating to the camera’s clock and power. Check the settings of this menu before
proceeding to use the camera.Note
•...

Basic

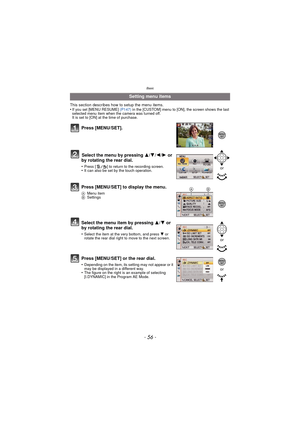

- 56 -
This section describes how to setup the menu items.
•If you set [MENU RESUME] (P147) in the [CUSTOM] menu to [ON], the screen shows the last
selected menu item when the camera was turned off.
It is set to [ON] at the time of purchase.
Setting menu items
Press [MENU/SET]. Select the menu by pressing  3/4/ 2/1 or
by rotating the rear dial.
•Press [ ] to return to the recording screen.•It can also be set by the touch operation.
Press [MENU/SET] to display the menu.
A Menu item
B Settings...

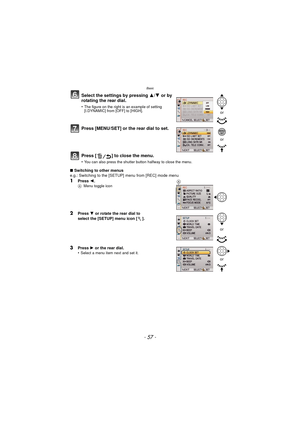

- 57 -
Basic
∫Switching to other menus
e.g.: Switching to the [SETUP] menu from [REC] mode menu
1Press  2.A Menu toggle icon
2Press  4 or rotate the rear dial to
select the [SETUP] menu icon [ ].
3Press  1 or the rear dial.
•Select a menu item next and set it.
Select the settings by pressing  3/4 or by
rotating the rear dial.
•The figure on the right is an example of setting
[I.DYNAMIC] from [OFF] to [HIGH].
Press [MENU/SET] or the rear dial to set.
Press [ ] to close the menu.
•You can also press the...

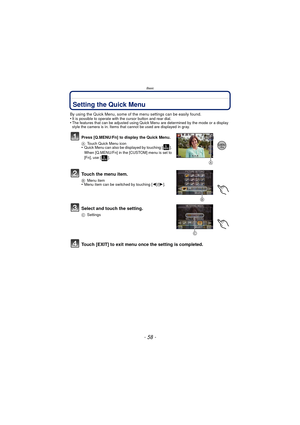

Basic
- 58 -
Setting the Quick Menu
By using the Quick Menu, some of the menu settings can be easily found.
•It is possible to operate with the cursor button and rear dial.•The features that can be adjusted using Quick Menu are determined by the mode or a display
style the camera is in. Items that cannot be used are displayed in gray.
Press [Q.MENU/Fn] to display the Quick Menu.
A Touch Quick Menu icon•Quick Menu can also be displayed by touching [ ].
When [Q.MENU/Fn] in the [CUSTOM] menu is set to...

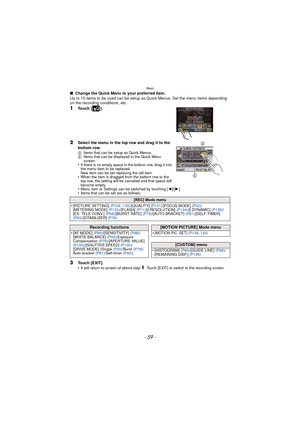

- 59 -
Basic
∫ Change the Quick Menu to your preferred item.
Up to 10 items to be used can be setup  as Quick Menus. Set the menu items depending
on the recording conditions, etc.
1Touch [ ].
2Select the menu in the top row and drag it to the
bottom row.
D Items that can be setup as Quick Menus.
E Items that can be displayed in the Quick Menu
screen.
•If there is no empty space in the bottom row, drag it into
the menu item to be replaced.
New item can be set replacing the old item.
•When the item...

Basic
- 60 -
Perform these settings if you need to.

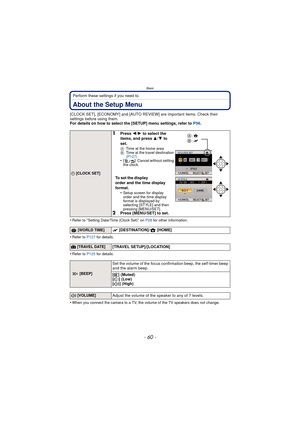

About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
For details on how to select the [SETUP] menu settings, refer to P56.
•
Refer to “Setting Date/Time (Clock Set)” on  P28  for other information.
•Refer to P127 for details.
•Refer to P125 for details.
•When you connect the camera to a TV, the volume of the TV speakers does not change.
U [CLOCK SET]
1Press  2/1 to select the
items,...
