Panasonic Digital Camera Dmc Gf2 Operating Instructions
Here you can view all the pages of manual Panasonic Digital Camera Dmc Gf2 Operating Instructions . The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

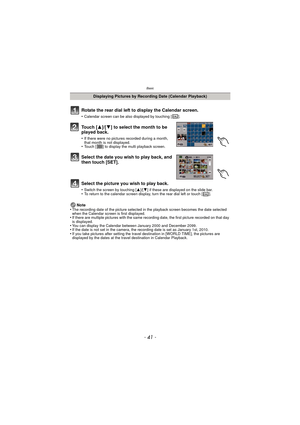

Page 41
![Page 41
- 41 -
Basic
Note
•The recording date of the picture selected in the playback screen becomes the date selected
when the Calendar screen is first displayed.
•If there are multiple pictures with the same recording date, the first picture recorded on that day
is displayed.
•You can display the Calendar between January 2000 and December 2099.•If the date is not set in the camera, the recording date is set as January 1st, 2010.•If you take pictures after setting the travel destination in [WORLD TIME], the...](http://img.usermanuals.tech/thumb/58/64988/w300_dmc-gf2_adv_en_om_d-40.png "Page 41
- 41 -
Basic
Note
•The recording date of the picture selected in the playback screen becomes the date selected
when the Calendar screen is first displayed.
•If there are multiple pictures with the same recording date, the first picture recorded on that day
is displayed.
•You can display the Calendar between January 2000 and December 2099.•If the date is not set in the camera, the recording date is set as January 1st, 2010.•If you take pictures after setting the travel destination in [WORLD TIME], the...")
- 41 - Basic Note •The recording date of the picture selected in the playback screen becomes the date selected when the Calendar screen is first displayed. •If there are multiple pictures with the same recording date, the first picture recorded on that day is displayed. •You can display the Calendar between January 2000 and December 2099.•If the date is not set in the camera, the recording date is set as January 1st, 2010.•If you take pictures after setting the travel destination in [WORLD TIME], the...

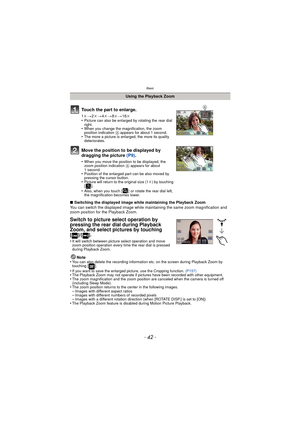

Page 42
![Page 42
Basic
- 42 -
∫Switching the displayed image while maintaining the Playback Zoom
You can switch the displayed image while maintaining the same zoom magnification and
zoom position for the Playback Zoom.
Switch to picture select operation by
pressing the rear dial during Playback
Zoom, and select pictures by touching
[]/[].
•It will switch between picture select operation and move
zoom position operation every time the rear dial is pressed
during Playback Zoom.
Note
•You can also delete the...](http://img.usermanuals.tech/thumb/58/64988/w300_dmc-gf2_adv_en_om_d-41.png "Page 42
Basic
- 42 -
∫Switching the displayed image while maintaining the Playback Zoom
You can switch the displayed image while maintaining the same zoom magnification and
zoom position for the Playback Zoom.
Switch to picture select operation by
pressing the rear dial during Playback
Zoom, and select pictures by touching
[]/[].
•It will switch between picture select operation and move
zoom position operation every time the rear dial is pressed
during Playback Zoom.
Note
•You can also delete the...")
Basic - 42 - ∫Switching the displayed image while maintaining the Playback Zoom You can switch the displayed image while maintaining the same zoom magnification and zoom position for the Playback Zoom. Switch to picture select operation by pressing the rear dial during Playback Zoom, and select pictures by touching []/[]. •It will switch between picture select operation and move zoom position operation every time the rear dial is pressed during Playback Zoom. Note •You can also delete the...

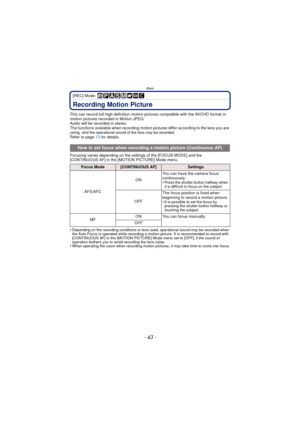

Page 43
![Page 43
- 43 -
Basic
[REC] Mode:
Recording Motion Picture
This can record full high definition motion pictures compatible with the AVCHD format or
motion pictures recorded in Motion JPEG.
Audio will be recorded in stereo.
The functions available when recording motion pictures differ according to the lens you are
using, and
the operational sound of the lens may be recorded.Refer to page 13 for details.
Focusing varies depending on the settings of the [FOCUS MODE] and the
[CONTINUOUS AF] in the [MOTION...](http://img.usermanuals.tech/thumb/58/64988/w300_dmc-gf2_adv_en_om_d-42.png "Page 43
- 43 -
Basic
[REC] Mode:
Recording Motion Picture
This can record full high definition motion pictures compatible with the AVCHD format or
motion pictures recorded in Motion JPEG.
Audio will be recorded in stereo.
The functions available when recording motion pictures differ according to the lens you are
using, and
the operational sound of the lens may be recorded.Refer to page 13 for details.
Focusing varies depending on the settings of the [FOCUS MODE] and the
[CONTINUOUS AF] in the [MOTION...")
- 43 - Basic [REC] Mode: Recording Motion Picture This can record full high definition motion pictures compatible with the AVCHD format or motion pictures recorded in Motion JPEG. Audio will be recorded in stereo. The functions available when recording motion pictures differ according to the lens you are using, and the operational sound of the lens may be recorded.Refer to page 13 for details. Focusing varies depending on the settings of the [FOCUS MODE] and the [CONTINUOUS AF] in the [MOTION...

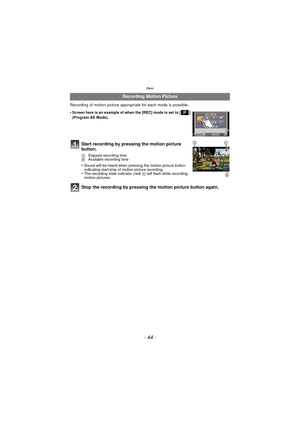

Page 44
![Page 44
Basic
- 44 -
Recording of motion picture appropriate for each mode is possible.
Recording Motion Picture
•Screen here is an example of when the [REC] mode is set to [ ]
(Program AE Mode).
Start recording by pressing the motion picture
button.
A Elapsed recording time
B Available recording time
•Sound will be heard when pressing the motion picture button
indicating start/stop of motion picture recording.
•The recording state indicator (red) C will flash while recording
motion pictures.
Stop the...](http://img.usermanuals.tech/thumb/58/64988/w300_dmc-gf2_adv_en_om_d-43.png "Page 44
Basic
- 44 -
Recording of motion picture appropriate for each mode is possible.
Recording Motion Picture
•Screen here is an example of when the [REC] mode is set to [ ]
(Program AE Mode).
Start recording by pressing the motion picture
button.
A Elapsed recording time
B Available recording time
•Sound will be heard when pressing the motion picture button
indicating start/stop of motion picture recording.
•The recording state indicator (red) C will flash while recording
motion pictures.
Stop the...")
Basic - 44 - Recording of motion picture appropriate for each mode is possible. Recording Motion Picture •Screen here is an example of when the [REC] mode is set to [ ] (Program AE Mode). Start recording by pressing the motion picture button. A Elapsed recording time B Available recording time •Sound will be heard when pressing the motion picture button indicating start/stop of motion picture recording. •The recording state indicator (red) C will flash while recording motion pictures. Stop the...

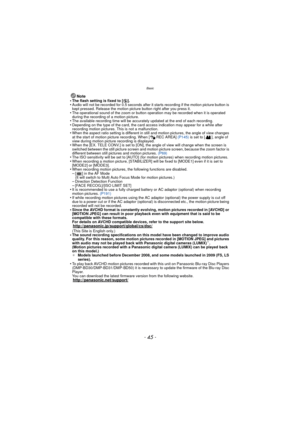

Page 45
![Page 45
- 45 -
Basic
Note
•The flash setting is fixed to [ Œ].•Audio will not be recorded for 0.5 seconds after it starts recording if the motion picture button is
kept pressed. Release the motion picture button right after you press it.
•The operational sound of the zoom or button operation may be recorded when it is operated
during the recording of a motion picture.
•The available recording time will be accurately updated at the end of each recording.•Depending on the type of the card, the card access...](http://img.usermanuals.tech/thumb/58/64988/w300_dmc-gf2_adv_en_om_d-44.png "Page 45
- 45 -
Basic
Note
•The flash setting is fixed to [ Œ].•Audio will not be recorded for 0.5 seconds after it starts recording if the motion picture button is
kept pressed. Release the motion picture button right after you press it.
•The operational sound of the zoom or button operation may be recorded when it is operated
during the recording of a motion picture.
•The available recording time will be accurately updated at the end of each recording.•Depending on the type of the card, the card access...")
- 45 - Basic Note •The flash setting is fixed to [ Œ].•Audio will not be recorded for 0.5 seconds after it starts recording if the motion picture button is kept pressed. Release the motion picture button right after you press it. •The operational sound of the zoom or button operation may be recorded when it is operated during the recording of a motion picture. •The available recording time will be accurately updated at the end of each recording.•Depending on the type of the card, the card access...

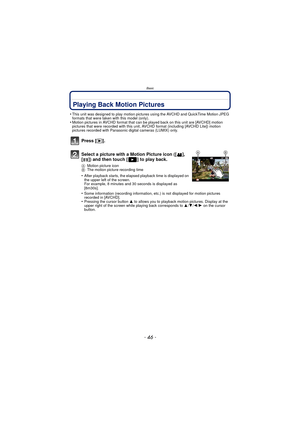

Page 46
![Page 46
Basic
- 46 -
Playing Back Motion Pictures
•This unit was designed to play motion pictures using the AVCHD and QuickTime Motion JPEG
formats that were taken with this model (only).
•Motion pictures in AVCHD format that can be played back on this unit are [AVCHD] motion
pictures that were recorded with this unit, AV CHD format (including [AVCHD Lite]) motion
pictures recorded with Panasonic digital cameras (LUMIX) only.
Press [( ].
Select a picture with a Motion Picture icon ([ ],
[ ]) and then touch [...](http://img.usermanuals.tech/thumb/58/64988/w300_dmc-gf2_adv_en_om_d-45.png "Page 46
Basic
- 46 -
Playing Back Motion Pictures
•This unit was designed to play motion pictures using the AVCHD and QuickTime Motion JPEG
formats that were taken with this model (only).
•Motion pictures in AVCHD format that can be played back on this unit are [AVCHD] motion
pictures that were recorded with this unit, AV CHD format (including [AVCHD Lite]) motion
pictures recorded with Panasonic digital cameras (LUMIX) only.
Press [( ].
Select a picture with a Motion Picture icon ([ ],
[ ]) and then touch [...")
Basic - 46 - Playing Back Motion Pictures •This unit was designed to play motion pictures using the AVCHD and QuickTime Motion JPEG formats that were taken with this model (only). •Motion pictures in AVCHD format that can be played back on this unit are [AVCHD] motion pictures that were recorded with this unit, AV CHD format (including [AVCHD Lite]) motion pictures recorded with Panasonic digital cameras (LUMIX) only. Press [( ]. Select a picture with a Motion Picture icon ([ ], [ ]) and then touch [...

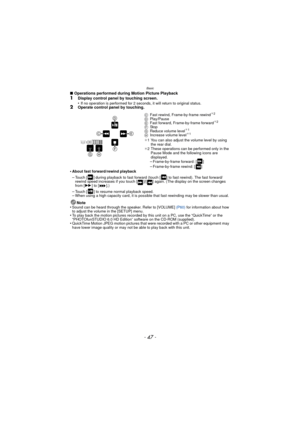

Page 47
![Page 47
- 47 -
Basic
∫Operations performed during Motion Picture Playback1Display control panel by touching screen.
•If no operation is performed for 2 second s, it will return to original status.2Operate control panel by touching.
•
About fast forward/rewind playback
–Touch [ ] during playback to fast forward (touch [ ] to fast rewind). The fast forward/
rewind speed increases if you touch [ ]/[ ] again. (The display on the screen changes
from [ 5] to [ ].)
–Touch [ ] to resume normal playback speed.–When...](http://img.usermanuals.tech/thumb/58/64988/w300_dmc-gf2_adv_en_om_d-46.png "Page 47
- 47 -
Basic
∫Operations performed during Motion Picture Playback1Display control panel by touching screen.
•If no operation is performed for 2 second s, it will return to original status.2Operate control panel by touching.
•
About fast forward/rewind playback
–Touch [ ] during playback to fast forward (touch [ ] to fast rewind). The fast forward/
rewind speed increases if you touch [ ]/[ ] again. (The display on the screen changes
from [ 5] to [ ].)
–Touch [ ] to resume normal playback speed.–When...")
- 47 - Basic ∫Operations performed during Motion Picture Playback1Display control panel by touching screen. •If no operation is performed for 2 second s, it will return to original status.2Operate control panel by touching. • About fast forward/rewind playback –Touch [ ] during playback to fast forward (touch [ ] to fast rewind). The fast forward/ rewind speed increases if you touch [ ]/[ ] again. (The display on the screen changes from [ 5] to [ ].) –Touch [ ] to resume normal playback speed.–When...

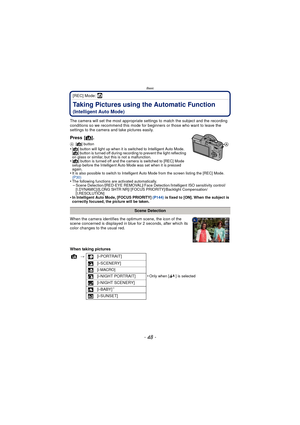

Page 48
![Page 48
Basic
- 48 -
[REC] Mode: ñ
Taking Pictures using the Automatic Function
(Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
Press [¦].
A[¦] button •[¦] button will light up when it is switched to Intelligent Auto Mode.
[¦] button is turned off during recording to prevent the light reflecting
on glass or similar,...](http://img.usermanuals.tech/thumb/58/64988/w300_dmc-gf2_adv_en_om_d-47.png "Page 48
Basic
- 48 -
[REC] Mode: ñ
Taking Pictures using the Automatic Function
(Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
Press [¦].
A[¦] button •[¦] button will light up when it is switched to Intelligent Auto Mode.
[¦] button is turned off during recording to prevent the light reflecting
on glass or similar,...")
Basic - 48 - [REC] Mode: ñ Taking Pictures using the Automatic Function (Intelligent Auto Mode) The camera will set the most appropriate settings to match the subject and the recording conditions so we recommend this mode for beginners or those who want to leave the settings to the camera and take pictures easily. Press [¦]. A[¦] button •[¦] button will light up when it is switched to Intelligent Auto Mode. [¦] button is turned off during recording to prevent the light reflecting on glass or similar,...

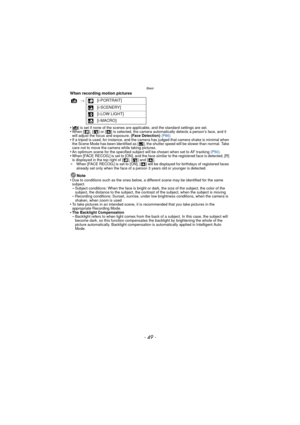

Page 49
![Page 49
- 49 -
Basic
When recording motion pictures
•
[¦] is set if none of the scenes are applicable, and the standard settings are set.•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s face, and it
will adjust the focus and exposure. (Face Detection) (P86)
•If a tripod is used, for instance, and the camera has judged that camera shake is minimal when
the Scene Mode has been identified as [ ], the shutter speed will be slower than normal. Take
care not to move the camera while...](http://img.usermanuals.tech/thumb/58/64988/w300_dmc-gf2_adv_en_om_d-48.png "Page 49
- 49 -
Basic
When recording motion pictures
•
[¦] is set if none of the scenes are applicable, and the standard settings are set.•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s face, and it
will adjust the focus and exposure. (Face Detection) (P86)
•If a tripod is used, for instance, and the camera has judged that camera shake is minimal when
the Scene Mode has been identified as [ ], the shutter speed will be slower than normal. Take
care not to move the camera while...")
- 49 - Basic When recording motion pictures • [¦] is set if none of the scenes are applicable, and the standard settings are set.•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s face, and it will adjust the focus and exposure. (Face Detection) (P86) •If a tripod is used, for instance, and the camera has judged that camera shake is minimal when the Scene Mode has been identified as [ ], the shutter speed will be slower than normal. Take care not to move the camera while...

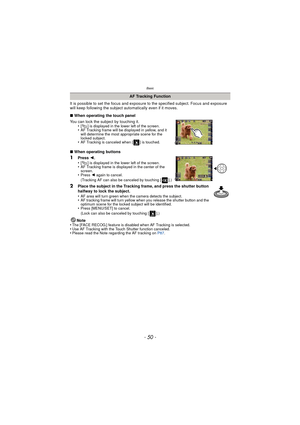

Page 50
![Page 50
Basic
- 50 -
It is possible to set the focus and exposure to the specified subject. Focus and exposure
will keep following the subject aut omatically even if it moves.
∫ When operating the touch panel
You can lock the subject by touching it. •
[ ] is displayed in the lower left of the screen.•AF Tracking frame will be displayed in yellow, and it
will determine the most appropriate scene for the
locked subject.
•AF Tracking is canceled when [ ] is touched.
∫When operating buttons
1Press 2.
•[ ] is...](http://img.usermanuals.tech/thumb/58/64988/w300_dmc-gf2_adv_en_om_d-49.png "Page 50
Basic
- 50 -
It is possible to set the focus and exposure to the specified subject. Focus and exposure
will keep following the subject aut omatically even if it moves.
∫ When operating the touch panel
You can lock the subject by touching it. •
[ ] is displayed in the lower left of the screen.•AF Tracking frame will be displayed in yellow, and it
will determine the most appropriate scene for the
locked subject.
•AF Tracking is canceled when [ ] is touched.
∫When operating buttons
1Press 2.
•[ ] is...")
Basic - 50 - It is possible to set the focus and exposure to the specified subject. Focus and exposure will keep following the subject aut omatically even if it moves. ∫ When operating the touch panel You can lock the subject by touching it. • [ ] is displayed in the lower left of the screen.•AF Tracking frame will be displayed in yellow, and it will determine the most appropriate scene for the locked subject. •AF Tracking is canceled when [ ] is touched. ∫When operating buttons 1Press 2. •[ ] is...
