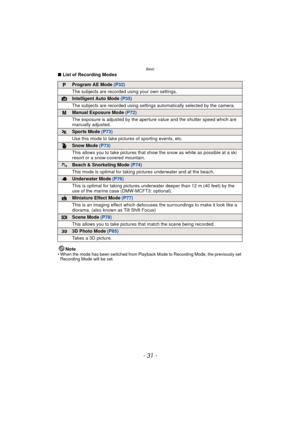

- 31 -
Basic
∫List of Recording Modes
Note
•
When the mode has been switched from Playback Mode to Recording Mode, the previously set
Recording Mode will be set.
Program AE Mode  (P32)
The subjects are recorded  using your own settings.
Intelligent Auto Mode (P35)
The subjects are recorded using settings  automatically selected by the camera.
Manual Exposure Mode (P72)
The exposure is adjusted by the apertur e value and the shutter speed which are
manually adjusted.
Sports Mode  (P73)
Use this mode to...

Basic

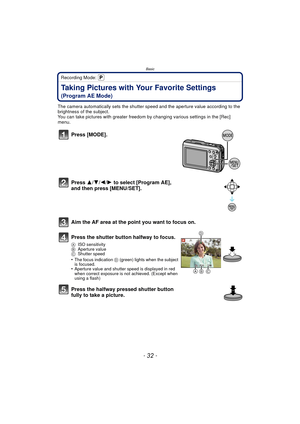

- 32 -
Recording Mode:
Taking Pictures with Your Favorite Settings
(Program AE Mode)
The camera automatically sets the shutter speed and the aperture value according to the
brightness of the subject.
You can take pictures with greater freedom by changing various settings in the [Rec]
menu.
Press [MODE].
Press 3/ 4/2/1 to select [Program AE],
and then press [MENU/SET].
Aim the AF area at the point you want to focus on.
Press the shutter button halfway to focus.
A ISO sensitivity
B Aperture...

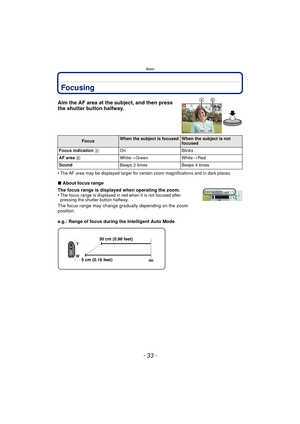

- 33 -
Basic
Focusing
Aim the AF area at the subject, and then press
the shutter button halfway.
•The AF area may be displayed larger for certain zoom magnifications and in dark places.
∫About focus range
The focus range is displayed when operating the zoom.
•
The focus range is displayed in red when it is not focused after
pressing the shutter button halfway.
The focus range may change gradually depending on the zoom
position.
e.g.: Range of focus during the Intelligent Auto Mode
FocusWhen the...

Basic
- 34 -
∫When the subject is not in focus (such as when it is not in the center of the
composition of the picture you want to take)
1Aim the AF area at the subject, and
press the shutter button halfway to fix
the focus and exposure.
2Press and hold the shutter button
halfway while moving the camera as you
compose the picture.
•
You can repeatedly retry the actions in step 1 before pressing the shutter button fully.
∫ Subject and recording conditions which are difficult to focus in
•Fast-moving...

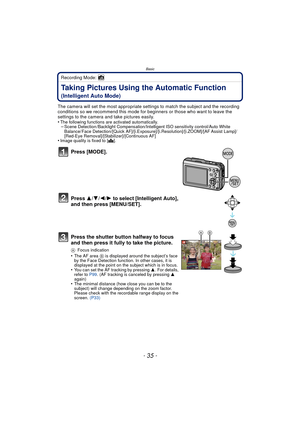

- 35 -
Basic
Recording Mode:
Taking Pictures Using the Automatic Function
(Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
•
The following functions are activated automatically.–Scene Detection /Backlight Compensation/Intelligent ISO sensitivity control/Auto White
Balance/ Face Detection/[Quick...

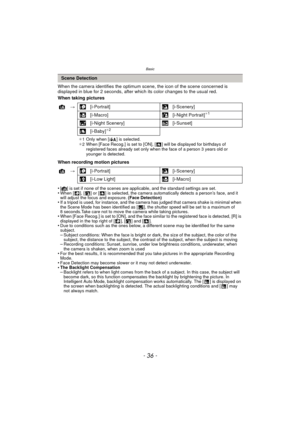

Basic
- 36 -
When the camera identifies the optimum scene, the icon of the scene concerned is
displayed in blue for 2 seconds, after which its color changes to the usual red.
When taking pictures
When recording motion pictures
•
[¦] is set if none of the scenes are applicable, and the standard settings are set.•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s face, and it
will adjust the focus and exposure. (Face Detection)
•If a tripod is used, for instance, and the camera...

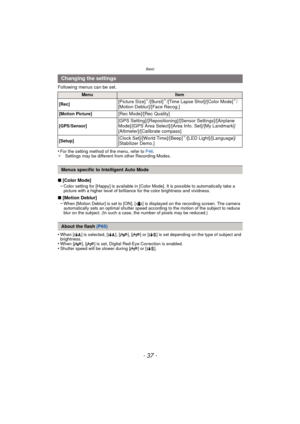

- 37 -
Basic
Following menus can be set.
•
For the setting method of the menu, refer to P46.
¢ Settings may be different from other Recording Modes.
∫[Color Mode]
–Color setting for [Happy] is available in [Color Mode]. It is possible to automatically take a
picture with a higher level of brilliance for the color brightness and vividness.
∫ [Motion Deblur]
–When [Motion Deblur] is set to [ON], [ ] is displayed on the recording screen. The camera
automatically sets an optimal shutter speed according to...

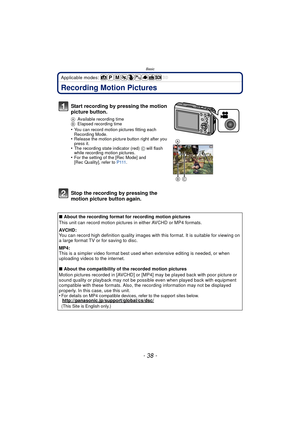

Basic
- 38 -
Applicable modes:
Recording Motion Pictures
Start recording by pressing the motion
picture button.
AAvailable recording time
B Elapsed recording time
•You can record motion pictures fitting each
Recording Mode.
•Release the motion picture button right after you
press it.
•The recording state indicator (red)  C will flash
while recording motion pictures.
•For the setting of the [Rec Mode] and
[Rec Quality], refer to  P 111.
Stop the recording by pressing the
motion picture button...

- 39 -
Basic
Note
•When recording to the built-in memory, the [MP4] setting is fixed to [VGA].•The available recording time displayed on the screen may not decrease regularly.•Depending on the type of the card, the card access indication may appear for a while after
recording motion pictures. This is not a malfunction.
•The screen may be blacked out momentarily, or the unit may record noise due to static
electricity or electromagnetic waves, etc. depending on the environment of the Motion Picture...

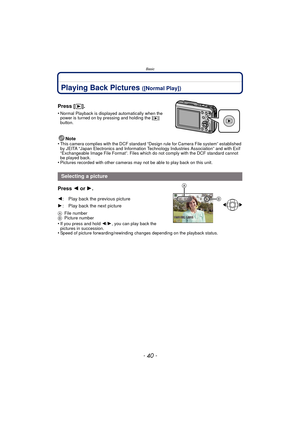

Basic
- 40 -
Playing Back Pictures ([Normal Play])
Note
•This camera complies with the DCF standard “D esign rule for Camera File system” established
by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif
“Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot
be played back.
•Pictures recorded with other cameras may not be able to play back on this unit.
Press  2 or 1.
AFile number
B Picture number
•If you press and hold  2/1, you...
