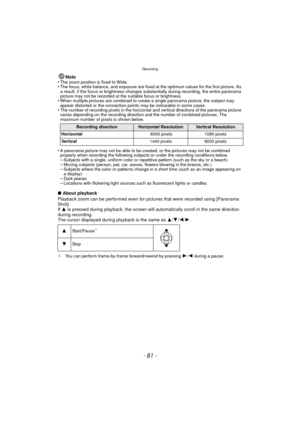

- 81 -
Recording
Note
•The zoom position is fixed to Wide.•The focus, white balance, and exposure are fixed at the optimum values for the first picture. As
a result, if the focus or brightness changes substantially during recording, the entire panorama
picture may not be recorded at the suitable focus or brightness.
•When multiple pictures are combined to create  a single panorama picture, the subject may
appear distorted or the connection points may be noticeable in some cases.
•The number of...

Recording

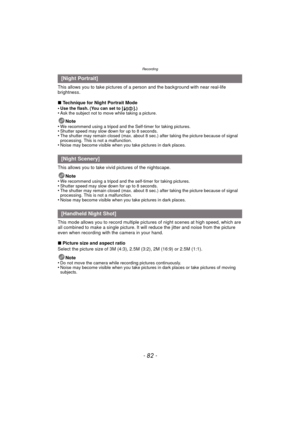

- 82 -
This allows you to take pictures of a person and the background with near real-life
brightness.
∫ Technique for Night Portrait Mode
•
Use the flash. (You can set to [ ‹].)•Ask the subject not to move while taking a picture.
Note
•We recommend using a tripod and the Self-timer for taking pictures.•Shutter speed may slow down for up to 8 seconds.•The shutter may remain closed (max. about 8 sec.) after taking the picture because of signal
processing. This is not a malfunction.
•Noise may...

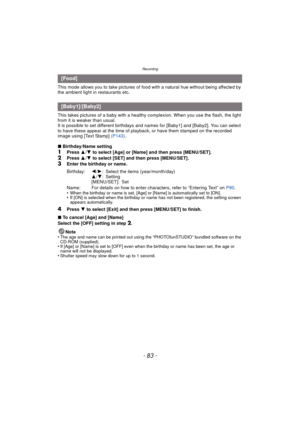

- 83 -
Recording
This mode allows you to take pictures of food with a natural hue without being affected by
the ambient light in restaurants etc.
This takes pictures of a baby with a healthy complexion. When you use the flash, the light
from it is weaker than usual.
It is possible to set different birthdays and  names for [Baby1] and [Baby2]. You can select
to have these appear at the time of playback, or have them stamped on the recorded
image using [Text Stamp]  (P143).
∫ Birthday/Name setting...

Recording

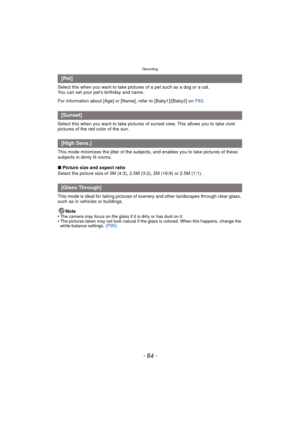

- 84 -
Select this when you want to take pictures of a pet such as a dog or a cat.
You can set your pet’s birthday and name.
For information about [Age] or [Name], refer to [Baby1]/[Baby2] on P83.
Select this when you want to take pictures of sunset view. This allows you to take vivid
pictures of the red color of the sun.
This mode minimizes the jitter of the subjects , and enables you to take pictures of these
subjects in dimly lit rooms.
∫ Picture size and aspect ratio
Select the picture...

- 85 -
Recording
Recording Mode:
Taking 3D pictures (3D Photo Mode)
Pictures are recorded continuously while moving the camera horizontally, two pictures
selected automatically are combined to make a single 3D picture.
To view 3D pictures, a television that supports 3D is required. (This unit will play back in
2D)
Refer to  P159 for details about the playback method.
Press [MODE].
Press  3/4/2/ 1 to select [3D Photo Mode], and then press [MENU/
SET].
•Description of recording method is di splayed. To...

Recording

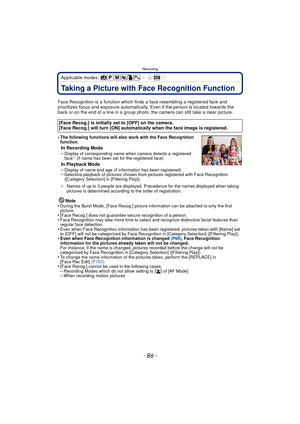

- 86 -
Applicable modes:
RecordingTaking a Picture with Face Recognition Function
Face Recognition is a function which finds a face resembling a registered face and
prioritizes focus and exposure automatically.  Even if the person is located towards the
back or on the end of a line in a group photo, the camera can still take a clear picture.
•
The following functions will also work with the Face Recognition
function.
In Recording Mode
–Display of corresponding name when camera detects a...

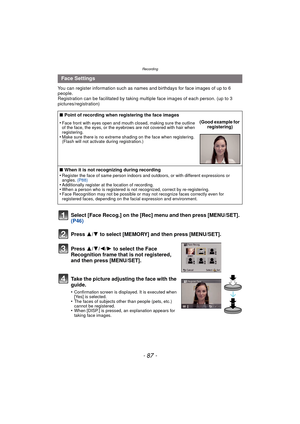

- 87 -
Recording
You can register information such as names and birthdays for face images of up to 6
people.
Registration can be facilitated by taking multiple face images of each person. (up to 3
pictures/registration)
Select [Face Recog.] on the [Rec] menu and then press [MENU/SET].
(P46)
Press  3
/4 to select [MEMORY] and then press [MENU/SET].
Press  3/4/2/ 1 to select the Face
Recognition frame that is not registered,
and then press [MENU/SET].
Take the picture adjusting the face with the...

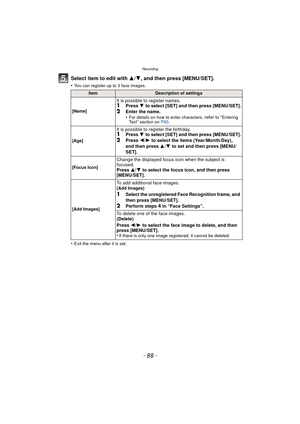

Recording
- 88 -
Select item to edit with 3/4, and then press [MENU/SET].
•You can register up to 3 face images.
•Exit the menu after it is set.
ItemDescription of settings
[Name]
It is possible to register names.1Press  4 to select [SET] and then press [MENU/SET].2Enter the name.
•For details on how to enter characters, refer to “Entering
Te x t” section on  P90.
[Age]
It is possible to register the birthday.1Press  4 to select [SET] and then press [MENU/SET].2Press  2/1 to select the items...

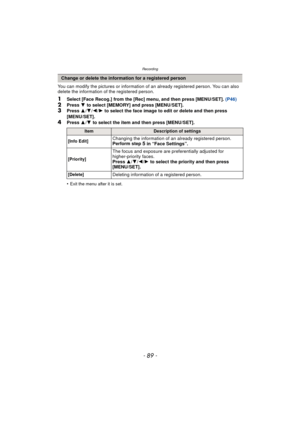

- 89 -
Recording
You can modify the pictures or information of an already registered person. You can also
delete the information of the registered person.
1Select [Face Recog.] from the [Rec] menu, and then press [MENU/SET].  (P46)2Press 4 to select [MEMORY] and press [MENU/SET].3Press  3/4 /2 /1 to select the face image to edit or delete and then press
[MENU/SET].
4Press  3/4  to select the item and then press [MENU/SET].
•
Exit the menu after it is set.
Change or delete the information for a...

Recording

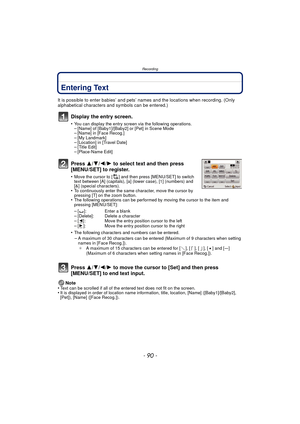

- 90 -
Entering Text
It is possible to enter babies’ and pets’ names and the locations when recording. (Only
alphabetical characters and symbols can be entered.)
Display the entry screen.
•You can display the entry screen via the following operations.–[Name] of [Baby1]/[Baby2] or [Pet] in Scene Mode–[Name] in [Face Recog.]–[My Landmark]–[Location] in [Travel Date]–[Title Edit]–[Place-Name Edit]
Press 3/4/2/ 1 to select text and then press
[MENU/SET] to register.
•Move the cursor to [ ] and...
