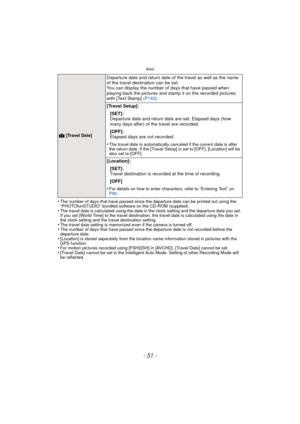

- 51 -
Basic
•The number of days that have passed since the departure date can be printed out using the
“PHOTOfunSTUDIO” bundled software on the CD-ROM (supplied).
•The travel date is calculated using the date in the clock setting and the departure date you set.
If you set [World Time] to the travel destination, the travel date is calculated using the date in
the clock setting and the travel destination setting.
•The travel date setting is memorized even if the camera is turned off.•The number of days...

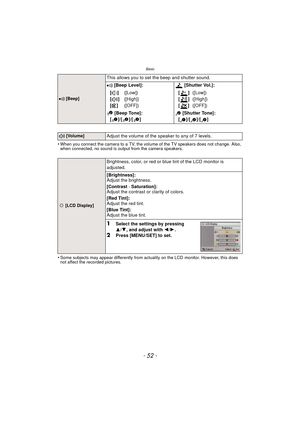

Basic
- 52 -
•When you connect the camera to a TV, the volume of the TV speakers does not change. Also,
when connected, no sound is output from the camera speakers.
•Some subjects may appear differently from actuality on the LCD monitor. However, this does
not affect the recorded pictures.
r [Beep]
This allows you to set the beep and shutter sound.
r [Beep Level]:  [Shutter Vol.]:
[t ]
[u ]
[s ] ([Low])
([High])
([OFF]) []
[]
[]([Low])
([High])
([OFF])
 [Beep Tone]:
[]/[]/[]  [Shutter Tone]:
[]/[]/[]
u...

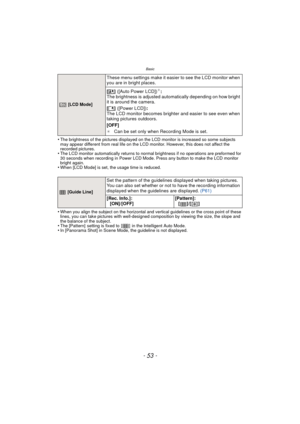

- 53 -
Basic
•The brightness of the pictures displayed on the LCD monitor is increased so some subjects
may appear different from real life on the LCD monitor. However, this does not affect the
recorded pictures.
•The LCD monitor automatically returns to normal brightness if no operations are preformed for
30 seconds when recording in Power LCD Mode. Press any button to make the LCD monitor
bright again.
•When [LCD Mode] is set, the usage time is reduced.
•When you align the subject on the horizontal...

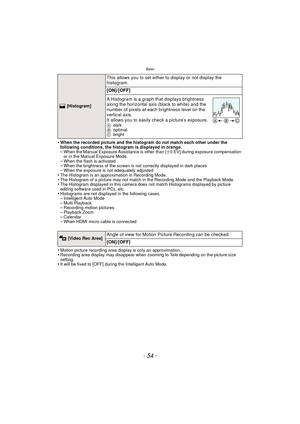

Basic
- 54 -
•When the recorded picture and the histogram do not match each other under the
following conditions, the histogram is displayed in orange.
–When the Manual Exposure Assistance is other than [ n0 EV] during exposure compensation
or in the Manual Exposure Mode
–When the flash is activated–When the brightness of the screen is not correctly displayed in dark places–When the exposure is not adequately adjusted•The Histogram is an approximation in Recording Mode.•The Histogram of a picture may...

- 55 -
Basic
•Maximum illuminating range of the LED light is 50 cm (1.6 feet).•The life of battery will decrease when the LED light is turned on constantly.•In locations where the use of light is prohibited, set to [ ].•It is fixed to [ ] in the following cases.–[Underwater]–In [Panorama Shot] or [Baby1]/[Baby2] in Scene Mode–In 3D Photo Mode•It is not available in Playback Mode.
 [LED Light]
This will illuminate the subject with a lamp when taking motion
pictures in dark surrounding.
Also, the LED can...

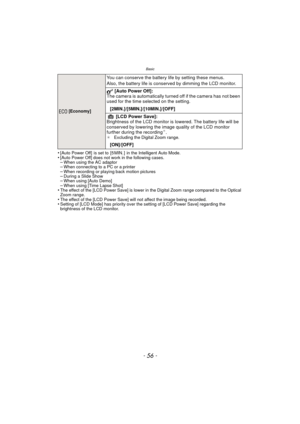

Basic
- 56 -
•[Auto Power Off]  is set to  [5 MIN. ]  in the Intelligent Auto Mode.•[Auto Power Off] does not work in the following cases.–When using the AC adaptor–When connecting to a PC or a printer–When recording or playing back motion pictures–During a Slide Show–When using [Auto Demo]–When using [Time Lapse Shot]•The effect of the [LCD Power Save] is lower in the Digital Zoom range compared to the Optical
Zoom range.
•The effect of the [LCD Power Save] will not affect the image being...

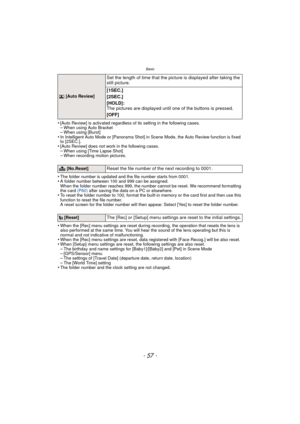

- 57 -
Basic
•[Auto Review] is activated regardless of its setting in the following cases.–When using Auto Bracket–When using [Burst]•In Intelligent Auto Mode or [Panorama Shot] in Scene Mode, the Auto Review function is fixed
to [2SEC.].
•[Auto Review] does not work in the following cases.–When using [Time Lapse Shot]–When recording motion pictures.
•The folder number is updated and the file number starts from 0001.•A folder number between 100 and 999 can be assigned.
When the folder number reaches...

Basic
- 58 -
x [USB Mode]
Select the USB communication system after or before connecting
the camera to your PC or your printer with the USB connection
cable (supplied).
[y] ([Select on connection]) :
Select either [PC] or [PictBridge(PTP)] if you connected the
camera to a PC or a printer supporting PictBridge.
[{ ] ([PictBridge(PTP)]) :
Set after or before connecting to a printer supporting PictBridge.
[z ] ([PC]) :
Set after or before connecting to a PC.
Set to match the type of TV.
|  [Output]
[]...

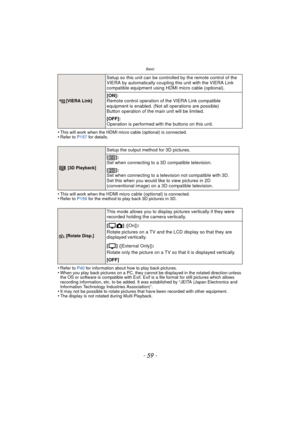

- 59 -
Basic
•This will work when the HDMI micro cable (optional) is connected.•Refer to P157 for details.
•This will work when the HDMI micro cable (optional) is connected.•Refer to P159 for the method to play back 3D pictures in 3D.
•Refer to P40 for information about how to play back pictures.•When you play back pictures on a PC, they canno t be displayed in the rotated direction unless
the OS or software is compatible with Exif. Exif  is a file format for still pictures which allows
recording...

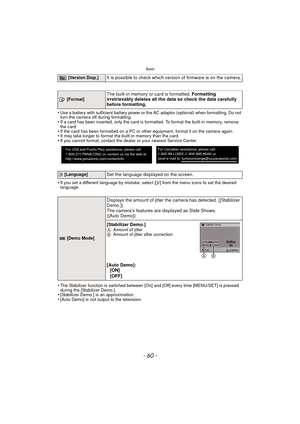

Basic
- 60 -
•Use a battery with sufficient battery power or the AC adaptor (optional) when formatting. Do not
turn the camera off during formatting.
•If a card has been inserted, only the card is formatted. To format the built-in memory, remove
the card.
•If the card has been formatted on a PC or other equipment, format it on the camera again.•It may take longer to format the built-in memory than the card.•If you cannot format, contact the dealer or your nearest Service Center.
•If you set a different...
