- 41 -
Basic
Press [W] on the zoom button.
1 screen>12 screens >30 screens >Calendar screen
display
A Number of the selected picture and the total number of
recorded pictures
•Press [T] on the zoom button to return to the previous screen.•Pictures displayed using [ ] cannot be played back.
∫To return to Normal Playback
Press  3/4 /2 /1  to select a picture and then press [MENU/SET].

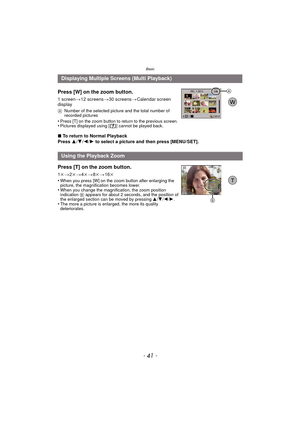

Displaying Multiple Screens (Multi Playback)
Using the Playback Zoom
Press [T] on the zoom button.
1 k > 2k> 4k> 8k >...

Basic
- 42 -

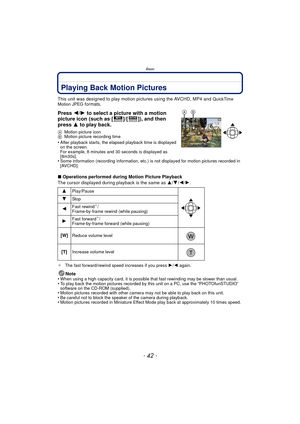

Playing Back Motion Pictures
This unit was designed to play motion pictures using the AVCHD, MP4 and QuickTime
Motion JPEG formats.
Press  2/1 to select a picture with a motion
picture icon (such as [ ]/[ ]), and then
press  3 to play back.
AMotion picture icon
B Motion picture recording time
•After playback starts, the elapsed playback time is displayed
on the screen.
For example, 8 minutes and 30 seconds is displayed as
[8m30s].
•Some information (recording information, etc.) is not...

- 43 -
Basic

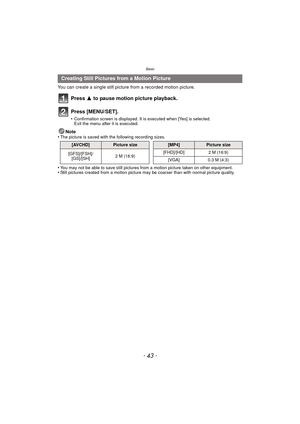

You can create a single still picture from a recorded motion picture.
Press 3 to pause motion picture playback.
Press [MENU/SET].
•Confirmation screen is displayed. It is executed when [Yes] is selected.
Exit the menu after it is executed.
Note
•The picture is saved with the following recording sizes.
•You may not be able to save still pictures from a motion picture taken on other equipment.•Still pictures created from a motion picture may be coarser than with normal picture quality....

Basic
- 44 -

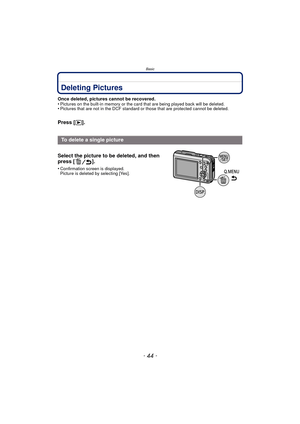

Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card that are being played back will be deleted.•Pictures that are not in the DCF standard or those that are protected cannot be deleted.
Press [(].
To delete a single picture
Select the picture to be deleted, and then
press [ ].
•Confirmation screen is displayed.
Picture is deleted by selecting [Yes].

- 45 -
Basic
Note
•The picture group taken in [Time Lapse Shot] (pictures with the [ ] icon) will be treated as a
single picture. Deleting the picture group will delete all pictures in the group.  (P107)
•Do not turn the camera off while deleting. Use a battery with sufficient battery power or the AC
adaptor (optional).
•Depending on the number of pictures to be deleted, it may take some time to delete them.

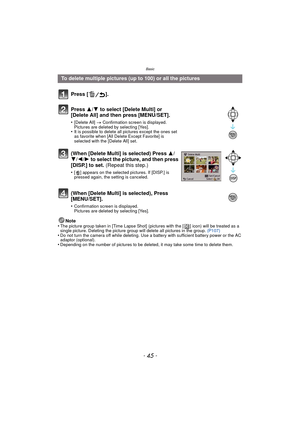

To delete multiple pictures (up to 100) or all the pictures
Press [ ].
Press  3/4 to select...

Basic
- 46 -

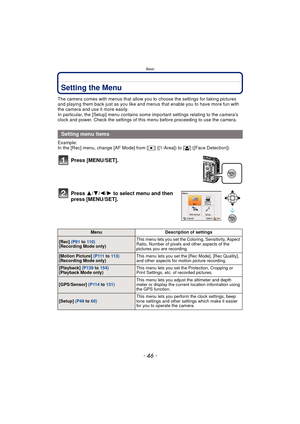

Setting the Menu
The camera comes with menus that allow you to choose the settings for taking pictures
and playing them back just as you like and menus that enable you to have more fun with
the camera and use it more easily.
In particular, the [Setup] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
Example:
In the [Rec] menu, change [AF Mode] from [ Ø] ([1-Area]) to [ š] ([Face...

- 47 -
Basic
∫Close the menu
Press [ ] several times or press the shutter
button halfway.
Note
•
There are functions that cannot be set or used depending on the modes or menu settings being
used on the camera due to the specifications.
Press  3/4 to select the menu item and
then press [MENU/SET].
A Menu screen page•It will switch to next page when you reach the bottom.
(It will also switch by pressing the zoom button)
Press  3/4 to select the setting and then
press [MENU/SET].
•Depending on the menu...

Basic
- 48 -
By using the Quick Menu, some of the menu settings can be easily found.
•The features that can be adjusted using Quick Menu are determined by the mode or a display
style the camera is in.

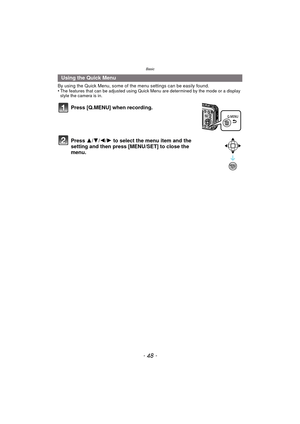

Using the Quick Menu
Press [Q.MENU] when recording.
Press  3/4/2/ 1 to select the menu item and the
setting and then press [MENU/SET] to close the
menu.

- 49 -
Basic

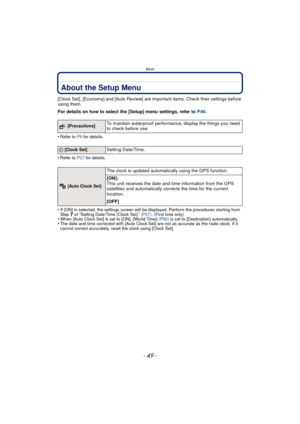

About the Setup Menu
[Clock Set], [Economy] and [Auto Review] are important items. Check their settings before
using them.
For details on how to select the [Setup] menu settings, refer to  P46.
•
Refer to P9  for details.
•Refer to P27  for details.
•If [ON] is selected, the settings screen will be di splayed. Perform the procedures starting from
Step 7 of “Setting Date/Time (Clock Set)”  (P27) . (First time only)•When [Auto Clock Set] is set to [ON], [World Time]  (P50) is set to...

Basic
- 50 -
•Press 3 if you are using Summer Time [ ]. (The time will move forward by 1 hour.) Press  3
once more to return to the normal time.
•If you cannot find the travel destination in the areas displayed on the screen, set by the time
difference from the home area.
•When the [Auto Clock Set] is set to [ON], you can change daylight saving time setting in
[Destination] only.
 [World Time]
Set the time in your home area and travel destination.
You can display the local times at the travel...
