Panasonic Digital Camera Dmc Zs50 Owners Manual For Advanced Features

Wi-Fi/NFC
About connectionsSQW0195

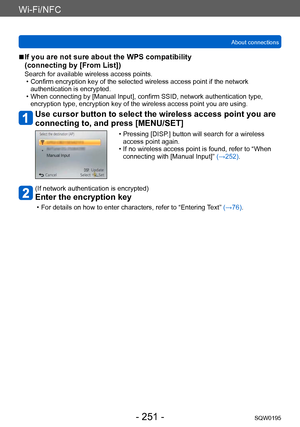

- 251 -
 ■If you are not sure about the WPS compatibility
(connecting by [From List])
Search for available wireless access points. • Confirm encryption key of the selected wireless access point if the network authentication is encrypted.
 • When connecting by [Manual Input], confirm SSID, network authentication type, encryption type, encryption key of the wireless access point you are using.
Use cursor button to select the wireless access point you are
connecting to,...

Wi-Fi/NFC
About connectionsSQW0195

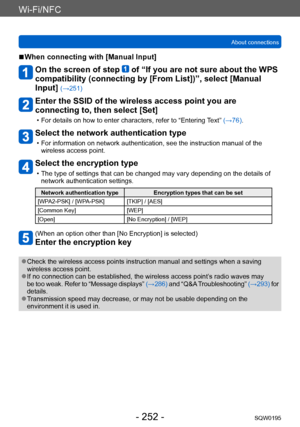

- 252 -
 ■When connecting with [Manual Input]
On the screen of step  of “If you are not sure about the WPS
compatibility (connecting by [From List])”, select [Manual
Input]
(→251)
Enter the SSID of the wireless access point you are
connecting to, then select [Set]
 • For details on how to enter characters, refer to “Entering T ext” (→76).
Select the network authentication type
 • For information on network authentication, see the instruction manual of the
wireless...

Wi-Fi/NFC
About connectionsSQW0195
- 253 -

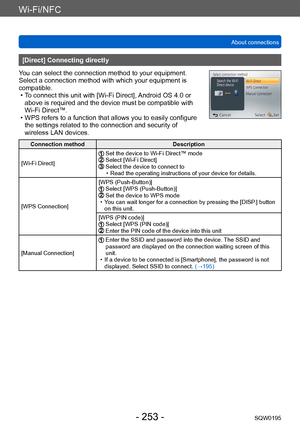

[Direct] Connecting directly
You can select the connection method to your equipment.
Select a connection method with which your equipment is
compatible.
 • To connect this unit with [Wi-Fi Direct],

Android OS 4.0 or
above is required and the device must be compatible with
Wi-Fi Direct™.
 • WPS refers to a function that allows you to easily configure  the settings related to the connection and security of
wireless LAN devices.
Connection method...

Wi-Fi/NFC
About connectionsSQW0195

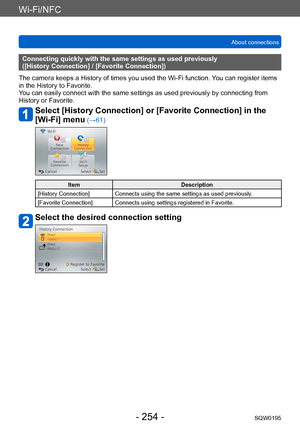

- 254 -
Connecting quickly with the same settings as used previously
([History Connection] / [Favorite Connection])
The camera keeps a History of times you used the Wi-Fi function.  You can register items
in the History to Favorite.
You can easily connect with the same settings as used previously by connecting from
History or Favorite.
Select [History Connection] or [Favorite Connection] in the
[Wi-Fi] menu
 (→61)
Item Description
[History Connection] Connects...

Wi-Fi/NFC
About connectionsSQW0195

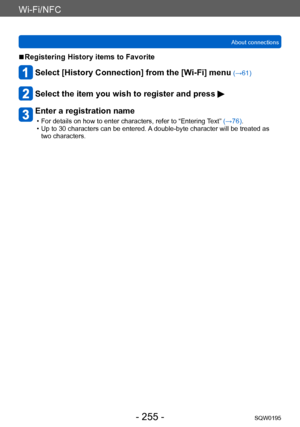

- 255 -
 ■Registering History items to Favorite
Select [History Connection] from the [Wi-Fi] menu (→61)
Select the item you wish to register and press
Enter a registration name
 • For details on how to enter characters, refer to “Entering T ext” (→76). • Up to 30 characters can be entered. A
 double-byte character will be treated as
two characters.

Wi-Fi/NFC
About connectionsSQW0195

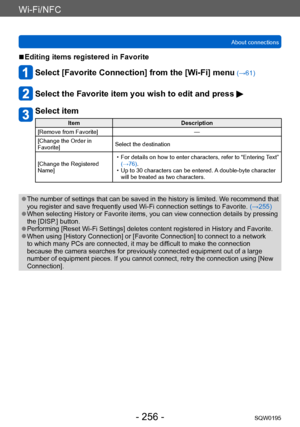

- 256 -
 ■Editing items registered in Favorite
Select [Favorite Connection] from the [Wi-Fi] menu (→61)
Select the Favorite item you wish to edit and press
Select item
Item Description
[Remove from Favorite] —
[Change the Order in
Favorite] Select the destination
[Change the Registered
Name]
 • For details on how to enter characters, refer to “Entering T

ext”
(→76).
 • Up to 30 characters can be entered. A

 double-byte character
will be treated as two characters....

Wi-Fi/NFC
About connectionsSQW0195

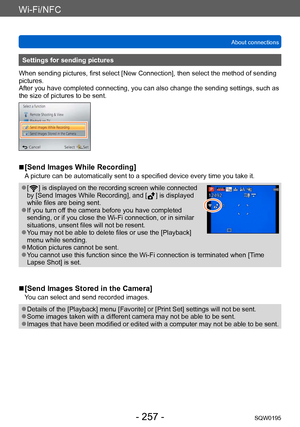

- 257 -
Settings for sending pictures
When sending pictures, first select [New Connection], then select the method of sending
pictures.
After you have completed connecting, you can also change the sending settings, such as
the size of pictures to be sent.
 ■[Send Images While Recording]
A picture can be automatically sent to a specified device every time you take it.
 ●[  ] is displayed on the recording screen while connected
by [Send Images While Recording], and [...

Wi-Fi/NFC
About connectionsSQW0195
- 258 -

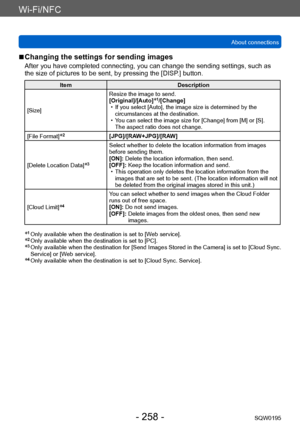

 ■Changing the settings for sending images
After you have completed connecting, you can change the sending settings, such as
the size of pictures to be sent, by pressing the [DISP.] button.
Item Description
[Size] Resize the image to send.
[Original]/[Auto]
*1/[Change] • If you select [Auto], the image size is determined by the
circumstances at the destination.
 • You can select the image size for [Change] from [M] or [S].  The aspect ratio does not change....

Wi-Fi/NFC
[Wi-Fi Setup] menu

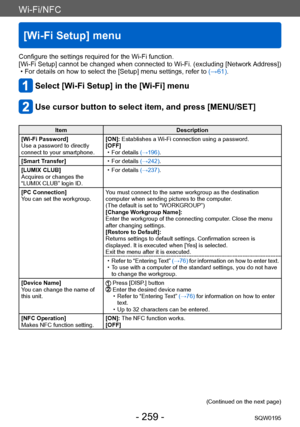

SQW0195- 259 -
Configure the settings required for the Wi-Fi function.
[Wi-Fi Setup] cannot be changed when connected to Wi-Fi. (excluding [Network Address])
 • For details on how to select the [Setup] menu settings, refer to (→61)
.
Select [Wi-Fi Setup] in the [Wi-Fi] menu
Use cursor button to select item, and press [MENU/SET]
ItemDescription
[Wi-Fi Password]
Use a password to directly
connect to your smartphone. [ON]: Establishes a Wi-Fi connection using a password.
[OFF]...

Wi-Fi/NFC
[Wi-Fi Setup] menuSQW0195

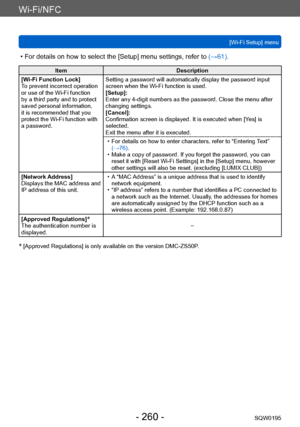

- 260 -
Item Description
[Wi-Fi Function Lock]
To prevent incorrect operation
or use of the Wi-Fi function
by a third party and to protect
saved personal information,
it is recommended that you
protect the Wi-Fi function with
a password. Setting a password will automatically display the password input
screen when the Wi-Fi function is used.
[Setup]:
Enter any 4-digit numbers as the password. Close the menu after
changing settings.
[Cancel]:
Confirmation screen...
