Panasonic Digital Camera Dmc Zs50 Owners Manual For Advanced Features

Others

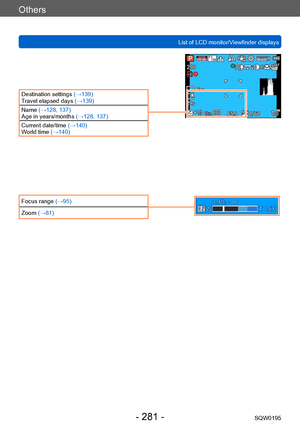

List of LCD monitor/Viewfinder displaysSQW0195
- 281 -
Destination settings (→139)
Travel elapsed days  (→139)
Name (→128, 137)
Age in years/months (→128, 137)
Current date/time (→140)
World time (→140)
Focus range (→95)
Zoom (→81)

Others
List of LCD monitor/Viewfinder displaysSQW0195
- 282 -

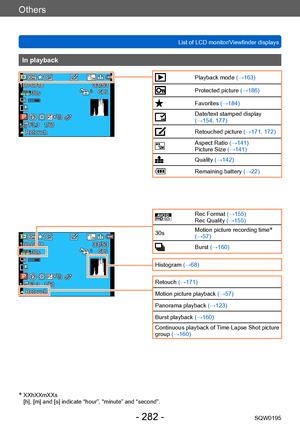

In playback
Playback mode (→163)
Protected picture (→186)
Favorites (→184)
Date/text stamped display
(→154, 177)
Retouched picture  (→171, 172)
Aspect Ratio (→141)
Picture Size (→141)
Quality (→142)
Remaining battery (→22)
0077007100AARec Format (→155)
Rec Quality (→155)
30s Motion picture recording time
*
(→57)
Burst (→160)
Histogram (→68)
Retouch (→171)
Motion picture playback  (→57)
Panorama playback  (→123)
Burst playback (→160)...

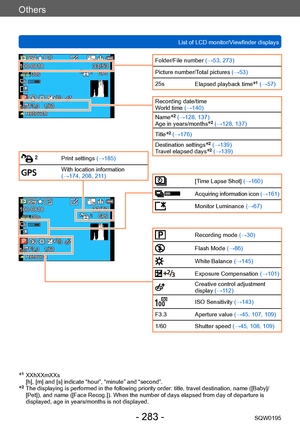

Others
List of LCD monitor/Viewfinder displaysSQW0195
- 283 -
Print settings (→185)
With location information
(→174, 208, 211)
[Time Lapse Shot] (→160)
Acquiring information icon (→161)
Monitor Luminance (→67)
Recording mode (→30)
Flash Mode (→86)
White Balance (→145)
Exposure Compensation  (→101)
Creative control adjustment
display (→112)
ISO Sensitivity (→143)
F3.3 Aperture value  (→45, 107, 109)
1/60 Shutter speed (→45, 108, 109)
Folder/File number  (→53, 273)
Picture number/Total pictures (→53)...

Others

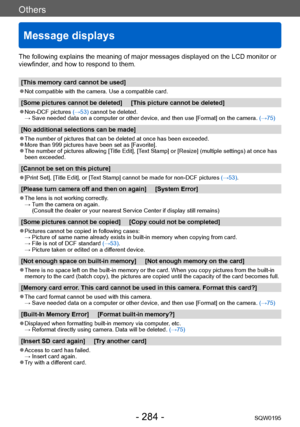

Message displays
SQW0195- 284 -
The following explains the meaning of major messages displayed on the LCD monitor or
viewfinder, and how to respond to them.
[This memory card cannot be used]
 ●Not compatible with the camera. Use a compatible card.
[Some pictures cannot be deleted]     [This picture cannot be deleted]
 ●Non-DCF pictures (→53) cannot be deleted. →  Save needed data on a computer or
other device, and then use [Format] on the camera.  (→75)
[No additional selections can be made]...

Others
Message displaysSQW0195

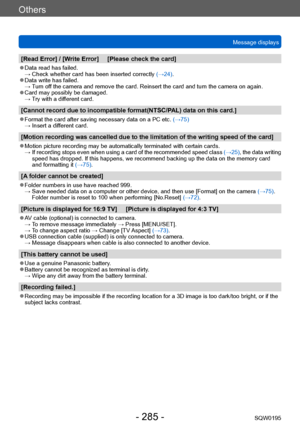

- 285 -
[Read Error] / [Write Error]     [Please check the card]
 ●Data read has failed. →  Check whether card has been inserted correctly  (→24).
 ●Data write has failed. →  Turn off the camera and remove the card. Reinsert the card and turn the camera on again.
 ●Card may possibly be damaged. →  Try with a dif ferent card.
[Cannot record due to incompatible format(NTSC/PAL) data on this card.]
 ●Format the card after saving necessary data on a PC etc. (→75) →  Insert a...

Others
Message displaysSQW0195

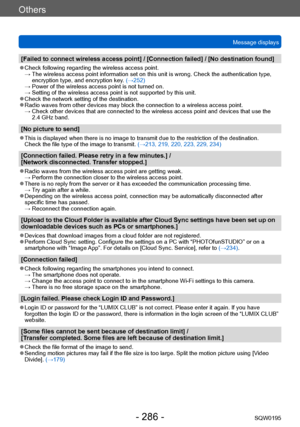

- 286 -
[Failed to connect wireless access point] / [Connection failed] / [No destination found]
 ●Check following regarding the wireless access point. →  The wireless access point informatio n set on this unit is wrong. Check the authentication type,
encryption type, and encryption key. (→252)
 →  Power of the wireless access point is not turned on. →  Setting of the wireless access point is not supported by this unit. ●Check the network setting of the destination. ●Radio...

Others
Message displaysSQW0195

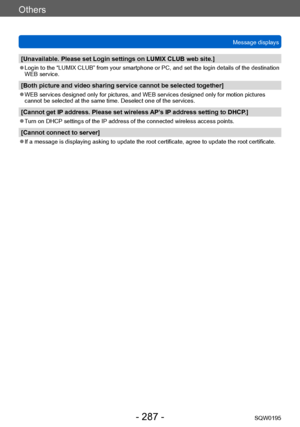

- 287 -
[Unavailable. Please set Login settings on LUMIX CLUB web site.]
 ●Login to the “LUMIX CLUB” from your smartphone or PC, and set the login details of the destination
WEB service.
[Both picture and video sharing service cannot be selected together]
 ●WEB services designed only for pictures, and WEB services designed only for motion pictures
cannot be selected at the same time. Deselect one of the services.
[Cannot get IP address. Please set wireless AP’s IP address...

Others

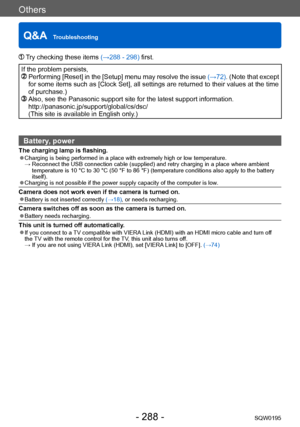

Q&A  TroubleshootingSQW0195
- 288 -
 Try checking these items (→288 - 298) first.
If the problem persists,   Performing [Reset] in the [Setup] menu may resolve the issue  (→72). (Note that except
for some items such as [Clock Set], all settings are returned to their values at the time
of purchase.)
  Also, see the Panasonic support site for the latest support information.
http://panasonic.jp/support/global/cs/dsc/
(This site is available in English only.)
Battery, power
The charging lamp is...

Others

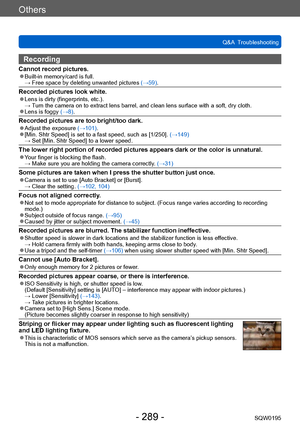

Q&A  TroubleshootingSQW0195
- 289 -
Recording
Cannot record pictures. ●Built-in memory/card is full. →  Free space by deleting unwanted pictures  (→59).
Recorded pictures look white. ●Lens is dirty (fingerprints, etc.). →  Turn the camera on to extract lens barrel, and clean lens surface with a soft, dry cloth.
 ●Lens is foggy (→8).
Recorded pictures are too bright/too dark. ●Adjust the exposure  (→101). ●[Min. Shtr Speed] is set to a fast speed, such as [1/250].  (→149) →  Set [Min. Shtr Speed]...

Others
Q&A  TroubleshootingSQW0195

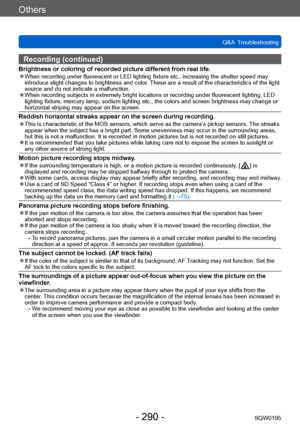

- 290 -
Recording (continued)
Brightness or coloring of recorded picture different from real life. ●When recording under fluorescent or LED lighting fixture etc., increasing the shutter speed may
introduce slight changes to brightness and color. These are a result of the characteristics of the light
source and do not indicate a malfunction.
 ●When recording subjects in extremely bright locations or recording under fluorescent lighting, LED
lighting fixture, mercury...
