Panasonic Digital Camera Dmc Zs50 Owners Manual For Advanced Features

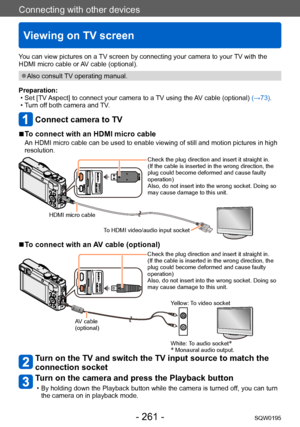

Connecting with other devices
Viewing on TV screen
SQW0195- 261 -
Connecting with other devices
You can view pictures on a TV screen by connecting your camera to your TV with the
HDMI micro cable or AV cable (optional).
 ●Also consult TV operating manual.
Preparation:
 • Set [TV Aspect] to connect your camera to a

TV using the AV cable (optional) (→73).
 • Turn of

f both camera and TV.
Connect camera to TV
 ■To connect with an HDMI micro cable
An HDMI micro cable can be used to enable viewing of...

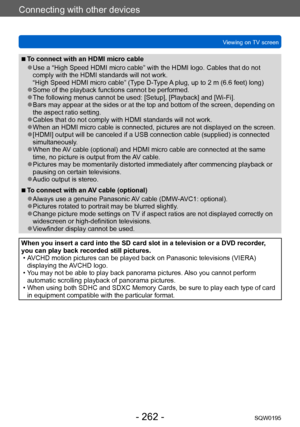

Connecting with other devices
Viewing on TV screenSQW0195
- 262 -
 ■To connect with an HDMI micro cable
 ●Use a “High Speed HDMI micro cable” with the HDMI logo. Cables that do not
comply with the HDMI standards will not work.
“High Speed HDMI micro cable” (Type
 D-T
 ype
 A plug, up to 2 m (6.6 feet) long) ●Some of the playback functions cannot be performed. ●The following menus cannot be used: [Setup], [Playback] and [Wi-Fi]. ●Bars may appear at the sides or at the top and bottom of the screen,...

Connecting with other devices
Viewing on TV screenSQW0195
- 263 -

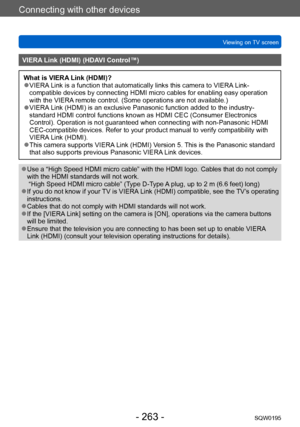

VIERA Link (HDMI) (HDAVI Control™)
What is VIERA Link (HDMI)? ●VIERA Link is a function that automatically links this camera to VIERA Link-
compatible devices by connecting HDMI micro cables for enabling easy operation
with the VIERA remote control. (Some operations are not available.)
 ●VIERA Link (HDMI) is an exclusive Panasonic function added to the industry-
standard HDMI control functions known as HDMI CEC (Consumer Electronics...

Connecting with other devices
Viewing on TV screenSQW0195
- 264 -

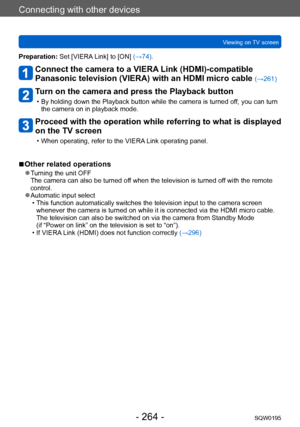

Preparation: Set [VIERA Link] to [ON] (→74).
Connect the camera to a VIERA Link (HDMI)-compatible
Panasonic television (VIERA) with an HDMI micro cable
(→261)
Turn on the camera and press the Playback button
 • By holding down the Playback button while the camera is turned off, you can turn the camera on in playback mode.
Proceed with the operation while referring to what is displayed
on the TV screen
 • When operating, refer to the...

Connecting with other devices
Viewing on TV screenSQW0195
- 265 -

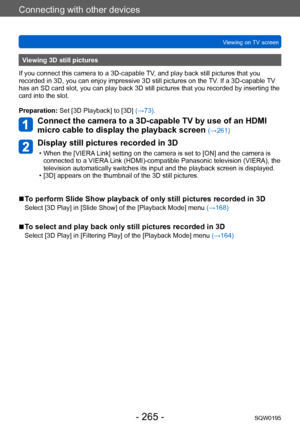

Viewing 3D still pictures
If you connect this camera to a 3D-capable TV, and play back still pictures that you
recorded in 3D, you can enjoy impressive 3D still pictures on the  TV. If a 3D-capable TV
has an SD card slot, you can play back 3D still pictures that you recorded by inserting the
card into the slot.
Preparation: Set [3D Playback] to [3D] (→73).
Connect the camera to a 3D-capable TV by use of an HDMI
micro cable to display...

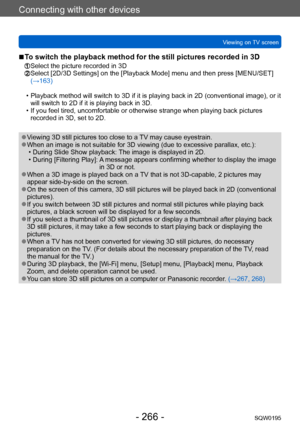

Connecting with other devices
Viewing on TV screenSQW0195
- 266 -
 ■To switch the playback method for the still pictures recorded in 3D
 Select the picture recorded in 3D  Select [2D/3D Settings] on the [Playback Mode] menu and then press [MENU/SET]
(→163)
 • Playback method will switch to 3D if it is playing back in 2D (conventional image), or it will switch to 2D if it is playing back in 3D.
 • If you feel tired, uncomfortable or otherwise strange when playing back pictures recorded in 3D, set to 2D....

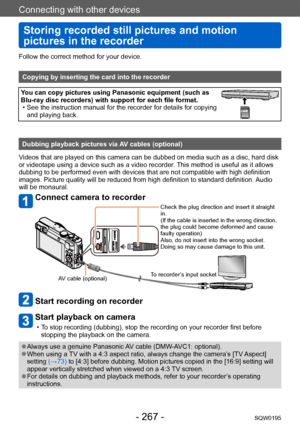

Connecting with other devices
Storing recorded still pictures and motion
pictures in the recorder
SQW0195- 267 -
Follow the correct method for your device.
Copying by inserting the card into the recorder
You can copy pictures using Panasonic equipment (such as
Blu-ray disc recorders) with support for each file format.
 • See the instruction manual for the recorder for details for copying and playing back.
Dubbing playback pictures via AV cables (optional)
Videos that are played on this camera can be...

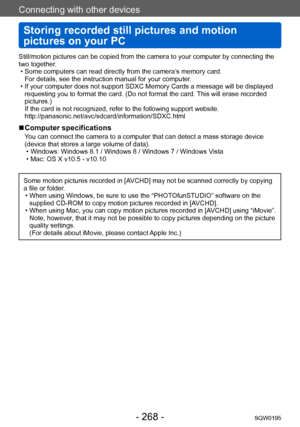

Connecting with other devices
Storing recorded still pictures and motion
pictures on your PC
SQW0195- 268 -
Still/motion pictures can be copied from the camera to your computer by connecting the
two together.
 • Some computers can read directly from the camera’s memory card.  For details, see the instruction manual for your computer

.
 • If your computer does not support SDXC Memory Cards a message will be displayed requesting you to format the card. (Do not format the card. This will erase recorded...

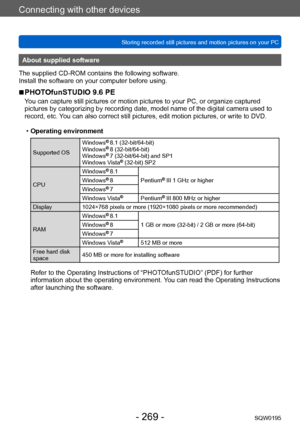

Connecting with other devices
Storing recorded still pictures and motion pictures on your PCSQW0195
- 269 -
About supplied software
The supplied CD-ROM contains the following software.
Install the software on your computer before using.
 ■PHOTOfunSTUDIO 9.6 PE
You can capture still pictures or motion pictures to your PC, or organize captured
pictures by categorizing by recording date, model name of the digital camera used to
record, etc. You can also correct still pictures, edit motion pictures, or...

Connecting with other devices
Storing recorded still pictures and motion pictures on your PCSQW0195

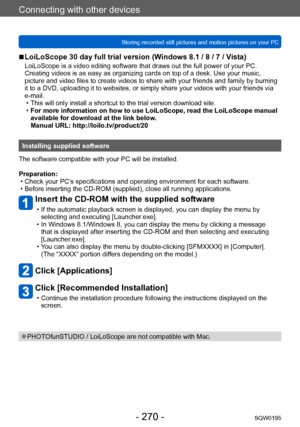

- 270 -
 ■LoiLoScope 30 day full trial version (Windows 8.1 / 8 / 7 / Vista)
LoiLoScope is a video editing software that draws out the full power of your PC.
Creating videos is as easy as organizing cards on top of a desk. Use your music,
picture and video files to create videos to share with your friends and family by burning
it to a DVD, uploading it to websites, or simply share your videos with your...
