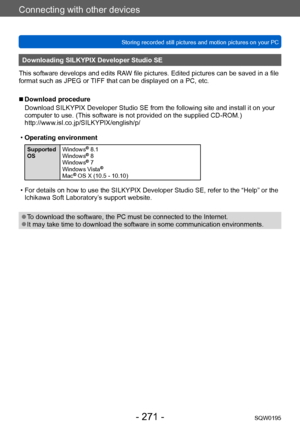

Connecting with other devices
Storing recorded still pictures and motion pictures on your PCSQW0195
- 271 -
Downloading SILKYPIX Developer Studio SE
This software develops and edits RAW file pictures. Edited pictures can be saved in a file
format such as JPEG or TIFF that can be displayed on a PC, etc.
 ■Download procedure
Download SILKYPIX Developer Studio SE from the following site and install it on your
computer to use. (This software is not provided on the supplied CD-ROM.)...

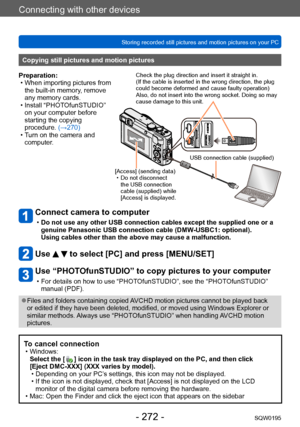

Connecting with other devices
Storing recorded still pictures and motion pictures on your PCSQW0195
- 272 -
Connect camera to computer
 •Do not use any other USB connection cables except the supplied one or a
genuine Panasonic USB connection cable (DMW-USBC1: optional).

Using cables other than the above may cause a malfunction.
Use   to select [PC] and press [MENU/SET]
Use “PHOTOfunSTUDIO” to copy pictures to your computer
 • For details on how to use “PHOTOfunSTUDIO”, see the “PHOT OfunSTUDIO”...

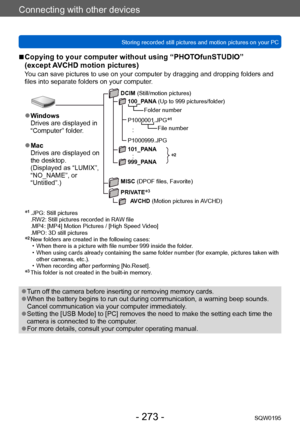

Connecting with other devices
Storing recorded still pictures and motion pictures on your PCSQW0195
- 273 -
 ■Copying to your computer without using “PHOTOfunSTUDIO”
(except AVCHD motion pictures)
You can save pictures to use on your computer by dragging and dropping folders and
files into separate folders on your computer.
*2
 ●Windows
Drives are displayed in
“Computer” folder.
 ●Mac
Drives are displayed on
the desktop.
(Displayed as “LUMIX”,
“NO_NAME”, or
“Untitled”.)
DCIM (Still/motion...

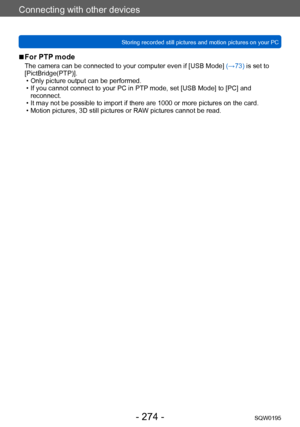

Connecting with other devices
Storing recorded still pictures and motion pictures on your PCSQW0195
- 274 -
 ■For PTP mode
The camera can be connected to your computer even if [USB Mode]  (→73) is set to
[PictBridge(PTP)].
 • Only picture output can be performed. • If you cannot connect to your PC in PTP mode, set [USB Mode] to [PC] and  reconnect.
 • It may not be possible to import if there are 1000 or more pictures on the card. • Motion pictures, 3D still pictures or RAW pictures cannot be read.

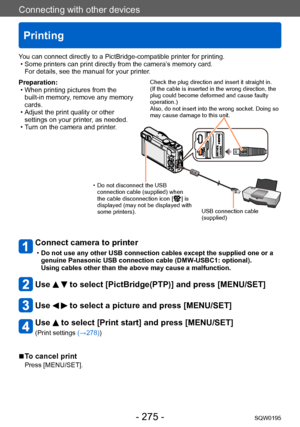

Connecting with other devices
Printing
SQW0195- 275 -
Preparation: • When printing pictures from the built-in memory, remove any memory
cards.
 • Adjust the print quality or other settings on your printer, as needed.
 • Turn on the camera and printer

.
Connect camera to printer
 •Do not use any other USB connection cables except the supplied one or a
genuine Panasonic USB connection cable (DMW-USBC1: optional).

Using cables other than the above may cause a malfunction.
Use   to select...

Connecting with other devices
Printing
SQW0195
- 276 -

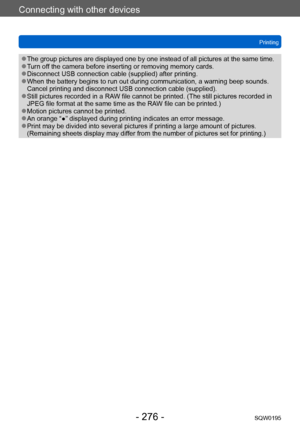

 ●The group pictures are displayed one by one instead of all pictures at the same time. ●Turn off the camera before inserting or removing memory cards. ●Disconnect USB connection cable (supplied) after printing. ●When the battery begins to run out during communication, a warning beep sounds.
Cancel printing and disconnect USB connection cable (supplied).
 ●Still pictures recorded in a RAW file cannot be printed. (The still pictures recorded in
JPEG...

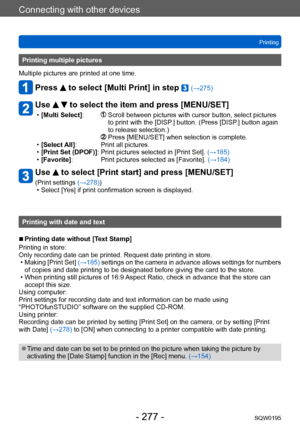

Connecting with other devices
Printing
SQW0195
- 277 -
Printing multiple pictures
Multiple pictures are printed at one time.
Press  to select [Multi Print] in step  (→275)
Use   to select the item and press [MENU/SET]
 • [Multi Select]:                 Scroll between pictures with cursor button, select pictures
to print with the [DISP
.] button. (Press [DISP.] button again
to release selection.)



  Press [MENU/SET] when selection is complete. •...

Connecting with other devices
Printing
SQW0195
- 278 -

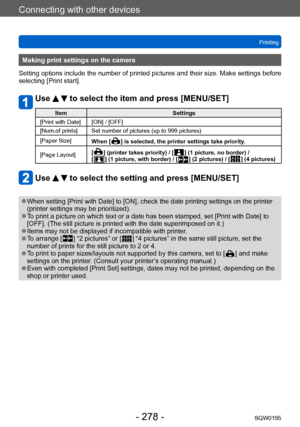

Making print settings on the camera
Setting options include the number of printed pictures and their size. Make settings before
selecting [Print start].
Use   to select the item and press [MENU/SET]
Item Settings
[Print with Date] [ON] / [OFF]
[Num.of prints] Set number of pictures (up to 999 pictures)
[Paper Size] When [
  ] is selected, the printer settings take priority.
[Page Layout] [
  ] (printer takes priority) / [  ] (1 picture, no border) /...

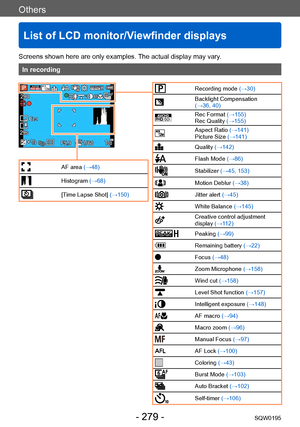

Others
List of LCD monitor/Viewfinder displays
SQW0195- 279 -
Screens shown here are only examples. The actual display may vary.
In recording
Recording mode (→30)
Backlight Compensation
(→36, 40)
0077007100AARec Format (→155)
Rec Quality (→155)
Aspect Ratio (→141)
Picture Size (→141)
Quality (→142)
Flash Mode (→86)
Stabilizer (→45, 153)
Motion Deblur  (→38)
Jitter alert (→45)
White Balance  (→145)
Creative control adjustment
display (→112)
Peaking  (→99)
Remaining battery  (→22)
Focus (→48)
Zoom...

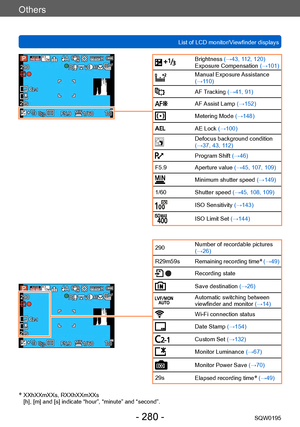

Others
List of LCD monitor/Viewfinder displaysSQW0195
- 280 -
Brightness (→43, 112, 120)
Exposure Compensation (→101)
Manual Exposure Assistance
(→110)
AF Tracking (→41, 91)
AF Assist Lamp (→152)
Metering Mode (→148)
AE Lock (→100)
Defocus background condition
(→37, 43, 112)
Program Shift (→46)
F5.9 Aperture value  (→45, 107, 109)
Minimum shutter speed (→149)
1/60 Shutter speed (→45, 108, 109)
ISO Sensitivity (→143)
ISO Limit Set  (→144)
*  XXhXXmXXs, RXXhXXmXXs
[h], [m] and [s] indicate “hour”,...
