1 Digital CATV Terminal Operating Instructions Model No. TZ-PCD2000 For assistance, please call : your regional operator (installer) Before connecting, operating or adjusting this product, please read these instructions completely. Save this manual for future reference. TQB2AA0369
Page 2
2 The lightning flash with arrow-head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. Important Safety Instructions Note To CATV System Installer This reminder is...
Page 3
3 Additional Instructions lPower Sources This product shall be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your Cable operator or Digital CATV Terminal installer or local power company. lOverloading Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. lObject and Liquid Entry Never push objects of any kind into this product through openings as they may...
Page 4
4 Additional Instructions lOutdoor Antenna Grounding If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of...
Page 5

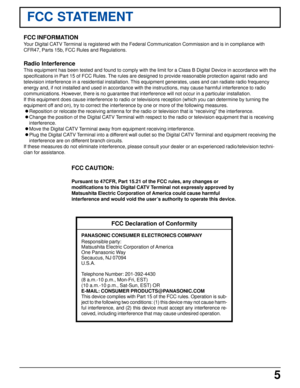

5 FCC STATEMENT FCC INFORMATION Your Digital CATV Terminal is registered with the Federal Communication Commission and is in compliance with CFR47, Parts 15b, FCC Rules and Regulations. Radio Interference This equipment has been tested and found to comply with the limit for a Class B Digital Device in accordance with the specifications in Part 15 of FCC Rules. The rules are designed to provide reasonable protection against radio and television interference in a residential installation. This equipment...
Page 6
6 Dear Panasonic Customer Welcome to the Panasonic Family of customers. We hope that you have many years of enjoyment from your new Digital CATV Terminal. To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference. Retain your purchase receipt also, and note down the model number and serial number of your set in the space provided on the rear cover of these instructions. Table of Contents For assistance, please call : your...
Page 7
7 Installation ACCESSORIES Check the accessories before installations. lOperating Instruction booklAC Power CordlRemote Control UnitlBattery for the Remote Control Unit (2×AA (IEC R6) size) Remote Control battery installation 1. Push the section marked with an arrow while lifting the cover up to open it. Requires two AA batteries. 2. Install the batteries as shown in the battery compartment. (Polarity + or - must match the markings in the compartment).3. Close the cover by inserting the top end first....
Page 8
8 Installation Front and Rear View of the Digital CATV Terminal Front Panel POWER indicator(LED) Volume - Button Channel + Button Volume + Button MESSAGE indicator(LED) DisplayBYPASS indicator(LED) Power Button Factory use onlyChannel - Button Factory use onlyRemote control signal receptor Door Pull the door toward you to open it. Card Slot POWERTurns the Digital CATV Terminal Power On or Off. VOL +-Select Volume Up or Down CH +-Select Channel Up or Down MESSAGEMessage indicator BYPASSBypass indicator...
Page 9

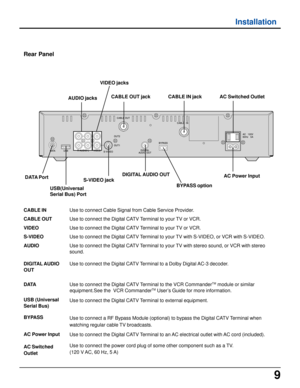

9 Installation Rear Panel AUDIO jacksVIDEO jacks CABLE OUT jack CABLE IN jack AC Switched Outlet DATA Port USB(Universal Serial Bus) PortS-VIDEO jackDIGITAL AUDIO OUT BYPASS optionAC Power Input CABLE IN CABLE OUT VIDEO S-VIDEO AUDIO DIGITAL AUDIO OUT DATA USB (Universal Serial Bus) BYPASS AC Power Input AC Switched OutletUse to connect Cable Signal from Cable Service Provider. Use to connect the Digital CATV Terminal to your TV or VCR. Use to connect the Digital CATV Terminal to your TV or VCR. Use to...
Page 10
10 Installation Cable connection Connect the cable wire to the CABLE IN jack on the rear panel of the Digital CATV Terminal. Incoming signal from the Cable Service Provider Digital CATV Terminal connection to stereo TV and stereo VCR Follow this diagram when connecting the Digital CATV Terminal to a stereo TV and stereo VCR. VCR or S-VCR TV or S-VCR TV Procedure 1 Connect S-VIDEO Cable from the S-VIDEO output jack on the Digital CATV Terminal to the S-VIDEO input jack on the TV or S-VCR. Note:Connect...
