Panasonic Digital Catv Terminal Tzpcd2000 Operating Instructions

21

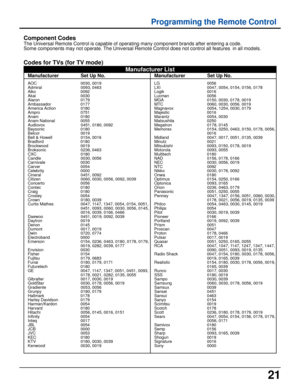

Programming the Remote Control
Component Codes
The Universal Remote Control is capable of operating many component brands after entering a code.
Some components may not operate. The Universal Remote Control does not control all features  in all models.
Codes for TVs (for TV mode)
Manufacturer List
Manufacturer Set Up No. Manufacturer Set Up No.
AOC 0030, 0019
Admiral 0093, 0463
Aiko 0092
Akai 0030
Alaron 0179
Ambassador 0177
America Action0180
Ampro 0751
Anam 0180
Anam National 0055
Audiovox 0451,...

22

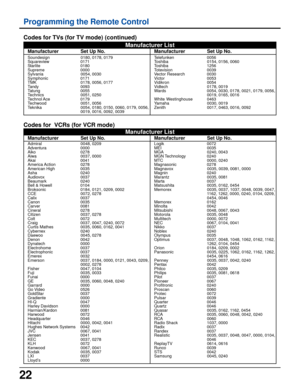

Programming the Remote Control
Codes for TVs (for TV mode) (continued)
Manufacturer List
Manufacturer Set Up No. Manufacturer Set Up No.
Soundesign 0180, 0178, 0179
Squareview 0171
Starlite 0180
Supreme 0000
Sylvania 0054, 0030
Symphonic 0171
TMK 0178, 0056, 0177
Tandy 0093
Tatung 0055
Technics 0051, 0250
Technol Ace 0179
Techwood 0051, 0056
Teknika 0054, 0180, 0150, 0060, 0179, 0056,
0019, 0016, 0092, 0039Telefunken 0056
Toshiba 0154, 0156, 0060
Toshiba 1256
Totevision 0039
Vector Research 0030...

23

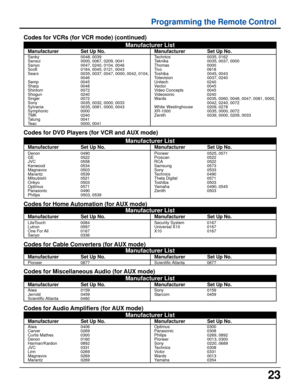

Programming the Remote Control
Codes for VCRs (for VCR mode) (continued)
Manufacturer List
Manufacturer Set Up No. Manufacturer Set Up No.
Sanky 0048, 0039
Sansui 0000, 0067, 0209, 0041
Sanyo 0047, 0240, 0104, 0046
Scott 0184, 0045, 0121, 0043
Sears 0035, 0037, 0047, 0000, 0042, 0104,
0046
Semp 0045
Sharp 0048
Shintom 0072
Shogun 0240
Singer 0072
Sony 0035, 0032, 0000, 0033
Sylvania 0035, 0081, 0000, 0043
Symphonic 0000
TMK 0240
Tatung 0041
Teac 0000, 0041Technics 0035, 0162
Teknika 0035, 0037, 0000...

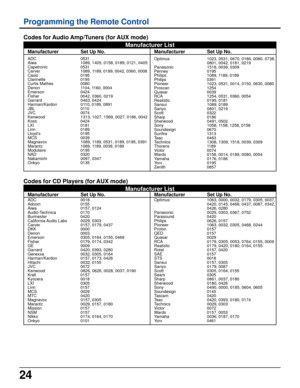

24
Programming the Remote Control
Codes for Audio Amp/Tuners (for AUX mode)
Manufacturer List
Manufacturer Set Up No. Manufacturer Set Up No.
ADC 0531
Aiwa 1089, 1405, 0158, 0189, 0121, 0405
Capetronic 0531
Carver 1089, 1189, 0189, 0042, 0360, 0008
Casio 0195
Clarinette 0195
Curtis Mathes 0080
Denon 1104, 1160, 0004
Emerson 0424
Fisher 0042, 0360, 0219
Garrard 0463, 0424
Harman/Kardon 0110, 0189, 0891
JBL 0110
JVC 0074
Kenwood 1313, 1027, 1569, 0027, 0186, 0042
Koss 0424
LXI 0181
Linn 0189
Lloyd’s 0195...

25

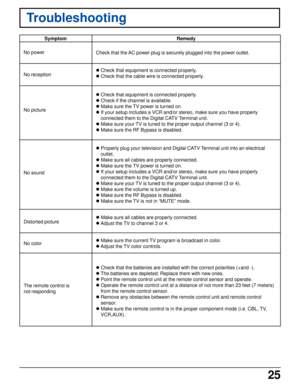

Troubleshooting
Symptom Remedy
No power
No reception
No picture
No sound
Distorted picture
No color
The remote control is
not respondingCheck that the AC power plug is securely plugged into the power outlet.
l Check that equipment is connected properly.
l Check that the cable wire is connected properly.
l Check that equipment is connected properly.
l Check if the channel is available.
l Make sure the TV power is turned on.
l If your setup includes a VCR and/or stereo, make sure you have properly...

26

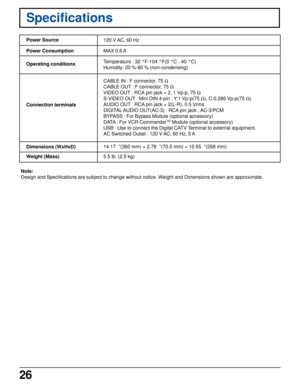

Specifications
Power Source
Power Consumption
Operating conditions
Connection terminals
Dimensions (WxHxD)
Weight (Mass)120 V AC, 60 Hz
Temperature : 32 °F-104 °F(0 °C - 40 °C)
Humidity: 20 %-80 % (non-condensing)
CABLE IN : F connector, 75 W
CABLE OUT : F connector, 75 W
VIDEO OUT : RCA pin jack × 2, 1 Vp-p, 75 W
S-VIDEO OUT : Mini DIN 4-pin , Y:1 Vp-p(75 W), C:0.286 Vp-p(75 W)
AUDIO OUT : RCA pin jack × 2(L-R), 0.5 Vrms
DIGITAL AUDIO OUT(AC-3) : RCA pin jack , AC-3/PCM
BYPASS : For Bypass Module...

27

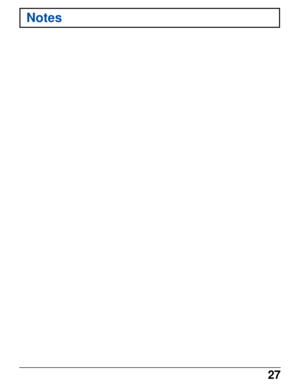

Notes

28

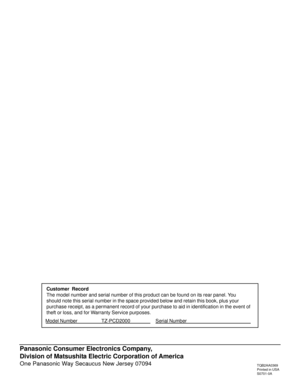

Customer  Record
The model number and serial number of this product can be found on its rear panel. You
should note this serial number in the space provided below and retain this book, plus your
purchase receipt, as a permanent record of your purchase to aid in identification in the event of
theft or loss, and for Warranty Service purposes.
Model Number TZ-PCD2000 Serial Number
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus New...
