Panasonic Digital Catv Terminal Tzpcd2000 Operating Instructions

11

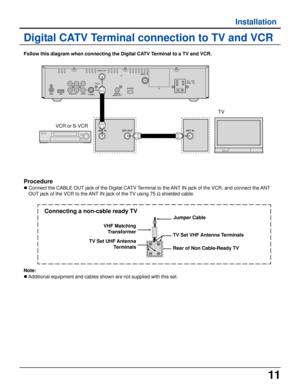

Digital CATV Terminal connection to TV and VCR
Installation
Follow this diagram when connecting the Digital CATV Terminal to a TV and VCR.
Procedure
l Connect the CABLE OUT jack of the Digital CATV Terminal to the ANT IN jack of the VCR, and connect the ANT
OUT jack of the VCR to the ANT IN jack of the TV using 75 W shielded cable.
Connecting a non-cable ready TV
VHF Matching
TransformerJumper Cable
TV Set VHF Antenna Terminals
Rear of Non Cable-Ready TV TV Set UHF Antenna
Terminals
Note:
l Additional...

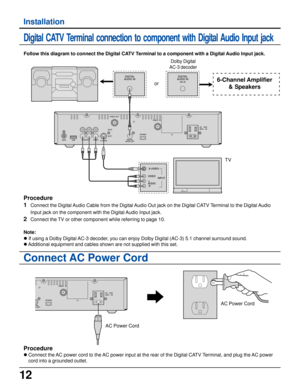

12
Installation
Digital CATV Terminal connection to component with Digital Audio Input jack
Follow this diagram to connect the Digital CATV Terminal to a component with a Digital Audio Input jack.
Procedure
1
Connect the Digital Audio Cable from the Digital Audio Out jack on the Digital CATV Terminal to the Digital Audio
Input jack on the component with the Digital Audio Input jack.
2Connect the TV or other component while referring to page 10.
Note:
l If using a Dolby Digital AC-3 decoder, you can enjoy...

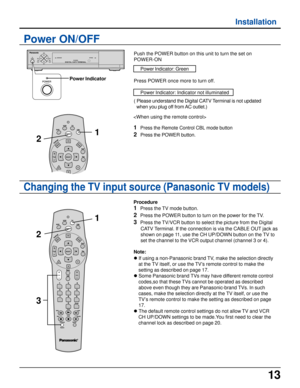

13
Power ON/OFF
Installation
Push the POWER button on this unit to turn the set on
POWER-ON
Press POWER once more to turn off.
Power Indicator: Green
Power Indicator: Indicator not illuminated
( Please understand the Digital CATV Terminal is not updated
when you plug off from AC outlet.)

1   Press the Remote Control CBL mode button
2   Press the POWER button.
Changing the TV input source (Panasonic TV models)
1   Press the TV mode button.
2   Press the POWER button to turn on the power for the TV.
3...

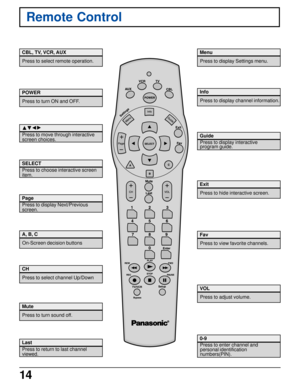

14
Remote Control
CBL, TV, VCR, AUX
Press to select remote operation.
POWER
Press to turn ON and OFF.
Press to move through interactive
screen choices.
SELECT
Press to choose interactive screen
item.
Page
Press to display Next/Previous
screen.
A, B, C
On-Screen decision buttons
CH
Press to select channel Up/Down
Mute
Press to turn sound off.
Last
Press to return to last channel
viewed.
Menu
Press to display Settings menu.
Info
Press to display channel information.
Exit
Press to hide interactive screen....

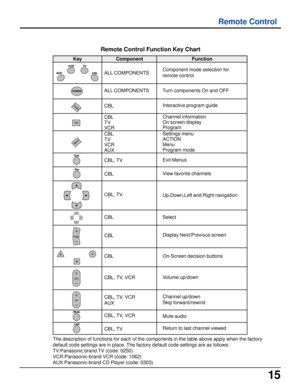

15
Remote Control
Remote Control Function Key Chart
ALL COMPONENTS
ALL COMPONENTS
CBL
CBL
TV
VCR
CBL
TV
VCR
AUX
CBL, TV
CBL
CBL, TV
CBL CBL CBL
CBL, TV, VCR
CBL, TV, VCR
AUX
CBL, TV, VCR
CBL, TVTurn components On and OFF
Channel information
On screen display
Program
Settings menu
ACTION
Menu
Program mode
Exit Menus
View favorite channels
Up,Down,Left and Right navigation
Select
Display Next/Previous screen
On-Screen decision buttons
Volume up/down
Channel up/down
Skip forward/rewind
Mute audio
The...

16
Remote Control

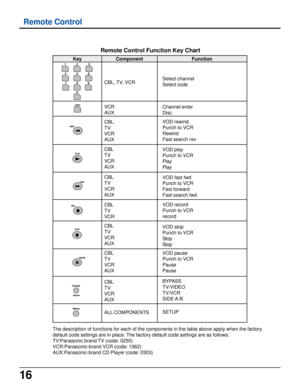

Remote Control Function Key Chart
CBL, TV, VCRSelect channel
Select code
The description of functions for each of the components in the table above apply when the factory
default code settings are in place. The factory default code settings are as follows:
TV:Panasonic brand TV (code: 0250)
VCR:Panasonic-brand VCR (code: 1062)
AUX:Panasonic-brand CD Player (code: 0303)VCR
AUX
CBL
TV
VCR
AUX
CBL
TV
VCR
AUX
CBL
TV
VCR
AUX
CBL
TV
VCR
CBL
TV
VCR
AUX
CBL
TV
VCR
AUX
CBL
TV
VCR
AUX
ALL...

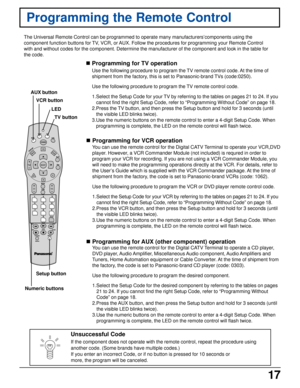

17
Programming the Remote Control
The Universal Remote Control can be programmed to operate many manufacturers’components using the
component function buttons for TV, VCR, or AUX. Follow the procedures for programming your Remote Control
with and without codes for the component. Determine the manufacturer of the component and look in the table for
the code.
Use the following procedure to program the TV remote control code. At the time of
shipment from the factory, this is set to Panasonic-brand TVs...

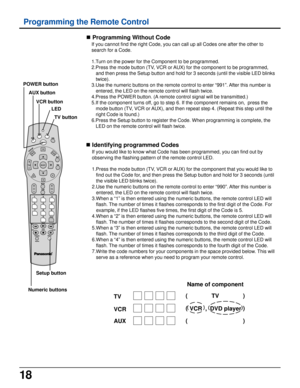

18
Programming the Remote Control
n Programming Without Code
If you cannot find the right Code, you can call up all Codes one after the other to
search for a Code.
1.Turn on the power for the Component to be programmed.
2.Press the mode button (TV, VCR or AUX) for the component to be programmed,
and then press the Setup button and hold for 3 seconds (until the visible LED blinks
twice).
3.Use the numeric buttons on the remote control to enter “991”. After this number is
entered, the LED on the remote...

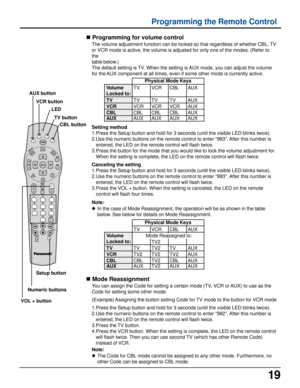

19
Programming the Remote Control
n Programming for volume control
The volume adjustment function can be locked so that regardless of whether CBL, TV
or VCR mode is active, the volume is adjusted for only one of the modes. (Refer to
the
table below.)
The default setting is TV. When the setting is AUX mode, you can adjust the volume
for the AUX component at all times, even if some other mode is currently active.
Setting method
1.Press the Setup button and hold for 3 seconds (until the visible LED blinks...

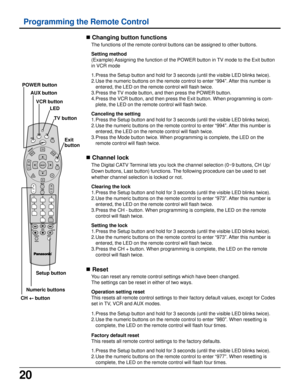

20
n Changing button functions
The functions of the remote control buttons can be assigned to other buttons.
Setting method
(Example) Assigning the function of the POWER button in TV mode to the Exit button
in VCR mode
1.Press the Setup button and hold for 3 seconds (until the visible LED blinks twice).
2.Use the numeric buttons on the remote control to enter “994”. After this number is
entered, the LED on the remote control will flash twice.
3.Press the TV mode button, and then press the POWER button....
