Panasonic Digital Color Imaging Systems Dp C354 Setting Up Operating Instructions

Installation
11

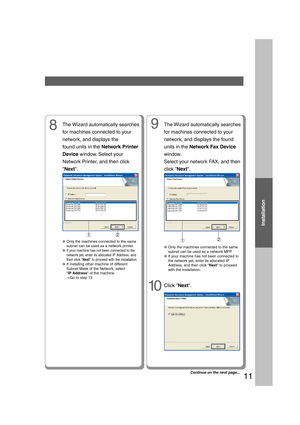

The Wizard automatically searches
for machines connected to your
network, and displays the
found units in the Network Printer
Device window. Select your
Network Printer, and then click
Next.
●Only the machines connected to the same
subnet can be used as a network printer.
●If your machine has not been connected to the
network yet, enter its allocated IP Address, and
then click Next to proceed with the installation.
●If installing other machine of different
Subnet Mask of the Network,...

12
Installation

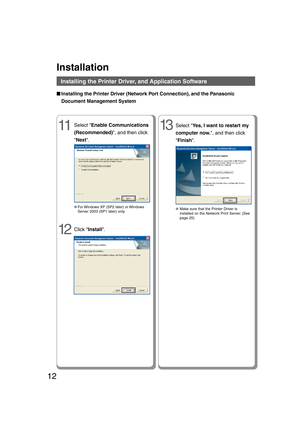

Installing the Printer Driver, and Application Software
■ ■■ ■
■Installing the Printer Driver (Network Port Connection), and the Panasonic
Document Management System
13Select Yes, I want to restart my
computer now., and then click
Finish.
●Make sure that the Printer Driver is
installed on the Network Print Server. (See
page 25)
Select Enable Communications
(Recommended), and then click
Next.11
●For Windows XP (SP2 later) or Windows
Server 2003 (SP1 later) only.
12Click Install....

Installation
13
■ ■■ ■

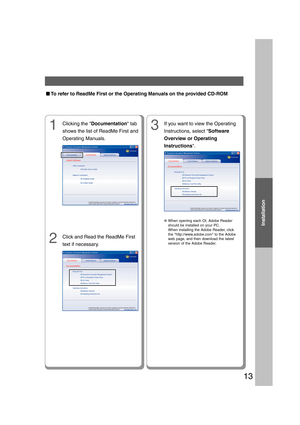

■To refer to ReadMe First or the Operating Manuals on the provided CD-ROM
1
Clicking the Documentation tab
shows the list of ReadMe First and
Operating Manuals.
2
Click and Read the ReadMe First
text if necessary.
If you want to view the Operating
Instructions, select Software
Overview or Operating
Instructions.
●When opening each OI, Adobe Reader
should be installed on your PC.
When installing the Adobe Reader, click
the http://www.adobe.com to the Adobe
web page, and then...

14
Select Printer Driver Install.
■ ■■ ■

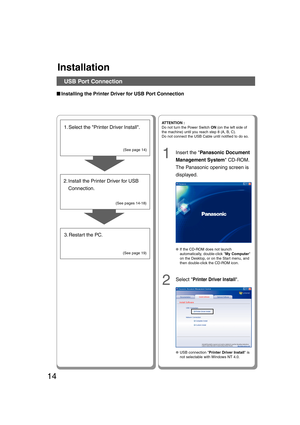

■Installing the Printer Driver for USB Port Connection
USB Port Connection
1. Select the Printer Driver Install.
2. Install the Printer Driver for USB
Connection.
(See page 14)
(See pages 14-18)
(See page 19)
3. Restart the PC.
1Insert the Panasonic Document
Management System CD-ROM.
The Panasonic opening screen is
displayed.
2
ATTENTION :
Do not turn the Power Switch ON (on the left side of
the machine) until you reach step 8 (A, B, C).
Do not connect the USB...

Installation
15
6 45 3

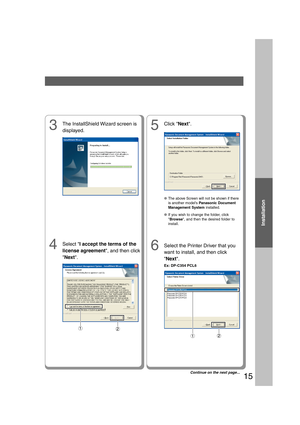

The InstallShield Wizard screen is
displayed.
Select I accept the terms of the
license agreement, and then click
Next.
Continue on the next page...
12
Click Next.
●If you wish to change the folder, click
Browse, and then the desired folder to
install.
Select the Printer Driver that you
want to install, and then click
Next.
Ex: DP-C354 PCL6
12
●The above Screen will not be shown if there
is another models Panasonic Document
Management System installed.
08_24.pmd11/16/2006, 3:45 PM 15

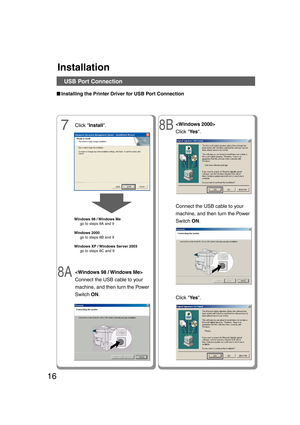

16
■ ■■ ■
■Installing the Printer Driver for USB Port Connection
USB Port Connection
Installation
Click Install.7
Windows 98 / Windows Me
go to steps 8A and 9
Windows 2000
go to steps 8B and 9
Windows XP / Windows Server 2003
go to steps 8C and 9

Connect the USB cable to your
machine, and then turn the Power
Switch ON.8A

Click Ye s.8B
Connect the USB cable to your
machine, and then turn the Power
Switch ON.
Click Ye s.
08_24.pmd11/16/2006, 3:45 PM 16

Installation
17

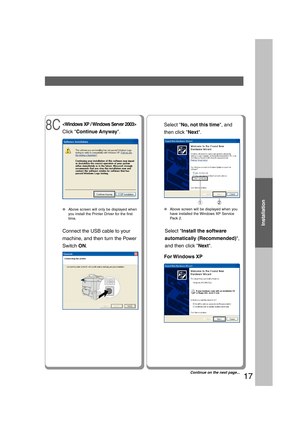

Connect the USB cable to your
machine, and then turn the Power
Switch ON.

Click Continue Anyway.8C
Select Install the software
automatically (Recommended),
and then click Next.
Select No, not this time, and
then click Next.
●Above screen will be displayed when you
have installed the Windows XP Service
Pack 2.
12
For Windows  XP
Continue on the next page...
●Above screen will only be displayed when
you install the Printer Driver for the first
time.
08_24.pmd11/16/2006, 3:45 PM 17

18

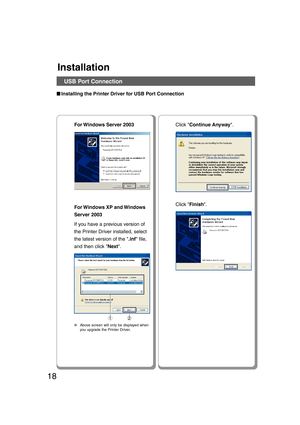

Click Finish. Click Continue Anyway.
For Windows  Server  2003
If you have a previous version of
the Printer Driver installed, select
the latest version of the .inf file,
and then click Next.
●Above screen will only be displayed when
you upgrade the Printer Driver.
21
■ ■■ ■
■Installing the Printer Driver for USB Port Connection
USB Port Connection
Installation
For Windows XP and Windows
Server 2003
08_24.pmd11/16/2006, 3:45 PM 18

Installation
19

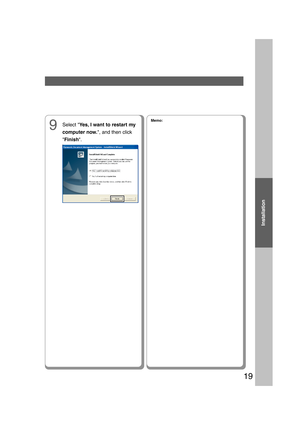

Select Yes, I want to restart my
computer now., and then click
Finish.9
Memo:
08_24.pmd11/16/2006, 3:45 PM 19

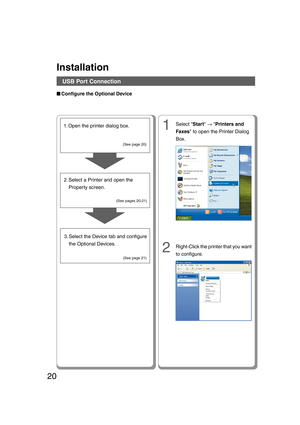

20
USB Port Connection
Installation
■ ■■ ■
■Configure the Optional Device
1. Open the printer dialog box.
2. Select a Printer and open the
Property screen.
(See page 20)
(See pages 20-21)
(See page 21)
3. Select the Device tab and configure
the Optional Devices.
1Select Start → Printers and
Faxes to open the Printer Dialog
Box.
2Right-Click the printer that you want
to configure.
08_24.pmd11/16/2006, 3:45 PM 20
