Panasonic Digital Color Imaging Systems Dp C354 Setting Up Operating Instructions

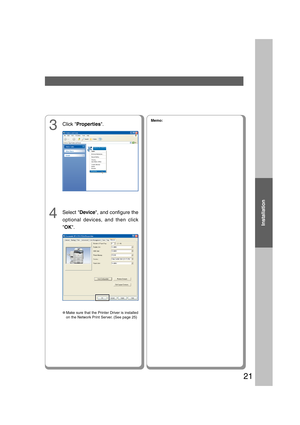

Installation
21
4Select Device, and configure the
optional devices, and then click
OK.
3Click Properties.Memo:
●Make sure that the Printer Driver is installed
on the Network Print Server. (See page 25)
08_24.pmd11/16/2006, 3:45 PM 21

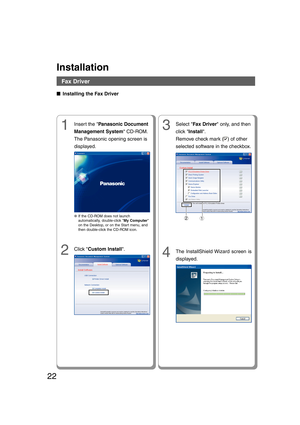

22
Installation
■ ■■ ■
■ Installing the Fax Driver
Fax Driver
1Inser t the Panasonic Document
Management System CD-ROM.
The Panasonic opening screen is
displayed.
2Click Custom Install.
●If the CD-ROM does not launch
automatically, double-click My Computer
on the Desktop, or on the Start menu, and
then double-click the CD-ROM icon.
3Select Fax Driver only, and then
click Install.
Remove check mark (
) of other
selected software in the checkbox.
4The InstallShield Wizard screen is
displayed.
12...

Installation

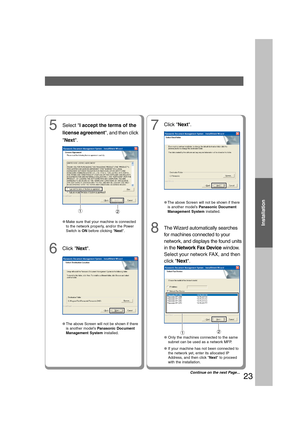

23
The Wizard automatically searches
for machines connected to your
network, and displays the found units
in the Network Fax Device window.
Select your network FAX, and then
click Next.
5Select I accept the terms of the
license agreement, and then click
Next.
●Make sure that your machine is connected
to the network properly, and/or the Power
Switch is ON before clicking Next.
6Click Next.
7
●The above Screen will not be shown if there
is another model’s Panasonic Document
Management System...

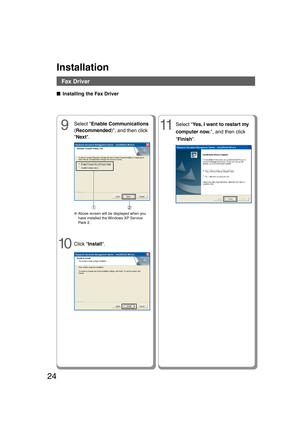

24
●Above screen will be displayed when you
have installed the Windows XP Service
Pack 2.
9
Click Install.Select Yes, I want to restart my
computer now., and then click
Finish.
11
10
Select Enable Communications
(Recommended), and then click
Next.
12
Installation
■ ■■ ■
■ Installing the Fax Driver
Fax Driver
08_24.pmd11/16/2006, 3:46 PM 24

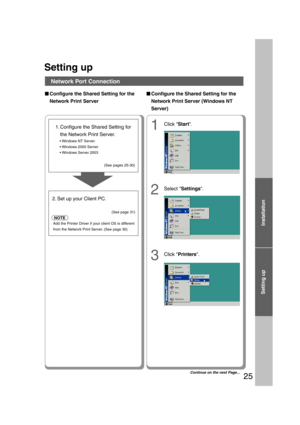

Setting up
25
1Click Start.
2Select Settings.
3Click Printers.
Network Port Connection
2. Set up your Client PC.
NOTE
Setting up
■ ■■ ■
■Configure the Shared Setting for the
Network Print Server■ ■■ ■
■Configure the Shared Setting for the
Network Print Server (Windows NT
Server)
1. Configure the Shared Setting for
the Network Print Server.



(See pages 25-30)
(See page 31)
Add the Printer Driver if your client OS is different
from the Network Print Server. (See page 30)
Continue on the next Page......

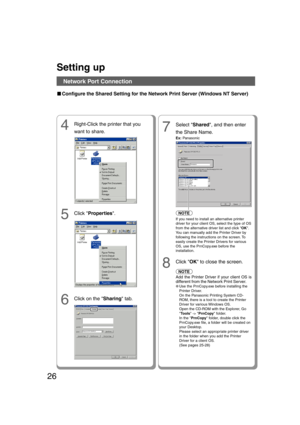

26
■ ■■ ■
■Configure the Shared Setting for the Network Print Server (Windows NT Server)
Setting up
Network Port Connection
7
Select Shared, and then enter
the Share Name.
Ex: Panasonic
8
Click OK to close the screen.
4Right-Click the printer that you
want to share.
5Click Properties.NOTE
If you need to install an alternative printer
driver for your client OS, select the type of OS
from the alternative driver list and click OK.
You can manually add the Printer Driver by
following the instructions on the...

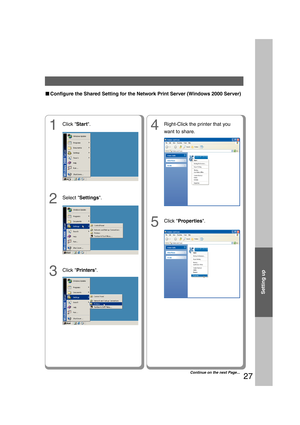

Setting up
27
4Right-Click the printer that you
want to share.
5Click Properties.
1Click Start.
2Select Settings.
3Click Printers.
Continue on the next Page...
■ ■■ ■
■Configure the Shared Setting for the Network Print Server (Windows 2000 Server)
25_32.pmd11/16/2006, 3:46 PM 27

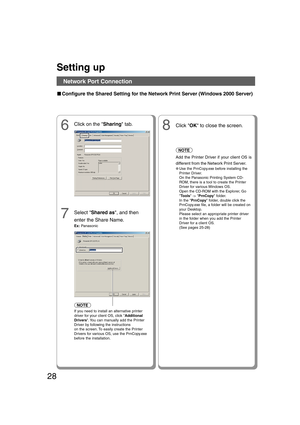

28
7Select Shared as, and then
enter the Share Name.
Ex: Panasonic
8Click OK to close the screen.6Click on the Sharing tab.
If you need to install an alternative printer
driver for your client OS, click Additional
Drivers. You can manually add the Printer
Driver by following the instructions
on the screen. To easily create the Printer
Drivers for various OS, use the PrnCopy.exe
before the installation.
NOTE
NOTE
Add the Printer Driver if your client OS is
different from the Network Print Server.
●Use the...

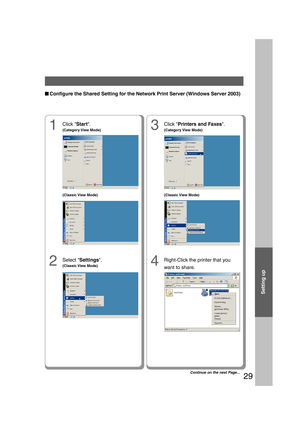

Setting up
29
■ ■■ ■
■Configure the Shared Setting for the Network Print Server (Windows Server 2003)
4Right-Click the printer that you
want to share.
1Click Start.
(Category View  Mode)
2Select Settings.
(Classic View  Mode)
3
(Classic View  Mode) (Classic View  Mode)
Click Printers and Faxes.
(Category View  Mode)
Continue on the next Page...
25_32.pmd11/16/2006, 3:46 PM 29

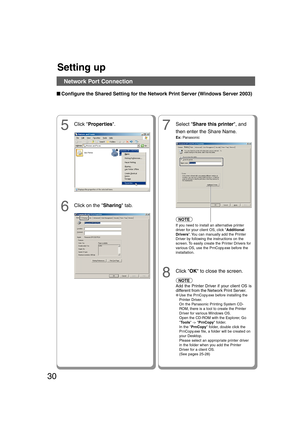

30
5Click Properties.7Select Share this printer, and
then enter the Share Name.
Ex: Panasonic
8
Click OK to close the screen.
6Click on the Sharing tab.
If you need to install an alternative printer
driver for your client OS, click Additional
Drivers. You can manually add the Printer
Driver by following the instructions on the
screen. To easily create the Printer Drivers for
various OS, use the PrnCopy.exe before the
installation.
NOTE
Setting up
Network Port Connection
■ ■■ ■
■Configure the Shared...
