11 65 4 32 -. / 1 0 = ; Control Panel No Contents Refer to 4INTERRUPT Key, MEMORY IN Key, M1/M2 Keys CInterrupt Key interrupts other copy or print jobs while making copies. CMemory In Key registers two copy jobs for recall at a later time. C M1/M2 Keys are used to store a Job in Memory or to recall a Job stored in Memory. Pages 21, 23 5Cursor Keys C CC C CSelect copy ratio and function modes using (G or F). —— 6PAPER TRAY Key C CC C CUsed to select the paper tray manually. —— 7COPY SIZE Key C Used to...
Page 12
12 Basic Copy Full Size Copying Copying the Same Size Originals (1:1) Copy size is automatically selected. 1 Place the Original LCD Display (Sample) ORIGINAL SIZE Key Select the Original Size on units without the ADF. NOTE CLEAR Key 2 Number of Copies* Up to 999 3 Press START** #Select the Original Type PHOTO : Originals are mainly composed of photo. TEXT/PHOTO : Combined originals with text and photo. TEXT : Originals are mainly composed of text. $Select Exposure Control Press the DARKER/LIGHTER...
Page 13
13 NOTE Making Copies Copying with Preset Ratios Basic Copy 100 77 65 50 121 100 79 61 129 100 100 65 200 155 129 100 Reduction or Enlargement Copying LDR ->LTRB [LTRB ] ZOOM: 65% COPIES:001 RESET 1 Place the Original 2 Select the ORIGINAL SIZE 3 Select the COPY SIZE 4 Number of Copies CIf the desired copy size is different from the paper size loaded in the paper tray, use the sheet bypass. (See page 17) CPress the RESET key to cancel all job settings. 5 Example: Reduction Original size Copy...
Page 14
14 ADF 1. Features #Automatic Original Feeding CThe ADF tray can hold up to 50 Letter size originals of 20 lb (80 g/m2) paper (up to 30 Legal or Ledger size originals). Accommodates from Invoice to Ledger size originals. CAutomatic original size detection. $2 in 1 Copy CTo make a 1-Sided copy (full size or reduction), from two 1-Sided originals side-by-side. Basic Copy 2. Components Original Guides Adjust to the original’s widthADF Tray Automatic Document Feeder CSet the originals up to the upper...
Page 15
15 Automatic Document Feeder 3. Operation Operation Procedure ADF Face-Up 1 Place the Original 2 Number of Copies 3 Press START Inappropriate Originals CPaper with a smooth surface such as glossy and coated papers CTransparencies COriginals with a lead edge that is “creased”, “folded”, “punched” or “glued” Basic Copy CPaste-ups CPressure sensitive or carbon backed papers CPaper with excessive curl CStapled originals CFreshly printed copies from a laser printer NOTECTo copy these kinds of originals, use...
Page 16
16 NOTE ATTENTION Zoom Copies with variable zoom ratios from 50% to 200% in 1% increments. LTR ->LTRB [LTRB ] ZOOM:125% COPIES:001B RESET Zoom Copying Basic Copy (Example: 125% Zoom) 1 Place the Original 2 Press Cursor (G or F) keys to select Zoom Ratio 4 Number of Copies 5 Press START CWhen changing the paper size after setting the zoom ratio, please use the paper tray key. CPress the RESET key to cancel all job settings. 3 Select ORIGINAL SIZE (without using ADF)
Page 17
17 NOTE ATTENTION Sheet Bypass #Place the sheets of paper into the tray. (approximately up to 50 Letter size sheets/20 lb) Basic Copy Using the Sheet Bypass Copying on Special Paper, etc. 1 Place the original. Open the sheet bypass. 2 Pull out the sheet bypass tray until it stops. (For Ledger size only) 3 Insert the paper until it stops. $Adjust the side guides. Incorrect adjustment may cause the paper to wrinkle, misfeed or skew. Press START. Side Guides CAdjust the side guides properly to avoid...
Page 18
18 2 in 1 Copy 2 in 1 Copy From two 1-Sided originals, side by side, to 1-Sided pages. Creative Features 1 \ 2 (Layout)* 2 \ 1 (Layout)* Portrait (Orientation)* Landscape (Orientation)* 1 \ 2 (Layout)* 2 \ 1 (Layout)* 4 Number of Copies Procedure ADF Face-Up 1 Place the Originals 2 Press 2 in 1 key (3) COPY SIZE (Reduction/ Enlargement Only) 5 Press START CPress the RESET key to cancel all job settings. CNumbers in parenthesis “ ( ) ” represent that, an additional step is required to activate...
Page 19

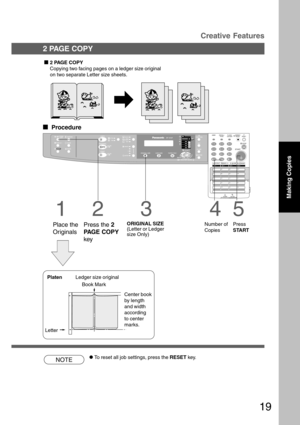

19 NOTECTo reset all job settings, press the RESET key. 3 ORIGINAL SIZE (Letter or Ledger size Only) 4 Number of Copies 5 Press START PlatenLedger size original LetterBook Mark 2 PAGE COPY Copying two facing pages on a ledger size original on two separate Letter size sheets. Procedure 1 Place the Originals 2 Press the 2 PAGE COPY key 2 PAGE COPYCreative Features Making Copies Center book by length and width according to center marks.
