Page 41
41 NOTECMake sure that the misfeed indicator goes off after removing the misfed paper. CThe misfeed indicator will not go off if the paper is still jammed in the copier. Check again and remove all misfed paper. Paper Misfeed Locations A: ADF (see page 45) (J70, J71) B: Copier (Paper Exit, Paper Entry/Transport) area (see page 42-43) (J51 - J59, J80) C: Paper Feed Module (see page 44) (J00 - J50) IMisfeed Indicator Removing a Misfed PaperProblem Solving Paper Misfeed Indicators and Locations When...
Page 42
42 ATTENTION Removing a Misfed Paper CMake sure that the misfeed indicator goes off after removing all misfed paper. 1 Remove the misfed paper. Paper Exit Area CMake sure that the misfeed indicator goes off after removing all misfed paper. Problem Solving

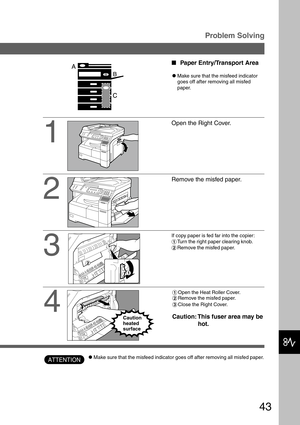

Page 43
43 Problem Solving 1 2 3 Open the Right Cover. Remove the misfed paper. If copy paper is fed far into the copier: #Turn the right paper clearing knob. $Remove the misfed paper. Paper Entry/Transport Area CMake sure that the misfeed indicator goes off after removing all misfed paper. ATTENTION 4 #Open the Heat Roller Cover. $Remove the misfed paper. %Close the Right Cover. Caution: This fuser area may be hot.Caution heated surface CMake sure that the misfeed indicator goes off after removing all misfed...
Page 44
44 Problem Solving 1 2 #Pull the Paper Tray out. $Remove the misfed paper. %Return the Paper Tray to the original position. #Open the Feed Cover. $Remove the misfed paper. %Close the Feed Cover. Paper Feed Module CMake sure that the misfeed indicator goes off after removing all misfed paper. CMake sure that the misfeed indicator goes off after removing all misfed paper.ATTENTION Removing a Misfed Paper
Page 45
45 Problem Solving ATTENTION 1 2 #Open the Entry Cover. $Remove the misfed paper. %Close the Entry Cover. #Open the ADF Cover. Note: To prevent damaging the originals, open the ADF Cover before removing the misfed original(s). $Remove the misfed paper. %Close the ADF Cover. &Close the ADF. ADF CMake sure that the misfeed indicator goes off after removing all misfed paper. CMake sure that the misfeed indicator goes off after removing all misfed paper. CTo prevent original(s) damage, please make sure to...
Page 46
46 Troubleshooting Before Calling Service CheckAction Unit Does Not Operate Does the display light?Check if the Power Switch is turned On and that the power cord is connected into the outlet. Does the Energy Saver key flash (or light) and displays are turned OFF? (See page 23)Press Energy Saver key on the Control Panel. Perform actions in accordance with each message. Does any of the U## codes and messages appear on the display? (U01, U07, U13, U14, U20 and U21) (See page 48) Add paper. (See page 38)...
Page 47
47 Troubleshooting Check Action Light Copies Does the exposure indicator say “Lighter”?Press the Darker key until the indicator LED is set to Darker. (See page 12) Does the add toner indicator and message appear on the display? (?)Add Toner. (See page 39) Marked Copies Is the copier platen glass or platen cover dirty?Clean the Glass or Platen Cover. (See page 48) 2. The Toner Charging Mode starts and the LCD displays: Add Toner Warning Indicator: CFlashing = Toner Bottle is nearly empty CLit = Toner...
Page 48
48 If the measures outlined above do not solve the problem, call your Service provider. Platen Cover Platen (glass) Copier Care As a rule, clean weekly. Platen/Platen Cover #Wipe marks off with a cloth and a neutral detergent. $Wipe again with a dry cloth. Platen Cover Platen (glass) User Error Codes (U Code) Troubleshooting The self-diagnostic functions detect troubles in the important components of the copier. When any trouble occurs, the copier stops. Code Display Message Check Points U01 CLOSE...
Page 49
49 ATTENTION Reinstall the Battery Holder. Troubleshooting Replacing the Battery The copier has an internal battery (Product No.: CR2032) which maintains the date setting in the event of a power outage. Battery Replacement Required Message 1 Turn the power Off. Pull out the Battery Holder. 2 Replace the Battery. 3 denotes hazards that could result in minor injury or damage to the machine.CThe service life of the battery is approximately 1 year when the machine is turned “Off ”. REPLACE BATTERY...
Page 50
50 Specifications DP-1810F (Copier) Platen TypeFixed Acceptable OriginalsSheets, Books (max. Ledger) Copying MethodLaser Electrophotography Fixing MethodHeat Roller Fixing Resolution Max. 600 dpi Maximum Copy SizeLedger - Invoice via paper tray Void AreaMax. 0.2 in (5 mm) Warm Up TimeApprox. 30 seconds (68°F/20°C) First Copy TimeApprox. 6.5 seconds (Letter , from 1st tray) Multi-Copy Speed18 Letter size copies per minute Enlargement RatiosPreset: 121%, 129%, 155%, 200% Variable: from 101% to 200%...
