21
NOTE
4
Number of
Copies
5
Press
START
CTo reset each selection, press the RESET key.
CLedger and Legal copy sizes cannot be selected.
∗The book format and page order can be set in function mode. (See page 30)

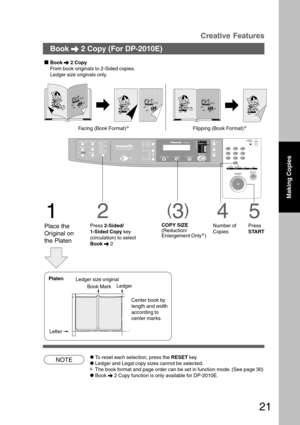

CBook \ 2 Copy function is only available for DP-2010E. Platen
Ledger size original
LetterLedger
(3)
COPY SIZE
(Reduction/
Enlargement Only
*)
Book
\ \\ \
\ 2 Copy (For DP-2010E)

Book
\ \\ \
\ 2 Copy
From book originals to 2-Sided copies.
Ledger size originals only.
Facing (Book Format)...

22
NOTE
Creative Features

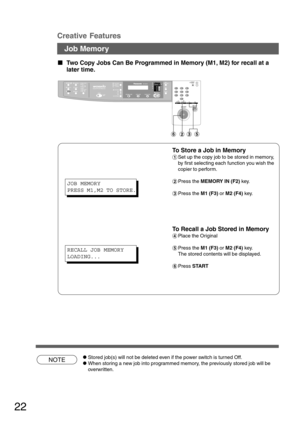

Job Memory






Two Copy Jobs Can Be Programmed in Memory (M1, M2) for recall at a
later time.
To Store a Job in Memory
#Set up the copy job to be stored in memory,
by first selecting each function you wish the
copier to perform.
$Press the MEMORY IN (F2) key.
%Press the M1 (F3) or M2 (F4) key.
To Recall a Job Stored in Memory
&Place the Original
(Press the M1 (F3) or M2 (F4) key.
The stored contents will be displayed.
)Press START
CStored job(s) will not be deleted even if...

23
Creative Features

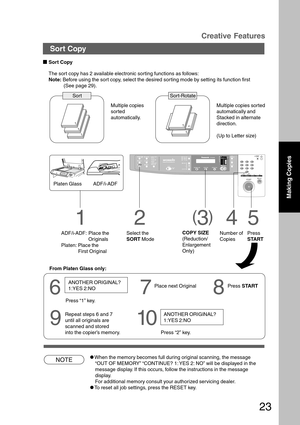

Sort Copy
1
1
1
1
11
NOTECWhen the memory becomes full during original scanning, the message
“OUT OF MEMORY” “CONTINUE? 1: YES 2: NO” will be displayed in the
message display. If this occurs, follow the instructions in the message
display.
For additional memory consult your authorized servicing dealer.
CTo reset all job settings, press the RESET key.

Sort Copy
The sort copy has 2 available electronic sorting functions as follows:
Note: Before using the sort copy, select the desired...

24
NOTE

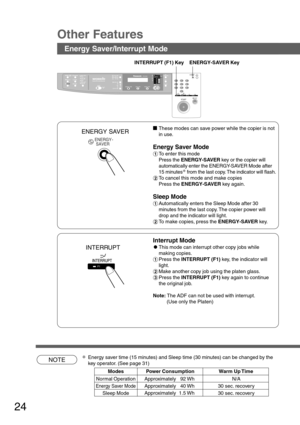

INTERRUPT (F1) Key ENERGY-SAVER Key

These modes can save power while the copier is not
in use.
Energy Saver Mode
#To enter this mode
Press the ENERGY-SAVER key or the copier will
automatically enter the ENERGY-SAVER Mode after
15 minutes
* from the last copy. The indicator will flash.
$To cancel this mode and make copies
Press the ENERGY-SAVER key again.
Sleep Mode
#Automatically enters the Sleep Mode after 30
minutes from the last copy. The copier power will
drop and the indicator will light....

25
NOTECAn incorrect exposure may occur when there is a black line at the edge of
the original or an image which the copier interprets as a black pattern in the
Skyshot mode.
CAn incorrect position detection of the original may occur when a strong light
shines onto the glass during Skyshot mode.
Other Features

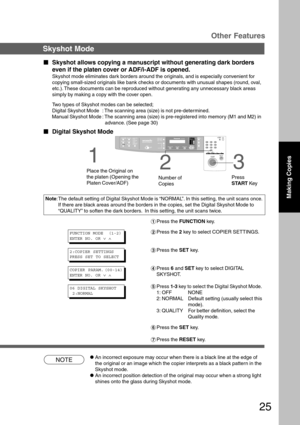

Skyshot Mode






Skyshot allows copying a manuscript without generating dark borders
even if the platen cover or ADF/i-ADF is opened.
Skyshot mode eliminates dark borders around the originals,...

26
NOTE
1
Place the
Original
23
Number of
Copies
4
Press
START Select the Custom
Size (M1 or M2) Upper-
left
corner Platen
Skyshot Mode

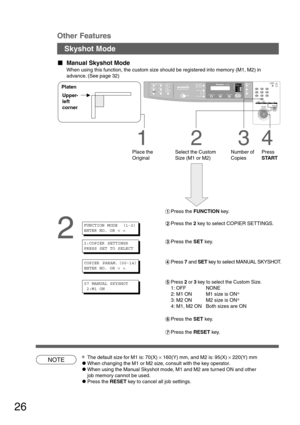

Manual Skyshot Mode
When using this function, the custom size should be registered into memory (M1, M2) in
advance. (See page 32)
Other Features
2
∗The default size for M1 is: 70(X) × 160(Y) mm, and M2 is: 95(X) × 220(Y) mm
CWhen changing the M1 or M2 size, consult with the key operator.
CWhen using the Manual Skyshot mode, M1 and M2 are turned ON and other
job...

27
Next
Selections2-ORIGINAL
H HH H
H COPYMargin SORTOther
Functions
Zoom Copy
2 in 1 Copy
2 Page CopySort-Rotate
Manual Skyshot
Job Memory Retrieval
Job Memory Storing
Remarks
First
Selections
Sort Book
Edge
Margin
Non-Sort

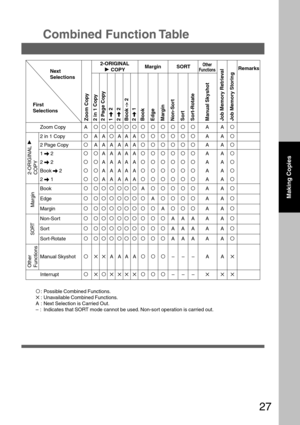

Combined Function Table
OAAOAA AOOOOOOAAO
OAAAAAAOOOOOOAAO
O OOOOOOAOOOOOAAO
O OOOOOO OAOOOOAAO
O OOOOOO O OAOOOAAO
O OOOOOO O O OAAA A AO
O OOOOOO O O OAAA A AO
O OOOOOO O O OAAA A AO
O✕✕AAAAOOO–––AA✕
O✕O✕✕✕✕OOO–––✕✕✕
Zoom Copy
2-ORIGINAL H
COPY Margin Other
Functions
SORT
2 in 1...

28
NOTE

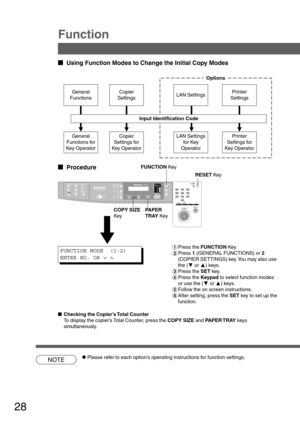

ProcedureFUNCTION Key
RESET Key
#Press the FUNCTION Key
$Press 1 (GENERAL FUNCTIONS) or 2
(COPIER SETTINGS) key. You may also use
the (G or F) keys.
%Press the SET key.
&Press the Keypad to select function modes
or use the (G or F) keys.
(Follow the on screen instructions.
)After setting, press the SET key to set up the
function.
CPlease refer to each option’s operating instructions for function settings.
Printer
Settings for
Key OperatorGeneral
Functions for
Key OperatorCopier
Settings...

29

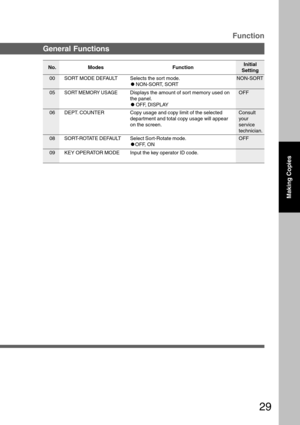

Making Copies
Function
No. ModesInitial
Setting Function
00 SORT MODE DEFAULT Selects the sort mode.
CNON-SORT, SORTNON-SORT
General Functions
05 Displays the amount of sort memory used on
the panel.
COFF, DISPLAYSORT MEMORY USAGEOFF
Copy usage and copy limit of the selected
department and total copy usage will appear
on the screen. DEPT. COUNTER Consult
your
service
technician. 06
08
09Select Sort-Rotate mode.
COFF, ON SORT-ROTATE DEFAULT OFF
KEY OPERATOR MODEInput the key operator ID code.

30
No.ModesInitial
Setting Function
00 MARGIN DEFAULT Selects the margin position and shift value.
CPOSITION (Left, Right, Top, Bottom)
CVALUE (5 - 99 mm)LEFT
10 mm

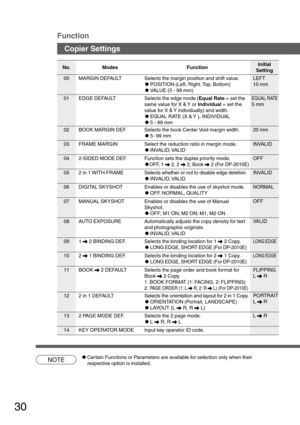

Copier Settings Function
Selects the edge mode (Equal Rate = set the
same value for X & Y or Individual = set the
value for X & Y individually) and width.
CEQUAL RATE (X & Y ), INDIVIDUAL
C5 - 99 mm EDGE DEFAULT
05 Selects whether or not to disable edge deletion.
CINVALID, VALID 2 in 1 WITH FRAMESelects the book Center Void margin width.
C5-...
