Panasonic Digital Imaging Systems DP-2310/3010/3510/3520/4510/4520/6010/6020 Facsimile And Internet Fax Operating Instructions

Customizing Your Machine
191
Fax Parameter Table
Setting Your
Machine
017 Receive Mode Manual Setting the reception mode to automatic or manual.
*Auto
022 Substitute Receive Invalid Selecting whether the machine receives to memory when the recording
paper runs out, toner runs out or the recording paper is jammed.
*Valid
024 Print Reduction Fixed Selecting print reduction mode.
Fixed: Reduce received document according to setting of Parameter
No. 25.
Auto: Automatically determines and reduces the...

Customizing Your Machine
192
Fax Parameter Table
044 Password-Receive *Off Setting a 4-digit RCV-Password and selecting whether the machine
performs and checks the RCV-Password of the transmitting station
when receiving. (See page 79)  On
046 Select Receive *Invalid Selecting whether the machine performs selective reception.
 (See page 92)
Va l i d
052 Diagnostic Password (----) Setting the password for Remote Diagnostic Mode. Please ask your
Panasonic Authorized Dealer for details.
053 Sub Address...

Customizing Your Machine
193
Fax Parameter Table
Setting Your
Machine
118 FAX Function Detect
(Only for DP2310/3010/
3520/4520/6020)Invalid Setting the number of digits for detecting a Fax Telephone number.
Upon detecting the specified number of digits, the machine will
automatically switch to the FAX Mode when it is in the Copier Mode. 4-Digits
5-Digits
*6-Digits
7-Digits
8-Digits
140 LAN Relay XMT Request *Invalid Selecting whether the machine performs LAN Relay XMT Request.
Va l i d
141 LAN XMT...

Customizing Your Machine
194
Fax Parameter Table
151 Email Header Format All Selecting the header information to print when an email is received.
(Normally used for Troubleshooting.  It shows the path of the email
transmission before arriving at your machine.) *Subject/
From/To
Off
152 Sub-address Routing *Invalid Selecting whether to automatically route a received fax or email using
ITU-T sub-address.
Va l i d
153 TSI Routing *Invalid Selecting whether to route a received fax to a telephone number or an...

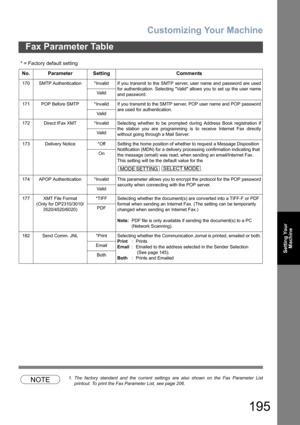

Customizing Your Machine
195
Fax Parameter Table
Setting Your
Machine
NOTE1. The factory standard and the current settings are also shown on the Fax Parameter List
printout. To print the Fax Parameter List, see page 206. 170 SMTP Authentication *Invalid If you transmit to the SMTP server, user name and password are used
for authentication. Selecting Valid allows you to set up the user name
and password. Va l i d
171 POP Before SMTP *Invalid If you transmit to the SMTP server, POP user name and POP...

memo
196

197
Printing Journals
and Lists
Printing Journals and Lists
Journals and Lists
To help you maintain records of the documents you sent and received, as well as lists of the numbers you
record, your facsimile machine is equipped to print the following journals and lists: Transaction Journal,
Individual Transmission Journal, Communication Journal, Address Book List, Program List, Fax Parameter
List, File List.
The Journal is a record of the last 200 transactions (a transaction is recorded each time you send...

Journals and Lists
198
Transaction Journal
NOTE1. If you wish to disable the automatic printing of the Transaction Journal, change the setting of
Fax Parameter No. 13 to Invalid.  (See page 190)
Type of Communication
XMT : Transmission
RCV : Reception
POL : Polling
PLD : Polled
FWD : Fax Foward
Date & TimeFile Number
Received ID,
Recorded name,
   Dialed telephone number
   or email address
Number of pages successfully transmitted or received.
MM-dd 10:00  No.001 p001  OK
XMT
                  5551234...

Journals and Lists
199
Transaction Journal
Printing Journals
and Lists
Sample Transaction Journal
NOTE1. Email transmisssion sent to multiple locations is recorded as a single transaction on the
Journal.
                                                    (1)                    (2)
*************** -JOURNAL- ************************* DATE MMM-dd-yyyy ***** TIME 15:00 ***** p.01
  (3)  (4)   (5)     (6)   (7)        (8)   (9)                   (10)    (11)      (12)
  NO.  COMM. PAGES   FILE  DURATION...

Journals and Lists
200
Transaction Journal
Explanation of Contents
(1) Printout date
(2) Printout time
(3) Journal number
(4) Communication result OK indicates that the communication was successful.
BUSY indicates that the communication has failed because of busy line.
STOP indicates that STOP was pressed during communication.
P-OK indicates that memory overflow occurred while storing the documents
into memory for transmission but successfully stored document(s) was sent.
R-OK indicates that the Relayed...
