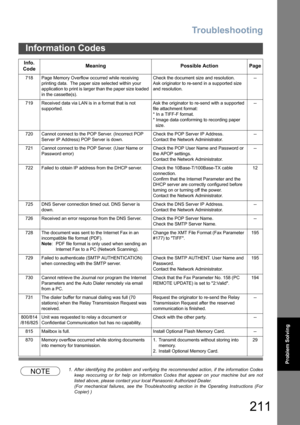

Panasonic Digital Imaging Systems DP-2310/3010/3510/3520/4510/4520/6010/6020 Facsimile And Internet Fax Operating Instructions

Troubleshooting
211
Information Codes
Problem Solving
NOTE1. After identifying the problem and verifying the recommended action, if the information Codeskeep reoccuring or for help on Information Codes that appear on your machine but are not
listed above, please contact your local Panasonic Authorized Dealer.
(For mechanical failures, see the Troubleshooting section in the Operating Instructions (For
Copier) )
718 Page Memory Overflow occurred while receiving
printing data.  The paper size selected...

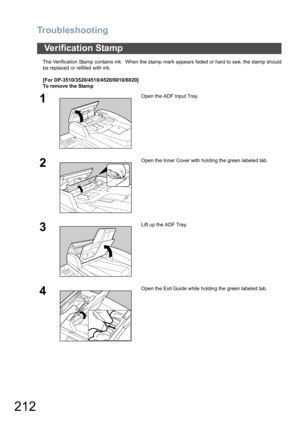

Troubleshooting
212
The Verification Stamp contains ink.  When the stamp mark appears faded or hard to see, the stamp should
be replaced or refilled with ink.
[For DP-3510/3520/4510/4520/6010/6020]
To remove the Stamp
Verification Stamp
1Open the ADF Input Tray.
2Open the Inner Cover with holding the green labeled tab.
3Lift up the ADF Tray.
4Open the Exit Guide while holding the green labeled tab.
P9250577

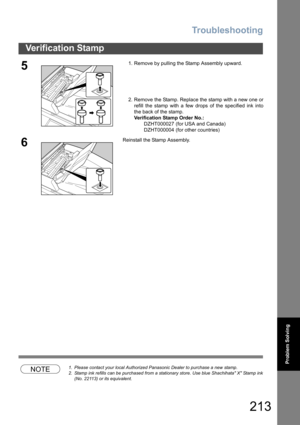

Troubleshooting
213
Verification Stamp
Problem Solving
NOTE1. Please contact your local Authorized Panasonic Dealer to purchase a new stamp.
2. Stamp ink refills can be purchased from a stationary store. Use blue Shachihata X Stamp ink
(No. 22113) or its equivalent.
51. Remove by pulling the Stamp Assembly upward.
2. Remove the Stamp. Replace the stamp with a new one or
refill the stamp with a few drops of the specified ink into
the back of the stamp.
Verification Stamp Order No.:
       DZHT000027 (for...

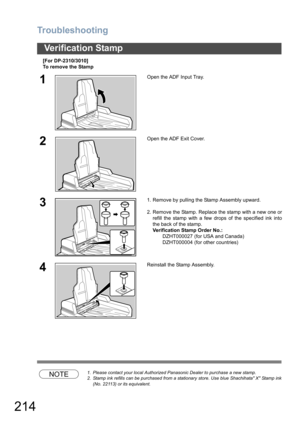

Troubleshooting
214
Verification Stamp
[For DP-2310/3010]
To remove the Stamp
NOTE1. Please contact your local Authorized Panasonic Dealer to purchase a new stamp.
2. Stamp ink refills can be purchased from a stationary store. Use blue Shachihata X Stamp ink
(No. 22113) or its equivalent.
1Open the ADF Input Tray.
2Open the ADF Exit Cover.
31. Remove by pulling the Stamp Assembly upward.
2. Remove the Stamp. Replace the stamp with a new one or
refill the stamp with a few drops of the specified ink into...

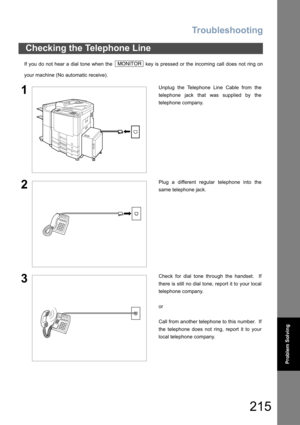

Troubleshooting
215
Problem Solving
If you do not hear a dial tone when the   key is pressed or the incoming call does not ring on
your machine (No automatic receive).
Checking the Telephone Line
1Unplug the Telephone Line Cable from the
telephone jack that was supplied by the
telephone company.
2Plug a different regular telephone into the
same telephone jack.
3Check for dial tone through the handset.  If
there is still no dial tone, report it to your local
telephone company.
or
Call from another...

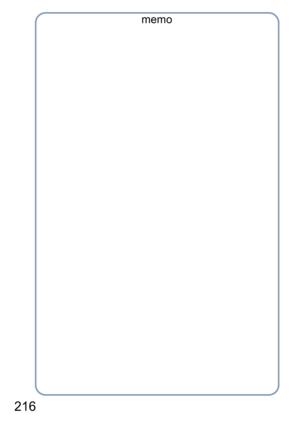

memo
216

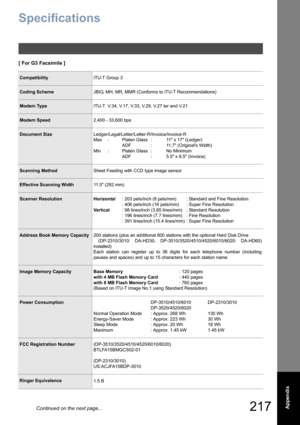

217  Appendix
Appendix
Specifications
[ For G3 Facsimile ]
CompatibilityITU-T Group 3
Coding SchemeJBIG, MH, MR, MMR (Conforms to ITU-T Recommendations)
Modem TypeITU-T  V.34, V.17, V.33, V.29, V.27 ter and V.21
Modem Speed2,400 - 33,600 bps
Document SizeLedger/Legal/Letter/Letter-R/Invoice/Invoice-R
Max :  Platen Glass :   11 x 17 (Ledger)
ADF :   11.7 (Originals Width)
Min : Platen Glass :  No Minimum
ADF :   5.5 x 8.5 (Invoice)
Scanning MethodSheet Feeding with CCD type image sensor
Effective...

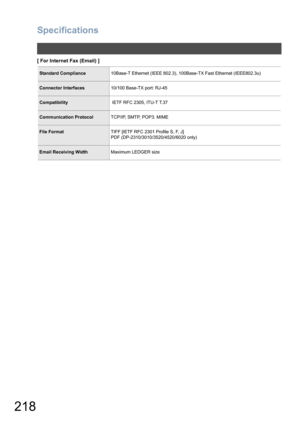

Specifications
218
[ For Internet Fax (Email) ]
Standard Compliance10Base-T Ethernet (IEEE 802.3), 100Base-TX Fast Ethernet (IEEE802.3u)
Connector Interfaces10/100 Base-TX port: RJ-45
Compatibility IETF RFC 2305, ITU-T T.37
Communication ProtocolTCP/IP, SMTP, POP3. MIME
File FormatTIFF [IETF RFC 2301 Profile S, F, J]
PDF (DP-2310/3010/3520/4520/6020 only)
Email Receiving WidthMaximum LEDGER size

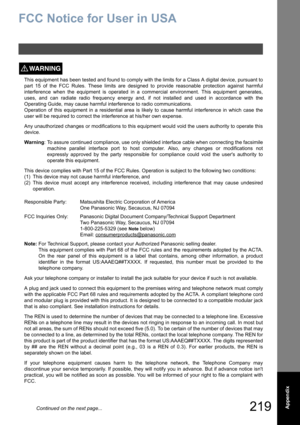

219  Appendix
FCC Notice for User in USA
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
Operating Guide, may cause harmful interference to radio...

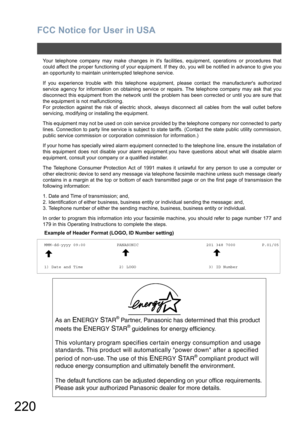

FCC Notice for User in USA
220
Your telephone company may make changes in its facilities, equipment, operations or procedures that
could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you
an opportunity to maintain uninterrupted telephone service.
If you experience trouble with this telephone equipment, please contact the manufacturers authorized
service agency for information on obtaining service or repairs. The telephone company may ask that you...
