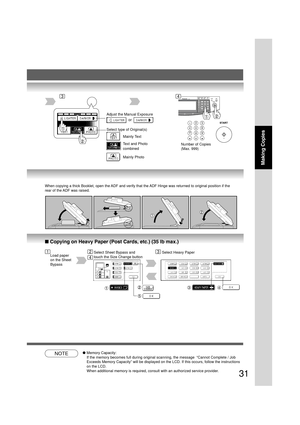

Making Copies
Adjust the Manual Exposure
  or
Select type of Original(s)
Mainly Text
Text and Photo
combined
Mainly Photo
Number of Copies
(Max. 999)
NOTE●Memory Capacity:
If the memory becomes full during original scanning, the message  “Cannot Complete / Job
Exceeds Memory Capacity” will be displayed on the LCD. If this occurs, follow the instructions
on the LCD.
When additional memory is required, consult with an authorized service provider.
■ Copying on Heavy Paper (Post Cards, etc.) (35 lb...

32
Making Copies
Basic Menu
100
copies
50
copies50
copies
+
100 copies
2 1100

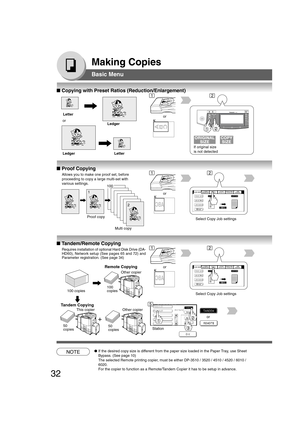

■ Copying with Preset Ratios (Reduction/Enlargement)
Letter
Ledger LetterLedger oror
If original size
is not detected
■ Proof Copying
or
Allows you to make one proof set, before
proceeding to copy a large multi-set with
various settings.
Proof copy
Multi copy
Select Copy Job settings
■ Tandem/Remote Copying
or
Requires installation of optional Hard Disk Drive (DA-
HD60), Network setup (See pages 65 and 72) and
Parameter...

33
Making Copies

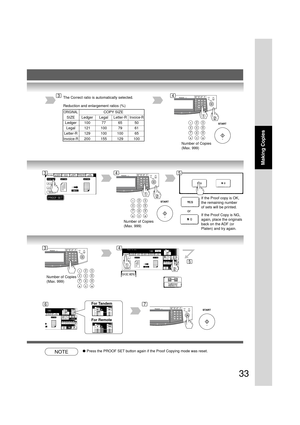

ORIGINALCOPY SIZE
SIZE Ledger Legal Letter-RInvoice-R
Ledger 100 77 65 50
Legal 121 100 79 61
Letter-R 129 100 100 65
Invoice-R200 155 129 100 The Correct ratio is automatically selected.
Reduction and enlargement ratios (%)
Number of Copies
(Max. 999)
Number of Copies
(Max. 999)
If the Proof copy is OK,
the remaining number
of sets will be printed.
If the Proof Copy is NG,
again, place the originals
back on the ADF (or
Platen) and try again. or
Number of Copies
(Max. 999)
NOTE●Press the...

34
Making Copies
Basic Menu

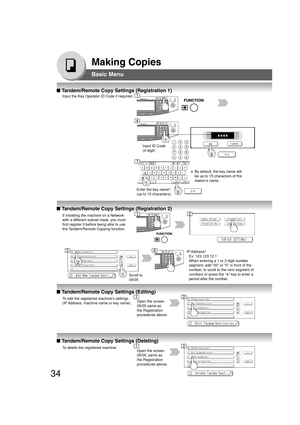

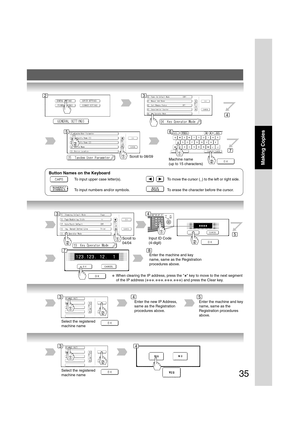

■ Tandem/Remote Copy Settings (Registration 1)
Input the Key Operator ID Code if required.
Input ID Code
(4-digit)
Enter the key name∗
(up to 15 characters).
∗By default, the key name will
be up to 15 characters of the
station’s name.
■ Tandem/Remote Copy Settings (Registration 2)
If installing the machine on a Network
with a different subnet mask, you must
first register it before being able to use
the Tandem/Remote Copying function.
Scroll to
05/05
IP Address∗
Ex:...

35
Making Copies
Scroll to 08/09
To input upper case letter(s).
To input numbers and/or symbols.To move the cursor (_) to the left or right side.
To erase the character before the cursor. Machine name
(up to 15 characters)
Button Names on the Keyboard
Input ID Code
(4-digit)Scroll to
04/04
Enter the machine and key
name, same as the Registration
procedures above.
Select the registered
machine name
Enter the new IP Address,
same as the Registration
procedures above.Enter the machine and key
name, same as...

36
Making Copies
Basic Menu

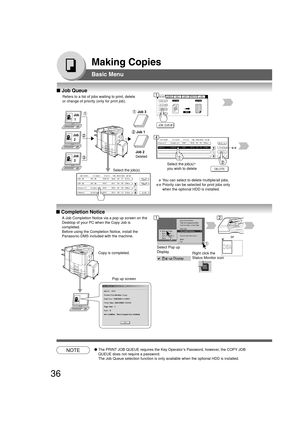

■ Job Queue
Refers to a list of jobs waiting to print, delete
or change of priority (only for print job).
Job
 1
Job
 2
Job
 3
Job 3
Job 1
Job 2
Deleted
Select the job(s)∗
you wish to delete
∗∗
∗You can select to delete multiple/all jobs.
∗∗Priority can be selected for print jobs only
when the optional HDD is installed. Select the job(s)
■ Completion Notice
A Job Completion Notice via a pop up screen on the
Desktop of your PC when the Copy Job is
completed.
Before using the...

37
Making Copies

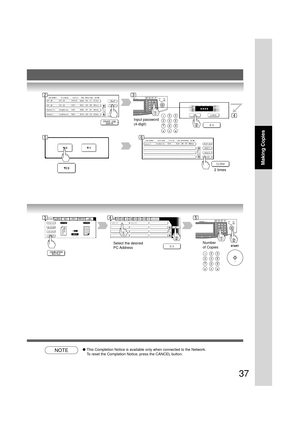

Input password
(4-digit)
2 times
Select the desired
PC AddressNumber
of Copies
NOTE●This Completion Notice is available only when connected to the Network.
To reset the Completion Notice, press the CANCEL button.
23
4
56
345

38
Making Copies
2-Sided/Original  Copy

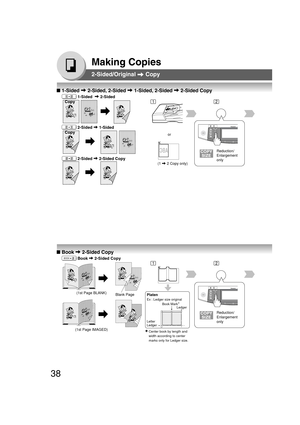

■ 1-Sided  2-Sided, 2-Sided  1-Sided, 2-Sided  2-Sided Copy
   1-Sided   2-Sided
Copy
   2-Sided
 1-Sided
Copy
   2-Sided
 2-Sided Copy
or
Reduction/
Enlargement
only
■ Book  2-Sided Copy
   Book  2-Sided Copy
Reduction/
Enlargement
only (1st Page BLANK)
(1st Page IMAGED)
Platen
Ex : Ledger size original
Letter
LedgerLedger
(1  2 Copy only)
12
12
Blank Page
Book Mark∗
∗ ∗∗ ∗
∗Center book by length and
width according to center
marks only for Ledger size.

39
Making Copies

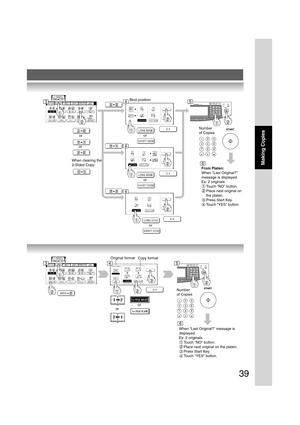

Bind position
or
or
or
When clearing the
2-Sided Copy:
Number
of Copies
From Platen:
When Last Original?
message is displayed.
Ex: 2 originals
Touch NO button.
Place next original on
the platen.
3Press Start Key.
4Touch YES button.
Number
of Copies
Original format
Copy format
oror
When Last Original? message is
displayed.
Ex: 2 originals
Touch NO button.
Place next original on the platen.
3Press Start Key.
4Touch YES button.
345
345
6
6
or
4
or
4

40
Making Copies
2-Sided/Original  Copy
123
56 4
64
531
2
3
4
12
4 3
1
2

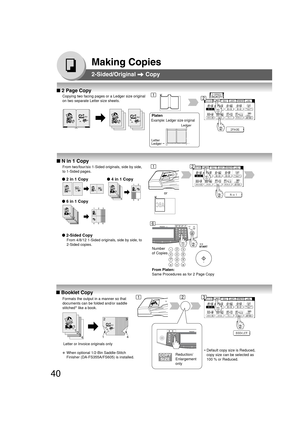

■ 2 Page Copy
Copying two facing pages or a Ledger size original
on two separate Letter size sheets.
Letter
LedgerLedger
Platen
Example: Ledger size original
■ N in 1 Copy
● 2 in 1 Copy
● 2-Sided Copy
From 4/8/12 1-Sided originals, side by side, to
2-Sided copies. From two/four/six 1-Sided originals, side by side,
to 1-Sided pages.
● 4 in 1 Copy
● 6 in 1 Copy
or
■ Booklet Copy
Formats the output in a manner so that
documents can be...
