Panasonic Digital Imaging Systems DP-3520/4520/6020 Operating Instructions

81
Network Scanner
(Option)

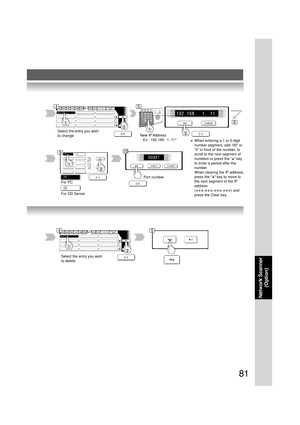

New IP Address
   Ex.: 192.168.  1. 11∗
For PC
For DD Server
Port number
Select the entry you wish
to change
∗When entering a 1 or 2-digit
number segment, add “00” or
“0” in front of the number, to
scroll to the next segment of
numbers or press the “
” key
to enter a period after the
number.
When clearing the IP address,
press the
 key to move to
the next segment of the IP
address
(
∗∗∗.∗∗∗.∗∗∗.∗∗∗) and
press the Clear key.
Select the entry you wish
to delete
45
6
910
45

82

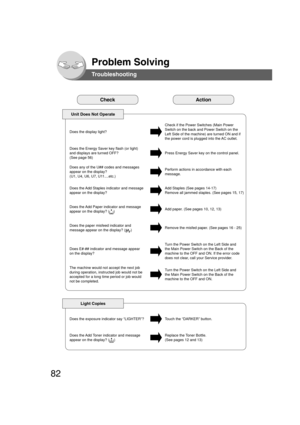

Problem Solving
Troubleshooting
CheckAction
Unit Does Not Operate
Check if the Power Switches (Main Power
Switch on the back and Power Switch on the
Left Side of the machine) are turned ON and if
the power cord is plugged into the AC outlet. Does the display light?
Press Energy Saver key on the control panel. Does the Energy Saver key flash (or light)
and displays are turned OFF?
(See page 56)
Perform actions in accordance with each
message. Does any of the U## codes and messages
appear on the...

83
Problem Solving
CheckAction

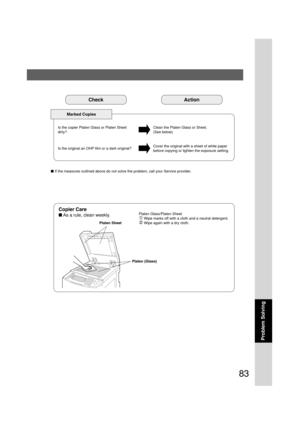

Marked Copies
Clean the Platen Glass or Sheet.
(See below) Is the copier Platen Glass or Platen Sheet
dirty?
Cover the original with a sheet of white paper
before copying or lighten the exposure setting. Is the original an OHP film or a dark original?
■ If the measures outlined above do not solve the problem, call your Service provider.
Copier Care
■ As a rule, clean weekly.
Platen Sheet
Platen (Glass)Platen Glass/Platen Sheet
 Wipe marks off with a cloth and a neutral...

84
Problem Solving

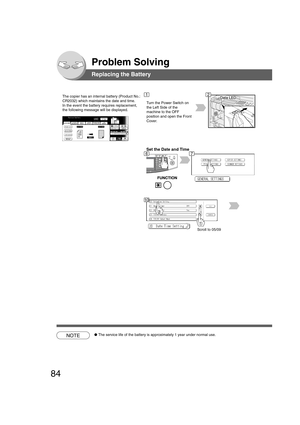

Replacing the Battery
The copier has an internal battery (Product No.:
CR2032) which maintains the date and time.
In the event the battery requires replacement,
the following message will be displayed.Data LED
Turn the Power Switch on
the Left Side of the
machine to the OFF
position and open the Front
Cover.
Set the Date and Time
Scroll to 05/09
NOTE●The service life of the battery is approximately 1 year under normal use.
12
67
10

85
Problem Solving

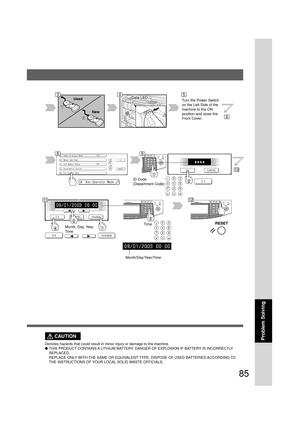

1
2
Data LEDTurn the Power Switch
on the Left Side of the
machine to the ON
position and close the
Front Cover.
ID Code
(Department Code)
TimeMonth, Day, Year,
Time
Month/Day/Year/Time
CAUTION
Denotes hazards that could result in minor injury or damage to the machine.
●THIS PRODUCT CONTAINS A LITHIUM BATTERY. DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS OF YOUR LOCAL SOLID...

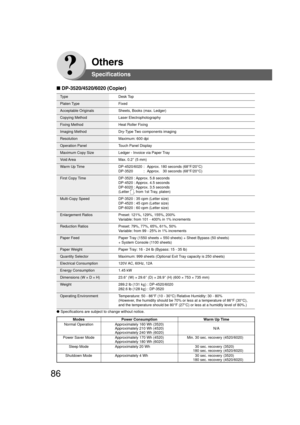

86
Others
Type Desk Top
Platen Type Fixed
Acceptable Originals Sheets, Books (max. Ledger)
Copying Method Laser Electrophotography
Fixing Method Heat Roller Fixing
Imaging Method Dry-Type Two components imaging
Resolution Maximum: 600 dpi
Operation Panel Touch Panel Display
Maximum Copy Size Ledger - Invoice via Paper Tray
Void Area Max.  0.2″ (5 mm)
Warm Up Time DP-4520/6020 : Approx. 180 seconds (68°F/20°C)
DP-3520 : Approx.   30 seconds (68°F/20°C)
First Copy Time DP-3520 : Approx. 5.8 seconds
DP-4520...

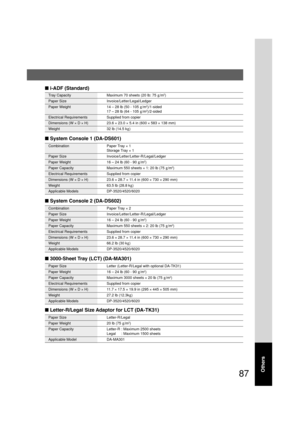

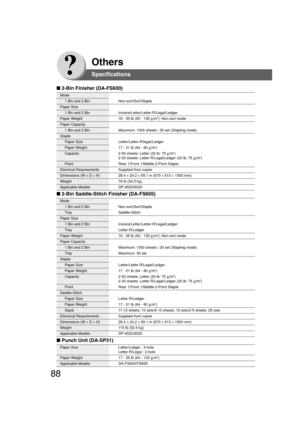

87
Others
Tray Capacity Maximum 70 sheets (20 lb: 75 g/m2)
Paper Size Invoice/Letter/Legal/Ledger
Paper Weight 14 – 28 lb (50 - 105 g/m
2)/1-sided
17 – 28 lb (64 - 105 g/m2)/2-sided
Electrical Requirements Supplied from copier
Dimensions (W × D × H) 23.6 × 23.0 × 5.4 in (600 × 583 × 138 mm)
Weight 32 lb (14.5 kg)
■ i-ADF (Standard)
Combination Paper Tray × 1
Storage Tray × 1
Paper Size Invoice/Letter/Letter-R/Legal/Ledger
Paper Weight 16 – 24 lb (60 - 90 g/m2)
Paper Capacity Maximum 550 sheets × 1: 20 lb...

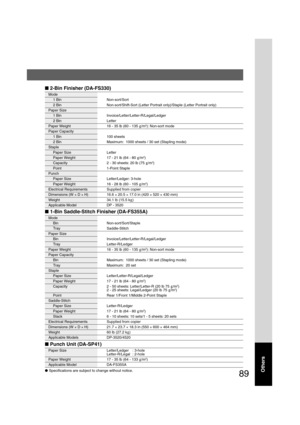

88
Others
Specifications
Mode
1 Bin and 2 Bin Non-sort/Sort/Staple
Paper Size
1 Bin and 2 Bin Invoice/Letter/Letter-R/Legal/Ledger
Paper Weight 16 - 35 lb (60 - 135 g/m2): Non-sort mode
Paper Capacity
1 Bin and 2 Bin Maximum: 1000 sheets / 30 set (Stapling mode)
Staple
Paper Size Letter/Letter-R/legal/Ledger
Paper Weight 17 - 21 lb (64 - 80 g/m2)
Capacity 2-50 sheets: Letter (20 lb: 75 g/m
2)
2-30 sheets: Letter-R/Legal/Ledger (20 lb: 75 g/m2)
Point Rear 1/Front 1/Middle 2-Point Staple
Electrical...

89
Others
Mode
1 Bin Non-sort/Sort
2 Bin Non-sort/Shift-Sort (Letter Portrait only)/Staple (Letter Portrait only)
Paper Size
1 Bin Invoice/Letter/Letter-R/Legal/Ledger
2 Bin Letter
Paper Weight 16 - 35 lb (60 - 135 g/m2): Non-sort mode
Paper Capacity
1 Bin 100 sheets
2 Bin Maximum:  1000 sheets / 30 set (Stapling mode)
Staple
Paper Size Letter
Paper Weight 17 - 21 lb (64 - 80 g/m2)
Capacity 2 - 30 sheets: 20 lb (75 g/m2)
Point 1-Point Staple
Punch
Paper Size Letter/Ledger: 3-hole
Paper Weight 16 - 28 lb...

90
Others

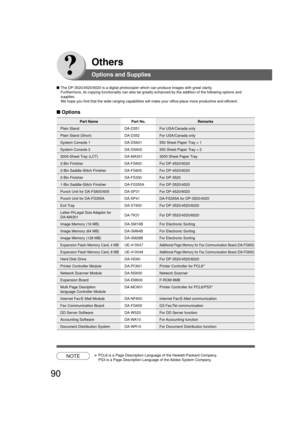

Options and Supplies
Part Name Part No. Remarks
Plain Stand DA-D351 For USA/Canada only
Plain Stand (Short) DA-D352 For USA/Canada only
System Console 1 DA-DS601 550 Sheet Paper Tray × 1
System Console 2 DA-DS602 550 Sheet Paper Tray × 2
3000-Sheet Tray (LCT) DA-MA301 3000 Sheet Paper Tray
2-Bin Finisher DA-FS600 For DP-4520/6020
2-Bin Saddle-Stitch Finisher DA-FS605 For DP-4520/6020
2-Bin Finisher DA-FS330 For DP-3520
1-Bin Saddle-Stitch Finisher DA-FS355A For DP-3520/4520
Punch Unit for...
