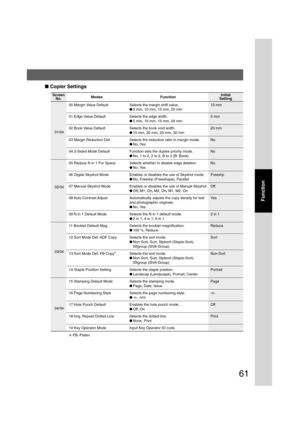

Panasonic Digital Imaging Systems DP-3520/4520/6020 Operating Instructions

61
Function
■ Copier Settings
Screen
No.
00 Margin Value Default Selects the margin shift value. 10 mm
●5 mm, 10 mm, 15 mm, 20 mm
01 Edge Value Default Selects the edge width. 5 mm
●5 mm, 10 mm, 15 mm, 20 mm
02 Book Value Default Selects the book void width. 20 mm
●15 mm, 20 mm, 25 mm, 30 mm
03 Margin Reduction Def. Selects the reduction ratio in margin mode. No
●No, Yes
04 2-Sided Mode Default Function sets the duplex priority mode. No
●No, 1 to 2, 2 to 2, B to 2 (B: Book)
05 Reduce N in 1 For Space...

62
Function

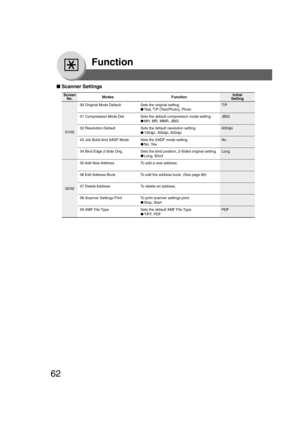

■ Scanner Settings
Screen
No.
00 Original Mode Default Sets the original setting. T/P
●Text, T/P (Text/Photo), Photo
01 Compression Mode Def. Sets the default compression mode setting. JBIG
●MH, MR, MMR, JBIG
02 Resolution Default Sets the default resolution setting. 600dpi
●150dpi, 300dpi, 600dpi
03 Job Bulid And SADF Mode Sets the SADF mode setting. No
●No, Yes
04 Bind Edge 2-Side Orig. Sets the bind position, 2-Sided original setting. Long
●Long, Short
05 Add New Address To add a new...

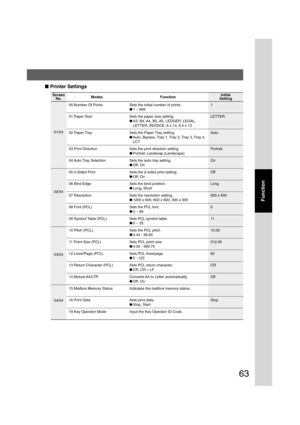

63
Function
■ Printer Settings
Screen
No.
00 Number Of Prints Sets the initial number of prints. 1
●1 ~ 999
01 Paper Size Sets the paper size setting. LETTER
●A3, B4, A4, B5, A5, LEDGER, LEGAL,
LETTER, INVOICE, 8 x 13, 8.5 x 13
02 Paper Tray Sets the Paper Tray setting. Auto
●Auto, Bypass, Tray 1, Tray 2, Tray 3, Tray 4,
LCT
03 Print Direction Sets the print direction setting. Portrait
●Portrait, Landscap (Landscape)
04 Auto Tray Selection Sets the auto tray setting. On
●Off, On
05 2-Sided Print Sets the...

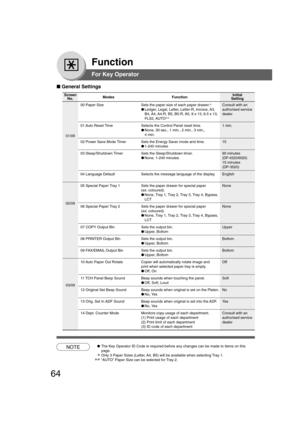

64
Function
For Key Operator
■ General Settings
Screen
No.
00 Paper Size Sets the paper size of each paper drawer.∗
Consult with an
●Ledger, Legal, Letter, Letter-R, Invoice, A3, authorised service
B4, A4, A4-R, B5, B5-R, A5, 8 x 13, 8.5 x 13, dealer
FLS2, AUTO∗∗
01 Auto Reset Time Selects the Control Panel reset time. 1 min.
●None, 30 sec., 1 min., 2 min., 3 min.,
4 min.
02 Power Save Mode Timer Sets the Energy Saver mode and time. 15
●1-240 minutes
03 Sleep/Shutdown Timer Sets the Sleep/Shutdown timer....

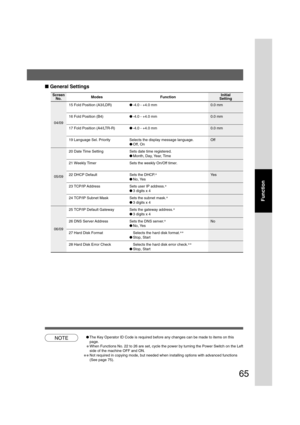

65
Function
■ General Settings
Screen
No.
15 Fold Position (A3/LDR)●-4.0 - +4.0 mm 0.0 mm
16 Fold Position (B4)●-4.0 - +4.0 mm 0.0 mm
17 Fold Position (A4/LTR-R)●-4.0 - +4.0 mm 0.0 mm
19 Language Sel. Priority Selects the display message language. Off
●Off, On
20 Date Time Setting Sets date time registered.
●Month, Day, Year, Time
21 Weekly Timer Sets the weekly On/Off timer.
22 DHCP Default Sets the DHCP.∗
Ye s
●No, Yes
23 TCP/IP Address Sets user IP address.∗
●3 digits x 4
24 TCP/IP Subnet Mask Sets...

66
Function
For Key Operator
■ General Settings
Screen
No.
30 Sleep/Shutdown Select Selects the Sleep/Shutdown mode. Sleep
●Sleep, Shutdown
31  Print General Settings Sets the print of general function.
●Stop, Start
32  Corona Wire Cleaning Sets the corona wire cleaning.
●Off, On
33  MAC Address Indicates the MAC address.
34  Address Book Group ID Inputs group ID for address book. 0
●0 ~ 99
35  Tandem User Parameter Inputs parameter of user machine.
36  Community Name (1) Selects to change the SNMP of...

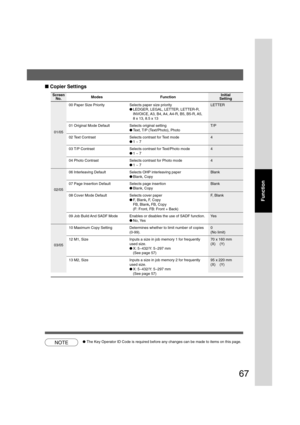

67
Function
■ Copier Settings
Screen
No.
00 Paper Size Priority Selects paper size priority LETTER
●LEDGER, LEGAL, LETTER, LETTER-R,
INVOICE, A3, B4, A4, A4-R, B5, B5-R, A5,
8 x 13, 8.5 x 13
01 Original Mode Default Selects original setting T/P
●Text, T/P (Text/Photo), Photo
02 Text Contrast Selects contrast for Text mode 4
●1 ~ 7
03 T/P Contrast Selects contrast for Text/Photo mode 4
●1 ~ 7
04 Photo Contrast Selects contrast for Photo mode 4
●1 ~ 7
06 Interleaving Default Selects OHP interleaving paper...

68
Function
For Key Operator
■ Copier Settings
Screen
No.
16 Memory Overflow Warning Selects the task to perform when memory Print
overflow occurs
●Print, Cancel
17  Toner Save Mode (T) Selects the toner save in Text mode. None
●None, Level 1, Level 2∗
18 Toner Save Mode (T/P) Selects the toner save in Photo/Text mode. None
●None, Level 1, Level 2∗
19 Toner Save Mode (P) Selects the toner save in Photo mode. None
●None, Level 1, Level 2∗
20 Add New Tandem Desti. Inputs a new destination to split the copy...

69
Function

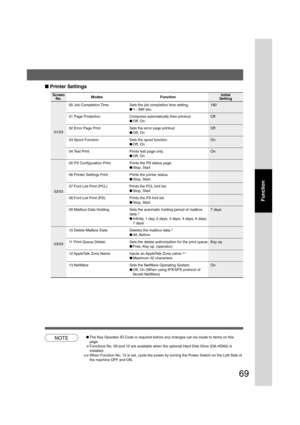

■ Printer Settings
Screen
No.
00 Job Completion Time Sets the job completion time setting. 180
●1~ 999 sec.
01 Page Protection Compress automatically then printout. Off
●Off, On
02 Error Page Print Sets the error page printout. Off
●Off, On
03 Spool Function Sets the spool function. On
●Off, On
04 Text Print Prints text page only. On
●Off, On
05 PS Configuration Print Prints the PS status page.
●Stop, Start
06 Printer Settings Print Prints the printer status.
●Stop, Start
07 Font List Print...

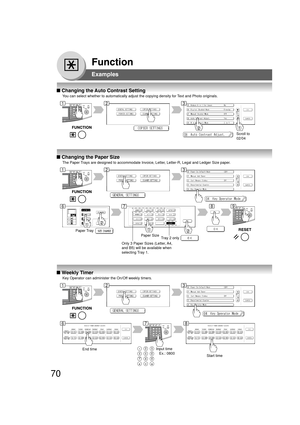

70
Function
Examples
■ Changing the Auto Contrast Setting
You can select whether to automatically adjust the copying density for Text and Photo originals.
Scroll to
02/04
■ Changing the Paper Size
The Paper Trays are designed to accommodate Invoice, Letter, Letter-R, Legal and Ledger Size paper.
Paper Tray
Paper Size
■ Weekly Timer
Key Operator can administer the On/Off weekly timers.
End timeInput time
   Ex.: 0800
Start time
123
678
123
678
123
9
Only 3 Paper Sizes (Letter, A4,
and B5) will be...
