Panasonic Digital Imaging Systems DP-3520/4520/6020 Operating Instructions

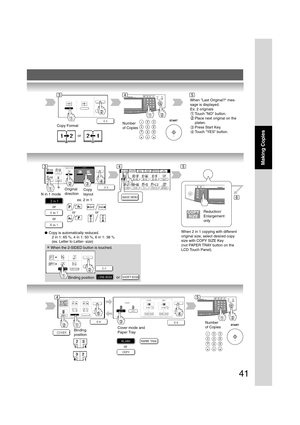

41
Making Copies
6
Copy Format
or
Number
of Copies
∗
N in 1 modeOriginal
directionCopy
layout
or
or
or
●Copy is automatically reduced.
       2 in 1: 65 %, 4 in 1: 50 %, 6 in 1: 38 %
       (ex. Letter to Letter- size)
Number
of Copies
Binding
positionCover mode and
Paper Tray
or
When Last Original? mes-
sage is displayed.
Ex: 2 originals
Touch NO button.
Place next original on the
platen.
3Press Start Key.
4Touch YES button.
ex. 2 in 1
or
345
35
45
Reduction/
Enlargement
only
When 2 in 1 copying with...

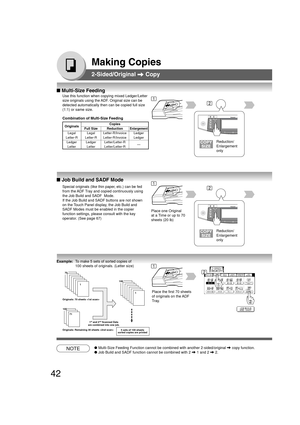

42
Making Copies
2-Sided/Original  Copy
OriginalsCopiesFull Size ReductionEnlargement
Legal Legal Letter-R/Invoice Ledger
Letter-R Letter-R Letter-R/Invoice Ledger
Ledger Ledger Letter/Letter-R
—
Letter Letter Letter/Letter-R
■ Multi-Size Feeding
Use this function when copying mixed Ledger/Letter
size originals using the ADF. Original size can be
detected automatically then can be copied full size
(1:1) or same size.
Combination of Multi-Size Feeding
Reduction/
Enlargement
only
■ Job Build and SADF Mode...

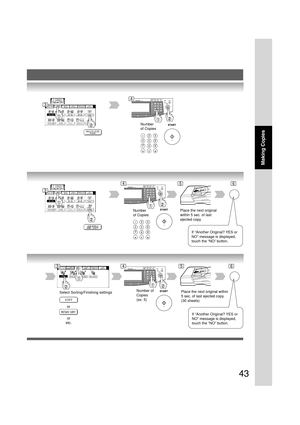

43
Making Copies
Number
of Copies
Number
of CopiesPlace the next original
within 5 sec. of last
ejected copy.
Select Sorting/Finishing settings
or
or
etc.
Place the next original within
5 sec. of last ejected copy.
(30 sheets)
If “Another Original? YES or
NO” message is displayed,
touch the “NO” button.
If “Another Original? YES or
NO” message is displayed,
touch the “NO” button.
Number of
Copies
(ex. 5)
3
4
3
456
4563

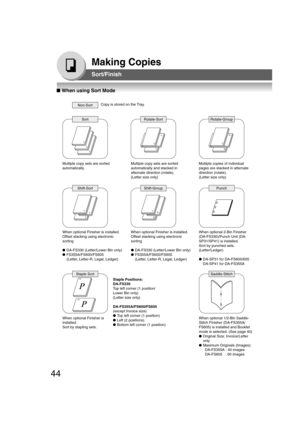

44
Making Copies
Sort/Finish
1
1
1
Sort
Staple Sort
Non-Sort
Rotate-Sort
1
1
1
Rotate-Group
3
1
2
Shift-SortShift-Group
1 1
1
3 1
2
Punch
P
P
Saddle-Stitch
■ When using Sort Mode
Multiple copy sets are sorted
automatically.Multiple copies of individual
pages are stacked in alternate
direction (rotate).
(Letter size only)
When optional Finisher is installed.
Offset stacking using electronic
sorting
●DA-FS330 (Letter/Lower Bin only)
●FS355A/FS600/FS605
(Letter, Letter-R, Legal, Ledger)When optional...

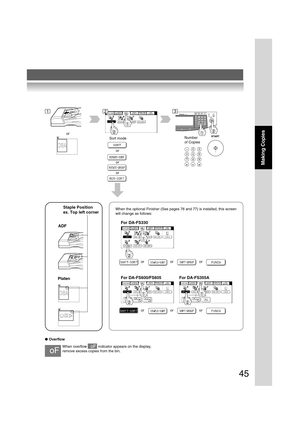

45
Making Copies
or
or
Sort mode
or
or
When the optional Finisher (See pages 76 and 77) is installed, this screen
will change as follows:
For DA-FS330
or
12
ADF
Platen
Staple Position
ex. Top left corner
When overflow           indicator appears on the display,
remove excess copies from the bin.
oF
oF
●Overflow
Number
of Copies
or
3
or
For DA-FS600/FS605
ororor
For DA-FS355A

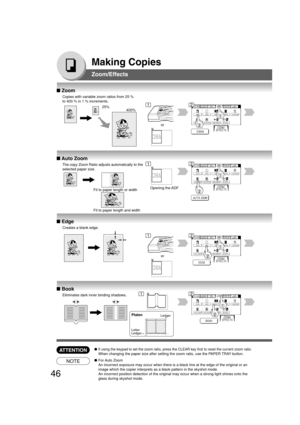

46
Making Copies
Zoom/Effects
■ Zoom
Copies with variable zoom ratios from 25 %
to 400 % in 1 % increments.
25%
400%
or
■ Auto Zoom
The copy Zoom Ratio adjusts automatically to the
selected paper size.
Fit to paper length or width
Fit to paper length and widthOpening the ADF
■ Edge
Creates a blank edge.
or
■ Book
Eliminates dark inner binding shadows.
ATTENTION●If using the keypad to set the zoom ratio, press the CLEAR key first to reset the current zoom ratio.
When changing the paper size after setting...

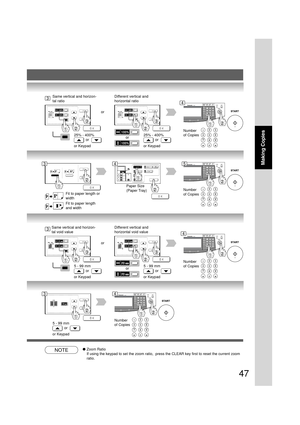

47
Making Copies
or Same vertical and horizon-
tal ratio
25% - 400%
or
or KeypadDifferent vertical and
horizontal ratio
25% - 400%
or
or Keypad
or
Number
of Copies
Number
of CopiesFit to paper length or
width
Fit to paper length
and width
Paper Size
(Paper Tray)
or Same vertical and horizon-
tal void value
5 - 99 mm
or
or KeypadDifferent vertical and
horizontal void value
5 - 99 mm
or
or Keypad
or
Number
of Copies
Number
of Copies5 - 99 mm
or
or Keypad
NOTE●Zoom Ratio
If using the keypad to set the zoom...

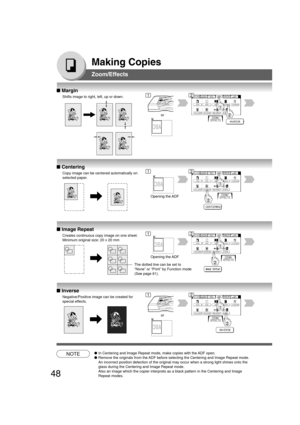

48
Making Copies
Zoom/Effects
■ Margin
Shifts image to right, left, up or down.
or
■ Centering
Copy image can be centered automatically on
selected paper.
Opening the ADF
■ Image Repeat
Creates continuous copy image on one sheet.
Minimum original size: 20 x 20 mm
Opening the ADF
The dotted line can be set to
“None” or “Print” by Function mode
(See page 61).
■ Inverse
Negative/Positive image can be created for
special effects.
or
NOTE●In Centering and Image Repeat mode, make copies with the ADF open....

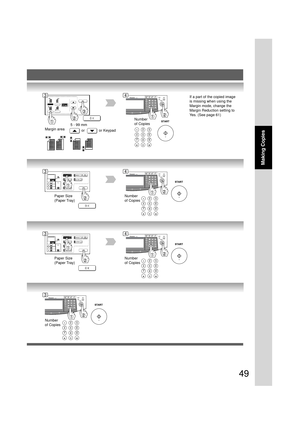

49
Making Copies
or
Number
of Copies
or Keypad Margin area5 - 99 mm
If a part of the copied image
is missing when using the
Margin mode, change the
Margin Reduction setting to
Yes. (See page 61)
Number
of CopiesPaper Size
(Paper Tray)
Number
of CopiesPaper Size
(Paper Tray)
Number
of Copies
34
34
34
3

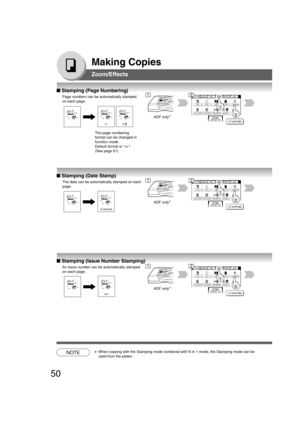

50
Making Copies
Zoom/Effects
■ Stamping (Page Numbering)
Page numbers can be automatically stamped
on each page.
1/8-1-
ADF only∗
■ Stamping (Date Stamp)
The date can be automatically stamped on each
page.
ADF only∗
■ Stamping (Issue Number Stamping)
An issue number can be automatically stamped
on each page.
ADF only∗
01/05/2003
001
NOTE∗When copying with the Stamping mode combined with N in 1 mode, the Stamping mode can be
used from the platen. The page numbering
format can be changed in
function...
