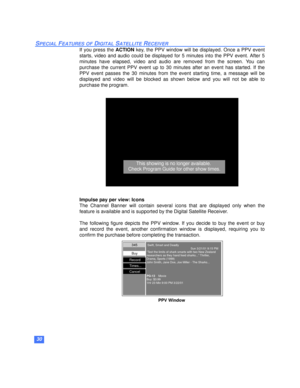

Page 31
30 SPECIAL FEATURES OF DIGITAL SATELLITE RECEIVER If you press the ACTION key, the PPV window will be displayed. Once a PPV event starts, video and audio could be displayed for 5 minutes into the PPV event. After 5 minutes have elapsed, video and audio are removed from the screen. You can purchase the current PPV event up to 30 minutes after an event has started. If the PPV event passes the 30 minutes from the event starting time, a message will be displayed and video will be blocked as shown below and...

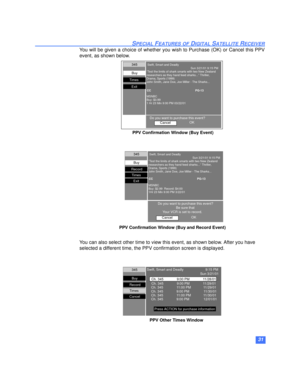

Page 32
31 SPECIAL FEATURES OF DIGITAL SATELLITE RECEIVER You will be given a choice of whether you wish to Purchase (OK) or Cancel this PPV event, as shown below. You can also select other time to view this event, as shown below. After you have selected a different time, the PPV confirmation screen is displayed. Swift, Smart and Deadly Sun 3/21/01 9:15 PM “Test the limits of shark smarts with two New Zealand researchers as they hand feed sharks...”...

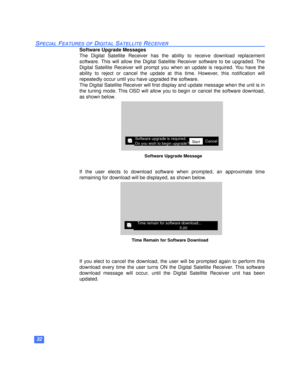

Page 33
32 SPECIAL FEATURES OF DIGITAL SATELLITE RECEIVER Software Upgrade Messages The Digital Satellite Receiver has the ability to receive download replacement software. This will allow the Digital Satellite Receiver software to be upgraded. The Digital Satellite Receiver will prompt you when an update is required. You have the ability to reject or cancel the update at this time. However, this notification will repeatedly occur until you have upgraded the software. The Digital Satellite Receiver will first...

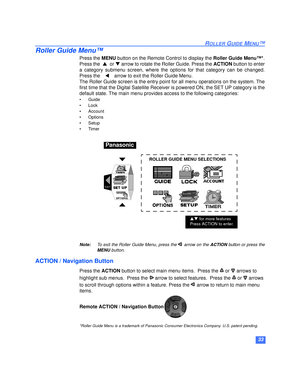

Page 34
33 ROLLER GUIDE MENU™ Roller Guide Menu™ Press the MENU button on the Remote Control to display the Roller Guide Menu™*. Press thepor q arrow to rotate the Roller Guide. Press the ACTION button to enter a category submenu screen, where the options for that category can be changed. Press the t arrow to exit the Roller Guide Menu. The Roller Guide screen is the entry point for all menu operations on the system. The first time that the Digital Satellite Receiver is powered ON, the SET UP category is the...
Page 35
34 ROLLER GUIDE FEATURE CHART Roller Guide Feature Chart Roller Guide Feature Chart MENUDESCRIPTION SET UP Satellite Setup rDish Type - Lets you choose Oval or Round dish. rSat. Ports - Selects up to 4 nominal satellite configuration or lets you perform auto-detection. The user can select: • Dish Type : Oval or Round • Satellite A and B • Satellite A, B, and C • Auto Configuration rDish Position - Digital Satellite Receiver displays the proper co-ordinates for the particular zip code. rSignal Meter -...

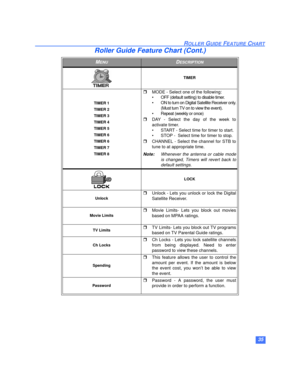

Page 36
35 ROLLER GUIDE FEATURE CHART TIMER TIMER 1 TIMER 2 TIMER 3 TIMER 4 TIMER 5 TIMER 6 TIMER 6 TIMER 7 TIMER 8 rMODE - Select one of the following: • OFF (default setting) to disable timer. • ON to turn on Digital Satellite Receiver only. (Must turn TV on to view the event). • Repeat (weekly or once) rDAY - Select the day of the week to activate timer. • START - Select time for timer to start. • STOP - Select time for timer to stop. rCHANNEL - Select the channel for STB to tune to at appropriate time....

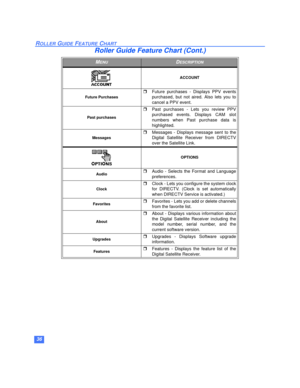

Page 37
36 ROLLER GUIDE FEATURE CHART ACCOUNT Future Purchases rFuture purchases - Displays PPV events purchased, but not aired. Also lets you to cancel a PPV event. Past purchases rPast purchases - Lets you review PPV purchased events. Displays CAM slot numbers when Past purchase data is highlighted. Messages rMessages - Displays message sent to the Digital Satellite Receiver from DIRECTV over the Satellite Link. OPTIONS AudiorAudio - Selects the Format and Language preferences. Clock rClock - Lets you...

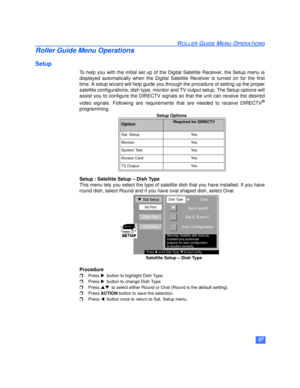

Page 38
37 ROLLER GUIDE MENU OPERATIONS Roller Guide Menu Operations Setup To help you with the initial set up of the Digital Satellite Receiver, the Setup menu is displayed automatically when the Digital Satellite Receiver is turned on for the first time. A setup wizard will help guide you through the procedure of setting up the proper satellite configurations, dish type, monitor and TV output setup. The Setup options will assist you to configure the DIRECTV signals so that the unit can receive the desired...

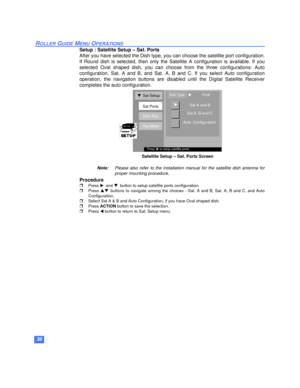

Page 39
38 ROLLER GUIDE MENU OPERATIONS Setup : Satellite Setup – Sat. Ports After you have selected the Dish type, you can choose the satellite port configuration. If Round dish is selected, then only the Satellite A configuration is available. If you selected Oval shaped dish, you can choose from the three configurations: Auto configuration, Sat. A and B, and Sat. A, B and C. If you select Auto configuration operation, the navigation buttons are disabled until the Digital Satellite Receiver completes the auto...

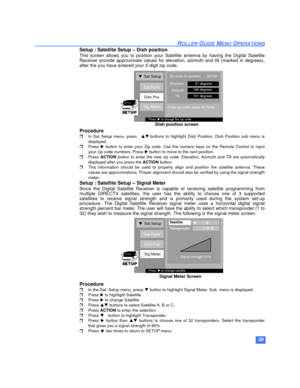

Page 40
39 ROLLER GUIDE MENU OPERATIONS Setup : Satellite Setup – Dish position This screen allows you to position your Satellite antenna by having the Digital Satellite Receiver provide approximate values for elevation, azimuth and tilt (marked in degrees), after the you have entered your 5-digit zip code. Procedure rIn Sat Setup menu, presspqbuttons to highlight Dish Position. Dish Position sub menu is displayed. rPress u button to enter your Zip code. Use the numeric keys on the Remote Control to input your...
