Panasonic Directv Digital Satellite Receiver Tzdbs01 Operating Instructions

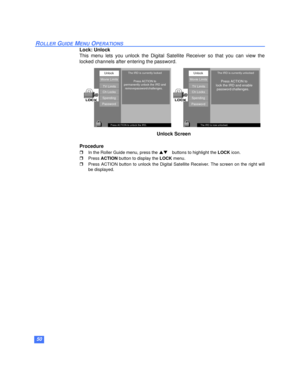

50
ROLLER GUIDE MENU OPERATIONS
Lock: Unlock
This menu lets you unlock the Digital Satellite Receiver so that you can view the
locked channels after entering the password.
Procedure
rIn the Roller Guide menu, press the pq buttons to highlight the LOCK icon.
rPress ACTION button to display the LOCK menu.
rPress ACTION button to unlock the Digital Satellite Receiver. The screen on the right will
be displayed.
Press ACTION to
permanently unlock the IRD and
remove password  challenges....

51
ROLLER GUIDE MENU OPERATIONS
Lock : Movie Limits
The MPAA uses the standard movie ratings. The TV Parental Guidelines provides
rating schemes of its own: age-based ratings, content-based ratings or combination of
the two.
The following table and figure shows the MPAA ratings system.
Procedure
rIn the Roller Guide Menu, press pqbuttons to highlight LOCK icon.
rPress ACTION button to display the LOCK menu.
rPress pq buttons to highlight Movie Limits.
rPress u button to display the sub-menu.
Note:You...

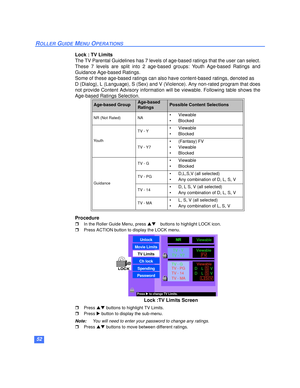

52
ROLLER GUIDE MENU OPERATIONS
Lock : TV Limits
The TV Parental Guidelines has 7 levels of age-based ratings that the user can select.
These 7 levels are split into 2 age-based groups: Youth Age-based Ratings and
Guidance Age-based Ratings.
Some of these age-based ratings can also have content-based ratings, denoted as
D (Dialog), L (Language), S (Sex) and V (Violence). Any non-rated program that does
not provide Content Advisory information will be viewable. Following table shows the
Age-based Ratings...

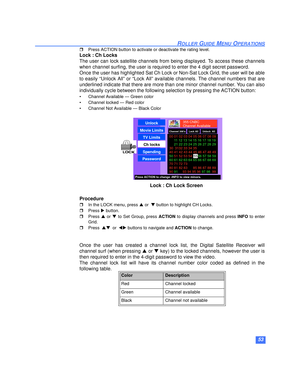

53
ROLLER GUIDE MENU OPERATIONS
rPress ACTION button to activate or deactivate the rating level.
Lock : Ch Locks
The user can lock satellite channels from being displayed. To access these channels
when channel surfing, the user is required to enter the 4 digit secret password.
Once the user has highlighted Sat Ch Lock or Non-Sat Lock Grid, the user will be able
to easily “Unlock All” or “Lock All” available channels. The channel numbers that are
underlined indicate that there are more than one minor...

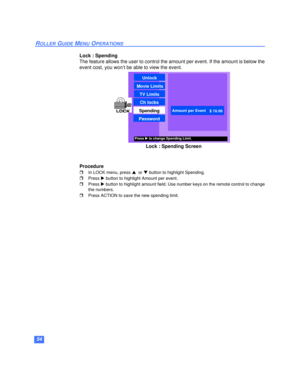

54
ROLLER GUIDE MENU OPERATIONS
Lock : Spending
The feature allows the user to control the amount per event. If the amount is below the
event cost, you won’t be able to view the event.
Procedure
rIn LOCK menu, press por q button to highlight Spending.
rPress u button to highlight Amount per event.
rPress u button to highlight amount field. Use number keys on the remote control to change
the numbers.
rPress ACTION to save the new spending limit.
Lock : Spending Screen
Unlock
Movie Limits
TV Limits
Ch...

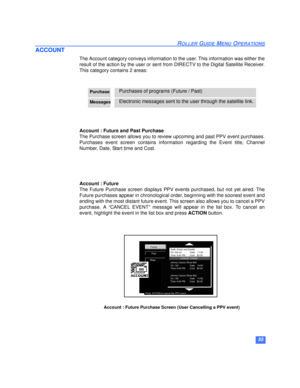

55
ROLLER GUIDE MENU OPERATIONS
ACCOUNT
The Account category conveys information to the user. This information was either the
result of the action by the user or sent from DIRECTV to the Digital Satellite Receiver.
This category contains 2 areas:
Account : Future and Past Purchase
The Purchase screen allows you to review upcoming and past PPV event purchases.
Purchases event screen contains information regarding the Event title, Channel
Number, Date, Start time and Cost.
Account : Future
The Future...

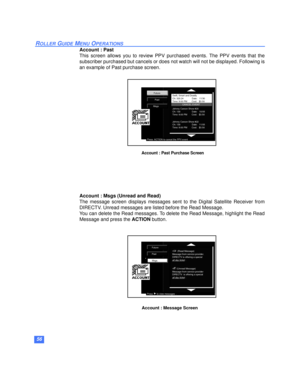

56
ROLLER GUIDE MENU OPERATIONS
Account : Past
This screen allows you to review PPV purchased events. The PPV events that the
subscriber purchased but cancels or does not watch will not be displayed. Following is
an example of Past purchase screen.
Account : Msgs (Unread and Read)
The message screen displays messages sent to the Digital Satellite Receiver from
DIRECTV. Unread messages are listed before the Read Message.
You can delete the Read messages. To delete the Read Message, highlight the Read...

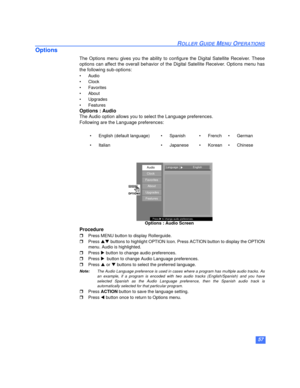

57
ROLLER GUIDE MENU OPERATIONS
Options
The Options menu gives you the ability to configure the Digital Satellite Receiver. These
options can affect the overall behavior of the Digital Satellite Receiver. Options menu has
the following sub-options:
•Audio
•Clock
• Favorites
• About
•Upgrades
•Features
Options : Audio
The Audio option allows you to select the Language preferences.
Following are the Language preferences:
Procedure
rPress MENU button to display Rollerguide.
rPress pq buttons to highlight...

58
ROLLER GUIDE MENU OPERATIONS
Options : Clock
The clock option allows you to configure the system clock. When connected to
DIRECTV
® service, you can set the DST (daylight savings time), Time Zone and reset
the time to what is current in the smart card.
Procedure
rSelect OPTIONS from the Rollerguide.
rPress ACTION button to display the OPTIONS menu.
rPress pqbuttons to highlight Clock. Clock sub-menu is displayed.
rPress ubutton to change the clock settings.
rPress u button to highlight DST.
rPresspq...

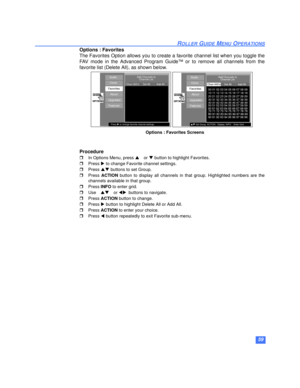

59
ROLLER GUIDE MENU OPERATIONS
Options : Favorites
The Favorites Option allows you to create a favorite channel list when you toggle the
FAV mode in the Advanced Program Guide™ or to remove all channels from the
favorite list (Delete All), as shown below.
Procedure
rIn Options Menu, press p or q button to highlight Favorites.
rPress u to change Favorite channel settings.
rPress pq buttons to set Group.
rPress ACTION button to display all channels in that group. Highlighted numbers are the
channels...
