Panasonic Directv Digital Satellite Receiver Tzdbs01 Operating Instructions

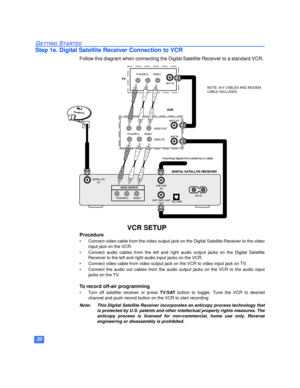

20
GETTING STARTED
Step 1e. Digital Satellite Receiver Connection to VCR
Follow this diagram when connecting the Digital Satellite Receiver to a standard VCR.
Procedure
• Connect video cable from the video output jack on the Digital Satellite Receiver to the video
input jack on the VCR.
• Connect audio cables from the left and right audio output jacks on the Digital Satellite
Receiver to the left and right audio input jacks on the VCR.
• Connect video cable from video output jack on the VCR to video...

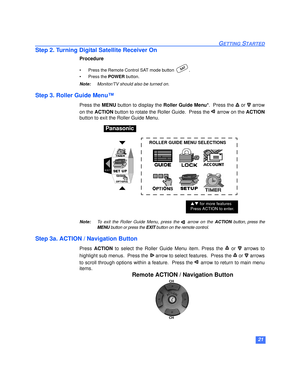

21
GETTING STARTED
Step 2. Turning Digital Satellite Receiver On
Procedure
• Press the Remote Control SAT mode button .
• Press the POWER button.
Note:Monitor/TV should also be turned on.
Step 3. Roller Guide Menu™
Press the MENU button to display the Roller Guide Menu*.  Press the   or  arrow
on the ACTION button to rotate the Roller Guide.  Press the   arrow on the ACTION
button to exit the Roller Guide Menu.
Note:To exit the Roller Guide Menu, press the   arrow on the ACTION button, press the
MENU...

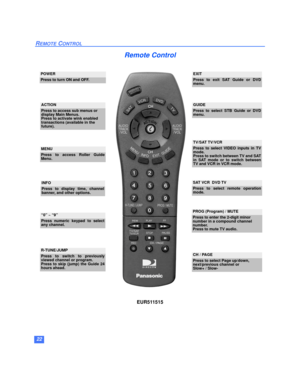

22
REMOTE CONTROL

PROG (Program) / MUTE
Press to enter the 2-digit minor
number in a compound channel
number.
Press to mute TV audio.
Remote Control
GUIDE
Press to select STB Guide or DVD
menu.
TV/SAT TV/VCR
Press to select VIDEO inputs in TV
mode.
Press to switch between TV and SAT
in SAT mode or to switch between
TV and VCR in VCR mode.
SAT VCR  DVD TV
Press to select remote operation
mode.
CH / PAGE
Press to select Page up/down,
next/previous channel or
Slow+ / Slow-
R-TUNE/JUMP
Press to switch...

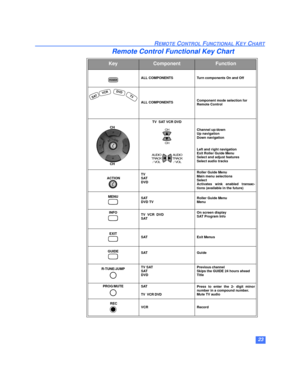

23
REMOTE CONTROL FUNCTIONAL KEY CHART  Remote Control Functional Key Chart
KeyComponentFunction
ALL COMPONENTSTurn components On and Off
ALL COMPONENTSComponent mode selection for
Remote Control
TV  SAT VCR DVD

Channel up/down
Up navigation
Down navigation
Left and right navigation
Exit Roller Guide Menu
Select and adjust features
Select audio tracks
TV...

24

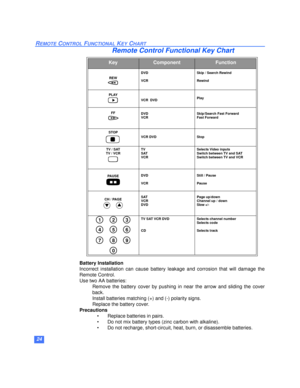

REMOTE CONTROL FUNCTIONAL KEY CHART
Battery Installation
Incorrect installation can cause battery leakage and corrosion that will damage the
Remote Control.
Use two AA batteries:
Remove the battery cover by pushing in near the arrow and sliding the cover
back.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Precautions
• Replace batteries in pairs.
• Do not mix battery types (zinc carbon with alkaline).
• Do not recharge, short-circuit, heat, burn, or disassemble...

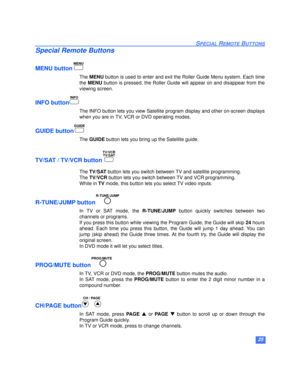

25
SPECIAL REMOTE BUTTONS
Special Remote Buttons
MENU button
The MENU button is used to enter and exit the Roller Guide Menu system. Each time
the MENU button is pressed, the Roller Guide will appear on and disappear from the
viewing screen.
INFO button
The INFO button lets you view Satellite program display and other on-screen displays
when you are in TV, VCR or DVD operating modes.
GUIDE button
The GUIDE button lets you bring up the Satellite guide.
TV/SAT / TV/VCR button
The TV/SAT button lets you...

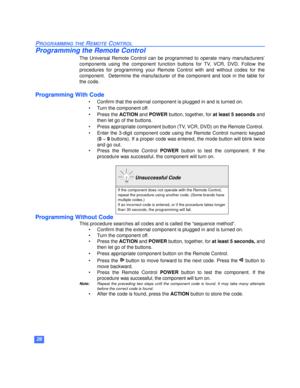

26
PROGRAMMING THE REMOTE CONTROL
Programming the Remote Control
The Universal Remote Control can be programmed to operate many manufacturers’
components using the component function buttons for TV, VCR, DVD. Follow the
procedures for programming your Remote Control with and without codes for the
component.  Determine the manufacturer of the component and look in the table for
the code.
Programming With Code
• Confirm that the external component is plugged in and is turned on.
• Turn the component off....

27

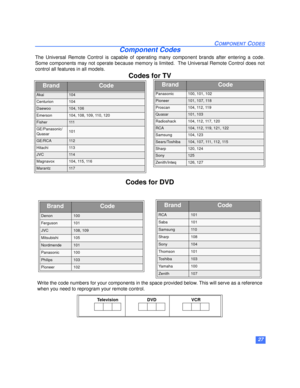

COMPONENT CODES
BrandCode
Akai104
Centurion104
Daewoo104, 106
Emerson104, 108, 109, 110, 120
Fisher111
GE/Panasonic/
Quasar101
GE/RCA11 2
Hitachi11 3
JVC11 4
Magnavox104, 115, 116
Marantz11 7
Panasonic100, 101, 102
Pioneer101, 107, 118
Proscan104, 112, 119
Quasar101, 103
Radioshack104, 112, 117, 120
RCA104, 112, 119, 121, 122
Samsung104, 123
Sears/Toshiba104, 107, 111, 112, 115
Sharp120, 124
Sony125
Zenith/Inteq126, 127
BrandCode
Component Codes
The Universal Remote Control is capable of operating...

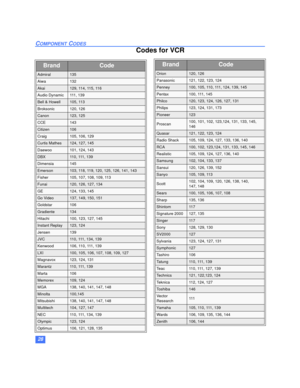

28
COMPONENT CODES
BrandCode
Admiral135
Aiwa132
Akai129, 114, 115, 116
Audio Dynamic111, 139
Bell & Howell105, 113
Broksonic120, 126
Canon123, 125
CCE143
Citizen106
Craig105, 106, 129
Curtis Mathes124, 127, 145
Daewoo 101, 124, 143
DBX110, 111, 139
Dimensia145
Emerson103, 118, 119, 120, 125, 126, 141, 143
Fisher105, 107, 108, 109, 113
Funai120, 126, 127, 134
GE124, 133, 145
Go Video137, 149, 150, 151
Goldstar106
Gradiente134
Hitachi100, 123, 127, 145
Instant Replay123, 124
Jensen139
JVC110, 111, 134,...

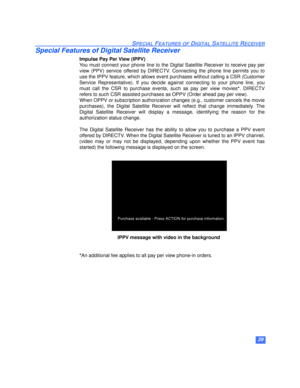

29
SPECIAL FEATURES OF DIGITAL SATELLITE RECEIVER
Special Features of Digital Satellite Receiver
Impulse Pay Per View (IPPV)
You must connect your phone line to the Digital Satellite Receiver to receive pay per
view (PPV) service offered by DIRECTV. Connecting the phone line permits you to
use the IPPV feature, which allows event purchases without calling a CSR (Customer
Service Representative). If you decide against connecting to your phone line, you
must call the CSR to purchase events, such as pay per...
