Panasonic Dmc Cm1 Basic Owners Manual

Basic
21(ENG) SQT0433

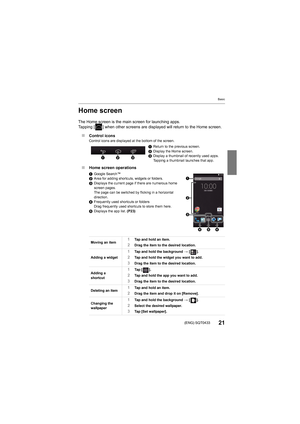

Home screen
The Home screen is the main screen for launching apps.
Tapping [ ] when other screens are displayed will return to the Home screen.
∫ Control icons
Control icons are displayed  at the bottom of the screen.
∫Home screen operations
1Return to the previous screen.
2 Display the Home screen.
3 Display a thumbnail of recently used apps.
Tapping a thumbnail launches that app.
1 Google Search™
2 Area for adding shortcuts, widgets or folders.
3 Displays the current page if there...

Basic
22SQT0433 (ENG)

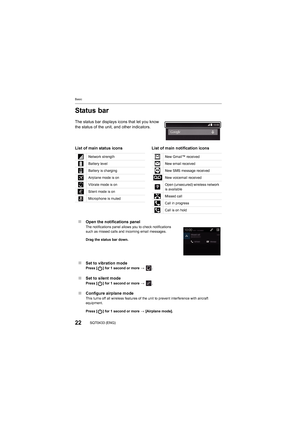

Status bar
The status bar displays icons that let you know
the status of the unit, and other indicators.∫ Open the notifications panel
The notifications panel allows  you to check notifications
such as missed calls and incoming email messages.
Drag the status bar down.
∫ Set to vibration modePress [ ] for 1 second or more >  .
∫Set to silent modePress [ ] for 1 second or more >  .
∫Configure airplane modeThis turns off all wireless feat ures of the unit to prevent interference...

Basic
23(ENG) SQT0433

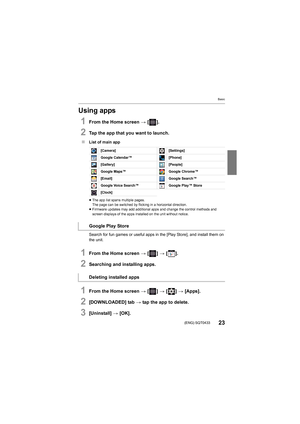

Using apps
1From the Home screen > [ ].
2Tap the app that you want to launch.
∫ List of main app
≥The app list spans multiple pages.
The page can be switched by flicking in a horizontal direction.
≥ Firmware updates may add additional apps and change the control  methods and
screen displays of the apps inst alled on the unit without notice.
Search for fun games or useful apps in the [Play Store], and in stall them on
the unit.
1From the Home screen  > [ ] >  [ ].
2Searching and...

Basic
24SQT0433 (ENG)

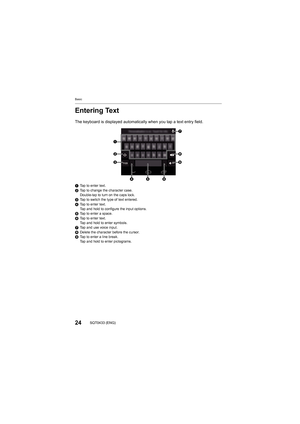

Entering Text
The keyboard is displayed automatically when you tap a text entry field.
1Tap to enter text.
2 Tap to change the character case.
Double-tap to turn on the caps lock.
3 Tap to switch the type of text entered.
4 Tap to enter text.
Tap and hold to configure the input options.
5 Tap to enter a space.
6 Tap to enter text.
Tap and hold to enter symbols.
7 Tap and use voice input.
8 Delete the character before the cursor.
9 Tap to enter a line break.
Tap and hold to enter...

Basic
25(ENG) SQT0433

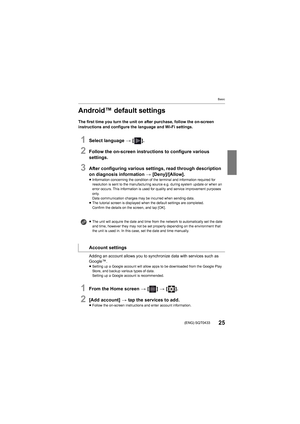

Android™ default settings
The first time you turn the unit on after purchase, follow the on-screen
instructions and configure the language and Wi-Fi settings.
1Select language  > [ ].
2Follow the on-screen instructions to configure various
settings.
3After configuring various settings, read through description
on diagnosis information  > [Deny]/[Allow].
≥Information concerning the condition of the terminal and inform ation required for
resolution is sent to the manufacturing...

Basic
26SQT0433 (ENG)

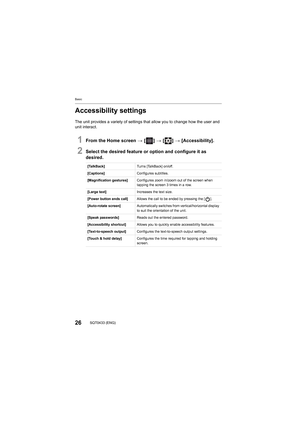

Accessibility settings
The unit provides a variety of settings that allow you to change how the user and
unit interact.
1From the Home screen  > [ ] >  [ ] > [Accessibility].
2Select the desired feature or option and configure it as
desired.
[TalkBack] Turns [TalkBack] on/off.
[Captions] Configures subtitles.
[Magnification gestures] Configures zoom in/zoom out of the screen when
tapping the screen 3 times in a row.
[Large text] Increases the text size.
[Power button ends call]...

Connecting to networks
27(ENG) SQT0433

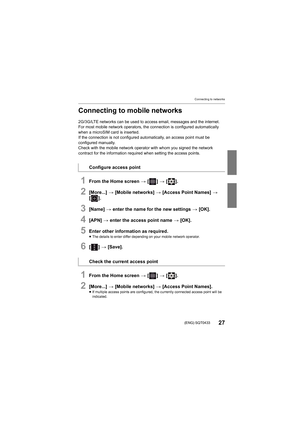

Connecting to mobile networks
2G/3G/LTE networks can be used to access email, messages and the internet.
For most mobile network operators, the connection is configured  automatically
when a microSIM card is inserted.
If the connection is not configured automatically, an access point must be
configured manually.
Check with the mobile network operator with whom you signed the  network
contract for the information required when setting the access p oints.
1From the...

Connecting to networks
28SQT0433 (ENG)

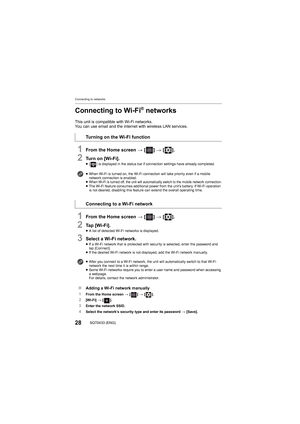

Connecting to Wi-Fi® networks
This unit is compatible with Wi-Fi networks.
You can use email and the internet with wireless LAN services.
1From the Home screen > [ ] >  [ ].
2Turn on [Wi-Fi].≥[ ] is displayed in the status bar if connection settings have a lready completed.
1From the Home screen > [ ] >  [ ].
2Tap [Wi-Fi].≥A list of detected Wi-Fi networks is displayed.
3Select a Wi-Fi network.≥If a Wi-Fi network that is protected with security is selected,  enter...

Camera
29(ENG) SQT0433

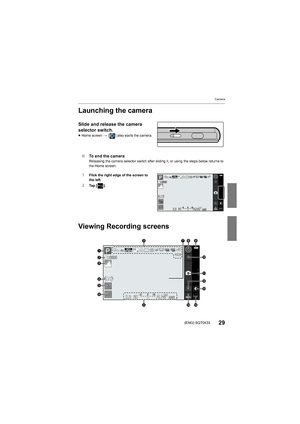

Launching the camera
Slide and release the camera
selector switch.
≥Home screen  > [ ] also starts the camera.
∫ To end the cameraReleasing the camera selector switch after sliding it, or using  the steps below returns to
the Home screen.
1Flick the right edge of the screen to
the left.
2Ta p   [ ] .
Viewing Recording screens
0î0æ0ï0ö0î0æ0ï0ö
0500 05000500
606060
2.82.82.8AUAUTo
AUToAUToAWBAWBAWB0 3
3
AFAFAFL3:2MP430 pAAGPS
GPSGPSOFF
OFFOFFHDR
HDRHDROFF
OFFOFFAF
Q.
MENU Q.
MENU...

Camera
30SQT0433 (ENG)

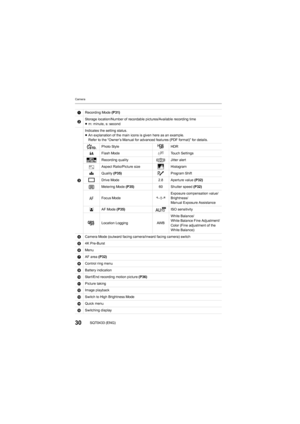

1
Recording Mode  (P31)
2 Storage location/Number of recordable pictures/Available record
ing time
≥ m: minute, s: second
3 Indicates the setting status.
≥
An explanation of the main icons is given here as an example.
Refer to the “Owner’s Manual for advanced features (PDF format) ” for details.
Photo Style HDR
‡ Flash Mode Touch Settings
Recording quality Jitter alert
Aspect Ratio/Picture size Histogram
A Quality (P35) Program Shift
Drive Mode 2.8 Aperture value (P32)
Metering...
