Panasonic Dmc Cm1 Basic Owners Manual

Preparation
11(ENG) SQT0433

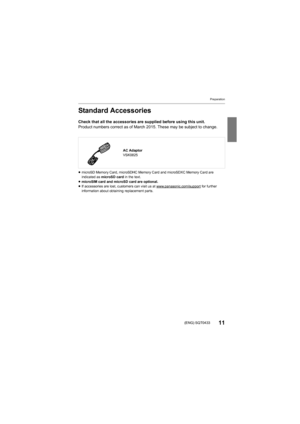

Standard Accessories
Check that all the accessories are supplied before using this unit.
Product numbers correct as of March 2015. These may be subject  to change.
≥microSD Memory Card, microSDHC Memory Card and microSDXC Memory  Card are
indicated as  microSD card  in the text.
≥ microSIM card and microSD card are optional.
≥ If accessories are lost, custome rs can visit us at www.panasonic.com/support
 for further
information about obtaining replacement parts. AC Adaptor...

Preparation
12SQT0433 (ENG)

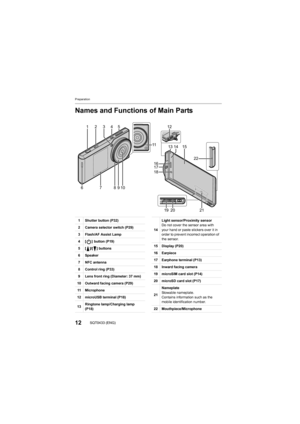

Names and Functions of Main Parts
17810
2345
6
11131415
12
19
20 21
16 221718
9
1 Shutter button (P32)
2 Camera selector switch (P29)
3 Flash/AF Assist Lamp
4 [ ]  button (P19)
5 [ ]/[ ] buttons
6Speaker
7 NFC antenna
8 Control ring (P33)
9 Lens front ring (Diameter: 37 mm)
10 Outward facing camera (P29) 11 Microphone
12 microUSB terminal (P18)
13 Ringtone lamp/Charging lamp
(P18)
14Light sensor/Proximity sensor
Do not cover the sensor area with
your hand or paste stickers...

Preparation
13(ENG) SQT0433

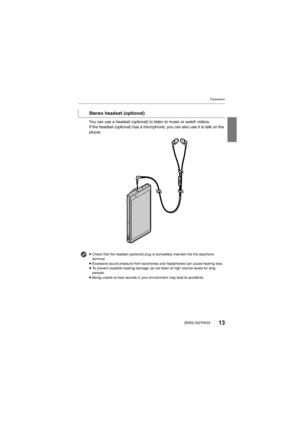

You can use a headset (optional) to listen to music or watch videos.
If the headset (optional) has a microphone, you can also use it  to talk on the
phone.
Stereo headset (optional)
≥ Check that the headset (optional) plug is completely inserted i nto the earphone
terminal.
≥ Excessive sound pressure from earphones and headphones can caus e hearing loss.
≥ To prevent possible hearing damage, do not listen at high volum e levels for long
periods.
≥ Being unable to hear...

Preparation
14SQT0433 (ENG)

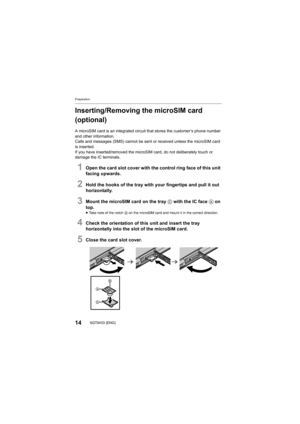

Inserting/Removing the microSIM card
(optional)
A microSIM card is an integrated circuit that stores the customer’s phone number
and other information.
Calls and messages (SMS) cannot be sent or received unless the  microSIM card
is inserted.
If you have inserted/removed the microSIM card, do not delibera tely touch or
damage the IC terminals.
1Open the card slot cover with the control ring face of this uni t
facing upwards.
2Hold the hooks of the tray with your...

Preparation
15(ENG) SQT0433
∫About the mobile identification numberThis unit has a specific mobile identification number  A.
The mobile identification number is verified as follows.
To verify the number on-screen:
1From the Home screen  > [ ]  > [ ].
2[About phone]  > [Status]  > check the [IMEI] item.
To verify the number by checking the
nameplate:1Open the card slot cover.
2Remove the microSIM card tray.3Pull the nameplate towards you.
≥ Be careful as the nameplate may be damaged
if it is pulled too...

Preparation
16SQT0433 (ENG)

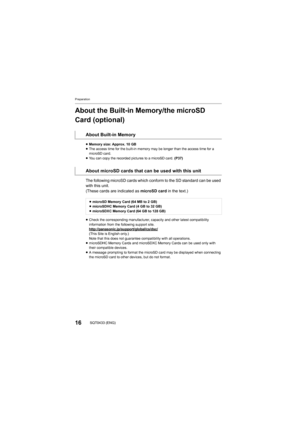

About the Built-in Memory/the microSD
Card (optional)
About Built-in Memory
≥Memory size: Approx. 10 GB
≥ The access time for the built-in memory may be longer than the  access time for a
microSD card.
≥ You can copy the recorded pictures to a microSD card.  (P37)
About microSD cards that can be used with this unit
The following microSD cards which conform to the SD standard ca n be used
with this unit.
(These cards are indicated as  microSD card in the text.)
≥microSD...

Preparation
17(ENG) SQT0433

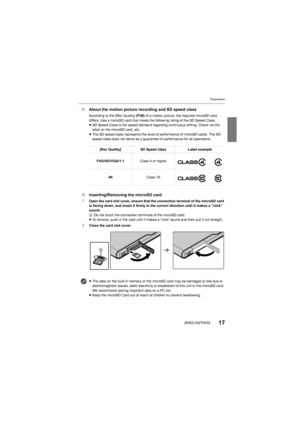

∫About the motion picture recording and SD speed class
∫ Inserting/Removing the microSD card
1
Open the card slot cover, ensure that the connection terminal o f the microSD card
is facing down, and insert it firmly in the correct direction u ntil it makes a “click”
sound.
A Do not touch the connection terminals of the microSD card.
≥ To remove, push in the card until it makes a “click” sound and  then pull it out straight.
2Close the card slot cover. According to the [Rec...

Preparation
18SQT0433 (ENG)

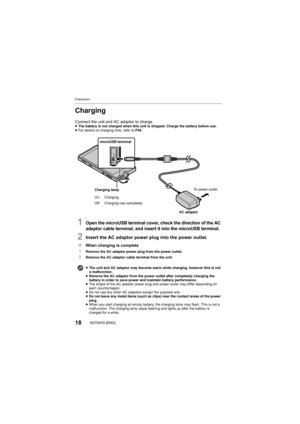

Charging
Connect the unit and AC adaptor to charge.≥The battery is not charged when this unit is shipped. Charge th e battery before use.
≥ For details on charging time, refer to P54 .
1Open the microUSB terminal cover, check the direction of the AC
adaptor cable terminal, and insert it into the microUSB termina l.
2Insert the AC adaptor power plug into the power outlet.
∫When charging is complete
1
Remove the AC adaptor power plug from the power outlet.2Remove the AC adaptor...

Basic
19(ENG) SQT0433

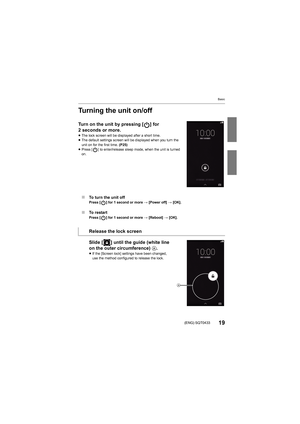

Turning the unit on/off
Turn on the unit by pressing [ ] for
2 seconds or more.
≥The lock screen will be displayed after a short time.
≥ The default settings screen will be  displayed when you turn the
unit on for the first time.  (P25)
≥ Press [ ] to enter/release sleep mode, when the unit is turned
on.
∫ To turn the unit offPress [ ] for 1 second or more  > [Power off]  > [OK].
∫ To restartPress [ ] for 1 second or more  > [Reboot]  > [OK].
Slide [ ] until the guide (white line...

Basic
20SQT0433 (ENG)

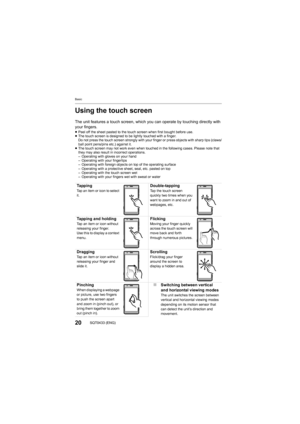

Using the touch screen
The unit features a touch screen, which you can operate by touching directly with
your fingers.
≥ Peel off the sheet pasted to the touch screen when first bought before use.
≥ The touch screen is designed to be lightly touched with a finge r.
Do not press the touch screen strongly with your finger or pres s objects with sharp tips (claws/
ball point pens/pins etc.) against it.
≥ The touch screen may not work even when touched in the followin g cases. Please...
