Panasonic Dmc Cm1 Basic Owners Manual

Camera
31(ENG) SQT0433

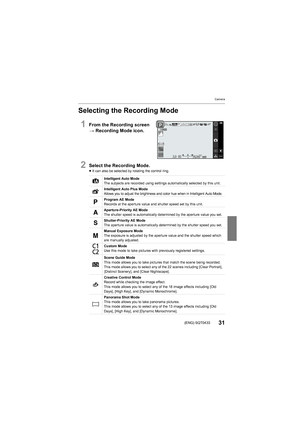

Selecting the Recording Mode
1From the Recording screen
> Recording Mode icon.
2Select the Recording Mode.≥It can also be selected by r otating the control ring.
Intelligent Auto Mode
The subjects are recorded using settings automatically selected  by this unit.
Intelligent Auto Plus Mode
Allows you to adjust the brightness and color hue when in Intel ligent Auto Mode.
Program AE Mode
Records at the aperture value and shutter speed set by this uni t.
Aperture-Priority AE Mode
The...

Camera
32SQT0433 (ENG)

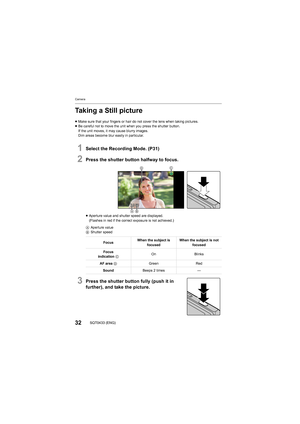

Taking a Still picture
≥Make sure that your fingers or hair do not cover the lens when  taking pictures.
≥ Be careful not to move the unit when you press the shutter butt on.
If the unit moves, it may c ause blurry images.
Dim areas become blur easily in particular.
1Select the Recording Mode. (P31)
2Press the shutter button halfway to focus.
≥ Aperture value and shutter speed are displayed.
(Flashes in red if the correct exposure is not achieved.)
A Aperture value
B Shutter speed...

Camera
33(ENG) SQT0433

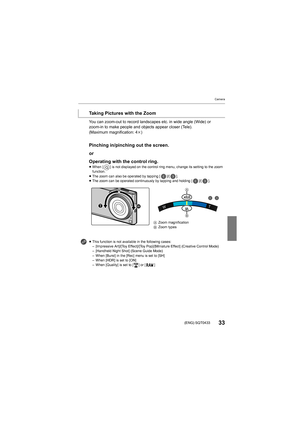

You can zoom-out to record landscapes etc. in wide angle (Wide) or
zoom-in to make people and objects appear closer (Tele).
(Maximum magnification: 4k)
Pinching in/pinching out the screen.
or
Operating with the control ring.
≥ When [ ] is not displayed on the control ring menu, change its s etting to the zoom
function.
≥ The zoom can also be operated by tapping [ ]/[ ].
≥ The zoom can be operated continuously by tapping and holding [ ] /[ ].
Taking Pictures with the Zoom
AZoom...

Camera
34SQT0433 (ENG)

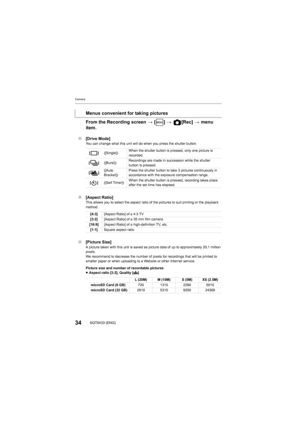

From the Recording screen > [ ]  > [Rec]  > menu
item.
∫ [Drive Mode]You can change what this unit  will do when you press the shutte r button.
∫[Aspect Ratio]This allows you to select the aspect ratio of the pictures to s uit printing or the playback
method.
∫ [Picture Size]A picture taken with this unit is  saved as picture data of up to approximately 20,1 million
pixels.
We recommend to decrease the number of pixels for recordings th at will be printed to
smaller paper or...

Camera

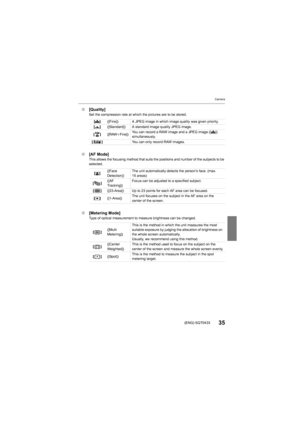

35(ENG) SQT0433
∫[Quality]Set the compression rate at which the pictures are to be stored.
∫[AF Mode]This allows the focusing method that suits the positions and nu mber of the subjects to be
selected.
∫ [Metering Mode]Type of optical measurement to measure brightness can be change d.
[
A ] ([Fine]) A JPEG image in which image quality was given priority.
[ › ] ([Standard]) A standard image quality JPEG image.
[]
([RAWiFine])You can record a RAW image and a JPEG image ([ A])
simultaneously.
[]...

Camera
36SQT0433 (ENG)

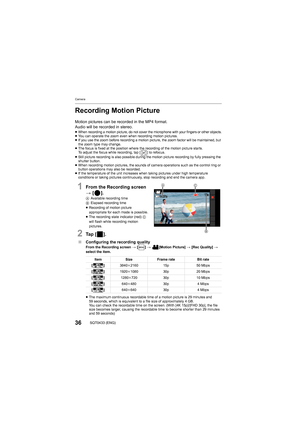

Recording Motion Picture
Motion pictures can be recorded in the MP4 format.
Audio will be recorded in stereo.
≥When recording a motion picture, do not cover the microphone with your fingers or other objects.≥You can operate the zoom even when recording motion pictures.
≥ If you use the zoom before recording a motion picture, the zoom  factor will be maintained, but
the zoom type may change.
≥ The focus is fixed at the position where the recording of the m otion picture starts.
To...

Camera
37(ENG) SQT0433

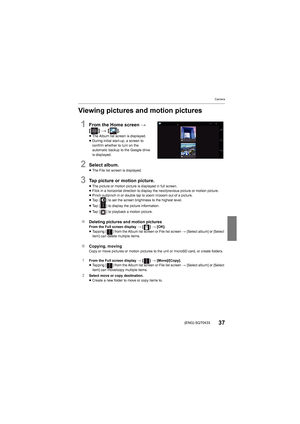

Viewing pictures and motion pictures
1From the Home screen >
[]  > [ ].
≥The Album list screen is displayed.
≥ During initial start-up, a screen to
confirm whether to turn on the
automatic backup to the Google drive
is displayed.
2Select album.≥The File list screen is displayed.
3Tap picture or motion picture.≥The picture or motion picture is displayed in full screen.
≥ Flick in a horizontal direction to display the next/previous pi cture or motion picture.
≥ Pinch out/pinch in...

Email/Web browser/Phone
38SQT0433 (ENG)

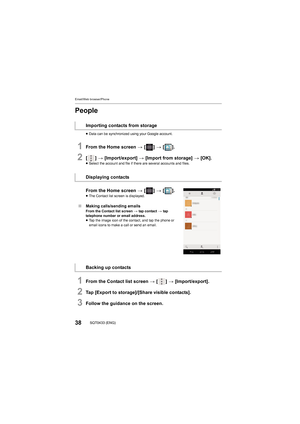

People
≥Data can be synchronized using your Google account.
1From the Home screen  > [ ] >  [ ].
2[] > [Import/export]  > [Import from storage]  > [OK].≥Select the account and file if there are several accounts and f iles.
From the Home screen > [ ] >  [ ].≥The Contact list screen is displayed.
∫ Making calls/sending emailsFrom the Contact list screen  > tap contact  > tap
telephone number or email address.
≥ Tap the image icon of the contact, and tap the phone or...

Email/Web browser/Phone
39(ENG) SQT0433

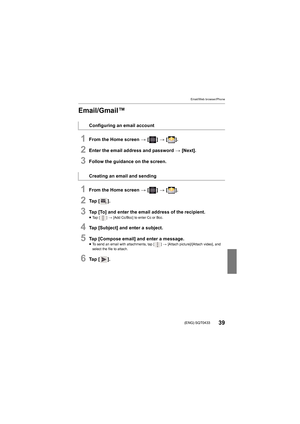

Email/Gmail™
1From the Home screen > [ ] >  [ ].
2Enter the email address and password  > [Next].
3Follow the guidance on the screen.
1From the Home screen  > [ ] >  [ ].
2Ta p   [ ] .
3Tap [To] and enter the email address of the recipient.≥Tap [ ]  > [Add Cc/Bcc] to enter Cc or Bcc.
4Tap [Subject] and enter a subject.
5Tap [Compose email] and enter a message.≥To send an email with attachments, tap [ ]  > [Attach picture]/[Attach video], and
select the file to...

Email/Web browser/Phone

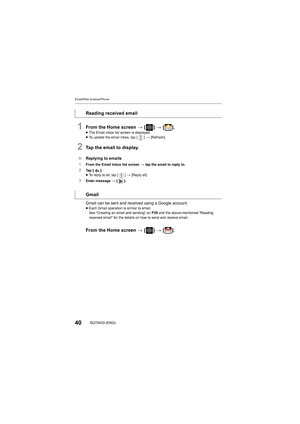

40SQT0433 (ENG)
1From the Home screen > [ ] >  [ ].≥The Email inbox list screen is displayed.
≥ To update the email inbox, tap [ ]  > [Refresh].
2Tap the email to display.
∫ Replying to emails
1
From the Email inbox list screen  > tap the email to reply to.
2Ta p   [ ] .
≥To reply to all, tap [ ]  > [Reply all].
3Enter message  > [ ].
Gmail can be sent and received using a Google account.≥Each Gmail operation is similar to email.
See “Creating an email and sending” on  P39 and the...
