Panasonic Dmc Cm1 Basic Owners Manual

Others
51(ENG) SQT0433

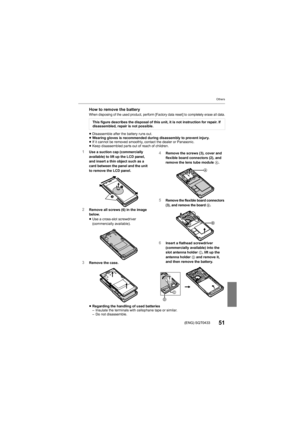

How to remove the batteryWhen disposing of the used product, perform [Factory data reset] to completely erase all data.
≥Disassemble after the battery runs out.
≥ Wearing gloves is recommended during disassembly to prevent inj ury.
≥ If it cannot be removed smoothly, contact the dealer or Panason ic.
≥ Keep disassembled parts out of reach of children.
≥ Regarding the handling of used batteries
– Insulate the terminals with cellophane tape or similar.
– Do not disassemble.This...

Others
52SQT0433 (ENG)

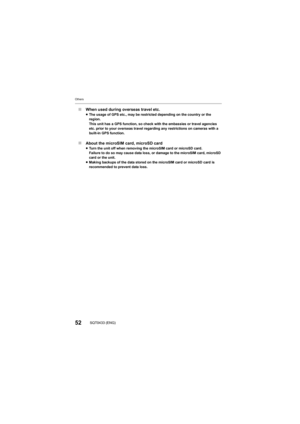

∫When used during overseas travel etc.≥The usage of GPS etc., may be restricted depending on the count ry or the
region.
This unit has a GPS function, so check with the embassies or tr avel agencies
etc. prior to your overseas travel regarding any restrictions o n cameras with a
built-in GPS function.
∫ About the microSIM card, microSD card≥Turn the unit off when removing the microSIM card or microSD ca rd.
Failure to do so may cause data loss, or damage to the microSIM  card,...

Others
53(ENG) SQT0433

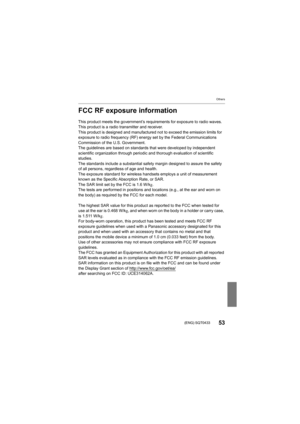

FCC RF exposure information
This product meets the government’s requirements for exposure to radio waves.
This product is a radio transmitter and receiver.
This product is designed and manufactured not to exceed the emi ssion limits for
exposure to radio frequency (RF) energy set by the Federal Comm unications
Commission of the U.S. Government.
The guidelines are based on standards that were developed by in dependent
scientific organization through periodic and thorough...

Others
54SQT0433 (ENG)

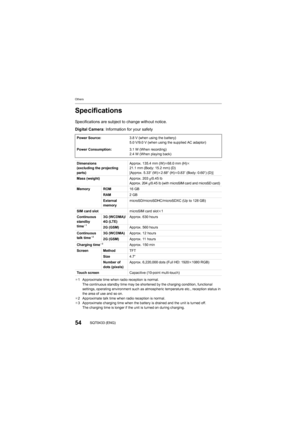

Specifications
Specifications are subject to change without notice.
Digital Camera: Information for your safety
¢1 Approximate time when radio reception is normal.
The continuous standby time may  be shortened by the charging condition, functional
settings, operating environment such as atmospheric temperature  etc., reception status in
the area of use and so on.
¢ 2 Approximate talk time when radio reception is normal.
¢ 3 Approximate charging time when the battery is drained...

Others
55(ENG) SQT0433

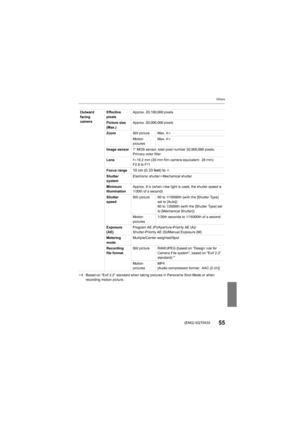

¢4 Based on “Exif 2.2” standard when taking pictures in Panorama S hot Mode or when
recording motion picture.
Outward
facing
camera
Effective
pixels
Approx. 20,100,000 pixels
Picture size
(Max.) Approx. 20,000,000 pixels
Zoom Still picture Max. 4 k
Motion
pictures Max. 4
k
Image sensor 1q MOS sensor, total pixel number 20,900,000 pixels,
Primary color filter
Lens fl 10.2 mm (35 mm film camera equivalent: 28 mm)
F2.8 to F11
Focus range
10 cm (0.33 feet) to  ¶Shutter...

Others

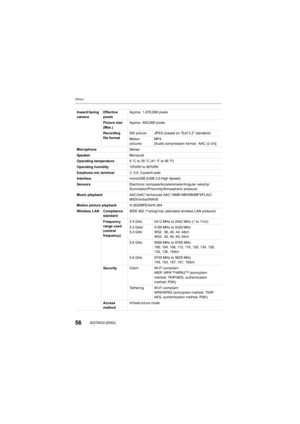

56SQT0433 (ENG)
Inward facing
camera
Effective
pixelsApprox. 1,070,000 pixels
Picture size
(Max.) Approx. 920,000 pixels
Recording
file format Still picture JPEG (based on “Exif 2.2” standard)
Motion
pictures
MP4
[Audio compression format: AAC (2 ch)]
Microphone Stereo
Speaker Monaural
Operating temperature 5oC to 35 oC (41  oF to 95  oF)
Operating humidity 10%RH to 80%RH
Earphone mic terminal ‰ 3.5, 3-pole/4-pole
Interface microUSB (USB 2.0 High Speed)
Sensors Electronic...

Others
57(ENG) SQT0433
Cellular functions
NFC
GPS
AC Adaptor (Model No. VSK0825):
Information for your safety
¢5 When connected to the unit, the AC adaptor supports 5.0 V 1.8 A and 9.0 V 1.8 A.
Bluetooth
®
function Compatible
versionConforms to Bluetooth standards Ver. 4.0
Compatible
profile HFP/HSP/OPP/A2DP/AV
RCP/SPP/PBAP/HID/MAP/
HOGP
Frequency
range used 2402 MHz to 2480 MHz
Compliance
standard 4G (LTE)
3GPP TS 36.521-1 clause 6 and 7
3G (WCDMA) 3GPP TS 34.121-1 clause 5 and 6
2G (GSM) 3GPP TS...

Others
58SQT0433 (ENG)

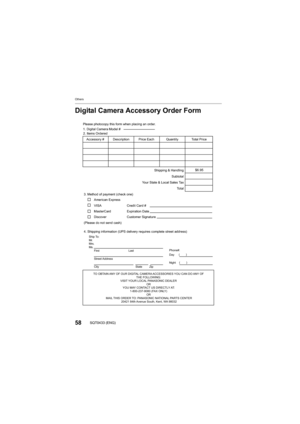

Digital Camera Accessory Order Form
TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER  OR
YOU MAY CONTACT US DIRECTLY AT: 1-800-237-9080 (FAX ONLY)  OR
MAIL THIS ORDER TO: PANASONIC NATIONAL PARTS CENTER 20421 84th Avenue South, Kent, WA 98032
Ship To:
Mr.
Mrs.
Ms. tsaL
tsriF
Street Address
City State Zip
Phone#:
Day ( )
Night ()
4. Shipping information (UPS delivery requires complete street address)\...

Others
59(ENG) SQT0433

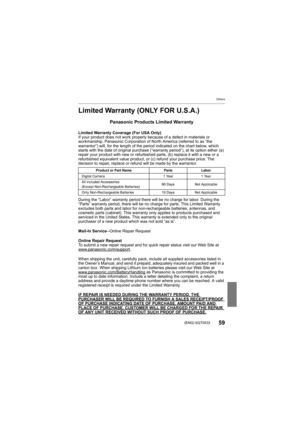

Limited Warranty (ONLY FOR U.S.A.)
Panasonic Products Limited Warranty
Limited Warranty Coverage (For USA Only)
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Corporation of North America (referred t o as “the
warrantor”) will, for the length of the period indicated on the  chart below, which
starts with the date of original purchase (“warranty period”),  at its option either (a)
repair your product with new or refurbished...

Others
60SQT0433 (ENG)

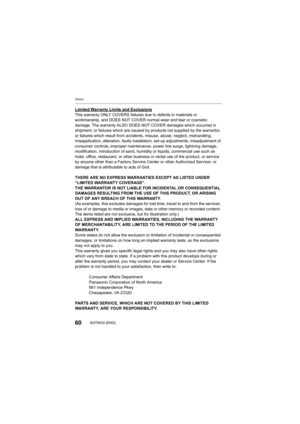

Limited Warranty Limits and ExclusionsThis warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmeti c
damage. The warranty ALSO DOES NOT COVER damages which occurred  in
shipment, or failures which are caused by products not supplied  by the warrantor,
or failures which result from accidents, misuse, abuse, neglect , mishandling,
misapplication, alteration, faulty installation, set-up adjustm ents,...
