Panasonic Dmc Fx150 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fx150 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

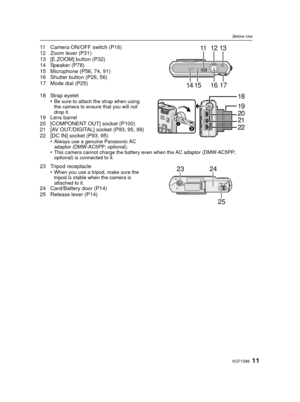

Page 11
![Page 11
11VQT1S88
Before Use
11 Camera ON/OFF switch (P16)
12 Zoom lever (P31)
13 [E.ZOOM] button (P32)
14 Speaker (P78)
15 Microphone (P56, 74, 91)
16 Shutter button (P26, 56)
17 Mode dial (P25)
18 Strap eyelet•
Be sure to attach the strap when using
the camera to ensure that you will not
drop it.
19 Lens barrel
20 [COMPONENT OUT] socket (P100)
21 [AV OUT/DIGITAL] socket (P93, 95, 99)
22 [DC IN] socket (P93, 95)•
Always use a genuine Panasonic AC
adaptor (DMW-AC5PP; optional).
•This camera cannot charge the...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-10.png "Page 11
11VQT1S88
Before Use
11 Camera ON/OFF switch (P16)
12 Zoom lever (P31)
13 [E.ZOOM] button (P32)
14 Speaker (P78)
15 Microphone (P56, 74, 91)
16 Shutter button (P26, 56)
17 Mode dial (P25)
18 Strap eyelet•
Be sure to attach the strap when using
the camera to ensure that you will not
drop it.
19 Lens barrel
20 [COMPONENT OUT] socket (P100)
21 [AV OUT/DIGITAL] socket (P93, 95, 99)
22 [DC IN] socket (P93, 95)•
Always use a genuine Panasonic AC
adaptor (DMW-AC5PP; optional).
•This camera cannot charge the...")
11VQT1S88 Before Use 11 Camera ON/OFF switch (P16) 12 Zoom lever (P31) 13 [E.ZOOM] button (P32) 14 Speaker (P78) 15 Microphone (P56, 74, 91) 16 Shutter button (P26, 56) 17 Mode dial (P25) 18 Strap eyelet• Be sure to attach the strap when using the camera to ensure that you will not drop it. 19 Lens barrel 20 [COMPONENT OUT] socket (P100) 21 [AV OUT/DIGITAL] socket (P93, 95, 99) 22 [DC IN] socket (P93, 95)• Always use a genuine Panasonic AC adaptor (DMW-AC5PP; optional). •This camera cannot charge the...

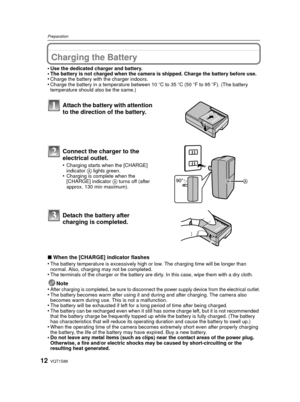

Page 12
![Page 12
VQT1S8812
Preparation
PreparationCharging the Battery
•Use the dedicated charger and battery.•The battery is not charged when the camera is shipped. Charge the battery before use.•Charge the battery with the charger indoors.•Charge the battery in a temperature between 10oC to 35 oC (50 oF to 95 oF). (The battery
temperature should also be the same.)
∫ When the [CHARGE] indicator flashes
•The battery temperature is excessively high or low. The charging time will be longer than
normal. Also, charging may...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-11.png "Page 12
VQT1S8812
Preparation
PreparationCharging the Battery
•Use the dedicated charger and battery.•The battery is not charged when the camera is shipped. Charge the battery before use.•Charge the battery with the charger indoors.•Charge the battery in a temperature between 10oC to 35 oC (50 oF to 95 oF). (The battery
temperature should also be the same.)
∫ When the [CHARGE] indicator flashes
•The battery temperature is excessively high or low. The charging time will be longer than
normal. Also, charging may...")
VQT1S8812 Preparation PreparationCharging the Battery •Use the dedicated charger and battery.•The battery is not charged when the camera is shipped. Charge the battery before use.•Charge the battery with the charger indoors.•Charge the battery in a temperature between 10oC to 35 oC (50 oF to 95 oF). (The battery temperature should also be the same.) ∫ When the [CHARGE] indicator flashes •The battery temperature is excessively high or low. The charging time will be longer than normal. Also, charging may...

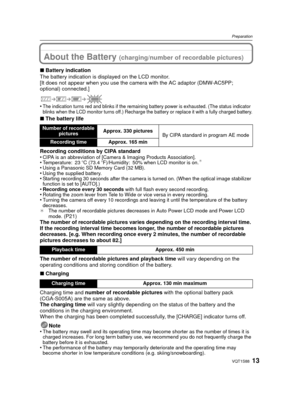

Page 13
![Page 13
13VQT1S88
Preparation
About the Battery (charging/number of recordable pictures)
∫Battery indication
The battery indication is displayed on the LCD monitor.
[It does not appear when you use the camera with the AC adaptor (DMW-AC5PP;
optional) connected.]
•
The indication turns red and blinks if the remaining battery power is exhausted. (The status indicator
blinks when the LCD monitor turns off.) Recharge the battery or replace it with a fully charged battery.
∫The battery life
Recording conditions by...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-12.png "Page 13
13VQT1S88
Preparation
About the Battery (charging/number of recordable pictures)
∫Battery indication
The battery indication is displayed on the LCD monitor.
[It does not appear when you use the camera with the AC adaptor (DMW-AC5PP;
optional) connected.]
•
The indication turns red and blinks if the remaining battery power is exhausted. (The status indicator
blinks when the LCD monitor turns off.) Recharge the battery or replace it with a fully charged battery.
∫The battery life
Recording conditions by...")
13VQT1S88 Preparation About the Battery (charging/number of recordable pictures) ∫Battery indication The battery indication is displayed on the LCD monitor. [It does not appear when you use the camera with the AC adaptor (DMW-AC5PP; optional) connected.] • The indication turns red and blinks if the remaining battery power is exhausted. (The status indicator blinks when the LCD monitor turns off.) Recharge the battery or replace it with a fully charged battery. ∫The battery life Recording conditions by...

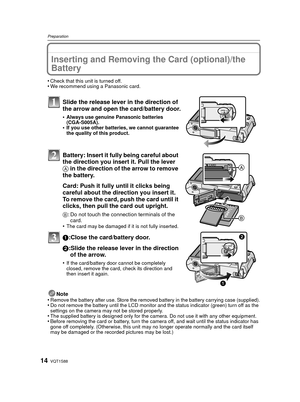

Page 14
VQT1S8814 Preparation Inserting and Removing the Card (optional)/the Battery •Check that this unit is turned off.•We recommend using a Panasonic card. Slide the release lever in the direction of the arrow and open the card/battery door. •Always use genuine Panasonic batteries (CGA-S005A). •If you use other batteries, we cannot guarantee the quality of this product. Battery: Insert it fully being careful about the direction you insert it. Pull the lever A in the direction of the arrow to remove the...

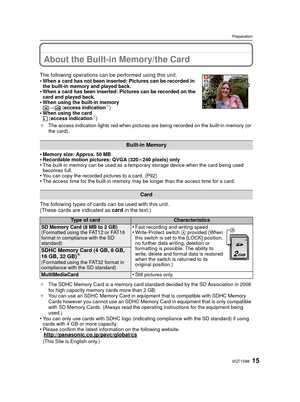

Page 15
15VQT1S88 Preparation About the Built-in Memory/the Card •Memory size: Approx. 50 MB•Recordable motion pictures: QVGA (320k240 pixels) only•The built-in memory can be used as a temporary storage device when the card being used becomes full. •You can copy the recorded pictures to a card. (P92)•The access time for the built-in memory may be longer than the access time for a card. The following types of cards can be used with this unit. (These cards are indicated as card in the text.) ¢The SDHC Memory...

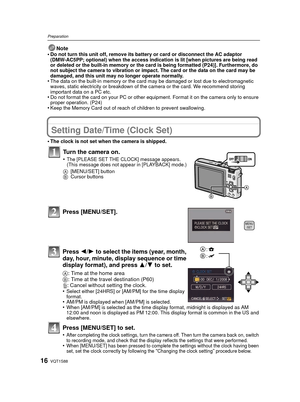

Page 16
![Page 16
VQT1S8816
Preparation
Note
•Do not turn this unit off, remove its battery or card or disconnect the AC adaptor
(DMW-AC5PP; optional) when the access indication is lit [when pictures are being read
or deleted or the built-in memory or the card is being formatted (P24)]. Furthermore, do
not subject the camera to vibration or impact. The card or the data on the card may be
damaged, and this unit may no longer operate normally.
•The data on the built-in memory or the card may be damaged or lost due to...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-15.png "Page 16
VQT1S8816
Preparation
Note
•Do not turn this unit off, remove its battery or card or disconnect the AC adaptor
(DMW-AC5PP; optional) when the access indication is lit [when pictures are being read
or deleted or the built-in memory or the card is being formatted (P24)]. Furthermore, do
not subject the camera to vibration or impact. The card or the data on the card may be
damaged, and this unit may no longer operate normally.
•The data on the built-in memory or the card may be damaged or lost due to...")
VQT1S8816 Preparation Note •Do not turn this unit off, remove its battery or card or disconnect the AC adaptor (DMW-AC5PP; optional) when the access indication is lit [when pictures are being read or deleted or the built-in memory or the card is being formatted (P24)]. Furthermore, do not subject the camera to vibration or impact. The card or the data on the card may be damaged, and this unit may no longer operate normally. •The data on the built-in memory or the card may be damaged or lost due to...

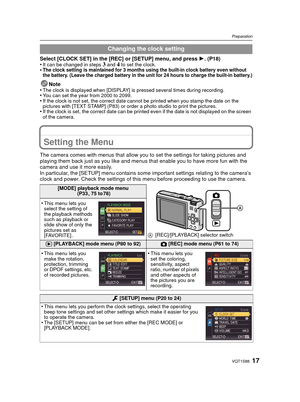

Page 17
![Page 17
17VQT1S88
Preparation
Select [CLOCK SET] in the [REC] or [SETUP] menu, and press 1. (P18)
•It can be changed in steps 3 and 4 to set the clock.•The clock setting is maintained for 3 months using the built-in clock battery even without
the battery. (Leave the charged battery in the unit for 24 hours to charge the built-in battery.)
Note
•The clock is displayed when [DISPLAY] is pressed several times during recording.•You can set the year from 2000 to 2099.•If the clock is not set, the correct date cannot...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-16.png "Page 17
17VQT1S88
Preparation
Select [CLOCK SET] in the [REC] or [SETUP] menu, and press 1. (P18)
•It can be changed in steps 3 and 4 to set the clock.•The clock setting is maintained for 3 months using the built-in clock battery even without
the battery. (Leave the charged battery in the unit for 24 hours to charge the built-in battery.)
Note
•The clock is displayed when [DISPLAY] is pressed several times during recording.•You can set the year from 2000 to 2099.•If the clock is not set, the correct date cannot...")
17VQT1S88 Preparation Select [CLOCK SET] in the [REC] or [SETUP] menu, and press 1. (P18) •It can be changed in steps 3 and 4 to set the clock.•The clock setting is maintained for 3 months using the built-in clock battery even without the battery. (Leave the charged battery in the unit for 24 hours to charge the built-in battery.) Note •The clock is displayed when [DISPLAY] is pressed several times during recording.•You can set the year from 2000 to 2099.•If the clock is not set, the correct date cannot...

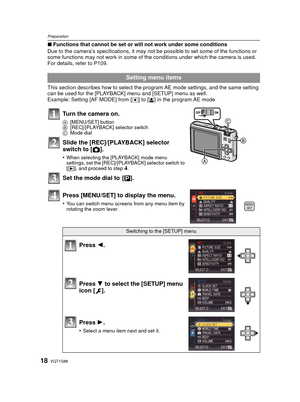

Page 18
![Page 18
VQT1S8818
Preparation
∫Functions that cannot be set or will not work under some conditions
Due to the camera’s specifications, it may not be possible to set some of the functions or
some functions may not work in some of the conditions under which the camera is used.
For details, refer to P109.
This section describes how to select the program AE mode settings, and the same setting
can be used for the [PLAYBACK] menu and [SETUP] menu as well.
Example: Setting [AF MODE] from [
Ø] to [š] in the program...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-17.png "Page 18
VQT1S8818
Preparation
∫Functions that cannot be set or will not work under some conditions
Due to the camera’s specifications, it may not be possible to set some of the functions or
some functions may not work in some of the conditions under which the camera is used.
For details, refer to P109.
This section describes how to select the program AE mode settings, and the same setting
can be used for the [PLAYBACK] menu and [SETUP] menu as well.
Example: Setting [AF MODE] from [
Ø] to [š] in the program...")
VQT1S8818 Preparation ∫Functions that cannot be set or will not work under some conditions Due to the camera’s specifications, it may not be possible to set some of the functions or some functions may not work in some of the conditions under which the camera is used. For details, refer to P109. This section describes how to select the program AE mode settings, and the same setting can be used for the [PLAYBACK] menu and [SETUP] menu as well. Example: Setting [AF MODE] from [ Ø] to [š] in the program...

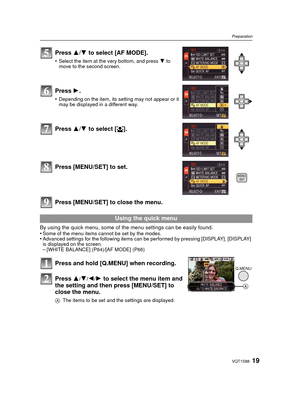

Page 19
![Page 19
19VQT1S88
Preparation
Press [MENU/SET] to close the menu.
By using the quick menu, some of the menu settings can be easily found.
•Some of the menu items cannot be set by the modes.•Advanced settings for the following items can be performed by pressing [DISPLAY]. [DISPLAY]
is displayed on the screen.
–[WHITE BALANCE] (P64)/[AF MODE] (P66)
Press 3/4 to select [AF MODE].
•Select the item at the very bottom, and press 4 to
move to the second screen.
Press 1.
•Depending on the item, its setting may not...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-18.png "Page 19
19VQT1S88
Preparation
Press [MENU/SET] to close the menu.
By using the quick menu, some of the menu settings can be easily found.
•Some of the menu items cannot be set by the modes.•Advanced settings for the following items can be performed by pressing [DISPLAY]. [DISPLAY]
is displayed on the screen.
–[WHITE BALANCE] (P64)/[AF MODE] (P66)
Press 3/4 to select [AF MODE].
•Select the item at the very bottom, and press 4 to
move to the second screen.
Press 1.
•Depending on the item, its setting may not...")
19VQT1S88 Preparation Press [MENU/SET] to close the menu. By using the quick menu, some of the menu settings can be easily found. •Some of the menu items cannot be set by the modes.•Advanced settings for the following items can be performed by pressing [DISPLAY]. [DISPLAY] is displayed on the screen. –[WHITE BALANCE] (P64)/[AF MODE] (P66) Press 3/4 to select [AF MODE]. •Select the item at the very bottom, and press 4 to move to the second screen. Press 1. •Depending on the item, its setting may not...

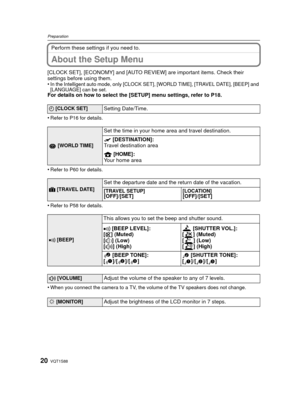

Page 20
![Page 20
VQT1S8820
Preparation
Perform these settings if you need to.
About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
•
In the Intelligent auto mode, only [CLOCK SET], [WORLD TIME], [TRAVEL DATE], [BEEP] and
[LANGUAGE] can be set.
For details on how to select the [SETUP] menu settings, refer to P18.
•
Refer to P16 for details.
•Refer to P60 for details.
•Refer to P58 for details.
•When you connect the camera to a TV, the volume of the TV...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-19.png "Page 20
VQT1S8820
Preparation
Perform these settings if you need to.
About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
•
In the Intelligent auto mode, only [CLOCK SET], [WORLD TIME], [TRAVEL DATE], [BEEP] and
[LANGUAGE] can be set.
For details on how to select the [SETUP] menu settings, refer to P18.
•
Refer to P16 for details.
•Refer to P60 for details.
•Refer to P58 for details.
•When you connect the camera to a TV, the volume of the TV...")
VQT1S8820 Preparation Perform these settings if you need to. About the Setup Menu [CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their settings before using them. • In the Intelligent auto mode, only [CLOCK SET], [WORLD TIME], [TRAVEL DATE], [BEEP] and [LANGUAGE] can be set. For details on how to select the [SETUP] menu settings, refer to P18. • Refer to P16 for details. •Refer to P60 for details. •Refer to P58 for details. •When you connect the camera to a TV, the volume of the TV...
